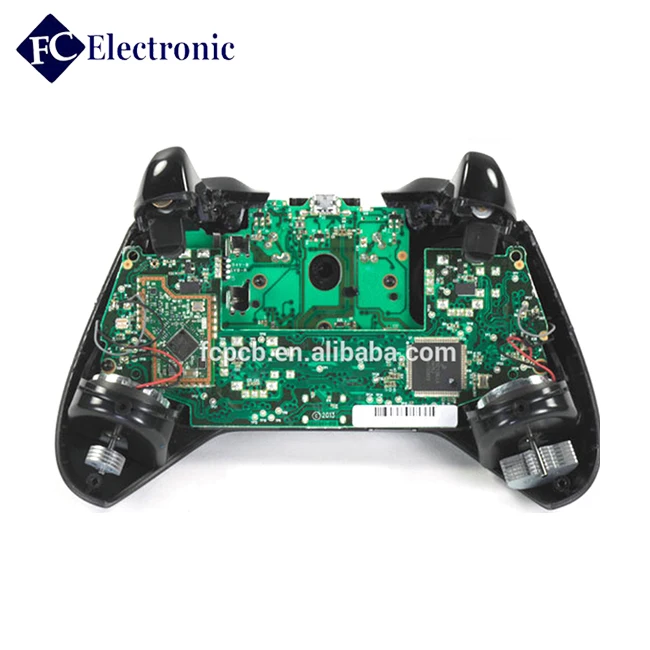

Xbox one game machine controller board electronic PCB assembly board

OEM/ODM/EMS Services for PCBA:

• PCBA, PCB Board assembly: SMT & PTH & BGA
• PCBA and enclosure design
• Components sourcing and purchasing
• Quick prototyping
• Plastic injection molding
• Metal sheet stamping
• Final assembly
• Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
• Custom clearance for material importing and product exporting

Capability - SMT

• Lines                   9(5 Yamaha,4KME)
• Capacity                 52 million placements per month
• Max Board Size           457*356mm.(18”X14”)
• Min Component size       0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP
• Speed                   0.15 sec/chip,0.7 sec/QFP

Capability - PTH

• Lines                   2
• Max board width         400 mm
• Type                   Dual wave
• Pbs status               Lead-free line support
• Max temp               399 degree C
• Spray flux               add-on
• Pre-heat                 3

       Product Type

          To ensure an accurate quote, be sure to include the following information for your project:

          •Complete GERBER files including the BOM list
          •Other file types (Altium,Protel,OrCAD)
          •"Read Me" notes for additional fabrication information
          •Quantities
          •Turn time
          •Panelization Requirements
          •Materials Requirements
          •Finish requirements
          Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.

          AOI Testing
                              Checks for solder paste
                              Checks for components down to 0201"
                              Checks for missing components, offset, incorrect parts, polarity
          X-Ray Inspection
                              X-Ray provides high-resolution inspection of:
                              BGAs
                              Micro BGAs
                              Chip scale packages
                              Bare boards
          In-Circuit Testing
                              In-Circuit Testing is commonly used in conjunction with AOI minimizing functional
                              defects caused by component problems.
          Power-up Test
                              Advanced Function Test
                              Flash Device Programming
                              Functional testing

                              We purchase material from Original Company and distributers.
                              We make products by strict engineer processes.
                              We have strict inspection processes.
                              We send products by vaccum package,antistatic package and carton box.

          1. Are my design files secure when I send them to you?

          Your files are held in complete safety and security.Your files are never shared nor will any third               parties have access to your design files.Fulltronics can sign an NDA(Non-disclosure                               agreement) before sending files.

          2. For small quantity orders, can you produce prototype PCBs?

          Yes. Fulltronics can produce prototypes. but the greater the quantity, the greater the cost                         savings.

          3. What file formats do you accept for PCB and assembly?

          Gerber ,CAM Auto CAD DXF, DWG formats.

          4. Do you have after-sales product servicing available for your customers?

          Yes, for any quality problems Fulltronics will take our responsibility to solve it for you any time.
