Well Drilling Oilfield Dissolvable disintegratiing Frac plug Bridge Plug Oil packer

Supplier: Chongqing Weiyun Technology Development Co., Ltd.
Region: Chongqing, China
Contact: Mr YX Liu
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local Service Location:	None;	Working temperature:	60/80/100/120/150℃;
Name:	Bridge plug;	Outside Diameter:	95mm - 146mm;
Port:	Chongqing;	Showroom Location:	None;
Setting:	Hydraulic pressure;	Applicable Industries:	Construction works ;
Degradation time:	15-25 days;	Packaging Detail:	Plywood carton;
Machinery Test Report:	Provided;	Materials:	Soluble material, polymer degradable material,high strength ceramic;
Video outgoing-inspection:	Provided;	Application:	Shale gas exploration, horizontal well and high deviated well;
Feature:	High Effective;	Supply Ability:	100 Set/Sets per Month;
Warranty:	1 Year;	Marketing Type:	New Product 2020;
Function:	Packer;	Type:	Downhole tool;
Working pressure:	70Mpa/10,000psi;	After Warranty Service:	Video technical support,Online support;
Core Components:	Pump;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Warranty of core components:	1 Year;

Well Drilling Machine Oilfield Bridge Plug

Product Description

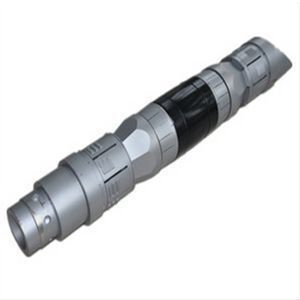

Water solubility dissolvable frac plug is a total new block-off downhole tool developed from conventional bridge plug. It organically mixes the patent soluble material, polymer degradable material and high strength ceramic technology, thus gets an outstanding performance of mechanism, solubility and degradation for the multi-staged fracture operation in the oil and gas well.

The body of dissolvable frac plug applies miscellaneous soluble metal materials, as well as that the rubber applies polymer degradable material; The dissolvable packer has 70Mpa pressure strength. According to different working condition, the dissolvable packer has tailored formula for different solubility time in order that releasing the reservoir block of horizontal well and highly deviated well automatically.

WINGOIL has developed four series dissolvable bridge plugs upon working temperature (60-80℃,80-100℃,100-120℃,120-150℃), the outer diameter of bridge plug is from 95mm to 146mm. All models are testified in oil and gas well operation with 100% success rate.

Characteristics
- Made of compound high strength soluble metals, guarantee the material strength under high temperature.
- Customized formula and the solubility time is flexible.
- Special high strength compound slips(max. Strength 1250Mpa), it is stable to long 15 days.
- Special cracking technology
- Good compatibility and inheritance, unnecessary to change existing strings structure, no risks resulted from drilling out and reduce the damage of casings.
