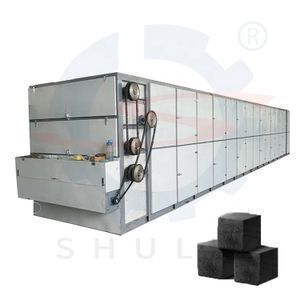

shuliy factory High Efficiency Energy Saving Continuous Hot Air Dewatering Hemp Flower Mesh Belt Dryer

Supplier: Zhengzhou Shuliy Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Beco Yang
Price: $7500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	4-10T;	After-sales Service Provided:	Engineers available to service overseas;
Port:	QingDao;	Certification:	CE ISO;
Key words:	drying equipment;	Application:	Medicine Processing,Chemicals Processing,Food Processing,charcoal processing,charcoal briquette ,fruits vegetables;
Supply Ability:	20 Set/Sets per Month;	Item:	mesh belt drying machine;
Name:	equipment drying room;	Power:	9.9-22.2kw;
Warranty:	1 Year;	Dimension(LWH):	customized;
Feature:	environment friendly,save time,etc;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Trolley Material:	Galvanized/Stainless steel;
Place of Origin:	Henan China;	Type:	Drying machine;
Brand Name:	shuliy;	Voltage:	380/220V;
Packaging Detail:	wooden case;	Condition:	New;
Trolley Type:	Integral/Split type;

Product Description

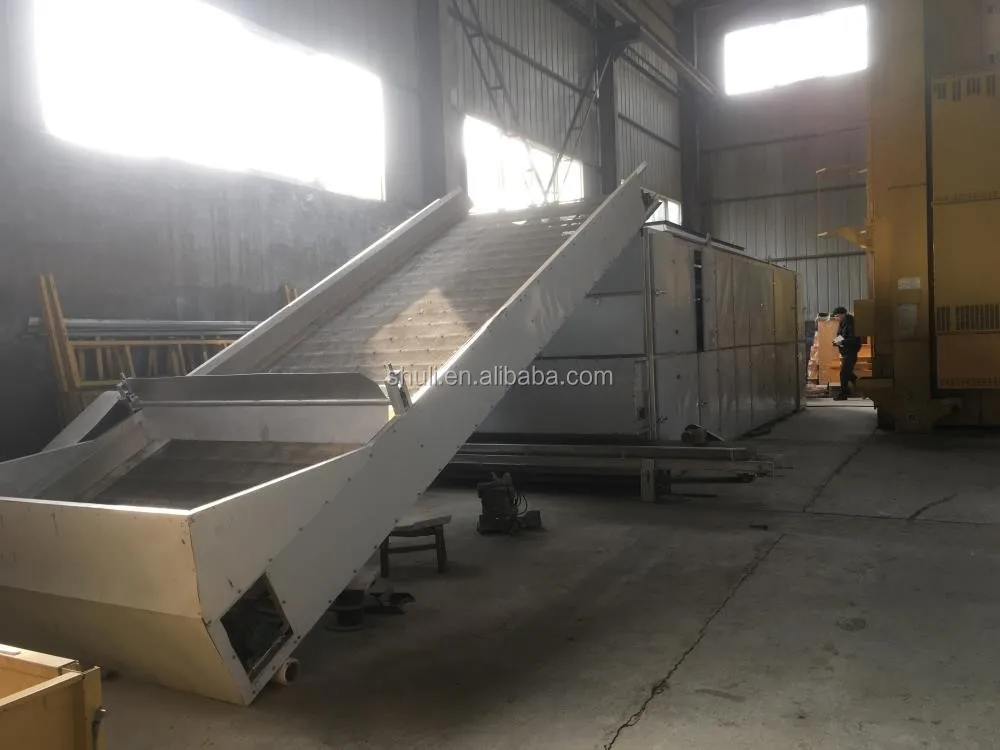

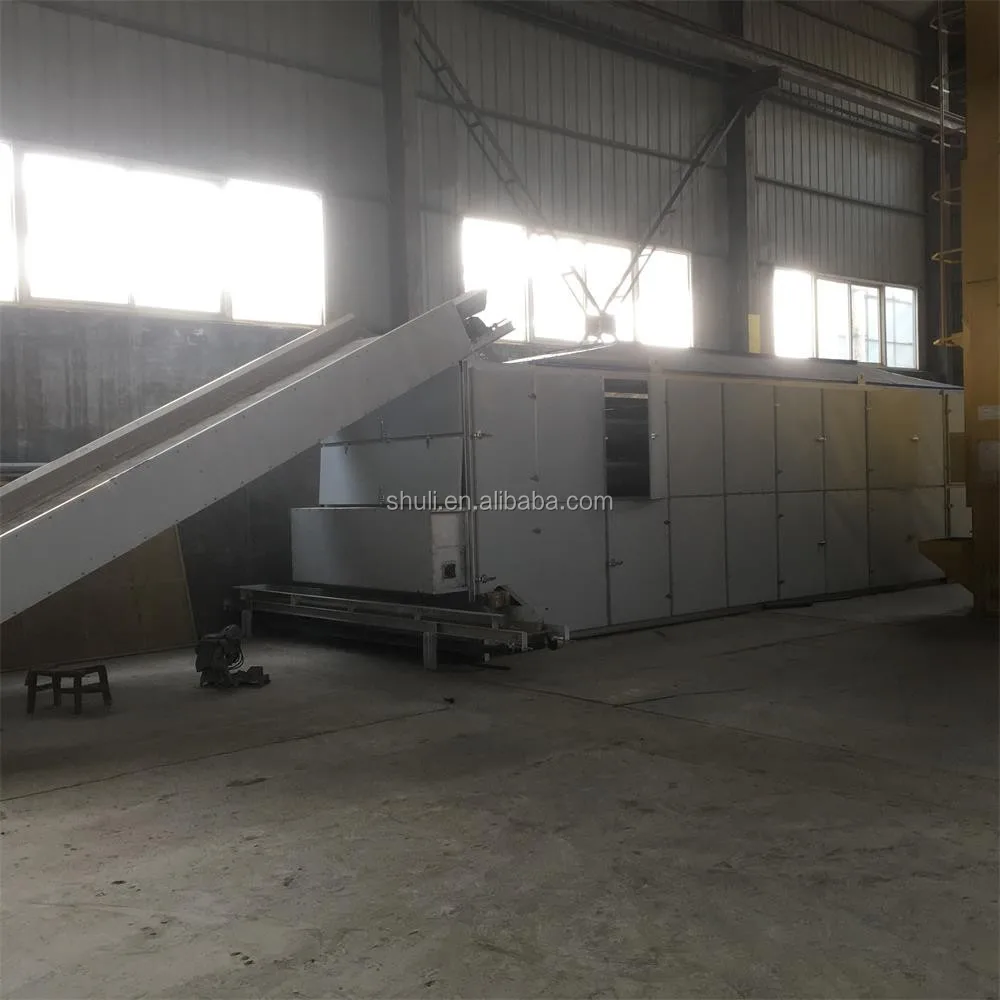

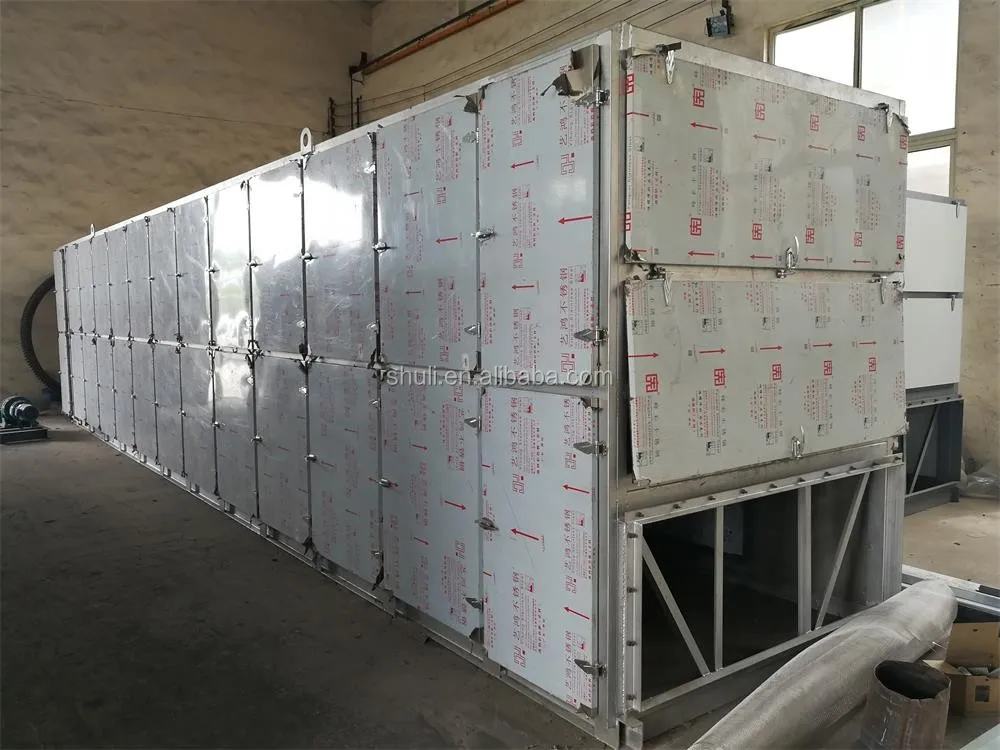

The mesh belt dryer is a drying device that uses a steel mesh as a conveyor belt to carry out continuous drying, and is suitable for running water. Since the conveyor belt is mesh-shaped, it is suitable for drying rules or irregular various blocks (such as charcoal, various mineral powder forming, food, vegetables, etc.). This unit can be used with other equipment. It can also be used alone. The equipment can be widely used in metallurgy, building materials, ceramics, chemical industry, etc., and the mesh belt dryer is also an ideal equipment for drying and processing food, vegetables, Chinese herbal medicines and vacuum packaging products.

Working Principle of equipment drying room:

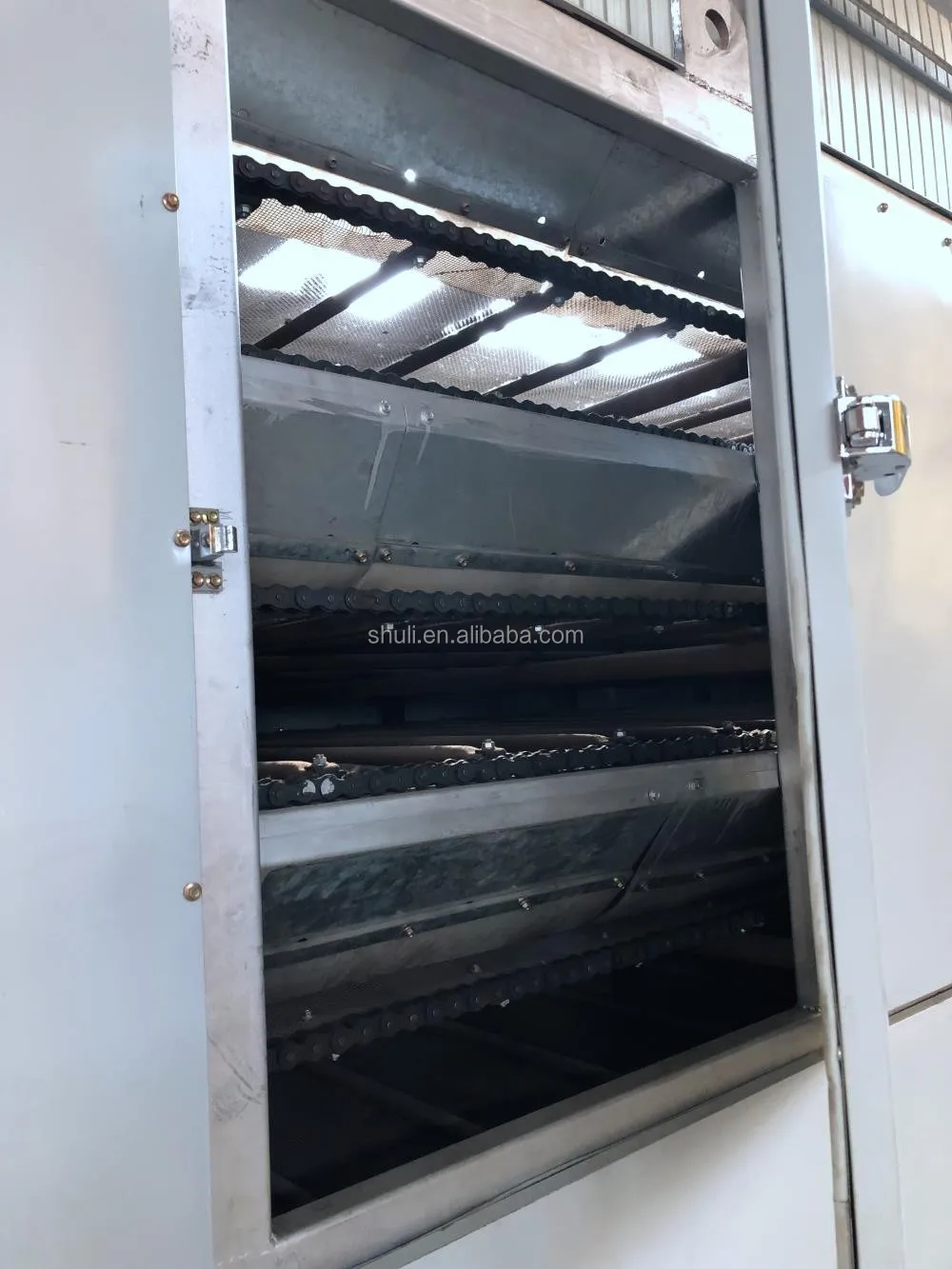

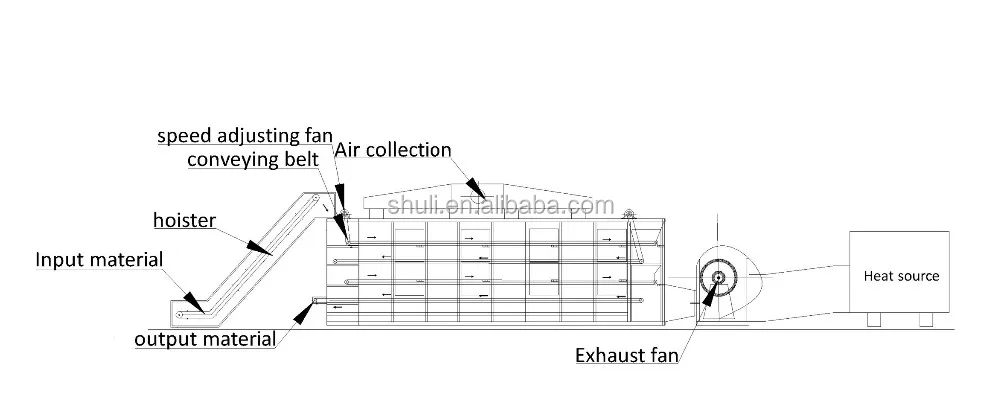

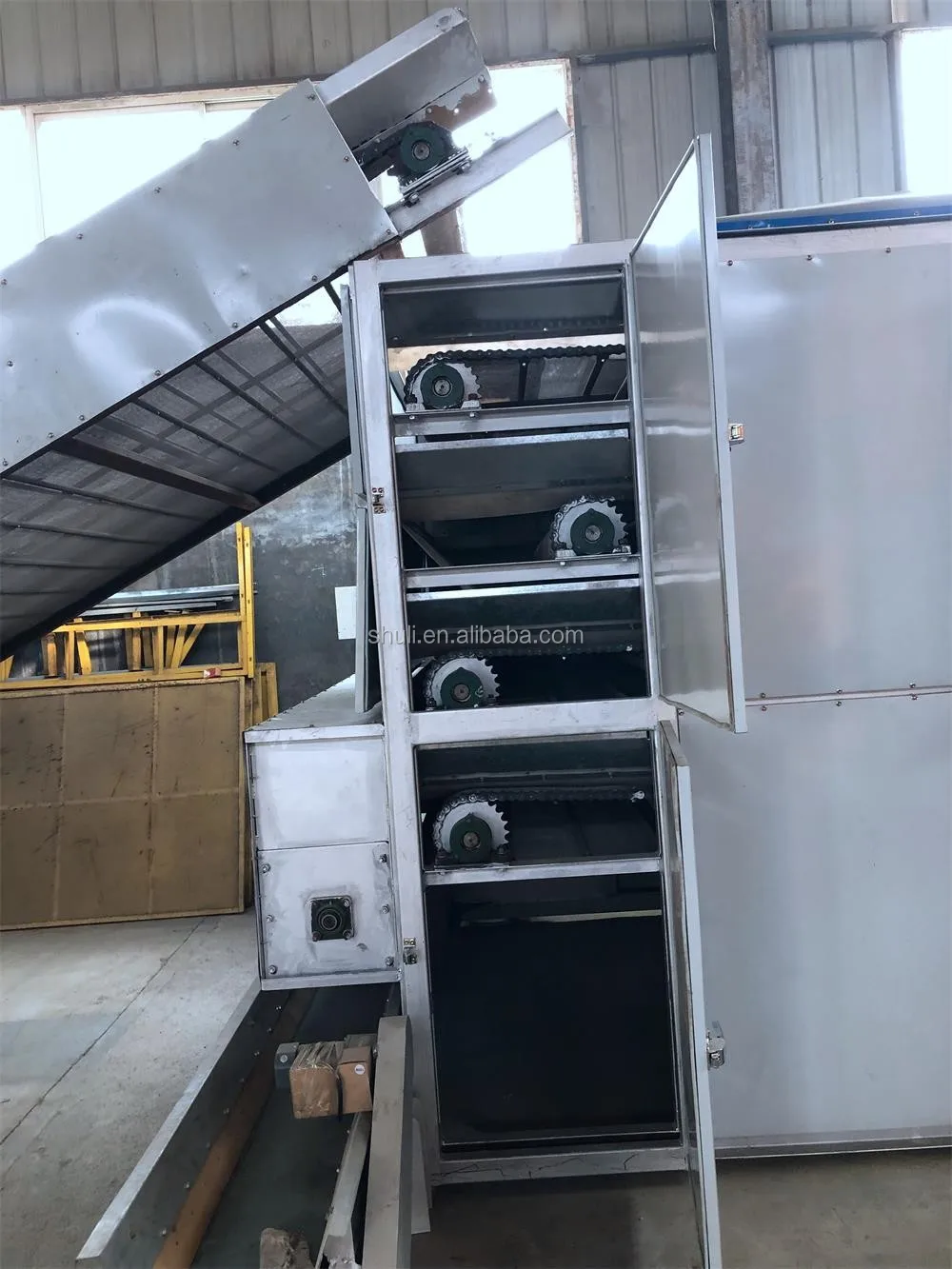

The multi-layer dryer is a batch and continuous production drying equipment. The main heating methods are electric heating, steam heating, hot air furnace heating and gas heating. The main principle is to evenly spread the material on the mesh belt. The mesh belt adopts a 12-60 mesh steel mesh belt, which is dragged and moved in the dryer by the transmission device. The hot air flows through the material, and the water vapor flows from The drainage hole is discharged to achieve the purpose of drying, and the length of the box body is composed of standard sections. In order to save the space, the dryer can be made into a multi-layer type, and the common ones are two-room three-layer, two-bedroom five-layer, four The room has five floors, four rooms and seven floors, etc. The length is 6-40m, and the effective width is 0.6-3.0m.

The advantages :

1. The mesh belt has good gas permeability, and the product drying cycle can be adjusted arbitrarily.
2. The equipment runs smoothly and the materials are not easily damaged.
3. Large drying area and high strength.
4. Hot air circulation structure, uniform temperature and reduced energy consumption.
5. According to customer needs, it can be divided into several units, each unit can control the loop separately.
6. There are various heat source selections, such as electric heating, heat transfer oil heating, hot air heating, etc.

Model	SL 1.2-1.8	SL 1.2-10	SL 1.6-8	SL 1.6-10	SL 2-8	SL 2-10
Layers	4	5	4	5	4	5
Width	1200mm	1200mm	1600mm	1600mm	2000mm	2000mm
Length	8m	10m	8m	10m	8m	10m
Power	9.9kw	12.1kw	9.9kw	12.1kw	18.2kw	22.2kw

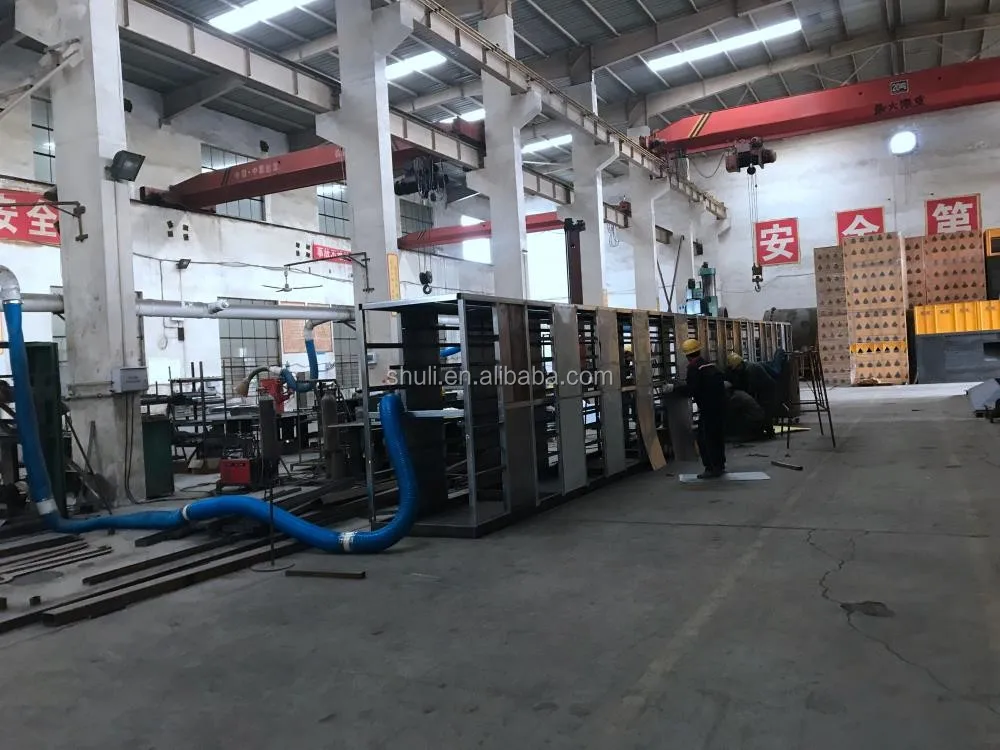

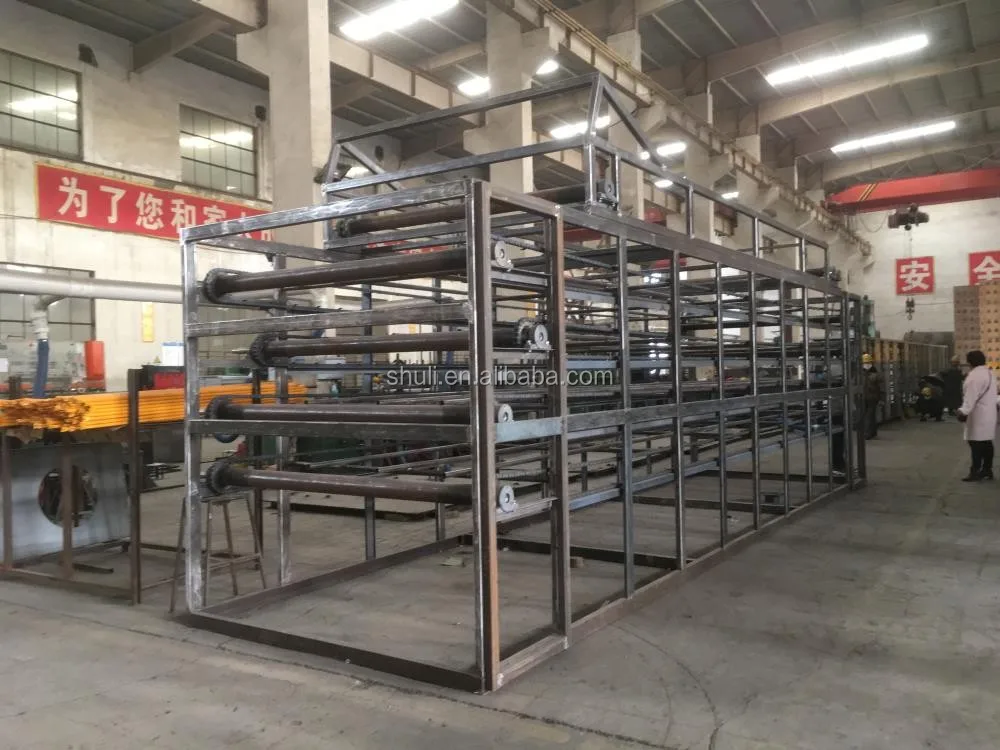

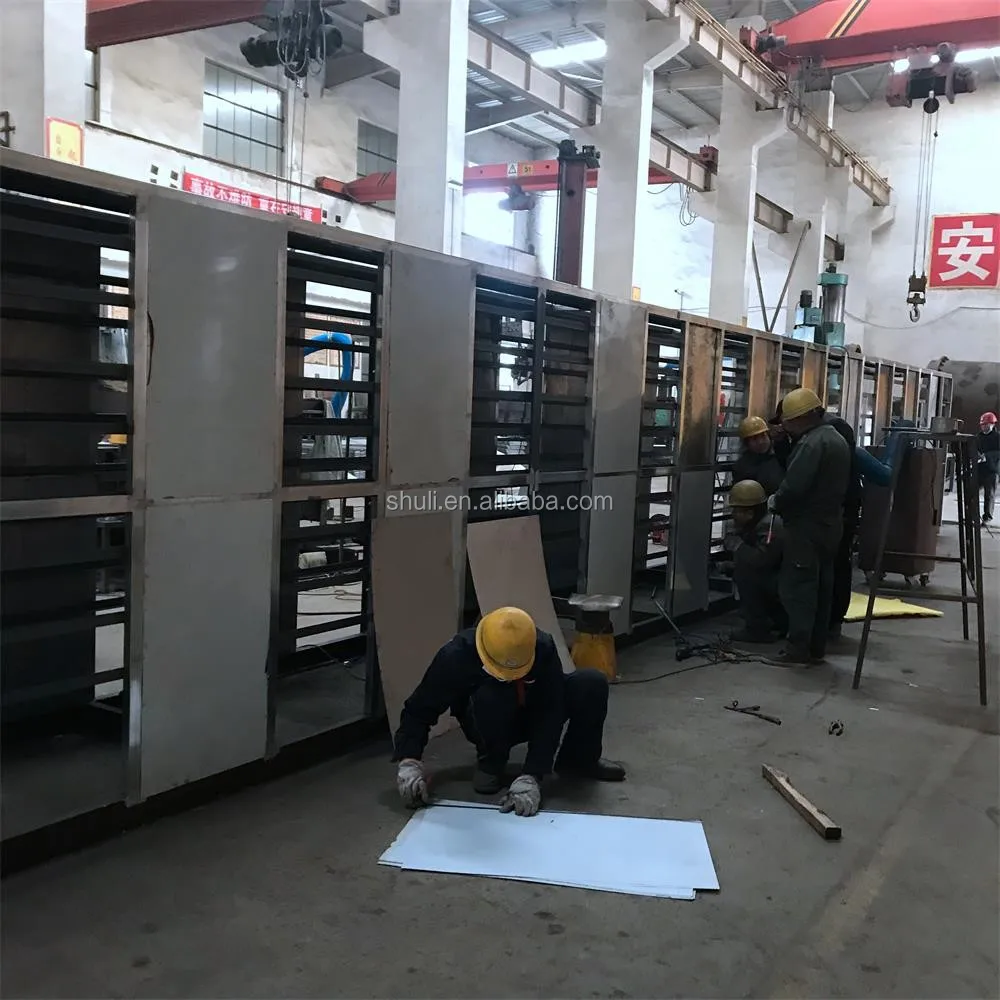

Our factory

Packing & Delivery

Our Service

Pre-sale services:
1,Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program
2,We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.

On-Sale services:
1,Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.
2,We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Services:
1,Training how to instal the machine, training how to use the charcoal machine.
2,Engineers available to service machinery overseas.

FAQ

Q: Why Choose Us?

1). More than 15 Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)And often visit customers to provide services to customers.

2). Manufacturer
Not Dealer Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.

Q: How do I know the quality of your machine?

You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.

Q: Will you dispatch the engineer to guide installation?

Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.

Certifications

Our Company

Shuliy Factory is specialized in machines used to make charcoal machine,include wood crusher machine,wood chipper,wood shaving machine,sawdust briquette machine,charcoal briquette machine ,carbonization furnace,charcoal ball press machine,shisha charcoal machine charcoal dryer machine and so on.We can customize the production line for you according to your requirement.In recent years, a large number of products exported to the Philippines ,Malaysia,Indonesia ,Canada,Australia,Congo ,Nigeria,Sudan,Saudi Arabia,the United States,India,Russia,Mongolia,Kazakhstan and other countries.
