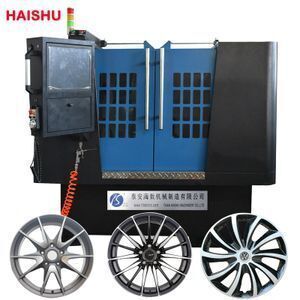

Diamond Cut Car Alloy Wheel Rim Repair CNC Lathe Machine

Supplier: Taian Haishu Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Chen Shir ley
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key word:	Wheel CNC Lathe;	CNC Control System:	HAISHU;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Diamond Cut Car Alloy Wheel Rim Repair CNC Lathe Machine;	Spindle speed:	Factory setting 150~2800;
Showroom Location:	United Kingdom,Italy,France,Germany;	Detection type:	Laser probe;
Product name:	Diamond Cut Car Alloy Wheel Rim Repair CNC Lathe Machine;	Structure:	Flat Bed Lathe;
Certification:	CE Certificate,ISO, BV;	Positioning Accuracy (mm):	0.01 mm;
Warranty of core components:	1 Year;	After Warranty Service:	Video technical support,Online support;
Max. Turned Length (mm):	400;	Color:	Customized Optional;
Model Number:	Wheel Repair Lathe CK6160W;	Key Selling Points:	High-accuracy;
Dimension(LWH):	190014001750;	Repeatability (X/Y/Z) (mm):	0.04;
Voltage:	Customer's Requirement;	Tool Post Stations:	ROW TOOL;
Marketing Type:	New Product 2020;	Travel (X Axis)(mm):	280 mm;
Packaging Detail:	Diamond Cut Car Alloy Wheel Rim Repair CNC Lathe Machine with standard export packing;	Spindle Motor Power(kW):	4;
Local Service Location:	United Kingdom,France,Germany;	Width of bed (mm):	260 mm;
Number of Axes:	3;	Max wheel size:	24 inch;
Brand Name:	HaiShu;	Travel (Z Axis)(mm):	550 mm;
Port:	Qingdao;	Supply Ability:	10 Set/Sets per Week Diamond Cut Car Alloy Wheel Rim Repair CNC Lathe Machine;
Core Components:	Motor;	Type:	Horizontal;
Max. Swing Diameter (mm):	600 mm;	Machining Capacity:	Medium Duty;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,car repair;	Condition:	New;
Max. Length of Workpiece (mm):	400 mm;	Weight (KG):	1000;
Toolpost Brand:	CUSTOMIZED;	Max. Spindle Speed (r.p.m):	2800 r.p.m;
After-sales Service Provided:	Online support,Video technical support;	Video outgoing-inspection:	Provided;
Control system:	Touch screen;	Machinery Test Report:	Provided;
Accessory:	Operation Video;	No. of Spindles:	Single;
Spindle Bore(mm):	48 m'm;	Place of Origin:	Shandong China;
Usage:	Alloy Wheel;	Warranty:	One Year Guarantee,1 Year;

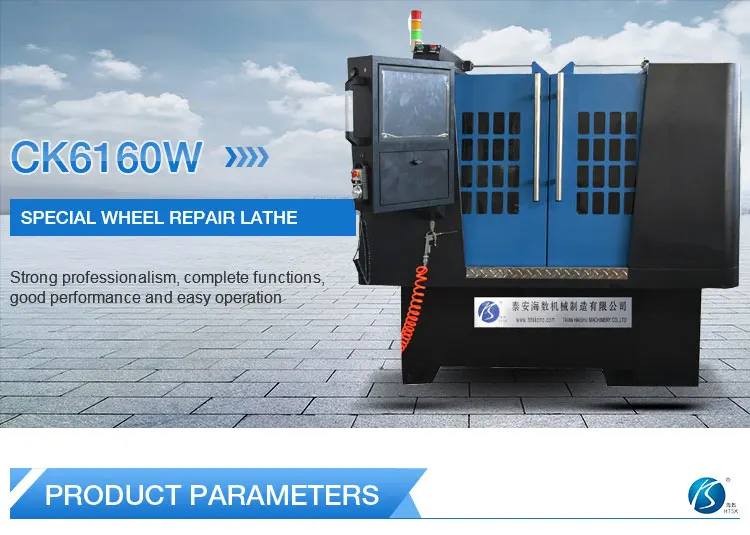

Diamond Cut Car Alloy Wheel Rim Repair CNC Lathe Machine

Item	Unit	parameters and configuration
Item	Unit	CK6160W
Max. wheel diameter	Inch	24"
X-axis maximum stroke	mm	320
Main motor power	kw	3
Rail width	mm	260
Max. workpiece length	mm	500
Wheel measuring direction		X,Z
Measuring tool	mm	Laser, probe (optional)
Measurement method		Point measurement and quick scan
Program optimization		Manual and automatic
Number of wheel processing programs		100000
CNC System		"HAISHU" special system (touch screen operation, 17 "screen LCD display).
Wheel processing		surface, rim
Mchining accuracy		IT6~IT7
Surface roughness	um	Ra0.8~1.6
Main drive form		Frequency control, servo drive (optional)
Spindle speed	rpm	150~2800 Factory setting 150~2800
Fast-moving feed	mm/min	X :5000 Z :8000
Repeat accuracy	mm	X :0.01 Z :0.015
Turret form		Fixed turret,Electric turret (optional)
Section of turning tool	mm	25×25
Machine size(L×W×H)	mm	1900×1400×1750
Net weight	kg	1300

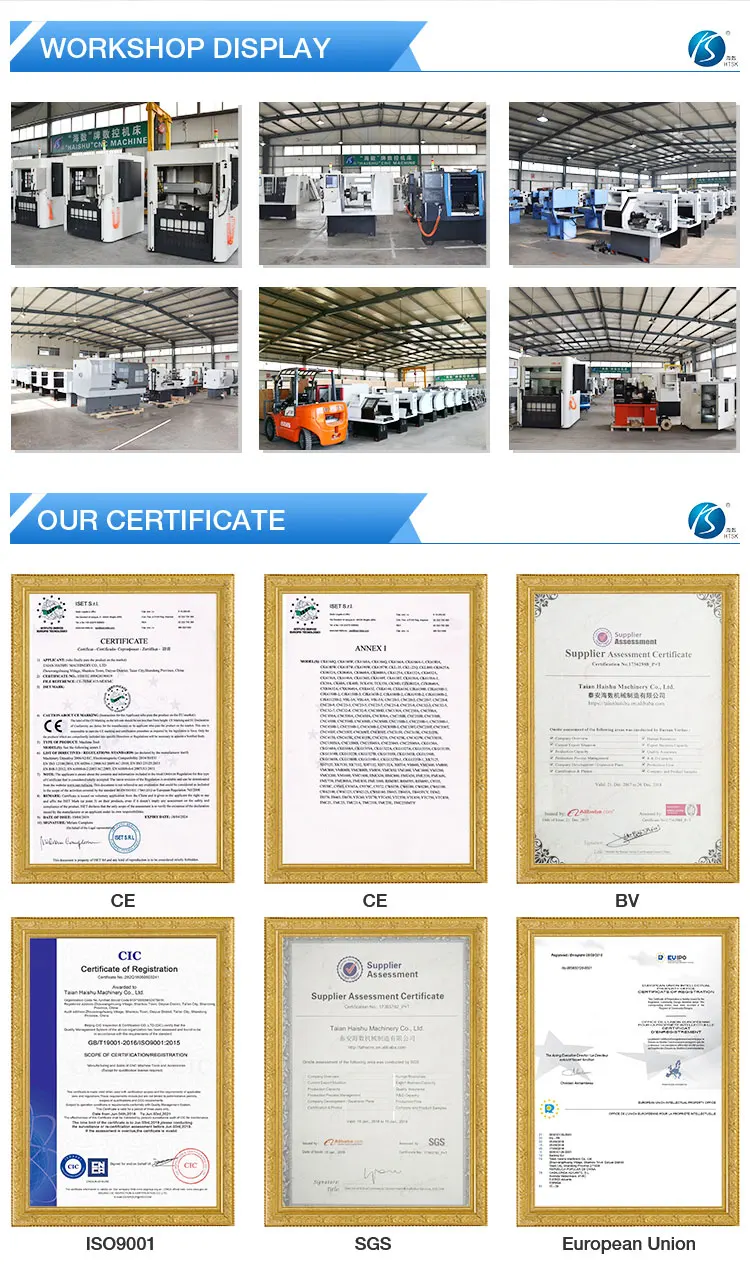

We have a professional R & D team, we can design the machine appearance and can also customize machine according to your requirements. The patent certificate of the machine we designed:
