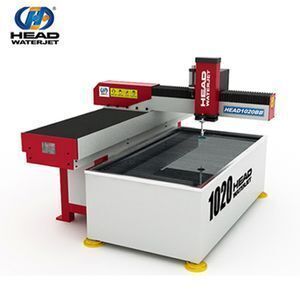

Professional manufacturer cantilever type 3 axis CNC small waterjet cutting machine price cutting metals
-
Supplier: Shenyang Head Science & Technology Corporation -
Region: Liaoning, China -
Contact: Ms Karen Zheng -
Price: $33000.00 /set -
Min. Order: 1 set
| Marketing Type: | New Product 2020; | Re-position accuracy: | 0.02mm; |
| Z-axis travel journey: | 150mm(customizable); | Condition: | New; |
| Continuous operating pressure: | 370MPa-390MPa; | Year: | 2020; |
| Warranty: | 1 Year; | Dimension(L*W*H): | Machine Model; |
| Max nozzle diameter: | 0.33mm; | Place of Origin: | Liaoning China; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Advertising Company; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Max cutting thickness: | 100mm; | Core Components: | Motor,Pump; |
| Key Selling Points: | Low Maintenance Cost; | Max water discharge: | 3.7L/min; |
| Max oil discharge: | 96L/min; | Port: | Dalian,China.Professional manufacturer cantilever type 3 axis CNC small waterjet cutting machine price cutting metals; |
| Rated Power: | 37kw; | Package Preview: | ; |
| Machinery Test Report: | Provided; | Warranty of core components: | 1 Year; |
| Local Service Location: | Canada,Turkey,United Kingdom,United States,France,Germany,Viet Nam,Peru,Indonesia,India,Mexico,Russia,Malaysia,Australia,Sri Lanka,Tajikistan; | Video outgoing-inspection: | Provided; |
| Voltage: | 220V/380V 50HZ; | Certification: | CE ISO; |
| Type: | Water Jet Cutters; | Supply Ability: | 30 Set/Sets per Month Professional manufacturer cantilever type 3 axis CNC small water; |
| Cutting accuracy: | 0.1mm; | Weight: | 3500kg; |
| Max operating pressure: | 420MPa/60000psi; | After Warranty Service: | Video technical support,Online support; |
| Controlling accuracy: | 0.01mm; | Packaging Detail: | Professional manufacturer cantilever type 3 axis CNC small waterjet cutting machine price cutting metals; |
| Showroom Location: | Turkey,United Kingdom,United States,France,Germany,Viet Nam,Brazil,Peru,Indonesia,Mexico,Russia,Thailand,Sri Lanka,Malaysia,Australia; | Brand Name: | HEAD; |
Product Description
| Cantiliver Type Cutting Table for Water jet machine | |||
| 1010BB | 1313BB | 1020BB | 1520BB |
| 1000mm*1000mm | 1300mm*1300mm | 1000mm*2000mm | 1500mm*2000mm |
| 1525BB | 1530BB | 1540BB | Other |
| 1500mm*2500mm | 1500mm*3000mm | 1500mm*4000mm | customized |
| Technical Note | |||
| Cutting accuracy: | 0.1mm | Control accuracy: | 0.01mm |
| Re-position accuracy: | 0.02mm | Z-axis journey: | 150mm(customizable ) |
| Max cutting thickness: | 100mm | Max traveling speed: | 6000mm/min |
| Way of drive: | servo drive | Servo motor: | Yaskawa Brand from Japan |
| Ball screw and linear guide | ABBA Brand from Taiwan | Power: | 220/380/415VAC, 50/60 Hz |
|
Water jet cutting machine can cut metal,stainless steel, stone, marble, glass, ceramics, compound materials,plastics,etc.
|
|||

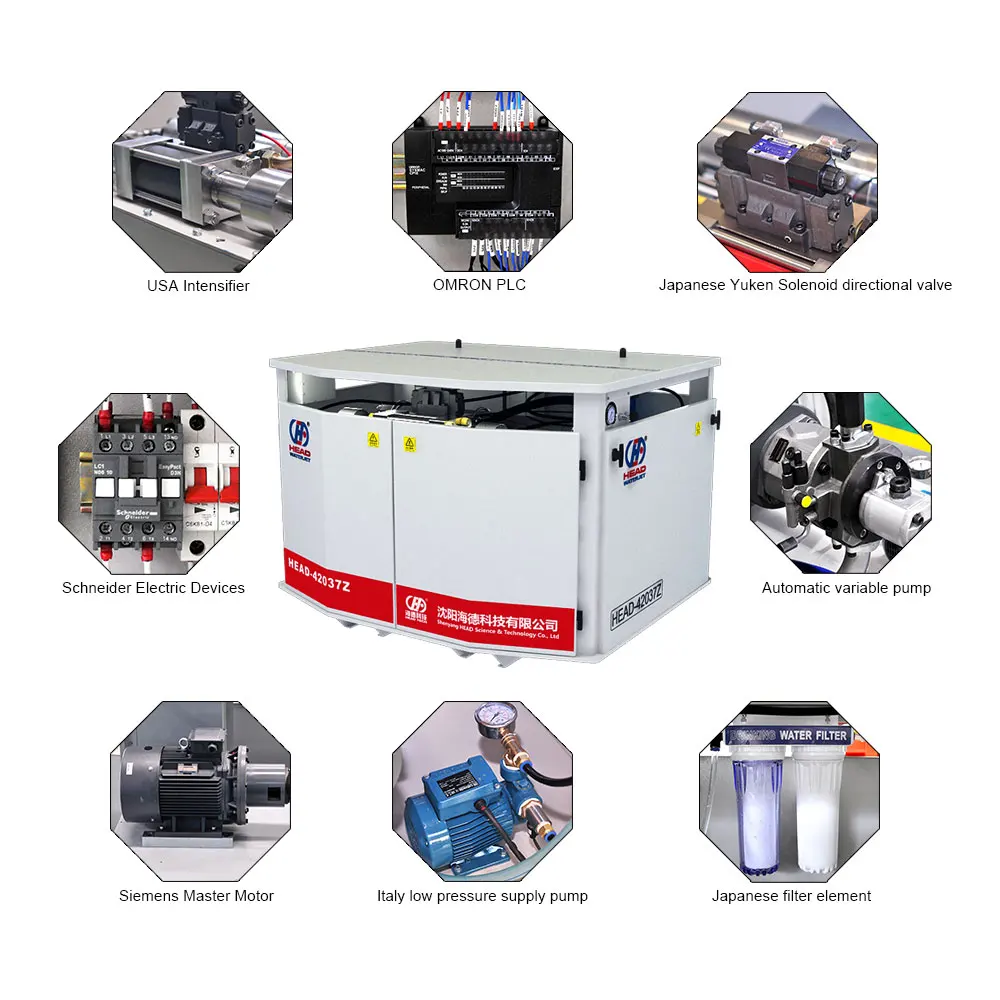

Intensifier is the power source of the whole set of waterjet cutting machine.The pressure strength,the pressure stability.It directly affect the cutting efficiency,cutting surface quality,precision and the whole cost.
| 420Mpa/60000psi High-pressure pump for Water jet machine | |||
| Max operating pressure: | 420Mpa/60000psi | Continuous operating pressure: |
370-390 Mpa |
| Max.water discharge: | 3.7 L/min | Power requirement: | 37KW,380V,50Hz |
| Max.oil discharge: | 96 L/min | Accumulator capability: | 1.2L |
| Max. diameter orifice: | 0.30mm | Two step water filter: | 5micron,1micron,0.45micron |
|
Type of pressurization is hydraulic. (The water is pressurized by usiing the fluid pressure intensification principle.) |
|||
| Maintenance free accumulator whose capability is 1.2L using American technology. | |||
| Intensifier is Accustream Brand from America. | |||
| Function:Inadequate water supply Automatic alarm;Pollution alarm;Oil cooling alarm; Oil temperature alarm. | |||

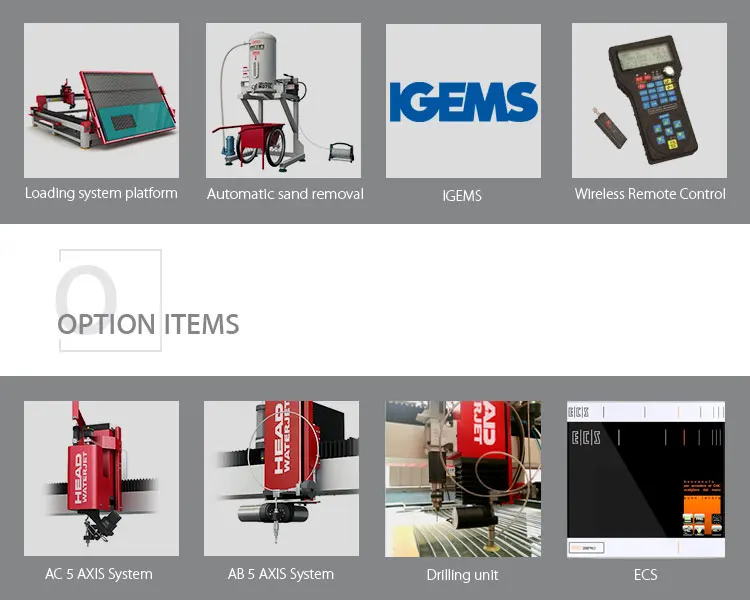

There are many options parts available to suit your needs:
Besides the basic component,the option parts can make your working more and more efficient.

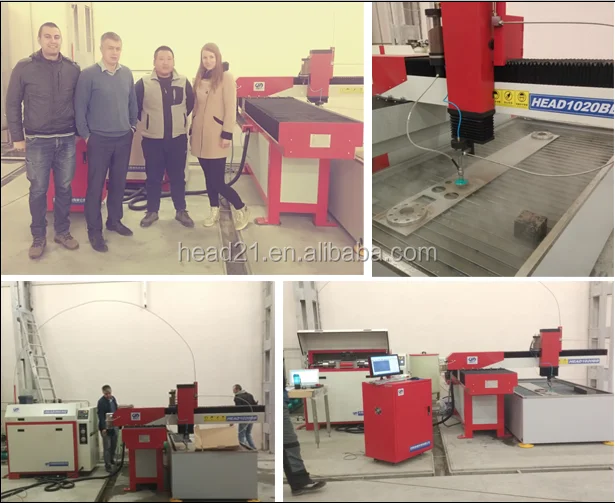

Customer Case

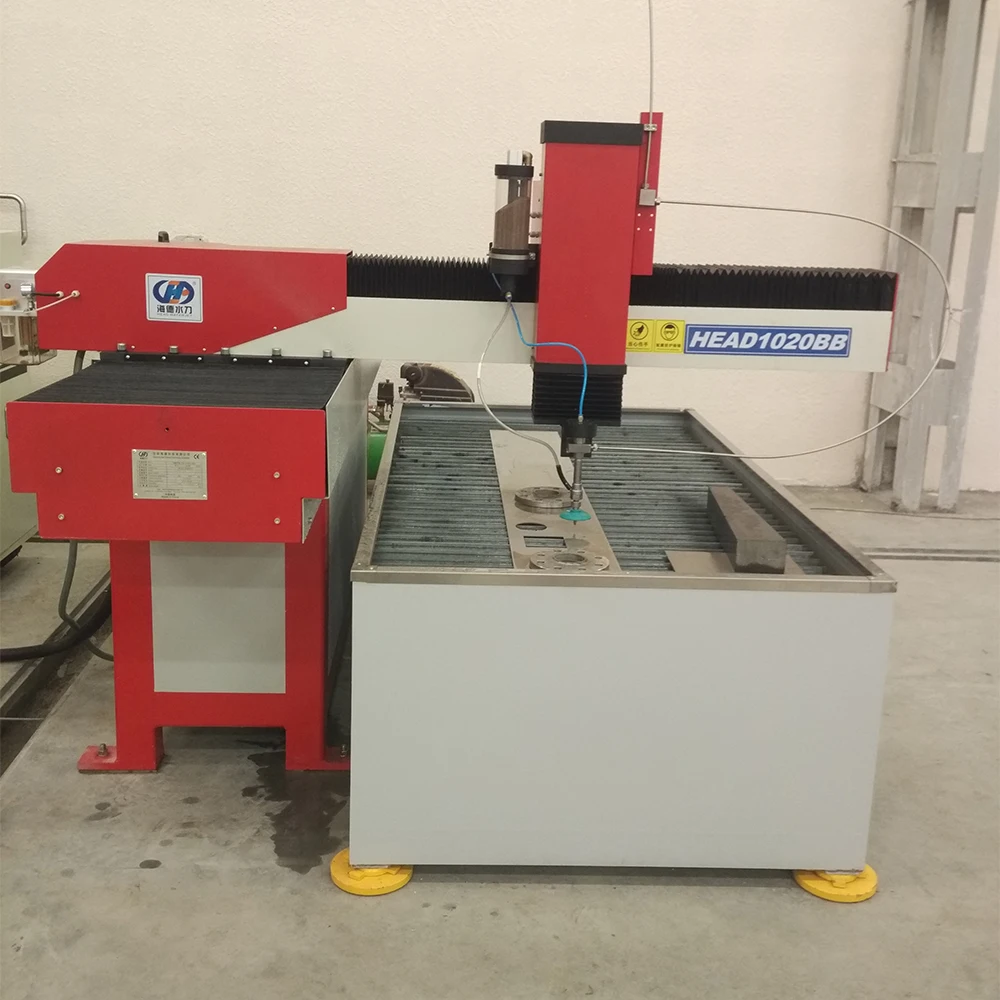

Our Water jet Machine with "HEAD1020BB"model in Russia.It has been fully affirmed by our customer.
Firstly,we use high-quality casting process to ensure the machine structure more solid, more stable, longer life
Secondly,we strictly control the quality inspection process to ensure that all components have high precision.
HEAD Waterjet cutting mahine equipment processing takes about 30 days,we strictly control every step of the process,in order to achieve the best quality production.

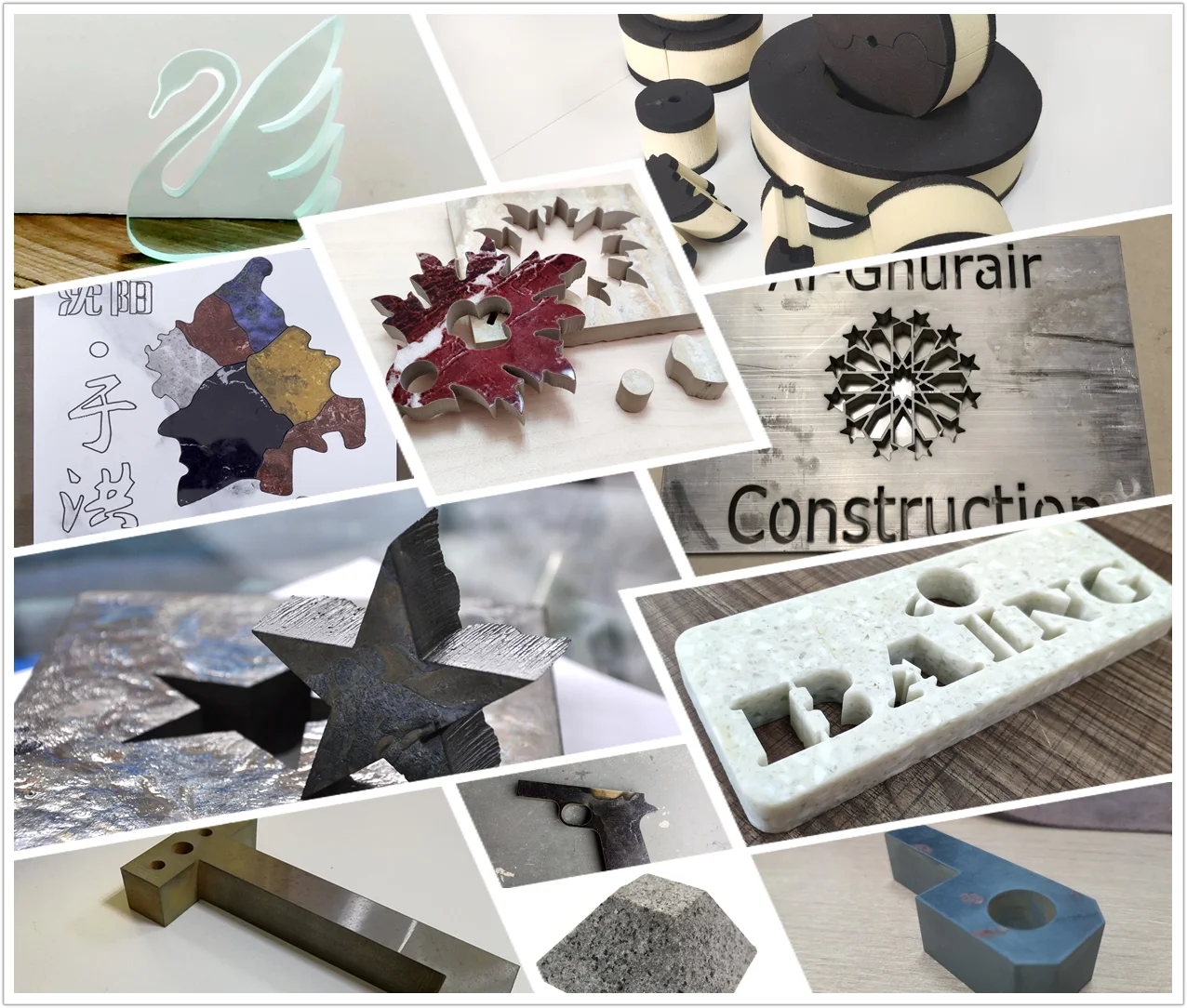

Cutting Samples
HEAD Waterjet Cutting Machine can cut various kinds of metals.In addition to metal,also can cut marble,stone,glass,plastic,etc.Welcome to consult us: juddy @hdwaterjet.com
Honourable Suppliers
We just cooperate with superior suppliers to keep our quality!
We use 20' container shipping by sea.Soft package before shipping.
Our Package Advantage:
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
HEAD WATER JET MAKES CUTTING IS NO LONGER PROBLEM !
>>>Brief Introduction Of HEAD waterjet company
Shenyang HEAD Science &Technology Co., Ltd. is specializing in the design, research and development, production and sales of CNC super high pressure waterjet cutting machines and related parts.HEAD meets various international certifications, such as ISO9001-certified, CE certified, Alibaba International SGS-certified and so on.
Currently HEAD have more than 20patents in the field of waterjet cutting machines, and more than 30 series of self-designed water-cutting machines. The cutting range includes more than 500 kinds of materials, which can meet the cutting needs of different users. HEAD has more than 200 overseas customers, more than 150 sets of equipment which can meet professional needs are sold overseas annually, covering more than 50 countries and regions around the world.
"HEAD" brand water cutting machine has been loved and chosen by more and more domestic and foreign customers.
HEAD Waterjet Cutting Machine has been sold over 32 countries in the world.Welcome to visit our local machine used by our customers.
Overseas service and Operator training is available by our professional engineer.
Contact Us
HEAD Make your cutting no longer a problem!
- For the large glass or marble cutting, we recommend our floor type loading system to load and unload glass or marble easily and reduce glass or marble broken.Click this to know more.
- We also have the most advanced technology 5-axis system cutting machine.Click this to know more.
FAQ:
1. Why is HEAD:
- High Pressure:Water jet continuous working pressure can be over 200Mpa and waterjet speed can be up to 800-1000m/s.
- Efficient working:Easy to operate,no need special clamps on the workpieces,can cut any shapes and drill any curve without mould,if with other processing devices(such us drill bit),the workpieces untilization ratio will be optimized at most.
- All-powerful:Waterjet cutting is with the widest applicable range,which can cut more than 500 materials,compound materials,plastics,ceramics,glass,stone,glass fiber,reinforced plastic,aluminum,copper,carbon steel,alloy steel,stainless steel,etc.
- Different:Cold cutting,no heat,no arc marks in the edge,no second processing,easy for reprocessing.It's the best way to cut the materials which are afraid of heat.
2.How is your machine's working principle ?
- HEAD Waterjet cutting machine use UHP Waterjet Cutting Technology.Tap water is impressed to 200-400Mpa by UHP Intensifier,and then a waterjet with high speed of 800-1000m/s is made through a small gemnozzle with bore size of 0.1-0.35mm.This waterjet has high energy and it can cut soft materials such as paper,rubber,sponge,etc.Furthermore,if mixed proper quantity abrasive,it can cut all kinds of soft and hard materials such as glass,marble,ceramics,stainless steel,etc.
-
