waterjet abrasive garnet sand

Garnet is a natural product with chemically inert, non-toxic metals and crystalline silica.

With its good hardness,garnet has been used as a gemstone and blasting abrasives.

The density of pure waterjet energy is often insufficient for machining many technical materials. In respect of appropriate applications the waterjet is supplemented solid particles .

Therefore the waterjet machining can be used also for materials which can not be machined just by pure waterjet application .

An application of additional abrasive agent causes also a significant increase of the cutting capacity in comparison to pure waterjet technology .

For the so called abrasive , mineral materials with sharp edges are used , like garnet sand or olivine with grain sizes approx 0.1 to 0.3mm .

For abrasive  cutting , depending on application , the required quantity of the abrasive materials varies from 100 to 800g per minute .

For both technologies the applied pressure reached up to 6000bar .

The jet diameter ranges between 0.3 to 1.2 mm .

Cutting together with abrasive agent also enables cutting of materials with thickness up to 300mm .

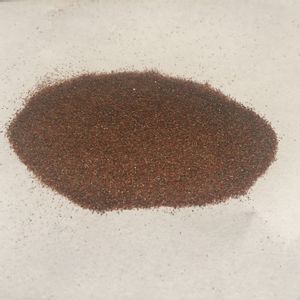

Product Description: Garnet(60-100Mesh)( Natural Emery), also name waterjet abrasive.
Chemical Name: Al(Ca) Silicate
Hardness: (7.5-7.9 Mohs)
Melting Point: (1313-1318℃)
Specific Gravity: (3.5~4.3g/cm³)

Acid Fastness: (98.81℃)

Specification:25KG/Bag
chemical composition:

SiO₂ 38-40%
AL₂O₃ 20-23%
Fe₂O₃ 4.5%
CaO 8.5%
MgO 5-6%
TiO₂ 1.0-1.5%
FeO 18-20%
Product Use: Waterjet cutting
Processing Technics:

Select the rock with 85.4% garnet. Artificially dry it to reduce the moisture to 4.7%. After smashing by machine, acid wash (remove impurity) and water wash (remove sand and dirt) and second artificial dry ( to get rid of dirt) to reduce the moisture lower than 5%. Finally sifting screen technics makes them more even. And pack.

Recommendation: 60Mesh abrasive is used to cut stainless steel, copper, marble.80Mesh abrasive is used to cut ceramic and glass wares.
