Port: | Any Port In China; | Machinery Test Report: | Provided; |
Packaging Detail: | 2 Color Flexographic Printing Machine/Flexo Printing Machine packed by films, using wooden case when it shipped by LCL; | Supply Ability: | 30 Set/Sets per Month 2 Color Flexographic Printing Macine/Flexo Printing Machine; |
Printing Material: | Film, Non-woven fabric, Paper, and so on; | Color: | 2.4.6 Color; |
Core Components: | PLC; | Automatic Grade: | Semi-automatic; |
Key Selling Points: | Multi Color; | Printing Speed: | 10-50m/min; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Type: | Flexographic Printer; |
Color & Page: | Two colors; | Weight: | 1800kg; |
Two Color Flexo Printing Machine: | 2 Color Flexographic Printing Machine/Flexo Printing Machine; | Local Service Location: | Pakistan,India,UAE; |
Applicable Industries: | Manufacturing Plant; | Plate Type: | Flexo Printing Machine; |
Warranty of core components: | 1 Year; | Max. Dia. Of Unwind: | 600mm; |
After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Condition: | New; |
Dia. Of Roller: | 76mm; | Dimensions(L*W*H): | 2300*1600*2200mm; |
Certification: | CE; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Warranty: | 1 Year; | Principle of Work: | Gears Drive; |
Plated-glued roller adjusting: | Manual; | Brand Name: | GAWANG; |
Video outgoing-inspection: | Provided; | Showroom Location: | Pakistan,India,UAE; |
Usage: | Paper Printer; | Voltage: | 220V/380V; |
Place of Origin: | Zhejiang China; | Package Preview: | ; |
Marketing Type: | New Product 2019; | Type of wind: | Friction; |
Material of Plate: | Resin and Rubber; |

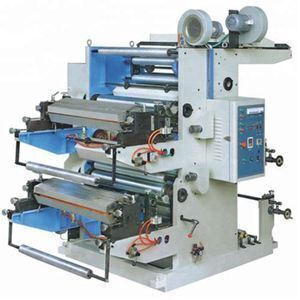

2 Color Flexographic Printing Machine/Flexo Printing Machine
1)Main Parameter |
|||
Model |
EN-2600 |
EN-2800 |
EN-21000 |
Material |
Film, Non-woven fabric, Paper, and so on |
||
Max. Width of Printing Material |
600mm |
800mm |
1000mm |
Max. Effective Width of Printing |
560mm |
760mm |
960mm |
Length Range of Printed Product |
191-914mm |
191-914mm |
191-914mm |
Speed of Material Printing |
10-50m/min |
10-50m/min |
10-50m/min |
Thickness of Plate |
2.38mm |
2.38mm |
2.38mm |
Machine dimension(L×W×H) |
2300×1600×2200mm |
2300×1800×2200mm |
2300×2000×2200mm |
Machine weight |
1500kg |
1800kg |
2000kg |
Voltage |
380V,3PH,50HZ |
380V,3PH,50HZ |
380V,3PH,50HZ |
2)Unwind Unit |
|||
The width of Roller |
650mm |
850 |
1050mm |
Max. width of Effective Roller |
600mm |
800mm |
1000mm |
Dia. Of Roller |
76mm |
76mm |
76mm |
Max. Dia. Of Unwind |
600mm |
600mm |
600mm |
Type of Unwind |
Manual |
Manual |
Manual |
3) Traction Unit |
|||
Constitution of Traction |
Rubber Roller and Chrome plated Roller |
||
Traction Zones |
2 |
2 |
2 |
4) Printing Unit |
|||
Constitution of Printing |
Chrome plated Roller, Rubber Roller, Metal Anilox Roller, Plate-glued roller |
||
Girth of Pressing Roller |
600mm |
600mm |
600mm |
Material of Plate |
Resin and Rubber |
Resin and Rubber |
Resin and Rubber |
Principle of Work: |
Gears Drive |
Gears Drive |
Gears Drive |
Type of Chromatically: |
360 degree circulating |
||
Way of Adjusting: |
Manual |
||
Plated-glued roller adjusting: |
Manual |
||
5)Heating and Drying Unit |
|||
Type of Heating and drying : |
Blowing first then heating |
||
Heating Zones: |
4 zones |
4 zones |
4 zones |
Power of Heating : |
6kw |
6kw |
6kw |
Assistance of Drying Length: |
1000mm |
1000mm |
1000mm |
Blowers: |
2 Fans |
2 Fans |
2 Fans |
Power of Blowers: |
0.55kw×2pcs |
0.55kw×2pcs |
0.75kw×1pcs 0.55kw×1pcs |
6)Electrical Parts |
|||
Main motors |
1.5 kw |
1.5 kw |
1.5 kw |
Ink-Transfer Motor |
10 w×2pcs |
10 w×2pcs |
15 w×2pcs |
An Inverter Equips With the Main Motor |
|||
7) Wind Unit |
|||
The width of Roller |
650mm |
850mm |
1050mm |
Max. width of Effective Roller |
600mm |
800mm |
1000mm |
Dia. of Roller |
76mm |
76mm |
76mm |
Max. Dia. of wind |
600mm |
600mm |
600mm |
Type of wind |
Friction |
Friction |
Friction |
2 Color Flexographic Printing Machine/Flexo Printing Machine is Film wrapping and wooden case packing
We offer not only the products, but also the solutions.
For all of our machines, we provide:
lOperation Manual, Operation or repair Video,
l1year guarantee, 1Year spare parts packing together with the machine,the whole life technician support.
l24-hours Email technical support, we will do our best to help the clients solve any question or problems.
lAvailable to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
Ruian Gawang Machine Co.,Ltd. was found in 2005,which is specialized in packing machinery of paper and plastic.We have our own factory so that it is easy to meet our customers' needs.All of our products passed the CE and SGS certification.
Manufacture and exporting all kinds of paper and plastic packing machine,such as slitting and rewinding machine,paper cutting machine,flexo printing machine,gravure printing machine,A4 paper cutting machine,rotary paper sheeting machine,paper core making machine,paper core cutting machine,coating and laminating machine and plastic bag making machine.
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Q4. if the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
