Dimension(L*W*H): | 2810*1600*1620MM; | Brand Name: | WEIDA; |
Center distance: | 1000mm; | Showroom Location: | Egypt,Canada,Turkey,United Kingdom,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia,None; |
Key Selling Points: | High Productivity; | Condition: | New; |
Supply Ability: | 20 Set/Sets per Month CK6150A China lathe cnc machine; | Tool Post Stations: | 6,4; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,we can negotiate on this; | Max. Turned Length (mm): | 850; |
CNC Control System: | FANUC; | Travel (Z Axis)(mm): | 900; |
Max. swing dia. over carriage: | 290mm; | Automatic Grade: | Automatic; |
Travel (X Axis)(mm): | 295; | max. swing over bed: | 500mm; |
Repeatability (X/Y/Z) (mm): | 0.012; | Spindle Motor Power(kW): | 7.5; |
Spindle hole dia.: | 80mm; | After-sales Service Provided: | Online support,Video technical support,Free spare parts; |
Certification: | CE,ISO9001:2008; | Local Service Location: | Egypt,Canada,Turkey,United Kingdom,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,None; |
CNC or Not: | CNC; | No. of Spindles: | Single; |
spindle dia.: | 82mm; | Width of bed (mm): | 400; |
Max. Turning dia. Of slider: | 400mm; | Machining Capacity: | Medium Duty; |
Positioning Accuracy (mm): | 0.03 mm; | Package Preview: | ; |
Voltage: | Customer's Requirement; | Max. Turning diameter: | 850mm; |
Number of Axes: | 2; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Model Number: | CK6150A; | Max. Length of Workpiece (mm): | 1000; |
Weight (KG): | 2420; | Toolpost Brand: | Hongda; |
Structure: | Flat Bed Lathe; | Packaging Detail: | CK6150A China lathe cnc machine; |
Max. Swing Diameter (mm): | 500; | bed width: | 400mm; |
Max. Spindle Speed (r.p.m): | 2000 r.p.m; | Type: | Horizontal; |
Warranty: | 1 Year; | Place of Origin: | Shandong China; |
Spindle Bore(mm): | 82 m'm; | Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Home Use,Retail,Construction works ,Energy & Mining; |
Port: | Qingdao,China; |
Item | Unit | Parameter |
Max. swing dia. Over bed | mm | Φ500 |
Max. swing dia. over carriage | mm | 290 |
Width of guide | mm | 400 |
Max. turning length | mm | 850 |
Max. center distance | mm | 1000 |
X travel | mm | 295 |
Z travel | mm | 1000 |
X/Z rapid speed | mm/min | 6000/8000 |
X servo motor torque | N.m | 7.5 |
Z servo motor torque | N.m | 10 |
Spindle speed range | r.p.m | 20-2000 |
Spindle type | type | A2-8 |
Spindle hole diameter | mm | Φ80 |
Spindle taper |
| 1:20 |
Manual three jaw chuck | mm | Φ250 |
Spindle motor power | Kw | 7.5Kw |
Electric tool holder | type | Vertical four-station |
Tool specification | mm | 25X25 |
Tailstock quill dia. | mm | Φ75 |
Tailstock quill taper | mm | MT5# |
Tailstock quill travel | mm | 150 |
Overall size | mm | 2729*653*1278 |
Weight | Kg | 2420 |

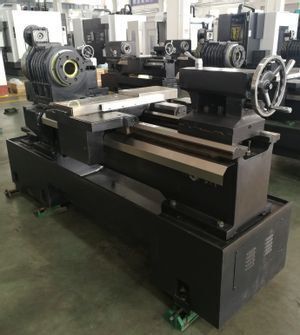

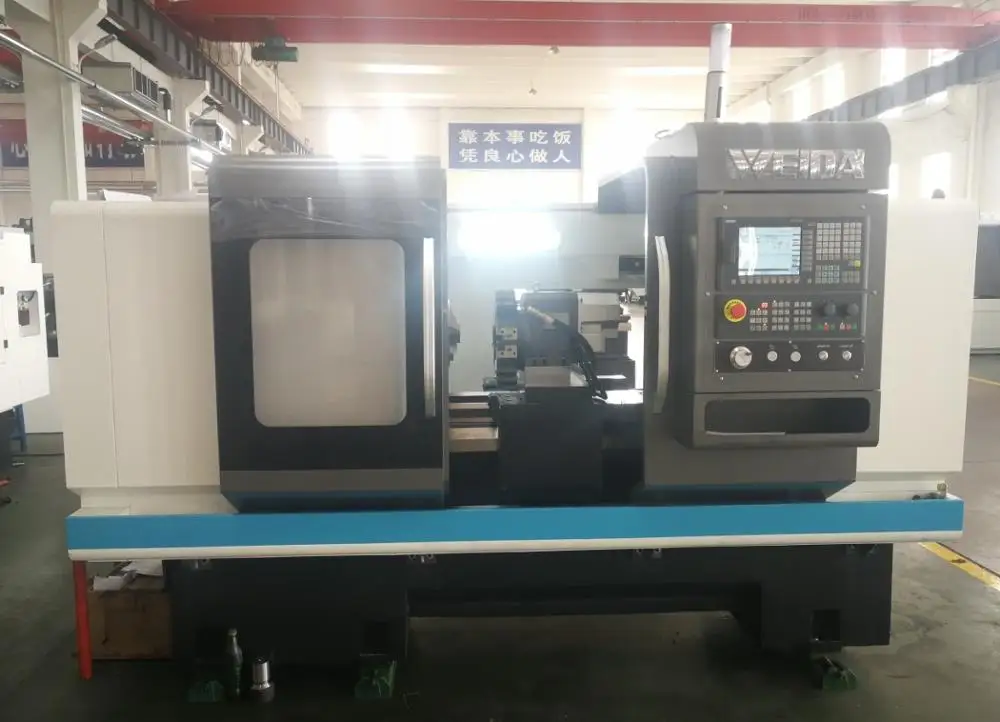

Machine type: cnc turning lathe machine CK6150
package dimension: 2.96*1.65*1.9m
Suitable container: 20' standard container
All our machines have been passed CE certification,such as cnc vertical center machine,vertical machining center,drilling machines etc.. Besides, we also have ISO9001 certificate. Our company complys with European standard. We always export our machines to European market,such as Poland, Russia, Italy, Germany,America etc.
Processing equipment
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine, Shanghai cnc gantry guide rail grinding machine, Beijing cnc gantry type boring milling machine and automatic powder coating line .
Besides, Cnc machine tool project laboratory with with advanced testing equipments is built for quality control.
Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.It covers an area 500,000square meters,the building zone is about 350,000square meters,and the total assets is more than RMB500million, there are 365 engineers and 632sets of production equipment&measuring test instrument in the company.
We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products
have developed to 8 series:cnc gantry type machining center, vertical fanuc cnc milling machines specifications,horizontal boring machine,radial drilling machine, 3 axis cnc vertical milling machine ,vertical milling machine, milling drilling machine,cnc vertical center machine,
altogether more than 90 specifications.
We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.
Shandong WEIDA heavy industries Co., Ltd.wish to cooperate sincerely with friends at home and abroad to realize mutual development.
We have different workshops to produce different machines,it mainly includes cnc workshop,milling machine workshop, radial drilling machine workshop,processing department etc.
For cnc workshop as above, we will produce vertical machining center,gantry type machining center,horizontal machining center,cnc vertical center machine etc.. Every year we will produce hundreds of machining centers for abroad customers. Our brand is well-known in many markets. And in every exhibitions in home and abroad, we will avertise them. And we get great effect from exhibition.
Every year, we will attend many exhitions at home and abroad. At home, we will attend CIMES,CCMT, CANTON fair etc..At abroad, we will attend EMO held in Hannover or Milano, Metalloobrabotka in Moscow, and other exhibitions,such as Mexico,Turkey,Colombia, Brazil,Indonesia,Thailand, Iran exhibitions etc.
Our machines are sold well and known by many famous customers.
We are always trying our best to exhibit best machine to you. We warm welcome to make business with you if you are willing. We will be your good supplier. Because we have good quality machine and good service.
Every year, there will be many customers from different countries to visit us. Some of them are our regular customers. We meet with each other as good friends and talk about our cooperation for next year. Some customers are our potentional customers, they visit us to see our factory for future cooperation. Everyone will satisfy with our factory after visiting. Because we are a large manufacturer with good reputation. We have the alibity to supply best machines . So we warm welcome for everyone's coming. After visiting, you will trust us.
