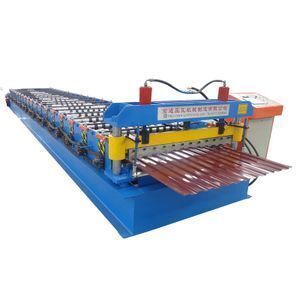

Zinc Corrugated Roofing Sheet Making machine

Product details
Place of Origin:China;material thickness:0.4-0.7mm;
Applicable Industries:Manufacturing Plant;Condition:New;
Supply Ability:30 Set/Sets per Month;Certification:TUV,ISO ,CE;
Brand Name:QJ;Rolling thinckness:0.3-0.8mm;
Payment Terms:Western Union,T/T;Marketing Type:Hot Product 2019;
Video outgoing-inspection:Provided;Packaging Detail:nude packing in the 40 feet container but with steel rope fixed well and other compents such as the computer control cabint will be packed with waterproof cloth and cardboard ifthe roll forming is too long we can divide into two parts but in one package with welding;
Tile Type:Colored Steel;Weight:5.5t;
Type:Tile Forming Machine;After Warranty Service:Online support;
Production Capacity:10-15 m/min;Showroom Location:None;
Voltage:380v;driving method:hydraulic;
Core Components:Motor,Gear,Gearbox,PLC;Feeding width:oem;
Cutting blade material:Cr12;Dimension(L*W*H):8m*1.3m*1.3m;
Local Service Location:None;Warranty:18months,1.5 years;
Warranty of core components:1.5 years;Color:blue or as your request;
Use:ROOF;Key Selling Points:Easy to Operate;
Machinery Test Report:Provided;Port:tianjin port;
Qianjin Forming----Your Best Cold Roll Forming Machine solution Supplier!!!

As the original manufacturer of the tile press, we can produce most of the products according to your requirements, not just the size of the products on this page.



You can send an inquiry to know more product information.

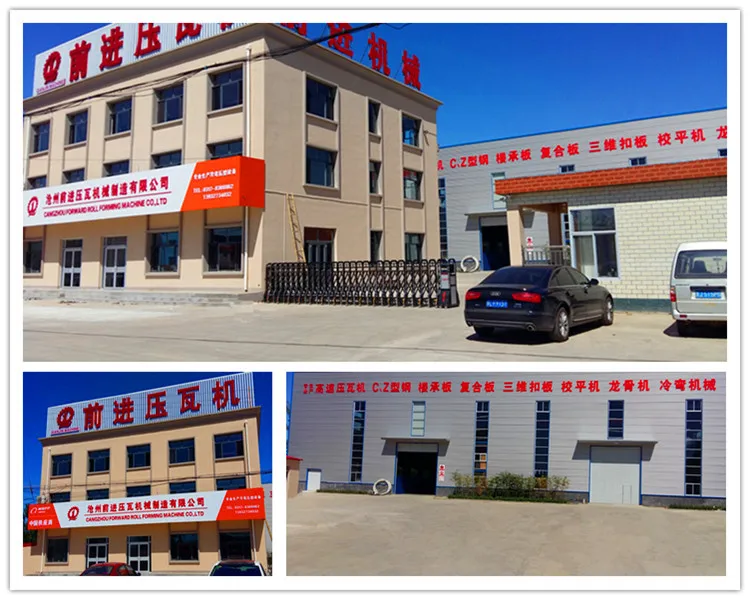

Factory Overview



Qianjin Forming----Your Best Cold Roll Forming Machine solution Supplier!!!


machine specification

NO.

Item

Specification

1

Processing material

Color steel/galvanized aluminum/galvanized

2

Processing thickness

0.4-0.7mm

3.

main motor power

4KW with Cycloidal reducer

4.

Hydraulic station power

4kw

5.

Hydraulic oil

36#

6. Diameter of principal axis Φ70mm
7. Material expand width 780mm
8. Galvanization thickness 0.05mm
9. Processing precision within 1.00mm

10.

Transmission

Sprocket&Chain(1inch)

11

Roller station

14 Rollers

12

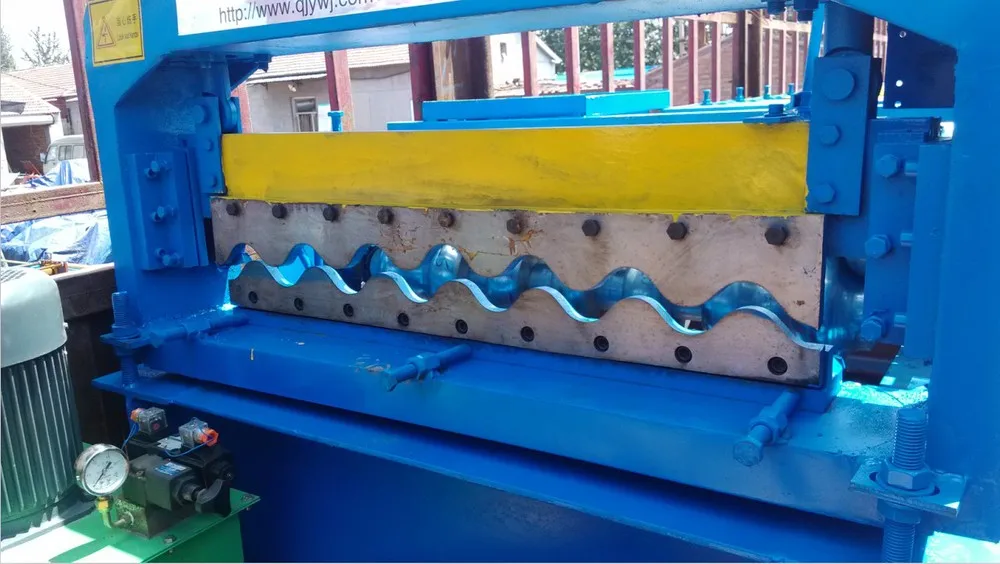

Cutting type

Hydraulic cutting type

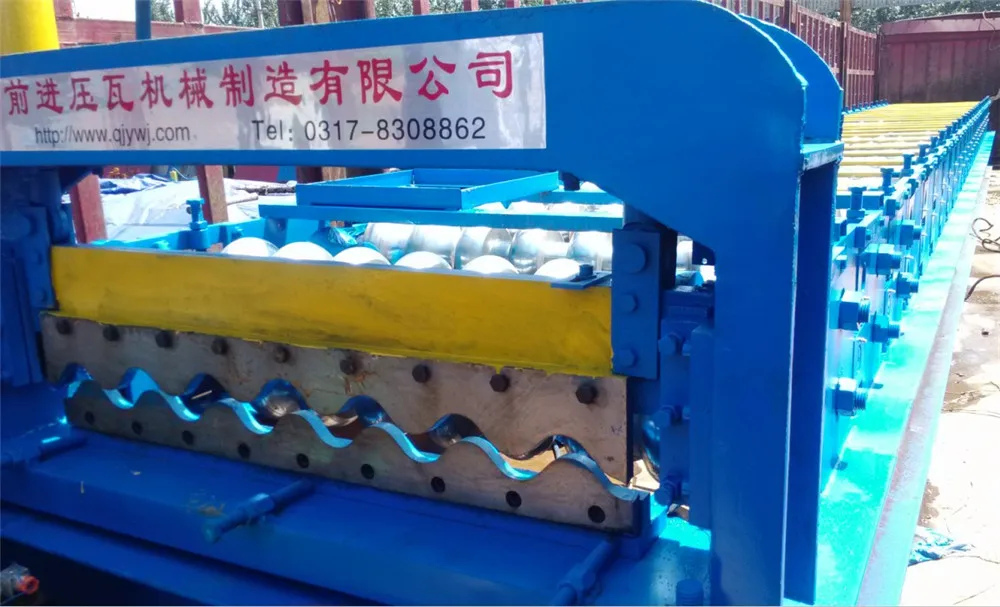

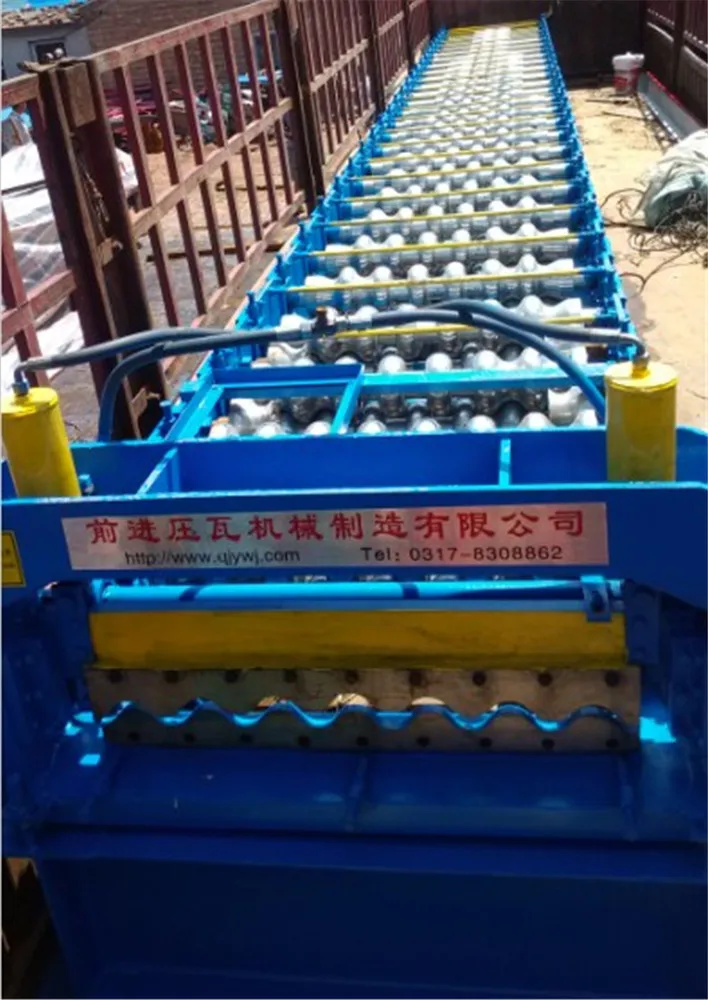

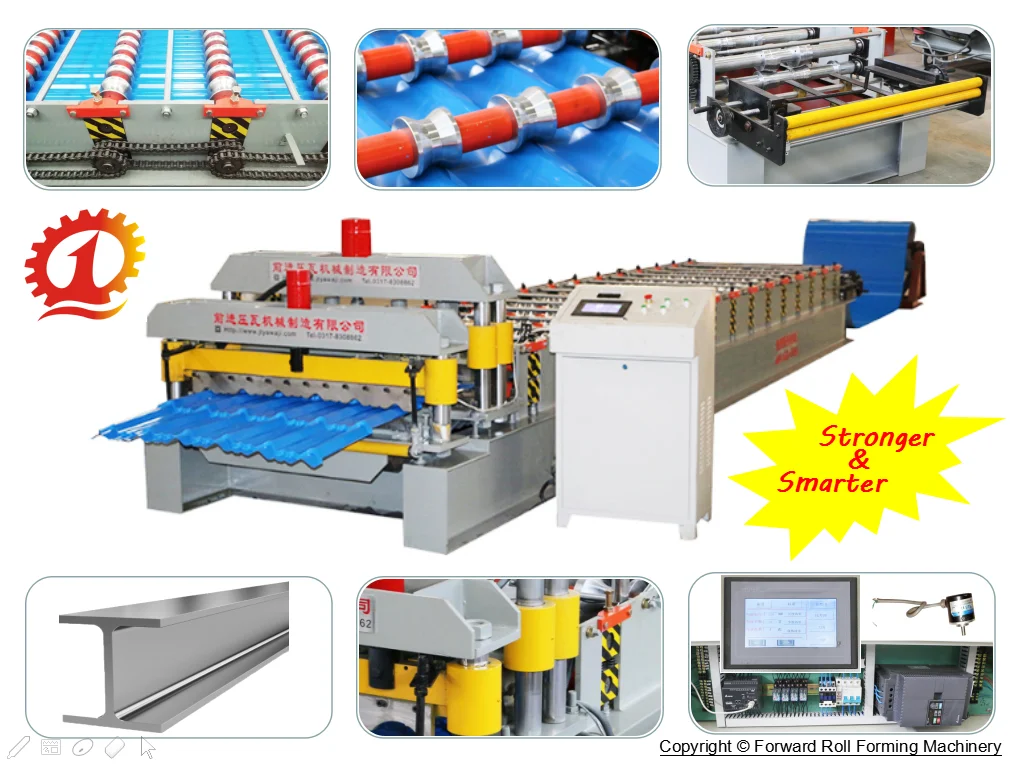

Machine picture

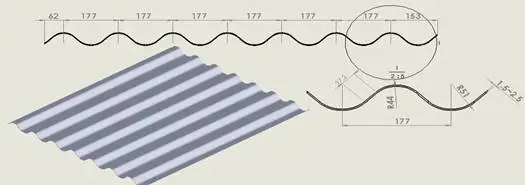

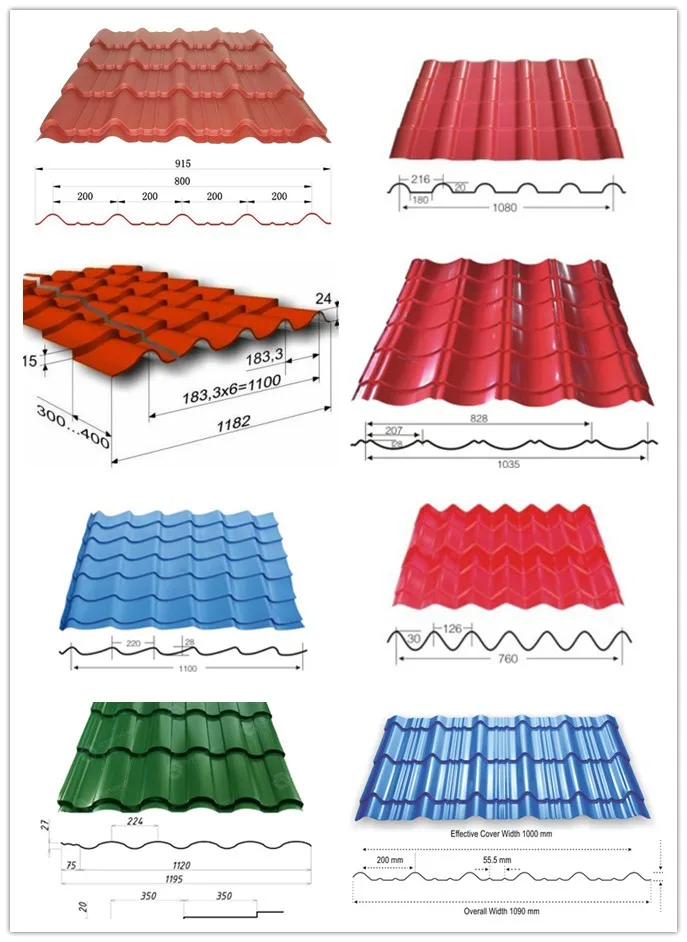

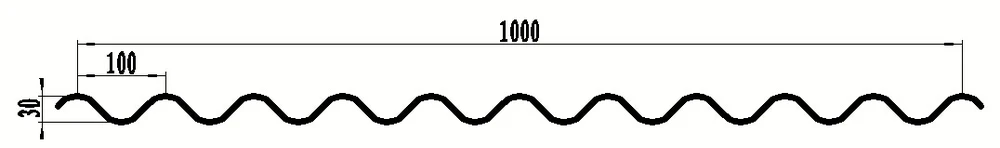

Orther type of glazed tile drawing:(We can design and produce the machine as your request,welcome to send us your sepecification or drawing ,we will give you a satisfied solution. )



Related Products

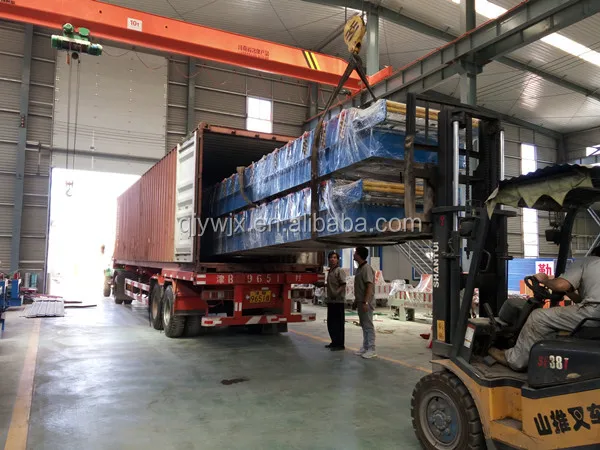

Packaging & Shipping



Our Services



Company Information







FAQ:

Q1. What's your delivery time?

A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.



Q2. Do you have after-sales support?

A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.



Q3. Do you sell only standard machines?

A3:No, most of our machines are built according to customers specifications,using top brand components.



Q4. What will you do if the machine is broken?

A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.



Q5. Can you be responsible for transport?

A5:Yes,please tell me the destination port or address.we have rich experience in transporting.



Q6. How to visit your company?

A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
