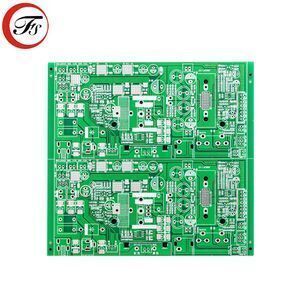

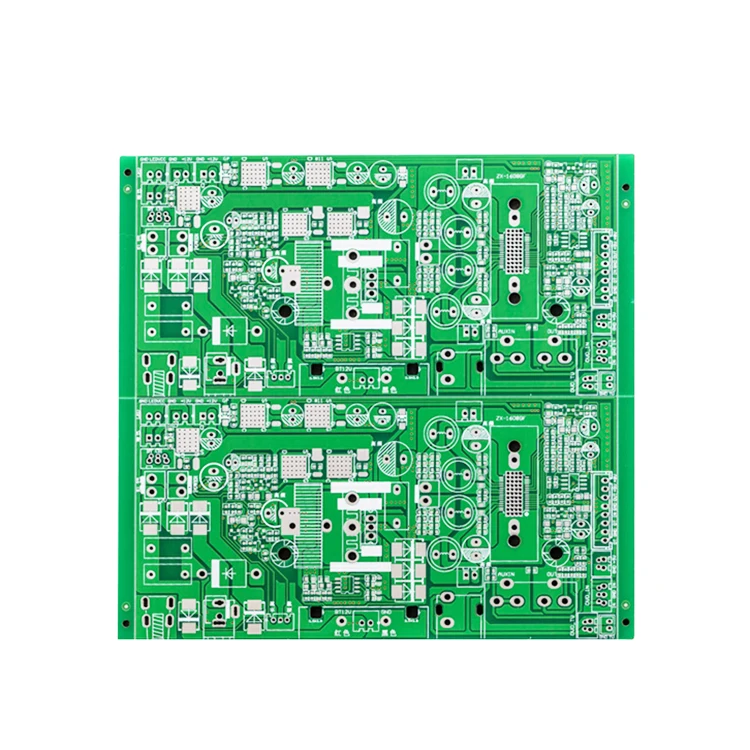

High Quality Custom Fr4 Multilayer PCB Manufacturer

Supplier: Shenzhen Fs Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Lee
Price: $0.56 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	FS-PCBA;	Surface Finishing:	Lead Free HASL/OSP,Etc;
Place of Origin:	Guangdong China (Mainland);	Min. Line Width:	0.15mm;
Packaging Detail:	ESD Packaging with Carton Outside. Vacuum Packaging with Carton Outside. High Quality Custom Fr4 Multilayer PCB Manufacturer;	Service:	One stop service;
Testing Service:	100% Electrical Test;	Model Number:	PCB;
Min. Hole Size:	0.1mm;	Port:	shenzhen/Hong Kong;
Min. Line Spacing:	0.15mm;	Number of Layers:	1-12 Layers;
Silkscreen:	Blue.green.White;	Delivery:	3-15days;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;	Solder mask color:	Blue.green.red.black.white.etc;
Certification:	ISO/UL/RoHS/TS16949;	Supply Ability:	10000 Piece/Pieces per Month PCB Manufacturer;
Standards:	IPC-A-610D;	Board Thickness:	1.6mm;
Copper Thickness:	0.5oz-5oz;	Service type:	PCB manufacturer and assembly;
Base Material:	FR-4/HTG150-180 FR-4/CEM-1;	Shipping:	DHL UPS TNT Fedex DHL;
PACKING:	Vacuum Packing;

High Quality Custom Fr4 Multilayer PCB Manufacturer

Product Description

Specification of PCB Manufacturing

Product Name	High Quality Custom Fr4 Multilayer PCB Manufacturer
Materials	FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum/F4B-2
Number of Layer	1-12 layers (include Rigid-Flex PCB)
Board Thickness	Rigid 0.15mm-3.00mm
Board Thickness Tolerance	5-10%
Profile Processing	CNC Milling/V-Cut/Mold Flushes
Copper Weight Tolerance	±0.15 oz
Copper Thickness	0.5oz-5oz
Min Line Width	0.1mm
Min Space Width	0.127mm
Min Drill Hole Diameter	0.1mm
Max Processing Sheer	*600mm400mm**
Silk Screen Min Line Width	0.15mm
Anti-welds resin	Thermosetting resin/Without the gloss resin/Photosensitive resin
Soldermask	green,red,blue,white,black,yellow,etc.
Flame resistance	94v0
Certification	ISO 9001:2000,ISO 14001,ISO/TS16949:2002,UL E203640
Approval Standard	IPC-600F
Suface Finish	HASL/Nickle/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG/Rosin etc

Detailed Terms for Pcb Assembly

Quantity	Prototype&sample PCB Assembly, Small and middle mass prodution is our specialty and we also can handle the orders up to 2000.
Type of Assembly	THD (Thru-Hole Device), SMT (Surface-Mount Technology), Double-sided SMT & THD mixed
Solder Type	Water Soluble Solder Paste,Leaded and Lead-Free.
Components	Passives parts, smallest size 0201; BGA, uBGA, QFN, POP, and Leadless chips; Fine Pitch to 0.8Mils; BGA Repair and Reball; Part Removal and Replacement Connectors and terminals.
Bare Board Size	Smallest: 0.25x0.25 Inches; Largest: 20x20 Inches.
File Formats	Bill of Materials Gerber Files Pick-N-Place File(XYRS).
Type of Service	Turn-Key, Partial Turn-Key or Consignment.
Component Packaging	Reels,cut tape,Tube and tray,Loose parts and bulk.
Turn Time	3 - 10 days
Testing	X-ray Inspection AOI (Automated Optical Inspection) ICT (In-Circuit Test)/Functional Testing

PCB or PCB Assembly files requests

1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly

To short the lead time, please kindly advise us if there is any acceptable components substitution.
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary

Lead Time

Project	Double Side	4 Layer	6/8 Layer
Sample	2-3 days	5-6 days	7-8 days
Mass production	4-7 days	7-10 days	8-11 days

Application

Production process

Company Information

Packaging & Shipping

FAQ

Q.What service can you supply ?
We are OEM PCB and PCBA manufacturer since 2004 ,we can provide turnkey solutionincluding RD PCB fabrication,SMT and assembly PCBA inside the enclosure,Functiontesting and other value-added service.
Q.What file you need to prepare if you want to get an quotation from us?

For PCB board, you need to prepare files of Gerber file,it should including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample pictureor 3D PDF version file etc.

Q. Do you have any MOQ Limited ?
We havent any limited about MOQ .Sample and mass production all can support.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q.How long does it take for PCB and PCBA Quote ?
PCBs quotation within 2 hours can finished the PCBA depend on the components
quantity,if simple, within 6 hours can finished,once complex and more,the 12- 36 hours
can be finished.

*Please note that the following detail will speed up evaluation:

Material:

Board thickness:

Copper thickness:

Surface finish:

Solder mask color:

Silkscreen color:

Q. How about the delivery?
Normally, for sample order, our delivery is about 5 days.For small batch, our delivery is about 7 days.
For mass production batch, our delivery is about 10 days.
But that depends on the real condition when we get your order.
If your order is urgently please contact us directly ,we will priority to deal it and do ourbest to give you satisfied delivery time.
Q.How can we guarantee you receive an good quality product?

For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
Q.With payment terms do we accept?
For sample order or small batch, we suggest you to use Pay-pal and Western Union.For mass production batch, we suggest you to use T/T.
