Custom Polyimide FPC Rigid Flex PCB Manufacturer

Product details
Port:Shenzhen HongKong;Supply Ability:30000 Square Meter/Square Meters per Month rigid flex pcb;
Min. Hole Size:0.1mm;Place of Origin:Guangdong China (Mainland);
Model Number:FSFPC;Layer:1-8 Layer(flex Board);
Base Material:Polyimide;Board Thickness:0.15mm;
Assembly Service:SMT Service;Min. Line Spacing:0.15mm;
Packaging Detail:Inner:vacuum packing or Anti-static package,Outer:export carton or according to the customer's requirement. Custom Polyimide FPC Rigid Flex PCB Manufacturer;Product name:Custom Polyimide FPC Rigid Flex PCB Manufacturer;
Certificates:ROSH. ISO9001. UL;Application:Consumer Electronics;
Min. Line Width:0.15mm;Keyword:rigid flex pcb;
Copper Thickness:0.3oz-3oz;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Thickness:1oz 1/2oz;Material:PI/PET/PEM/FR-4;
Brand Name:OEM;Surface Finishing:HSAL(LF),ENIG,OSP,etc;
Solder mask color:White Black Red Yellow;Service:OEM Services Provided;

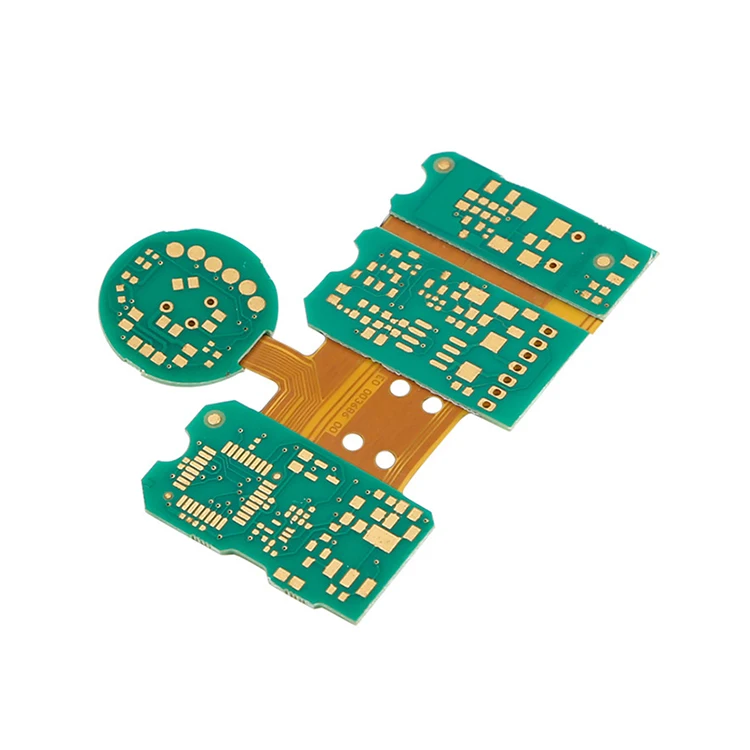

Custom Polyimide FPC Rigid Flex PCB Manufacturer

FPC

Specification of FPC Manufacturing

Material

FR4,Polyimide / Polyester

Counts

Flex: 1~8L; Rigid-Flex: 2~8L

Board Thickness

Min.0.05mm ;  Max. 0.3mm

Copper Thickness

1/3 oz --- 2 oz

CNC Drill Size (Max)

6.5mm

CNC Drill Size (Min)

Flex: 0.15mm

Holes Location Tolerance

±0.05mm

Coverlay Drill Size (Min)

0.6mm

Hole to Coverlay Opening Windows (Min)

0.15mm

Min Line Width / Spacing

0.1/0.1mm

Copper Thickness on Hole Wall

Flex:12-22μm

Min Pad Size

φ0.2mm

Etch Tolerance

Finished line width tolerance ±20%

Pattern Registration Tolerance

±0.1mm (Working Panel Size: 250*300mm)

Coverlay Registration Tolerance

±0.15mm

Solder Mask Registration Tolerance

±0.2mm

Solder Mask to PAD

Non photosensitive: 0.2mm

Photosensitive: 0.1mm

Min. Solder Mask Dam

0.1mm

Misregistration Tolerance

±0.30mm

 for Stiffener, Adhesive, Glue paper

Surface Finish

Plating Ni / Au ; Chemical Ni / Au ; OSP

Standard Flex Materials:

+

Base Copper:

1/3 oz. - .00047 in. (.012mm)--rarely used
1/2 oz. - .0007 in. (.018mm)
1 oz. - .0014 in. (.036mm)
2 oz. - .0028 in. (.071mm)

Solder Mask:

             Polyimide Coverlay: 0.5 mil to 5 mils Kapton (.012mm - .127mm)

with 0.5 to 2 mil Adhesive (.012mm - .051mm)
LPI and LDI Flexible Soldermasks

Peculiarity of FPC:

1. Small size, high density integration
2. Save space
3. Simplify layout procedure and simplify wiring.
4. Save human resources cost
5. with good flexibility and folded easily and freely.

Application:

*Optical Pick-up for A/V & Computer ( or CD-RW & DVD-RW)

*Digital( or CCD ) Camera

*LCD Module for Mobile Phone

*Vibration Motor for Mobile Phone

Other Products

Production process



Company Information



Packaging & Shipping



FAQ
Q.What service can you supply ?
We are OEM PCB and PCBA manufacturer since 2004 ,we can provide turnkey solutionincluding RD PCB fabrication,SMT and assembly PCBA inside the enclosure,Functiontesting and other value-added service.
Q.What file you need to prepare if you want to get an quotation from us?
  • For PCB board, you need to prepare files of Gerber file,it should including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
  • For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample pictureor 3D PDF version file etc.
Q. Do you have any MOQ Limited ?
We havent any limited about MOQ .Sample and mass production all can support.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q.How long does it take for PCB and PCBA Quote ?
PCBs quotation within 2 hours can finished the PCBA depend on the components
quantity,if simple, within 6 hours can finished,once complex and more,the 12- 36 hours
can be finished.
*Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:

Surface finish:

Solder mask color:

Silkscreen color:

Q. How about the delivery?
Normally, for sample order, our delivery is about 5 days.For small batch, our delivery is about 7 days.
For mass production batch, our delivery is about 10 days.
But that depends on the real condition when we get your order.
If your order is urgently please contact us directly ,we will priority to deal it and do ourbest to give you satisfied delivery time.
Q.How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
Q.With payment terms do we accept?
