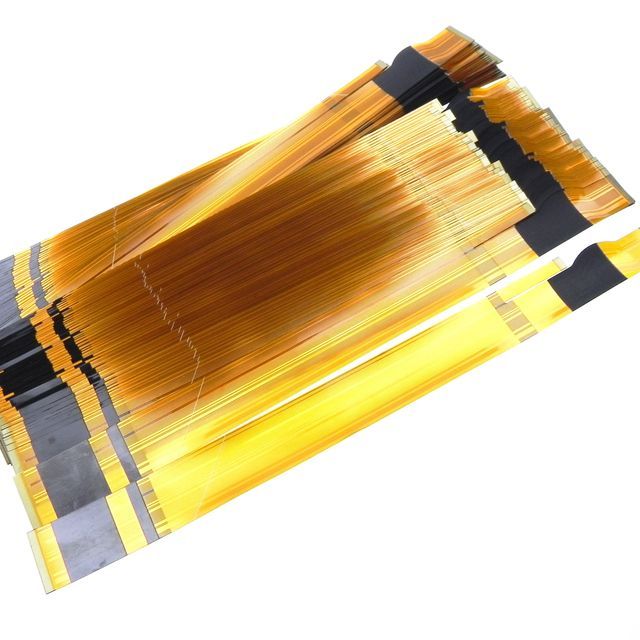

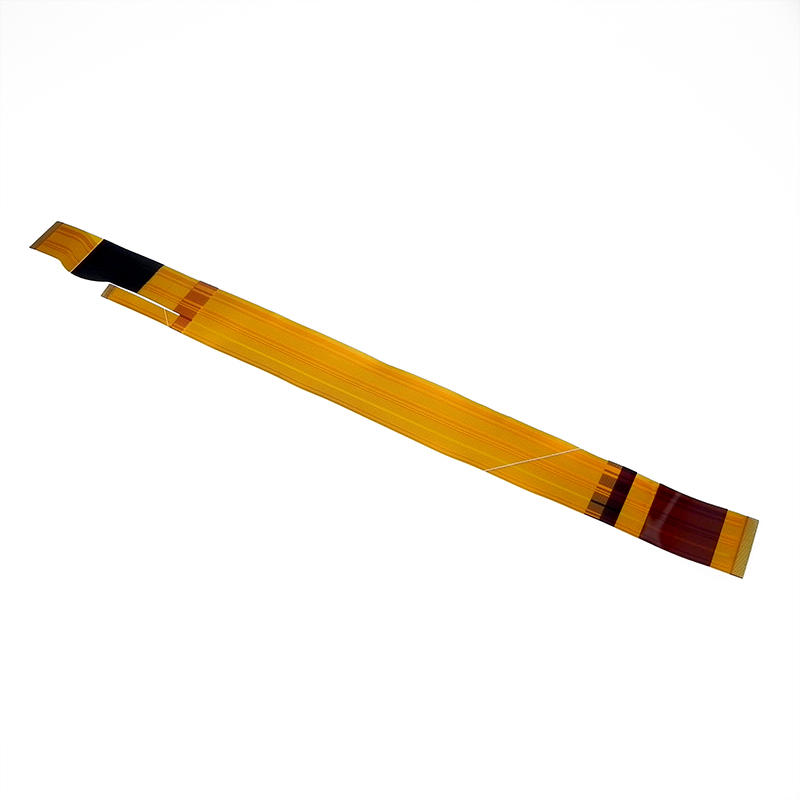

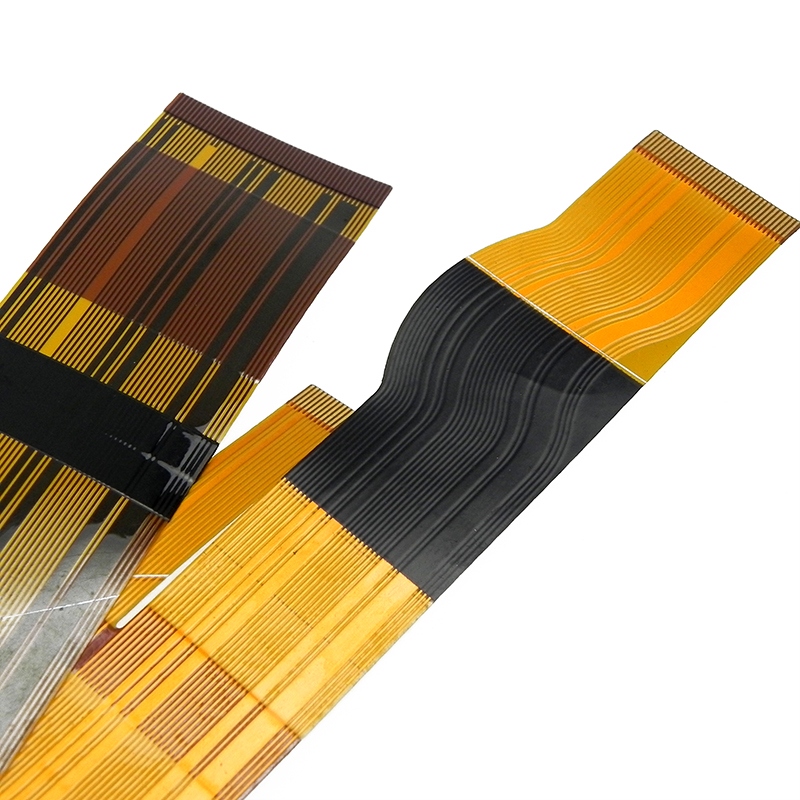

EXW spot price avh x7550 7550 ced755 750 DVD FPC flat cable

Supplier: Shenzhen E-Connecting Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr David Lee
Price: $19.98 / 1 - 2 pieces
$18.08 / 3 - 4 pieces
$16.08 / 5 - 9 pieces
$11.10 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

thing:	avh x7550 7550 755 750 DVD FPC flat cable	Single piece packaging size:	5X4X3 cm
minute. Line spacing:	0.07mm	Copper thickness:	1/2 oz
Solder mask color:	yellow film	Base material:	Polyimide, copper film
Surface resistance:	<1.0*10(11)	minute. Hole size:	0.25mm
Gross weight of single piece:	0.050kg	Place of origin:	Guangdong, China
Package preview:		bending:	Comply with IPC standards
application:	Automobile, GPS, LCD, LED, medical, industrial, etc.	Packaging details:	There is a PE bag inside, and then a carton
type:	FPC cable,FPC	Welding temperature:	260 degrees/10 seconds
Dual sizes:	25cm*50cm	Single piece size:	25cm*60cm
Board size:	standard	Chemical:	Comply with IPC standards
model:	Customized fpc cable	Surface treatment:	Gold plating, nickel plating
Plate thickness:	0.1 mm 0.15 mm	Sales unit:	Single product
minute. Line width:	0.1mm	brand:	New great

Soft board description

FPC cable (flexible printed circuit) specifications
layer	1-6 floors
FPC size (maximum/minimum)	Minimum: 10x45mm Maximum: 250x1200mm
thickness	0.050mm—0.2mm
Through hole diameter (maximum)	6.5mm
Through hole size (minimum)	0.2 mm
Through hole tolerance	±0.025mm
Hole copper thickness	Minimum 8μm Maximum 38μm
Minimum line width/space	0.04/0.04mm
Etching tolerance	±20%
Accuracy of pattern on hole	±2 million
Punch size (maximum)	φ3.175mm
Punch size (minimum)	φ2.0mm
Punching thickness (maximum)	0.2mm
Thermoset ink resistance	±0.2mm
Green oil (lowest)	0.1mm
Pad (minimum)	8 million*8 million
Pad distance (minimum)	8 million
Tolerance (minimum)	±0.1 mm
Laminate materials available	P.L. pet. FR4-Pl
Copper foil thickness	12 micron, 18 micron, 35 micron, 70 micron
