minute. line width: | 0.04MM | model: | SIM card extension FPC cable |
Brief introduction: | Punching/laser cutting/drilling | product name: | 48CM mini Micro Nano SIM card extension FPC cable |
size: | 400mmX800mm | type: | soft board |
minute. Hole size: | 0.1MM | application: | Consumer electronics products |
payment terms: | L/C, Western Union, T/T, Paypal | PI thickness: | 25μm / 12.5μm |
Origin: | Guangdong, China | brand: | OEM service |
Adhesive: | 13μm | Assembly service: | SMD |
Plate thickness: | 0.07-0.5MM | Surface treatment: | HASL/OSP/Immersion Gold |
Acceptable file formats: | CAD/Gerber files/powerpcb/Autocad/Orcad/P-cad/CAM-350/CAM2000 | Copper thickness: | 1 oz/1/2 oz/1/3 oz |
Solder mask color: | yellow. Elective | Substrate: | Polyimide |
Rib material type: | PI / FR4 / PET / steel sheet | Supply capacity: | 8000 square meters Mini SIM card extension line 10 CM FPC line per month |
minute. Line spacing: | 0.04MM |

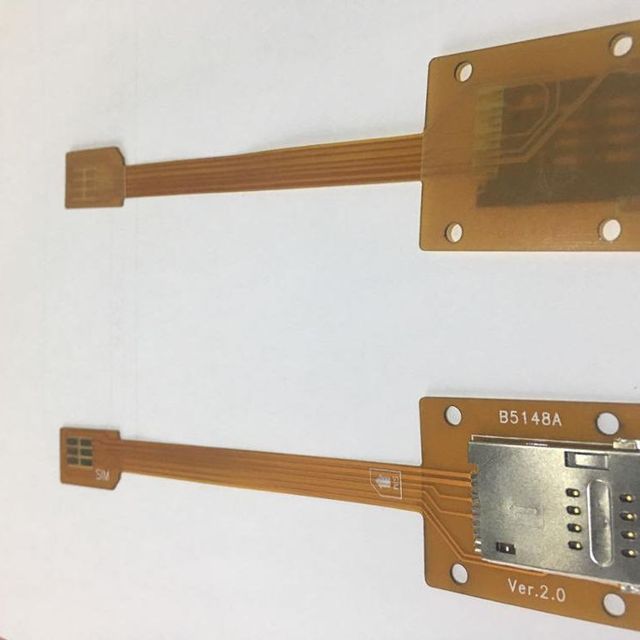

48CM mini Micro Nano SIM card extension FPC cable
No. | FPC project | Manufacturing capacity |
1 | layers | 1-8 floors |
2 | Substrate | polyimide/polyester |
3 | Copper foil thickness | 1 oz/1/2 oz/1/3 oz |
4 | Polyimide Thickness | 25μm / 12.5μm |
5 | plate thickness | 0.07mm-0.5mm |
6 | Adhesive | 13μm |
7 |
maximum. board size | 400*800mm |
8 | Product Thickness Tolerance | ±0.03 mm |
9 | minute. Aperture | 0.1mm |
10 | Minimum line width/distance | 0.04mm |
11 | Etching resistance | ±0.015mm |
12 | PTH Pore Tolerance | ±0.03 mm |
13 | NPTH Pore Tolerance | ±0.05mm |
14 | Dimension tolerance | ±0.075mm |
15 | Rib material type | ±0.075mm PI / FR4 / PET / steel sheet |
16 | Contour Contour | Punching/laser cutting/drilling |
number 17 | surface finish | HASL / OSP / ENIG / Immersion Silver/Tin/Nickel |
18 | Solder mask color | Polychromatic |
No. 19 | silk screen color | white/black |
20 |
Acceptable file formats | CAD / Gerber files / powerpcb / Autocad Orcad / P-cad / CAM-350 / CAM2000 |
