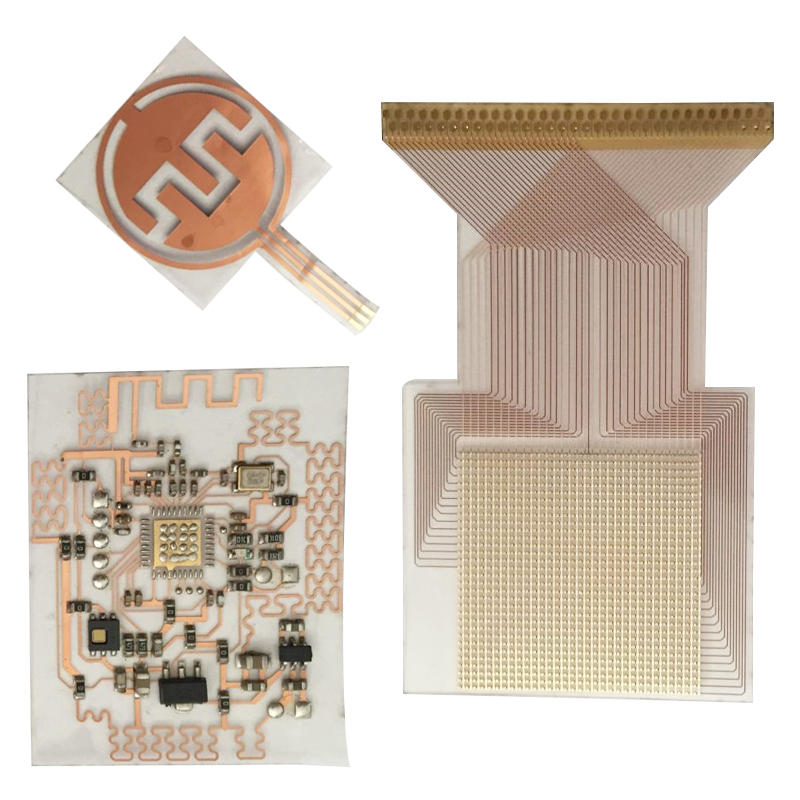

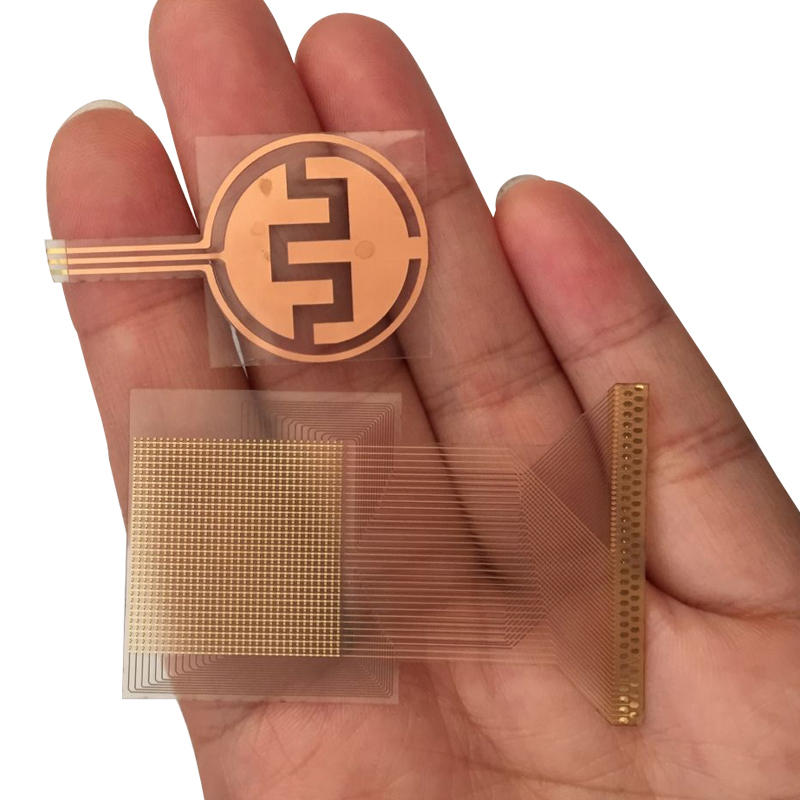

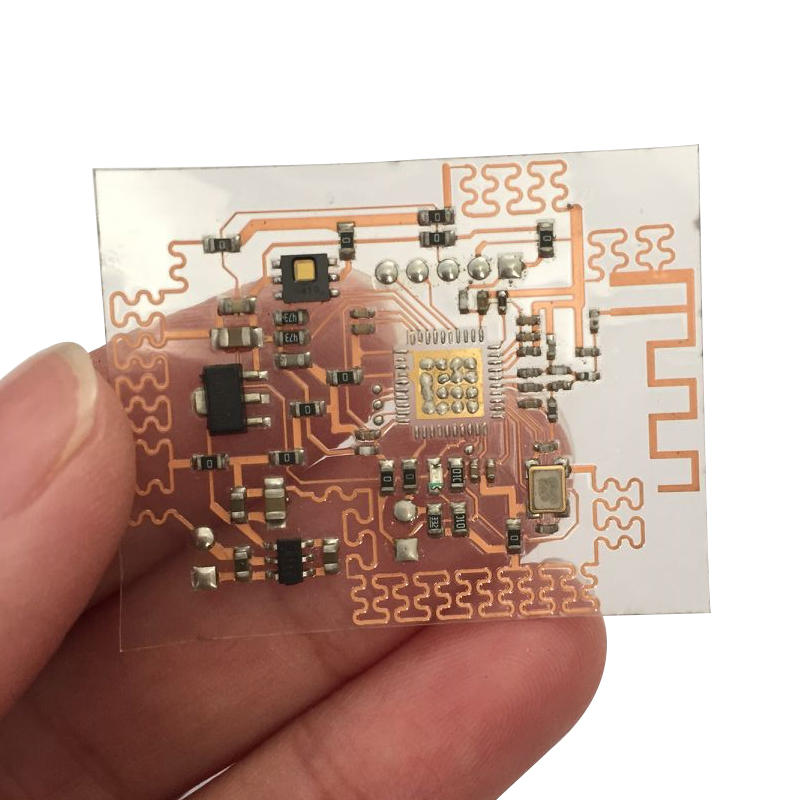

High temperature resistant custom PET flexible transparent FPC

Supplier: Shenzhen Dreamland Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Wendy OUYANG
Price: $5.54 / 10 - 19999 pieces
$0.54 / >=20000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Substrate:	polystyrene/polyester	Key words:	FPC circuit board
Board Dimensions:	500x500mm	payment terms:	L/C, T/T
Minute Hole Size:	0.10mm	place of origin; place of origin:	Guangdong, China
Serve:	OEM	Surface treatment:	Immersion Gold/Immersion Tin/Immersion Silver/OSP
port:	Shenzhen, Hong Kong	Minute line spacing:	0.075---0.09MM
brand:	the dream	Minute line width:	0.075mm
Copper thickness:	0.3oz-3oz	Supply capacity:	30000 square meters per month
Solder Mask:	Red	Packaging Details:	25pcs per vacuum bag and packed in carton. Or depends on customer's request.
model:	MT3-151	color:	Ohmic color
Floor:	1~16 floors	Types of:	Flat flexible Fpc cable, FPC
Certificate:	RoHS Directive	thing:	Multilayer Flexible Printed Circuit Board
application:	Electronic equipment	Plate thickness:	0.13-0.3mm
product name:	Flexible Printed Circuit Board

We custom produce 1-14 layer flexible PCB, 2-12 layer flexible rigid PCB. Welcome your inquiry.

thing	Specification
flexible circuit board	1-14 layer FPC line
Transparent soft board	1-2 layer 230℃ temperature
LED lighting soft board	Customized flexible pcb strips for lighting
Rib material	PI, steel, FR4, aluminum, thermal tape, electromagnetic shielding film, ferrite shielding film
other service	PCB cloning, BOM cloning, PCB assembly (SMT, DIP)

thing	Soft board capability
product type	Single-layer, double-layer, multi-layer, hollow FPC, layered FPC, rigid and flexible
Floor	1-14 layer flex pcb, 2-14 layer flex-rigid pcb
Maximum finished board size	250*5000mm
plate thickness	Flexible board, 0.06-0.4mm; Rigid-flex PCB, 0.25-6.0mm
Minute Trace Width and Spacing	0.045/0.045MM
Substrate	PI, PET, electrolytic copper, rolled copper
Finished Tolerance	±0.03mm
copper thickness	12UM, 18UM, 36UM, 70UM
PTH Hole Diameter Tolerance (Plated Through Hole)	±0.05mm
Rib	FR4/PI/PET/SUS/PSA
Finished product impedance control	50Ω - 120Ω
Acceptance Criteria	Factory production standard, national standard; IPC-650, IPC-6012, IPC-6013 II, IPC-6013 III, etc.

_{Dreamland Industries is a group company, one of the most dynamic manufacturing companies in the production of high-tech printed circuit boards in Shenzhen, China. In recent years, we have expanded rapidly in terms of production capacity and technology, especially in the fields of multi-layer circuit boards, 1-2 layers aluminum circuit boards and copper circuit boards, flexible circuit boards, LED circuit boards, etc.}

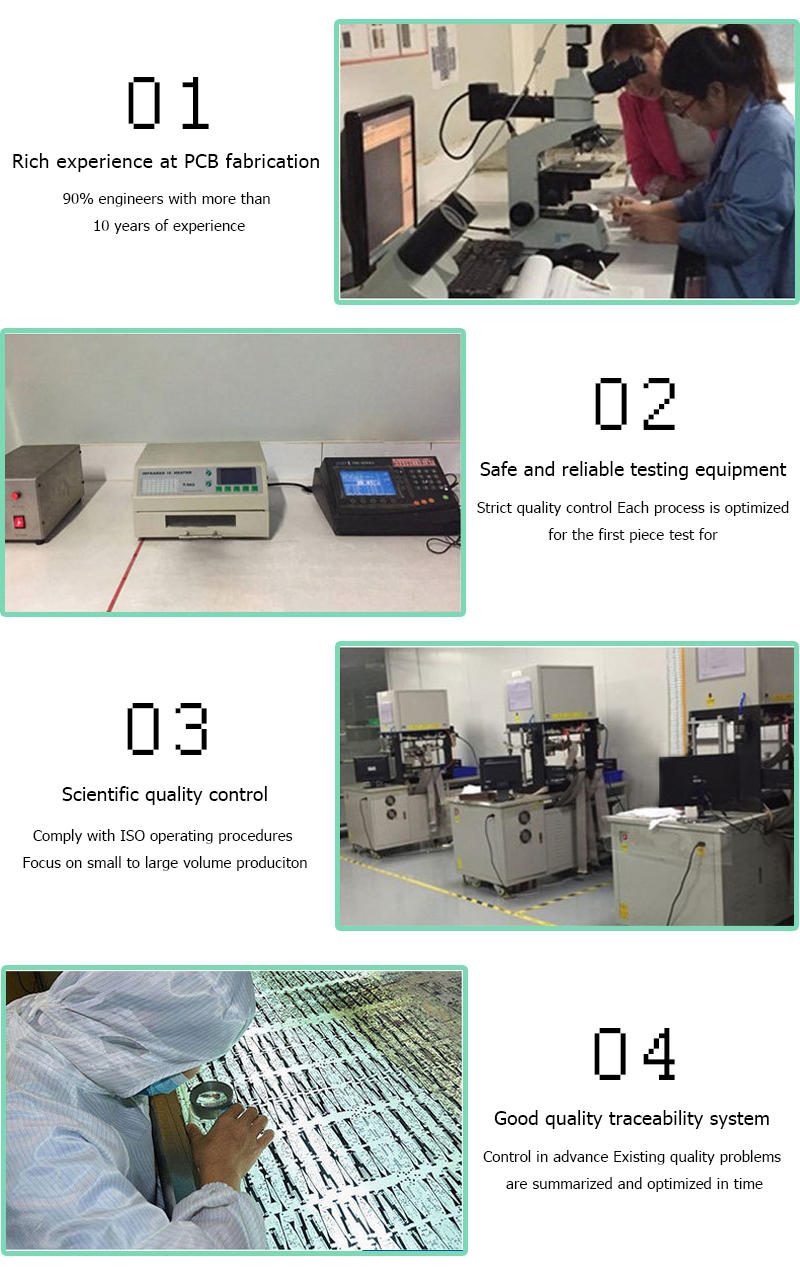

_{Our manufacturing facility covers an area of more than 1500 square meters, with 40-50 employees, 10% of the managers and engineers have at least 10 years of professional experience in the field of flex PCB manufacturing. We control the quality of products very strictly, many raw materials have obtained UL and Rosh}

Q1. Can I have a sample order to test?

A: Yes, we welcome sample order to test and check the quality. Mixed samples are acceptable.

Q2. What about the delivery time?

A: Sample needs 3-5 days, mass production time needs 8-12 days.

Q3. Do you have any MOQ for all PCBs?

A: No MOQ, we do custom PCB and flex PCB, depends on customer's project.

Q4. How do you ship the goods and how long does it take to arrive?

A: For small quantity, we ship by DHL, UPS, FedEx or TNT. Usually it takes 3-5 days, large quantity takes 20-30 days by sea (details will be confirmed with forwarder).

Q5. I don't have drawing, how to deal with it?

A: First let us know your detailed requirements (if you have samples, please send us, we will copy). Secondly, we quote according to your requirements or our suggestions. Thirdly, the customer confirms the samples and pays a deposit for the formal order. Fourth, we arrange production.

Q6. Is it OK to print my logo on the product?

Answer: Yes. Please inform us formally before our production and confirm the design based on our samples first.

Q7: Do you offer guarantee for the products?

A: Yes, we provide 1-3 years warranty for our products.

Q8: How to deal with failure?

A: First of all, our products are produced under strict quality control system, and the defective rate will be less than 0.1%. Secondly, during the warranty period, if it is our problem, we will repair and resend it to you, or we can discuss in detail to find the final solution.
