Original FPC Flat Avh-x7780tv Avh X 7780 DVD TV Cable

Click here to contact

Product details

Surface treatment:	heavy gold	brand:	new bank
Supply capacity:	10000000000 pieces per month Original FPC Flat Avh-x7780tv Avh X 7780 DVD TV Cable	model:	AVH7780 FPC cable
The full name of FPC cable:	Flexible printed circuit board	Copper thickness:	1/2 oz minimum
Packaging details:	Fpc cable PE inner bag, outer box or according to your requirements	payment terms:	L/C, D/P, T/T, Western Union, Paypal or Cash
port:	Shenzhen/Hong Kong	Certificate:	RoHS/ISO9001-2008/ISO14001-004
minute. Hole size:	0.2mm/0.3mm	type:	Flat flexible FPC cable
Soft board material:	PI film (polyimide) and copper conductor	Solder mask:	yellow
minute. Line spacing:	0.075---0.09MM	Surface plating:	Gold plated, avh 7780 fpc
Board size:	Minimum: 10x45mm Maximum: 250x1200mm	product name:	Original FPC Flat Avh-x7780tv Avh X 7780 DVD TV Cable
Base material:	copper	Package preview:
Plate thickness:	0.11mm-0.5mm	Serve:	Accept OEM ODM
Place of origin:	Guangdong, China	minute. Line width:	0.075mm/0.075mm(3mil/3mil)
application:	Car/Car DVD	FPC cable tape brand:	3M

Product Description

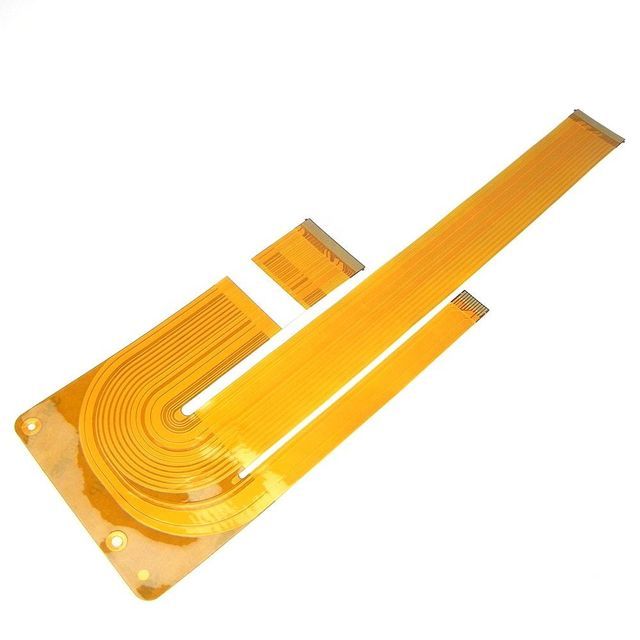

Original FPC Flat Avh-x7780tv Avh X 7780 DVD TV Cable

Introduction to FPC wiring

FPC cable material	PI film (polyimide) and copper conductor
Surface plating	gold plated
Tape brand	3M
cable length	standard
Reinforcement film	PI
application	Car/Car DVD
Production standards	IPC-6013

FPC cable production instructions

layer	1-6 floors
FPC size (maximum/minimum)	Minimum: 10x45mm Maximum: 250x1200mm
thickness	0.050mm—0.2mm
Through hole diameter (maximum)	6.5 mm
Through hole size (minimum)	0.2 mm
Through hole tolerance	±0.025mm
Hole copper thickness	Minimum 8μm Maximum 38μm
Minimum line width/space	0.04/0.04mm
Etching tolerance	±20%
Accuracy of pattern on hole	±2 million
Punch size (maximum)	φ3.175mm
Punch size (minimum)	φ2.0mm
Punching thickness (maximum)	0.2mm
Thermoset ink resistance	±0.2mm
Green oil (lowest)	0.1mm
Pad (minimum)	8 million*8 million
Pad distance (minimum)	8 million
Tolerance (minimum)	±0.1mm
Available laminate materials	P.L. pet. FR4-Pl
Copper foil thickness	12 micron, 18 micron, 35 micron, 70 micron
