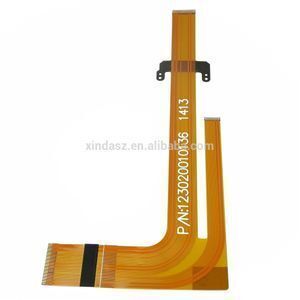

CC05 touch screen fpc lcd display fpc 1020 flex cable for 8910, flat cable dvd avh 3580

Click here to contact
Product details
Delivery Detail:5-7 days after payment done;fpc cable full name:flexible printed circuit board;
Surface Finishing:Immersion Gold;Packaging Detail:Fpc cable PE inner bag, box for outside or as your requirement;
Min. Hole Size:0.2mm/0.3mm;Application:auto / car DVD;
Service:accept OEM ODM;Min. Line Width:0.075mm/0.075mm(3mil/3mil);
Type:flat flexible fpc cable;fpc cable Tape brand:3M;
Payment Terms:L/C,D/P,T/T,Western Union,Paypal or Cash;Board Thickness:0.11mm-0.5mm;
Solder mask:Yellow;Copper Thickness:1/2 Oz Min;
Port:Shenzhen / HK;Place of Origin:Guangdong China;
Surface Plated:gold-plated , avh 3580 fpc;Supply Ability:10000000000 Piece/Pieces per Month FPC cable;
Base Material:Copper;Model Number:FPC Cable;
Brand Name:Xinda-ok;Min. Line Spacing:0.075---0.09MM;
Certificates:RoHS/ISO9001-2008/ISO14001-004;Product name:flat cable dvd avh 3580;
FPC Material:PI film (polyimide) and copper conductor;
Product Description

CC05 touch screen fpc lcd display fpc 1020 flex cable for 8910, flat cable dvd avh 3580

FPC cable brief details
FPC cable materials
PI film (polyimide) and copper conductor
Surface Plated
gold-plated
Tape brand
3M
Cable length
Standard
Stiffener film
PI
Application
auto/car DVD
Produce standard
IPC-6013

FPC Cable producing instructions

Layer
1－6layer
FPC size（max/min）
Min: 10x45mm      Max:250x1200mm
Thickness
0.050mm—0.2mm
Through Hole diameter（Max）
6.5mm
Through hole size（min）
0.2mm
Through hole tolerance
±0.025mm
Hole copper thickness
Min8μm Max38μm
Min line width/space
0.04/0.04 mm
Etching Tolerance
±20％
The accuracy of the pattern on the hole
±2mil
Punching size(max)
φ3.175mm
Punching size(min)
φ2.0mm
Punching aperture Thickness(Max)
0.2mm
Thermosetting inks tolerance
±0.2mm
Green oil（Min）
0.1mm
Solder pad(min)
8mil*8mil
Solder pad distance(Min)
8mil
tolerance(Min)
±0.1mm
Available Laminates Material
Pl. PET. FR4-Pl
Copper foil thickness
12um, 18um, 35um, 70um
Related Products
We have different type of fpc cables, which sales likes hotcakes in the market!

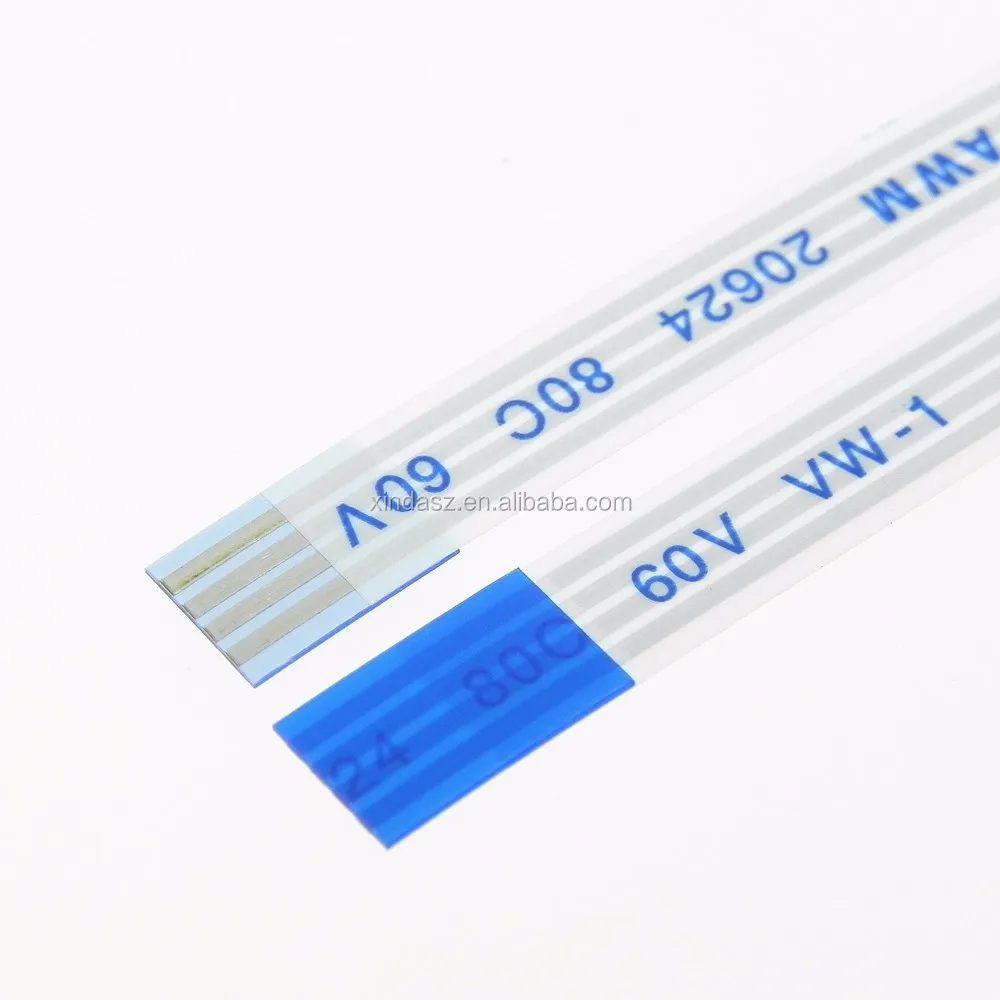

FFC cable (we have lot of regular type ffc cable in stock)

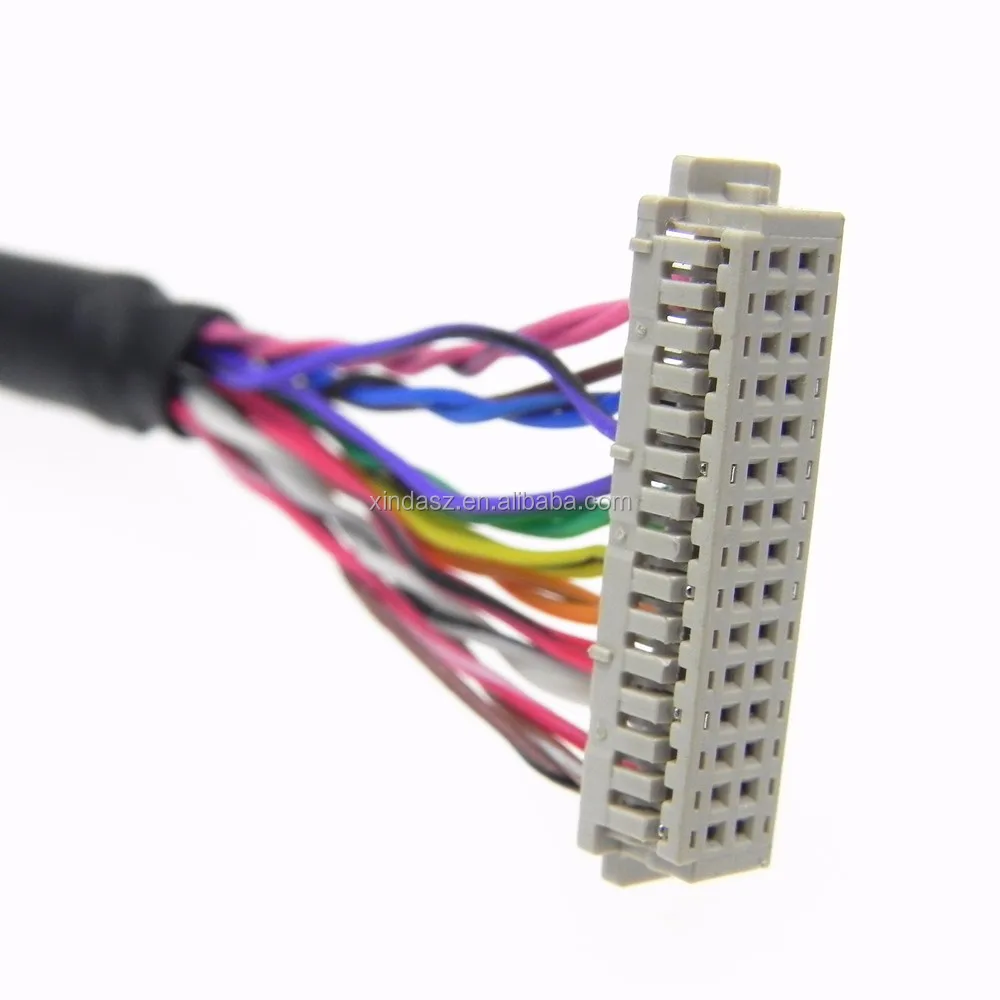

Lvds cable ( we are very good at Custom make work)

Certifications
Our Services

 Brief:

* Professional with many years experience from 1995.
* Most competitive price from material supplier base on huge orders to them.
* Experienced and Effective inner cost control system through whole process.

Quality Control:

* Twelve quality control staff, monitor in production line
* Providing relative solution
* Testing from material to final products according to international standard
* ISO, UL, RHOS, CEapproved factory

Service:

* OEM / ODM service and support
* Free Sample Development
* Clients Service One-to-One
* Effective Communication within 24 hours
* Can offer design work as per customer's request

FAQ

1. Are you a Trading company or Factory/Manufacturer?

A: We are factory for lvds cable.

2.When can I get the quotation of lvds cable?

A: We usually quote within 24 hours.

3.How can I get a free sample to check the lvds cable quality?

A: We will offer free pre-production sample.

4.What about the lead time for mass production of lvds cable?


A: Fast delivery,2-3weeks.

Shipping and Payment

Shipping Policies

- Items will be sent to all the countries over the world.
- This package will be sent by FEDEX,TNT,UPS or DHL
- Items will be inspected carefully before sent out.
- Proper packing material will be used to wrap the items for protecting goods inside of carton box.

Payment terms

- T/T, L/C, Payal, Western Union, Cash

Our Company

-About us

-Xin Da International(china) Limited is an Electronic Manufacturing Services (EMS) provider to Original Equipment Manufacturer's
-more commonly known as OEM's and ODM's.
-Our focus is on manufacturing quality products in the fastest time-frame possible
-delivered to your location for use in your process.

-Who We Are

- We strive to meet your needs in every way possible from design, to compliance with rigidspecifications
-quality checks and more. At E-connecting Technology,it is our goal to "exceed your expectations ."
- Our can do attitude ensures that you will receive your products on time, manufactured correctly and priced on budget.

-What We Do

- This industry style of Electronic Manufacturing Services, has been very successful over the last 8 years.
- Communication is direct, quality is exceptional, delivery is punctual and the pricing can't be beat!
- Whether you need prototypes, board production or full box build,E-connecting has your solution.

-Why Choosing Us

-We know Technology.From any make and model pc to home theatears, cameras, car technology and more.
-We can supply original or simulation or custom designed products to meet your requirements
-No matter where you are. We're here day and night ,serving you by phone, in-form or on site.
