61-POS FPC CABLE 0.3 MM PITCH PRINTED FLEXIBLE CIRCUIT

Supplier: Shenzhen Futian Xinda Electronic Sales Department
Region: Guangdong, China
Contact: Mr David Lee
Price: $2.00 / >=60 pieces
Min. Order: 60 pieces

Click here to contact

Product details

Material:	FR-4,CEM-1,CEM-3, Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum;	Model Number:	Xinda-01h;
Surface Finishing:	HALS/HALS lead free,Chemical tin,Chemical Gold, Immersion gold Immersi;	Min. Line Width:	0.075mm(3mil);
Outer packing:	Standard carton packing;	Min. Hole Size:	0.25mm;
Assembly Service:	OEM/ODM service to all fpc cable assembly;	Base Material:	pvc;
Certificate:	UL,SGS,ROHS,CQC;	Max.finished board side:	500mm*500mm;
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram;	Min. Line Spacing:	0.075mm(3mil);
Packaging Detail:	Flat Flex FPC cable Standard Package. Flat Flex FPC cable OEM Package.OR packing at your request.;	Min.drilled hole size:	0.25mm;
Hole tolerance:	PTH:±0.076,NTPH:±0.05;	Copper Thickness:	35um,1oz,2oz;
Board Thickness:	0.15mm-0.5mm;	Place of Origin:	Guangdong China;
Inner packing:	Vacuum packing,ESD bag,Plastic bag;	Port:	shenzhen/HK;
Brand Name:	Xinda-ok;	Delivery Detail:	Shipped in 7 days after payment;
Supply Ability:	100000 Piece/Pieces per Month usb fpc cable;	Solder mask color:	green/black/white/red/blue/yellow;
Layer:	1-16 layers;

Welcome to Xinda Electronic Limited

Your satisfaction is our biggest target

61-POS FPC CABLE 0.3 MM PITCH PRINTED FLEXIBLE CIRCUIT

Description of fpc

Items	Volume	Prototype
Types	Single-sided, Double-sided, Multi- Layers Rigid-Flex circuit	Single-sided, Double-sided, Multi-layer, Rigid-Flex circuit
Layer count	Flexible Circuit:1-8 Layer Rigid-Flex Circuit 2-8 Layer	Flexible Circuit:1-8 Layer Rigid-Flex Circuit 2-16 Layer
Max Finish Board Size	250*650mm	250*650mm
Board Thickness	0.15mm -0.6mm	0.15mm -0.6mm
Min. Line Width/Spacing	3mil\3mil	3mil\3mil
Finish Board tolerance	±0.05mm	±0.05mm
Insulation layer thickness	12.5um-50um	12.5um or >50um
PTH hole copper thickness	≥0.01mm	≥0.01mm
Min NC drill hole diameter	0.2mm	0.2mm
Laser drill hole diameter	0.1mm	0.1mm
ENIG	AU:0.025-0.125um Ni:1-4um	AU:0.025-0.125um Ni:1-4um
Electronic Nickel Immersion Gold	AU:0.025-0.125um Ni:1-5um	AU:0.025-0.125um Ni:1-5um
Immersion Tin	Sn:0.025-0.125um	Sn:0.025-0.125um
OSP	0.1-0.5um	0.1-0.5um
HASL	1-40um	1-40um
HAL	1-40um	1-40um
Immersion Silver	≥0.15um	≥0.15um
Impedance control	±100%	±100%
Testing	Flying Probe Test X-ray Inspection AOI Test	Flying Probe Test X-ray Inspection AOI Test

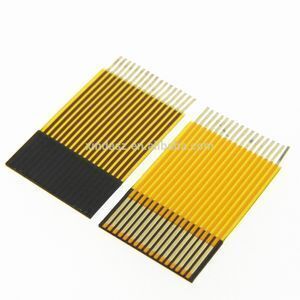

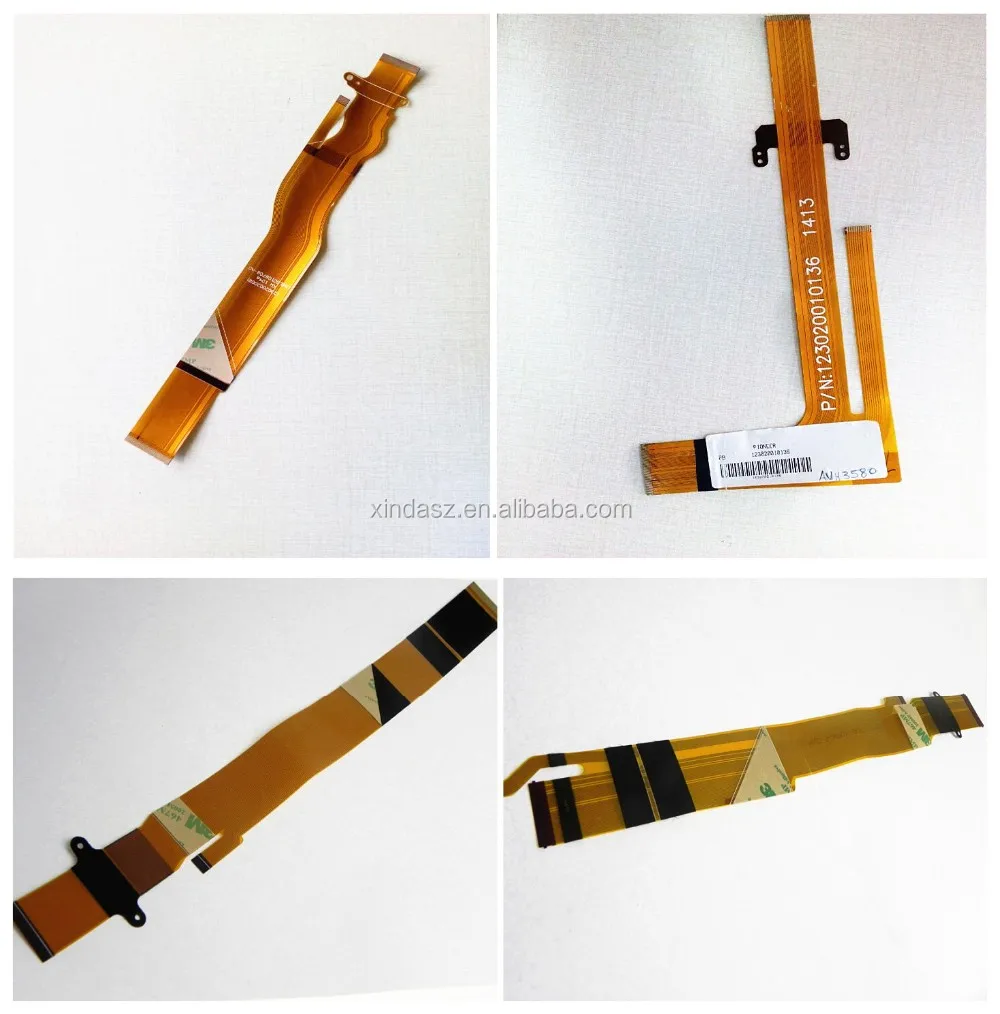

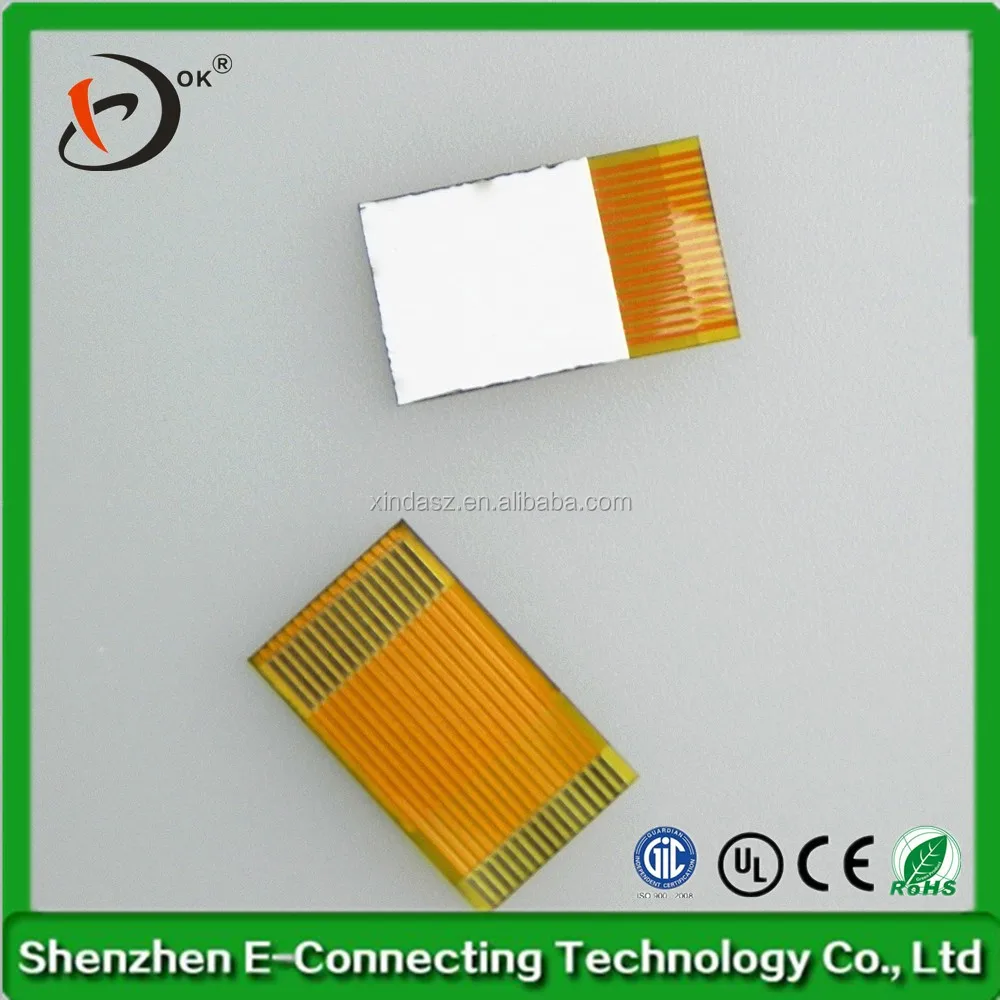

Detail piture

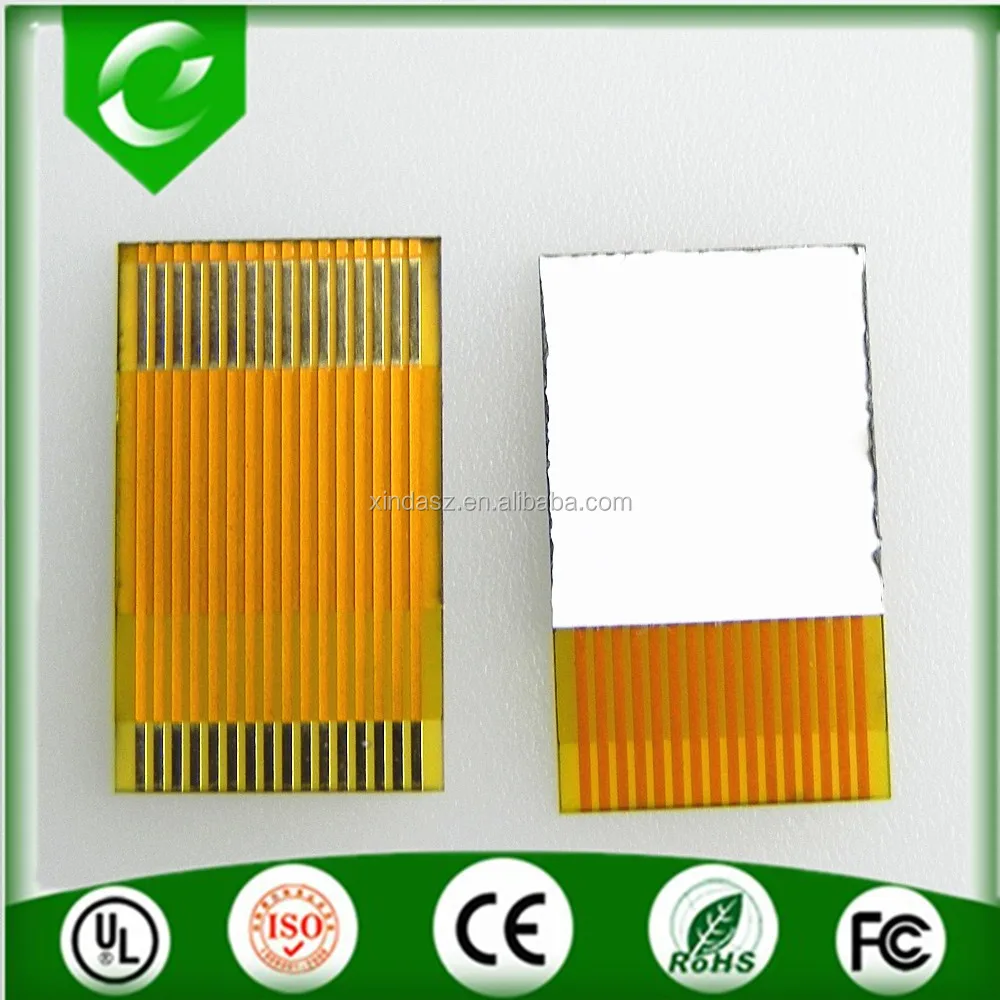

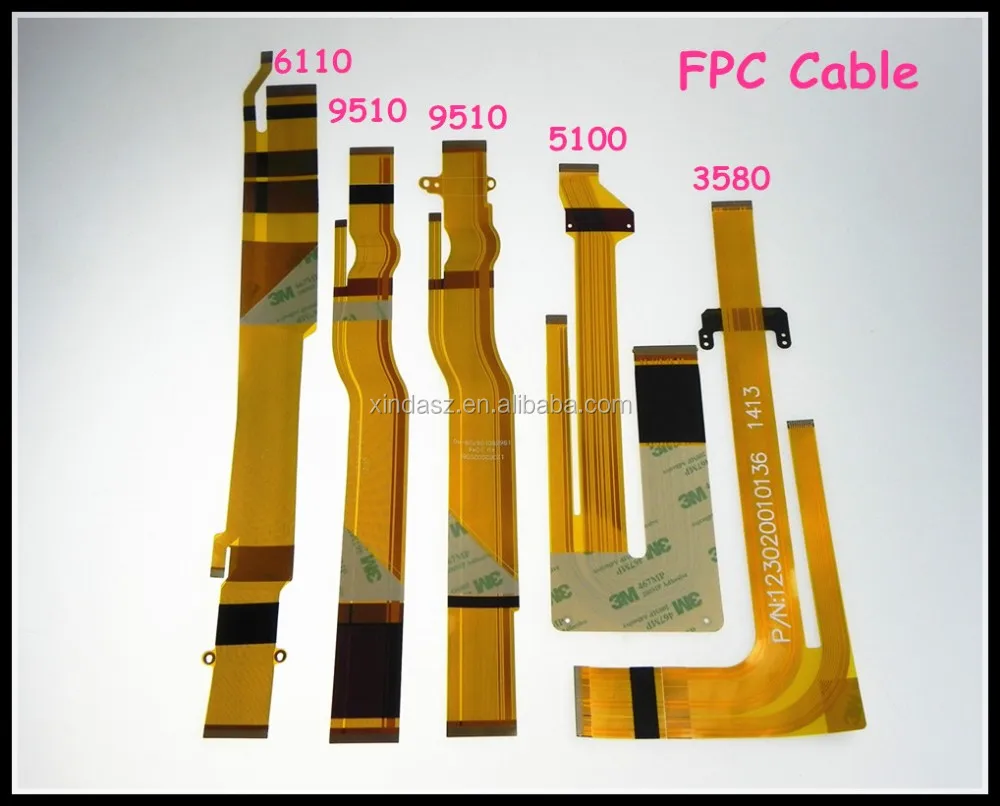

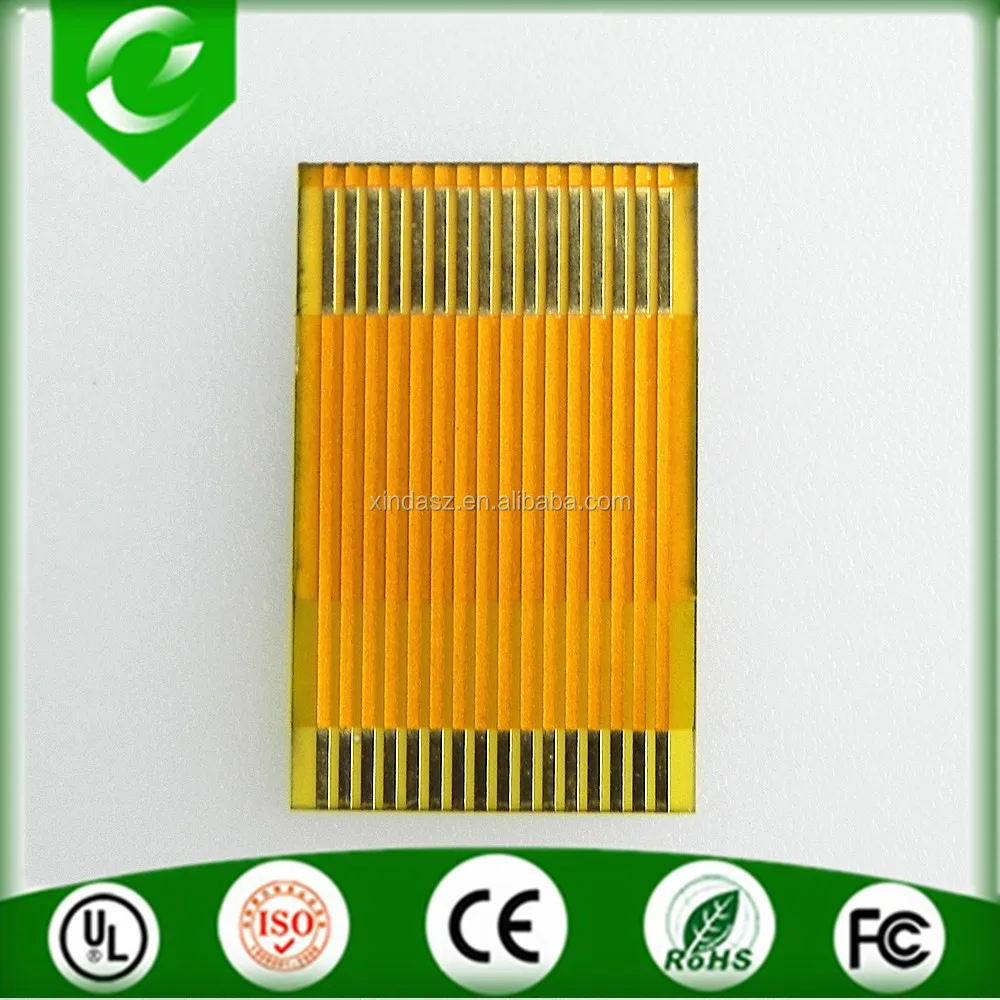

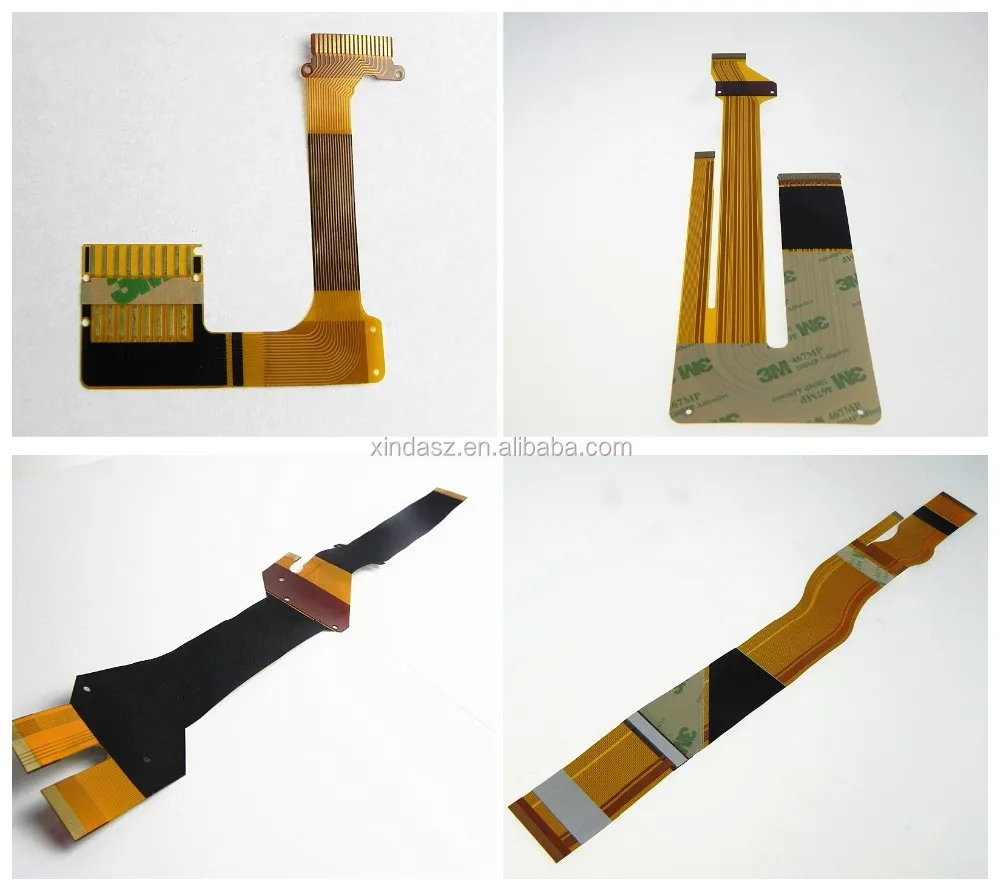

Other type of fpc cable

Benefits of Flexible Printed Circuit (FPC Cable ):

1. FPC Printed Circuit / FPC Cable with different pitch

2. Customize Length: any length

3. Customize Contact: 5pin - 51pin etc

4. UL Cable & ROHS compliant

Discription & Feature of Flexible Printed Circuit / FPC Cable :

1. Flexible Printed Circuit Normal Pitch Range: 0.3mm & 0.4mm

2. Flexible Printed Circuit Custom Length: 15mm ~ Longer available

3. Flexible Printed Circuit Pin Number: 3-100 (custom cable service is provided)

4. Flexible Printed Circuit Wire Material : UL Style:2896 80C,30V,UL STYLE: 20624 80C,60V

5. All products compliant with ROHS

6. Simplify layout procedure and simplify wiring.

7. Made in China

8.Enjoy the popularity in China mainland, EU,North America and Canada,etc.

Why choosing xinda?

1. Professional & experienced engineers

2.Offer technology support

3.Product warranty

4.Competitive price

5.OEM & ODM are welcome

6.More than 16years experience

7.Own factory

8.Lead time:3-5 days

9.100% inspection before delivery

10.Making a sample quickly , delivery rapidly are our traits.

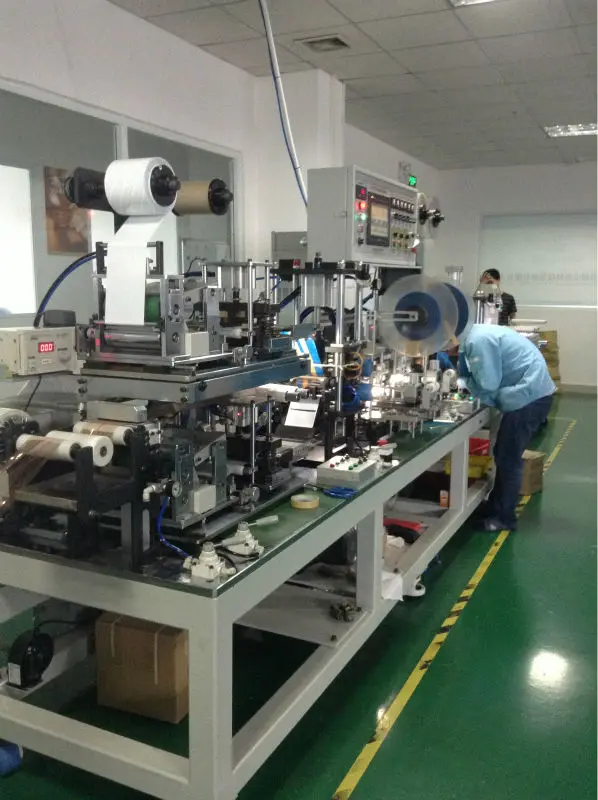

Company Information

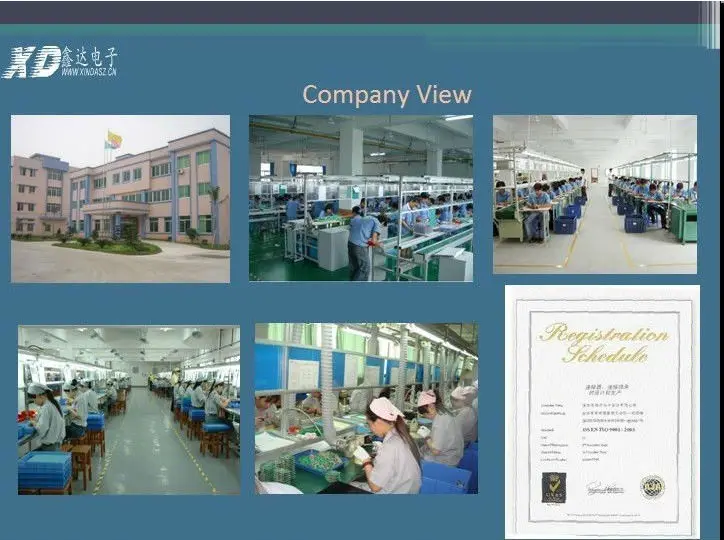

Company profile

Founded in 1995, Shenzhen Xinda Electronic Limited is an engineering and manufacturing company focus on Precision Connectors, cables, and signal wires for computers, digital products, Medical equipment, war industry, finance products, telecommunications industries, and household appliance. With experienced R&D team, advanced production equipment, and perfect management system, we can offer complete solutions for OEM/ODM projects, including mould development to finished products. In a rapid development of several years, we’ve been a strong and professional company with an area of 2600 Square meters and more than 450 staffs.

The end customers

1.When can I get the quotation of cable?

wells: We usually quote within 24 hours after we get your detail specification.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2.How can I get a sample to check the cable quality?

wells: After price confirmation if you order a large amount of product and need some samples, we will charge for the sample cost.But if you need some simple products, we will not charge cost.

3.How can I expect to get the cable sample?

wells: After you send confirmed files,the samples will be ready for delivery in 2-3days. The sample will be sent to you via express and arrive in 3-5 days. You can use your express account or prepay us if you do not have account.

4.May I have free sample?

wells: Yes,why not.

5.What about the lead time for mass production?

wells: Honestly,it depends on the order quantity and the season you place the order. Usually we need 7-10 days to do the normal cable assembly.
