Product name: | China single drum vibratory road roller SR26-5 compactor price; | Warranty: | 1 Year; |
Applicable Industries: | Construction works ,Energy & Mining; | Engine Brand: | Shangchai; |
Power: | 162kw; | Hydraulic Pump Brand: | Top brand; |
Machinery Test Report: | Provided; | Marketing Type: | Ordinary Product; |
Grade Ability: | 45; | Travel Speed: | 0-4/0-5.4/0-9.5km/h; |
Supply Ability: | 5000 Unit/Units per Year; | Condition: | New; |
Local Service Location: | Egypt,United States,Viet Nam,Philippines,Brazil,Saudi Arabia,Indonesia,Pakistan,India,Russia,Thailand,Malaysia,Kenya,UAE,Algeria,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan; | Payment Terms: | L/C,T/T,MoneyGram; |
Warranty of core components: | 1 Year; | Place of Origin: | Shandong China; |
Port: | Qingdao,Tianjin,Shanghai; | Showroom Location: | United States,UAE,South Africa; |
Drum: | Single Drum Roller; | UNIQUE SELLING POINT: | High operating efficiency; |
Video outgoing-inspection: | Provided; | Dimension(L*W*H): | 6501*2562*3258mm; |
Brand Name: | SHANTUI; | After-sales Service Provided: | Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service; |
Type: | Single Drum Roller,Vibratory Roller; | Hydraulic Valve Brand: | Top brand; |
Core Components: | Motor,Bearing,Gear,Pump,Engine; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Drum diameter: | 1600mm; | Exciting Force: | 352/265KN; |
Weight: | 25.48t/25.68t; |

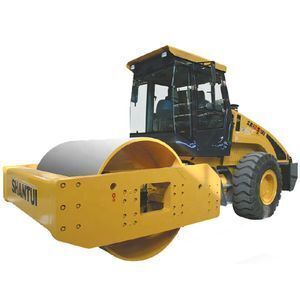

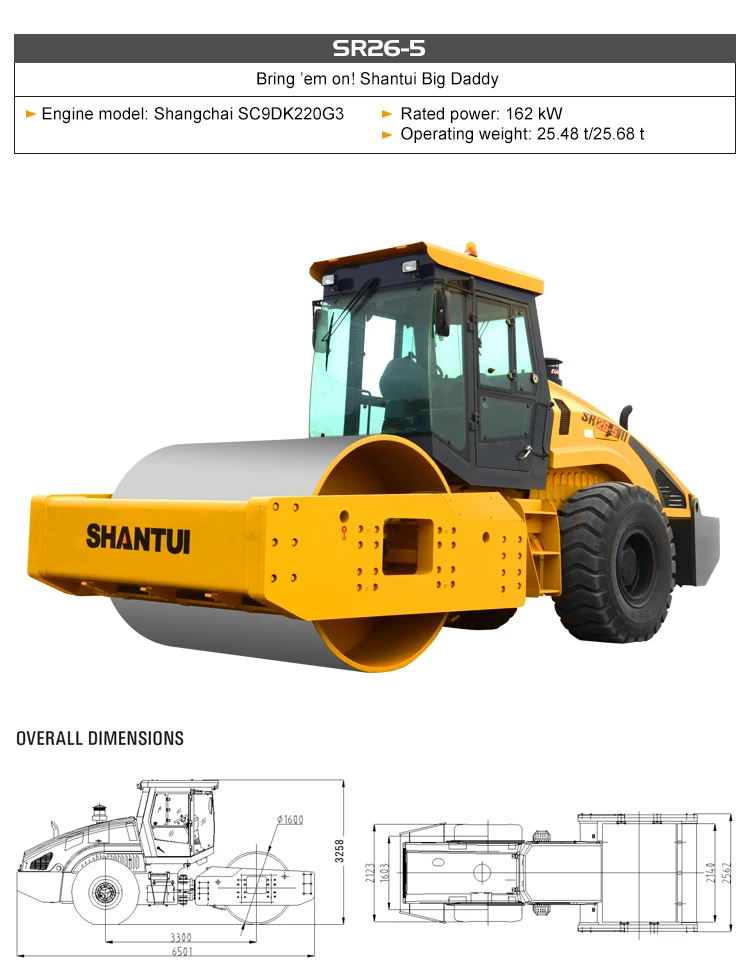

China single drum vibratory road roller SR26-5 compactor price
Shantui’s high grade and high standard choice of critical parts of the roller (including engine, drive parts, and hydraulic parts) guarantees the performance and reliability of the product. The professional design on the static linear pressure, vibration
amplitude, and vibration frequency and the appropriate speed and gradeability performance realize maximum working efficiency while providing high compacting performance.Finally, it has the extra-added touch of having a very attractive design flow to its outward appearance.

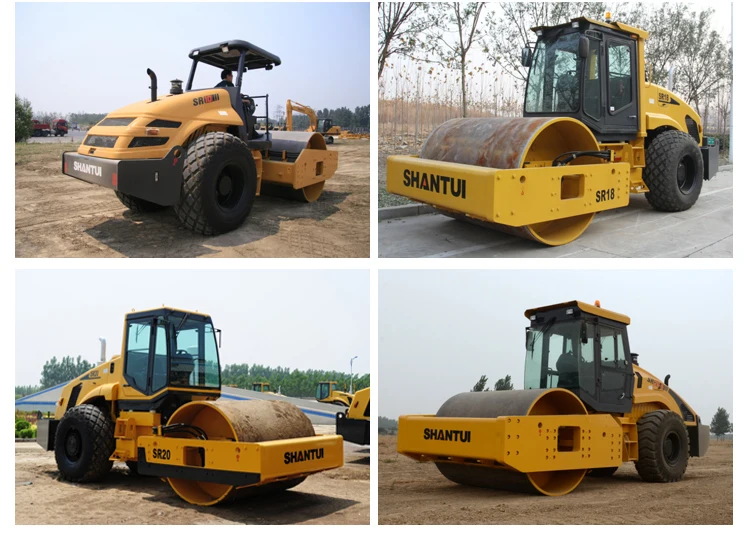

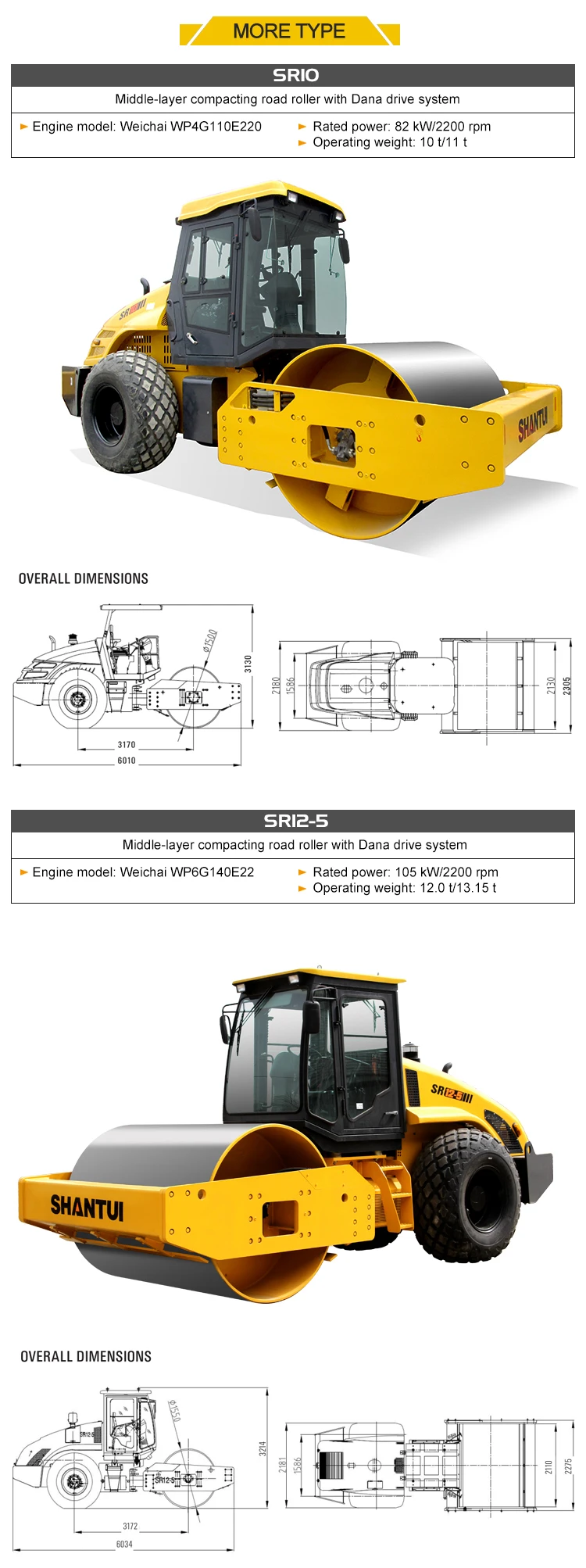

Full Hydraulic Single Drum Vibratory Roller Series | |||||||
MODEL | SR10 | SR12-5 | SR16 | SR18 | SR20-3 | SR26-5 | |
Operating weight (kg) | 10120 | 12000 | 16450 | 18000 | 19535 | 25800 | |
Axle load, front (kg) | 5520 | 7000 | 10000 | 11350 | 12713 | 17000 | |
Static linear load, front/rear (N/cm) | 259 | 327 | 468 | 530 | 595 | 779 | |
Working width (mm) | 2130 | 2110 | 2140 | 2140 | 2140 | 2140 | |
Minimum turning radius (mm) | 5880 | 5500 | 5600 | 5800 | 6100 | 6000 | |
Drum diameter (mm) | 1500 | 1550 | 1550 | 1550 | 1550 | 1600 | |
Vibration frequency, high amplitude/low amplitude (Hz) |
30/36 | 30/33 | 29/32 | 29/33 | 28/33 | 27/30 | |
Rated amplitude,high/low (mm) | 2.0/1.0 | 1.9/1.02 | 1.8/0.8 | 1.75/0.95 | 1.86/0.93 | 1.8/1.1 | |
Centrifugal force, high/low (KN) | 270/180 | 270/175 | 300/167 | 310/215 | 370/255 | 352/ 265 | |
Steering angle (°) | ±36 | ±36 | ±36 | ±36 | ±36 | ±36 | |
Oscillating angle (°) | ±12 | ±12 | ±12 | ±12 | ±10 | ±10 | |
Maximum climbing ability (%) | 48 | 48 | 45 | 45 | 45 | 45 | |
Forward speed (km/h) | 1 | 0–5.3 | 0- 5.3 | 0- -5.6 | 0- -5.2 | 0-4 | |
2 | 0–9.9 | 0- 9.9 | 0-5.9 | 0-7.1 | 0-7.2 | 0- 5.4 | |
3 | – | – | 0- 9 | 0- -8.7 | 0-12.7 | 0- -9.5 | |
4 | – | – | – | 0-13.5 | – | – | |
Reverse speed (km/h) | 1 | 0–5.3 | 0- 5.3 | 0-5.9 | 0- 5.6 | 0- -5.2 | 0-4 |
2 | 0-9.9 | 0-9.9 | 0- 9 | 0-7.1 | 0- -7.2 | 0-5.4 | |
3 | – | – | – | 0- -8.7 | 0-12.7 | 0- -9.5 | |
4 | – | – | – | 0-13.5 | – | – | |
Engine model | Weichai P4G110E220 |
Weichai DEUTZ WP6G 140E22 |
CUMMINS 6BT5.9-C150 |
CUMMINS 6BT5.9 |
Shangchai SC8D190.G2 |
CUMMINS 6CTAA8.3-C215 |
|
Rated power (kW) | 82 | 105 | 112 | 132 | 140 | 160 | |
Rated speed (rpm) | 2200 | 2200 | 2500 | 2500 | 2200 | 2200 | |
Padfoot, number | – | – | – | – | – | – | |
Height of the padfoot (mm) | – | – | – | – | – | – | |

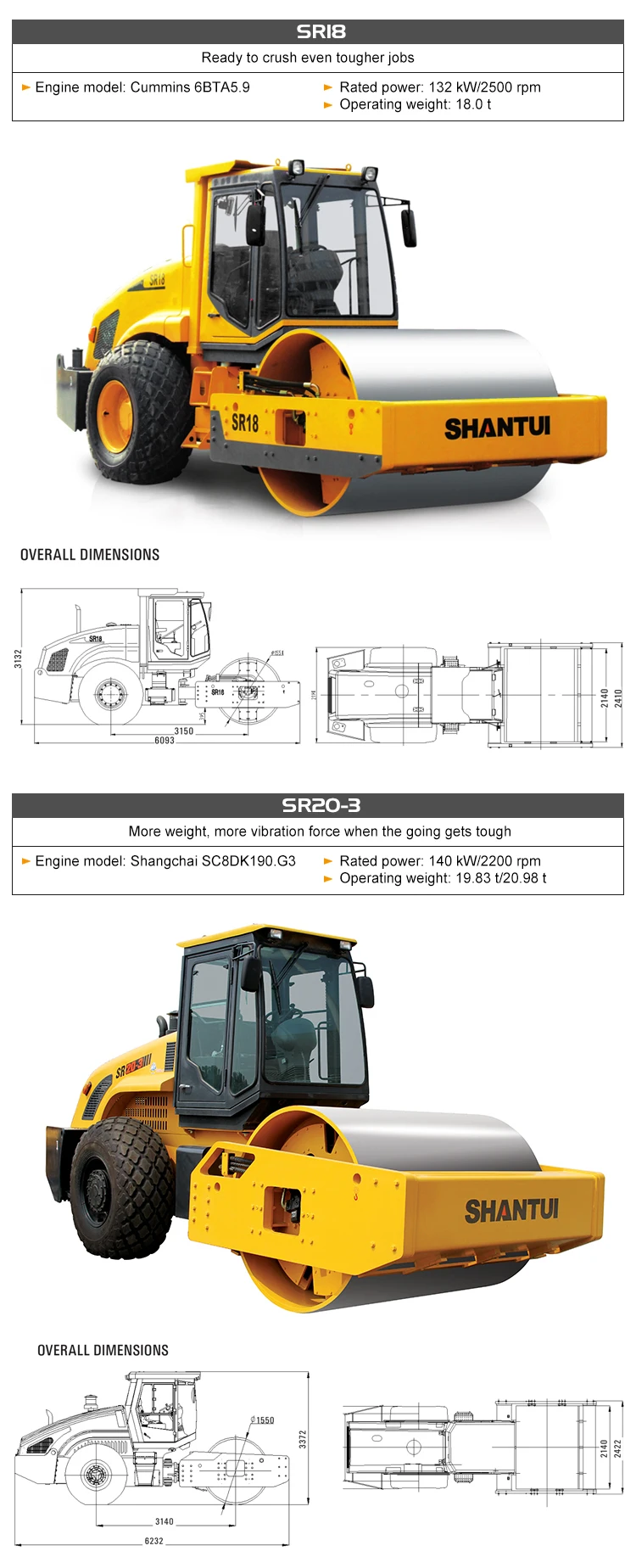

Overall length (mm) | 5860 | 6034 | 6092 | 6093 | 6232 | 6501 | |
Overall width (mm) | 2305 | 2275 | 2382 | 2410 | 2422 | 2562 | |
Overall height (mm) | 3225 | 3214 | 3104 | 3132 | 3372 | 3258 |
Engine
The standard Weichai WP series turbocharged diesel engine features outstanding performance, high reliability, high fuel economy, and strong power output, which can maintain the whole machine at optimal compacting status, guaranteeing construction quality.
The optional Cummins B series engine features reasonable strength, compact and simple structure, less types and numbers of parts, light weight, and high efficiency.

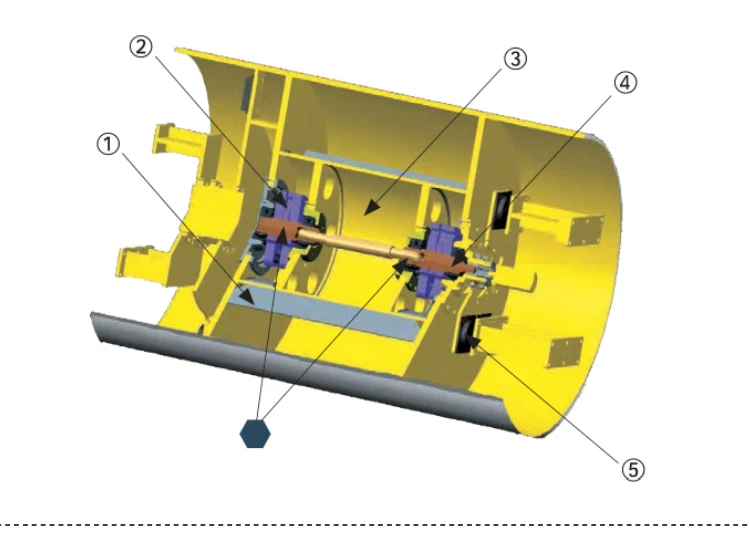

Vibratory Drum
The professional design and manufacturing guarantee outstanding compacting performance, meeting the construction requirements of various work sites, and features easy service and maintenance.

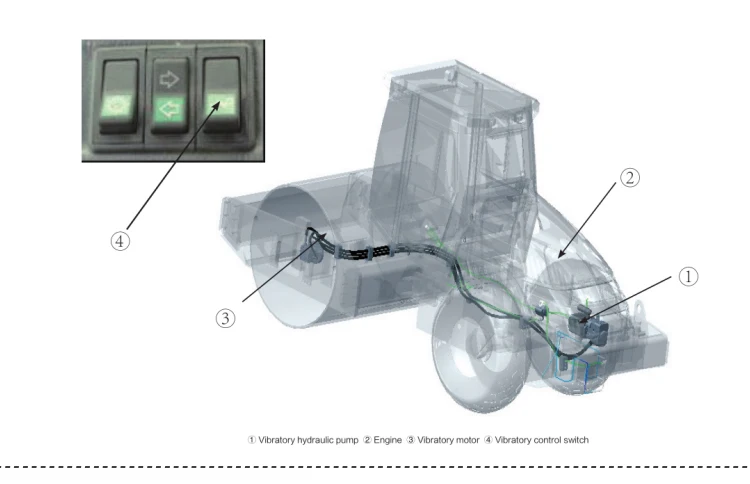

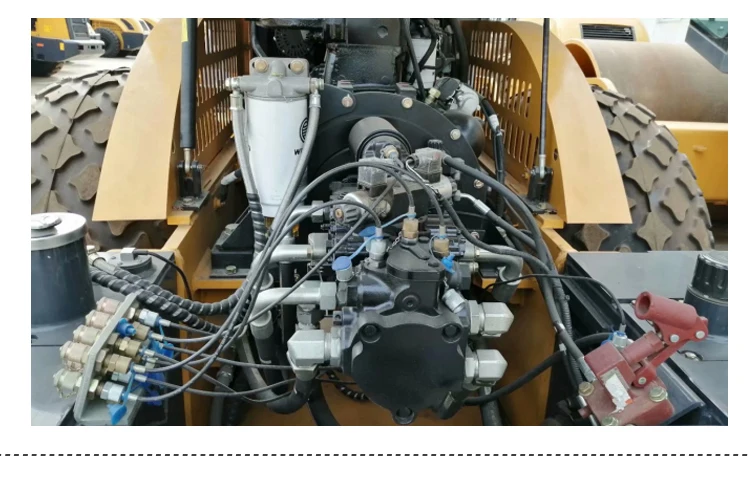

Vibratory Hydraulic System
The use of hydraulics from renowned brands provides double-frequency and double amplitude compacting performance of the equipment while ensuring high reliability.

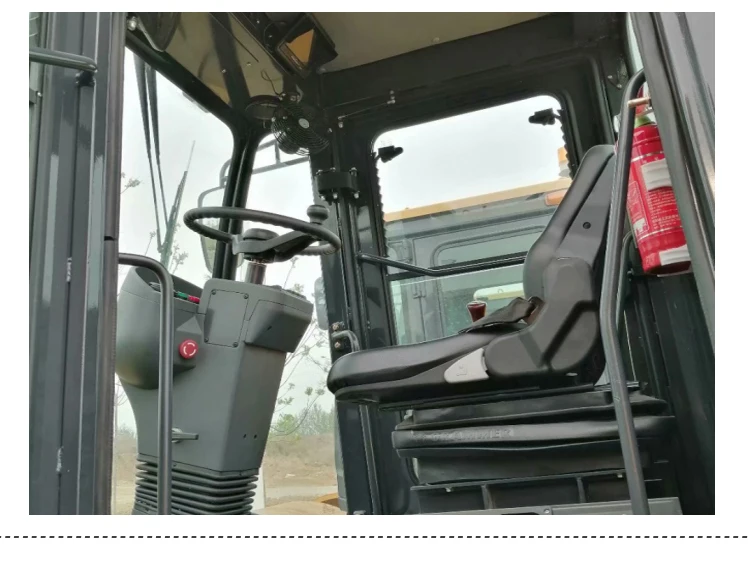

Cab
Comfortable driving environment Streamline appearance
The streamlined design of the rear hood not only promotes the aesthetics of the whole machine, but also provides the operator with an extensive visual field so that the outer edges of rear wheels and the rear half of the whole machine are visible to enhance the working safety. The traveling of the machine is controlled by a single lever and the steering of the machine is controlled by a light and handy steering wheel to effectively promote work efficiency, reducing the fatigue of the operator. The vibration operation is controlled by a one-touch switch and the comfortable and solid seat can be adjusted back and forth. The left and right tilting armrest and retractable seat belt assure comfort and safety. The driver’s cab can be optionally equipped with an air conditioner to provide a comfortable work environment. The three-stage damping system relieves the operator from the interference of the vibration source, relieves the fatigue feeling, and promotes overall work efficiency
Maintenance

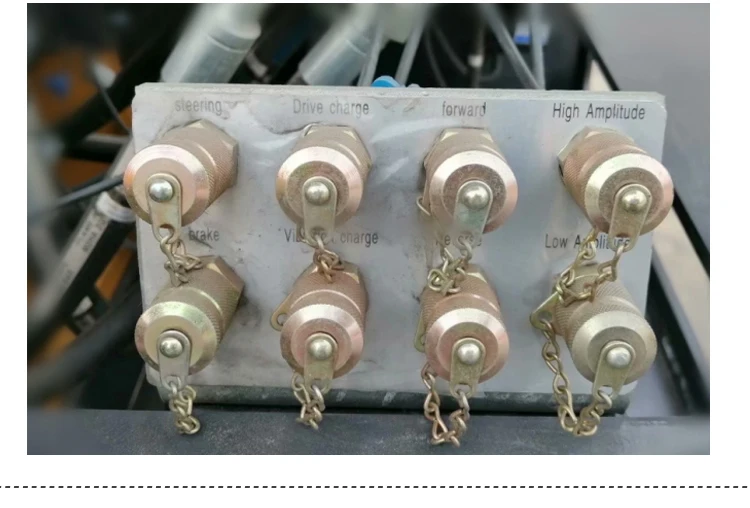

Large angle opening hood, 8-point central pressure measuring system, maintenance-free battery, real-time monitoring of pressures and temperatures, and reasonable arrangement of diesel and working oil tanks enable Shantui rollers to have excellent maintenance performance, shortening the shutdown time, and improving the utilization rate of the machine.
.
Standard double-amplitude and double-frequency function expands the application scope of the equipment. The high span between high and low centrifugal forces helps the establishment of compacting schemes depending on different density specifications. The design of the drum vibration parameters conforms to the requirements of the work site and the padfoot can be assembled onto the smooth drum within a short period to expand the functional scope of the machine.
Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
We have established a team of specialists, knowledgeable in our products and services, in order to provide information and answers to our customers on technical issues.
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
Shantui Construction Machinery Co., Ltd., founded in 1980, was a national category I key enterprise integrating research & development, production and sales of main engine products and key components of earth moving machinery, pavement construction & compaction machinery, building machinery, hoisting machinery and other construction machinery series products; and it is also a state-owned joint-stock listed company. It is one of the top 50 manufacturers of construction machinery in the world, and one of China’s top 500 manufacturers. On January 1, 1997, “Shantui” listed on the Shenzhen Stock Exchange (stock code: 000680). In June 2009, Shandong Heavy Industry Group was established, and Shantui became one of its Subsidiaries. As the backbone of construction machinery industry in China, Shantui always ranks as No.1 in the industry.
Shantui has completed relevant diversified industry layout. In China, it has established seven industrial bases, i.e. Shantui International Industrial Park, Shantui Chongwen Industrial Park, Shantui Wuhan Industrial Park, Shantui Fushun Industrial Park, Shantui Taian Industrial Park, Shantui Jinan Industrial Park and Shantui Xinjiang Industrial Park, with overall coverage reaching 3,900mu.
Shantui focuses on technical innovation and sustainable development all the time. It ranks as one of domestic leading and nearly international advanced manufacturers in research & development capability, manufacturing capability and product quality. It owns national-level technical center, Engineering Technology Research Center of Shandong Province, post-doctoral scientific research station and other innovation platforms. Main products include 13 categories of main engine products, such as bulldozer series, road machinery series, concrete machinery series, loader series, fire vehicle series, aerial platform vehicle series and crane series, as well as accessories for construction machinery, such as chassis part, drive part, structural part, casting part and hydraulic oil cylinder; in which, Shantui bulldozer has become the first brand in China, and has won the sole gold medal in the bulldozer industry all over the country. At present, its annual production capacity exceeds 15,000 units of bulldozers, 7,000 units of road machineries, 5,000 units of concrete machineries, 180,000 track assemblies, 160,000 units of torque converters, 50,000 transmissions and 1,400,000 units of construction equipment rollers.
Shantui owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 150 countries and territories. At present, there are 26 Shantui monopolized stores and 150 marketing points. The international strategy is implemented stably; now, Shantui has 71 overseas Agents, as well as 10 overseas Subsidiaries in the United Arab Emirates, South Africa, Russia and Brazil. In the aspect of marketing service mode, it abides by the principle of “value leading and win-win service”, introduces advanced concepts such as leading the industrial service promise, quality tracking and user care, provides solutions of whole set equipment construction for customers in time; and the humanized and punctual top-quality service help Shantui win customers’ praise, thus enhancing brand value of the enterprise.
