Mini asphalt roller 1ton (FYL-880)

Supplier: Jining Furuide Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Ms Jessica Chang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Unique selling point:	Full hydraulic system	Hydraulic tank:	19L
Level Ability:	30%	water tank:	60L
Applicable industries:	construction project	Mechanical test report:	if
Package dimensions:	210010001650mm	weight:	1000 kg
Warranty:	1 year	type:	vibratory roller
Hydraulic valve brand:	Danfoss	brand:	Fude
Engine brand:	long hair	port:	Qingdao
Dimensions (LWH):	210010001650mm	Steel drum size:	Diameter: 540mm; Front Drum: 740mm, Rear Drum: 800mm
engine model:	Water-cooled diesel 90N/Cape CF186F/Honda gasoline GX390	Vibration Control:	Electromagnetic clutch
Health status:	new	place of origin; place of origin:	Shandong China
Drum Diameter:	540mm	Marketing Type:	Hot Products of 2022
Driving speed:	0-5km/h	payment terms:	L/C, T/T
Packaging Details:	Wooden case or according to customer's requirement.	Name:	1 ton mini asphalt roller
Core components:	Motors, bearings, pumps, engines	drum:	Double Drum Roller
Showroom location:	Vietnam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, Chile, UAE, Colombia, Sri Lanka, Bangladesh, South Africa, Ukraine, Malaysia, Australia, Morocco	strength:	9HP/13HP
Exciting force:	25KN, 25KN	Core component warranty:	1 year
Start method:	flashlight	Drive type:	Hydraulic transmission
Supply capacity:	100 sets per week	Hydraulic pump brand:	Danfoss
Video shipment inspection:	if

Product Description

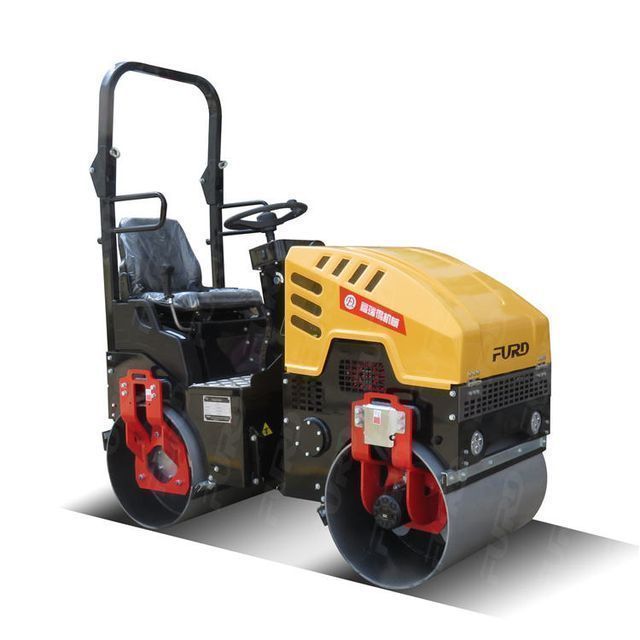

1 ton mini asphalt roller FYL-880

FYL-880 is a 1-ton small asphalt roller, which adopts full hydraulic transmission, stepless speed change, double drum hydraulic drive, hydraulic steering, mechanical vibration, and a vibration capacity of 2.5 tons.

technical parameter

Model	FYL-880
walking speed	0-5km/h	water tank	60L
Gradeability	30%	Hydraulic tank	19L
drive type	Hydraulic transmission	engine model	Water-cooled diesel 90N/air-cooled diesel CF186/Honda gasoline GX390
vibration control	Electromagnetic control	strength	9HP/13HP
static linear control	20/55N/cm	Drum size	diameter 540mm, The width of the front drum is 740mm, Back drum width 800mm
Nominal amplitude	0.6mm	Package dimensions	210010001650mm
vibration frequency	70 Hz	net weight	1000 kg
Exciting force	25KN	start method	flashlight

feature:

1) The imported Danfoss variable plunger pump drives the machine to walk with stepless speed;
2) Double American white hydraulic motors drive the machine to walk, and double rollers are hydraulically driven;
3) 25KN exciting force, good compaction;
4) The working radius is small, and it can work in a small area, which is suitable for trench backfilling;

5) Adopt domestic 90N water-cooled diesel engine/Honda GX390 gasoline engine/Kepler air-cooled diesel engine, with guaranteed quality and superior performance;
6) Electric start is adopted, and electromagnetic clutch is used for machine vibration control, which is more convenient to operate;
7) International NSK bearings, three star V-belts, Eaton steering gear;
8) The surface is sprayed with plastic, beautiful and rust-proof.
