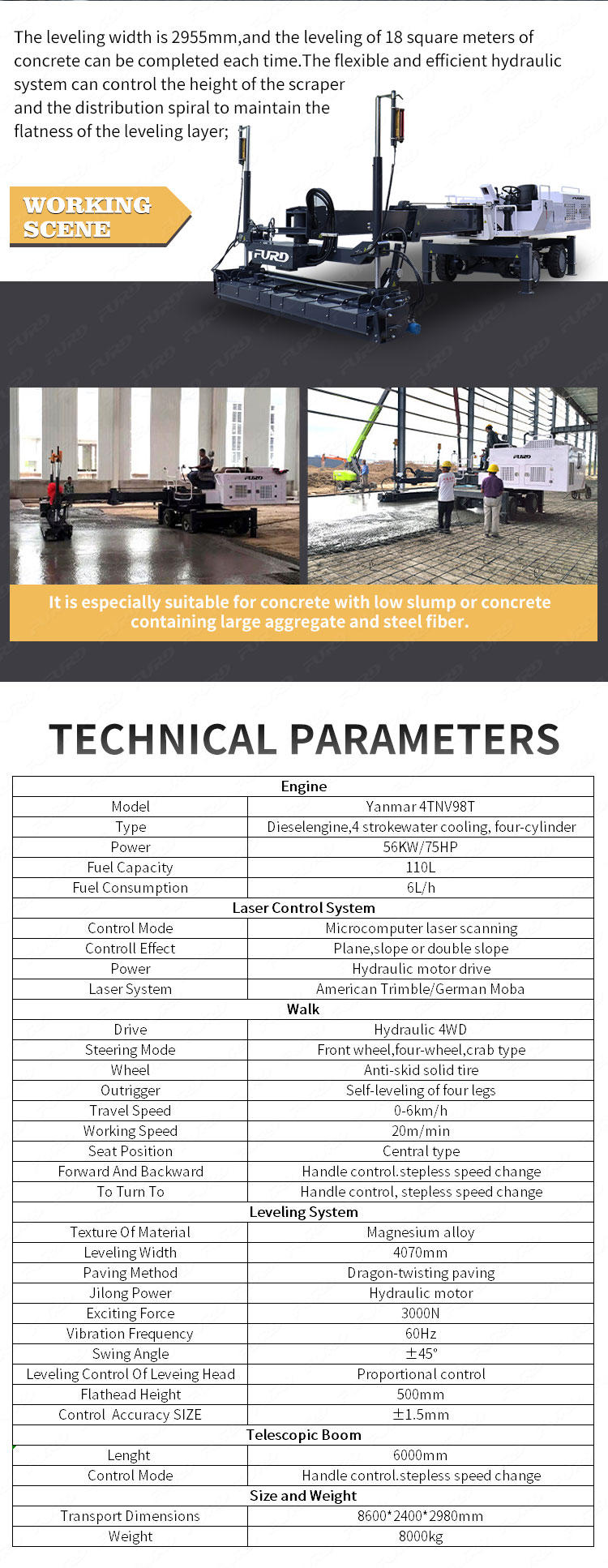

Warranty: | 1 year | Certification: | CE |
Core component warranty: | 1 year | weight: | 8000kg |
Applicable industries: | Building materials store, machine repair shop, others | brand: | Fuld |
Core components: | Engine, pump | application: | architecture |
Mechanical test report: | if | Boom length: | 6000mm |
strength: | 56kW/75hp | Supply capacity: | 100 road marking machines per month |
Dimensions (length*width*height): | 8600*2400*2980mm | Laser system: | Leica 680 transmitter, Moba LL3000 receiver |
Key words: | smooth road | Package preview: | |
Unique Selling Points: | High operating efficiency | port: | Qingdao |
Voltage: | / | type: | concrete machinery |
color: | white | Video outbound inspection: | if |
Place of origin: | Shandong Province, China | product name: | Arm type laser leveling machine |
Marketing type: | normal product | payment terms: | L/C, Western Union, T/T |
Packaging details: | Wooden box packaging can also be customized | brand: | Fuld |
Showroom location: | Canada, Turkey, United Kingdom, Germany, Philippines, Brazil, Peru, Mexico, Spain, Thailand, Kenya, Colombia, Malaysia, Australia | Health status: | new |
Model: | FJZP-200 | | |
product description

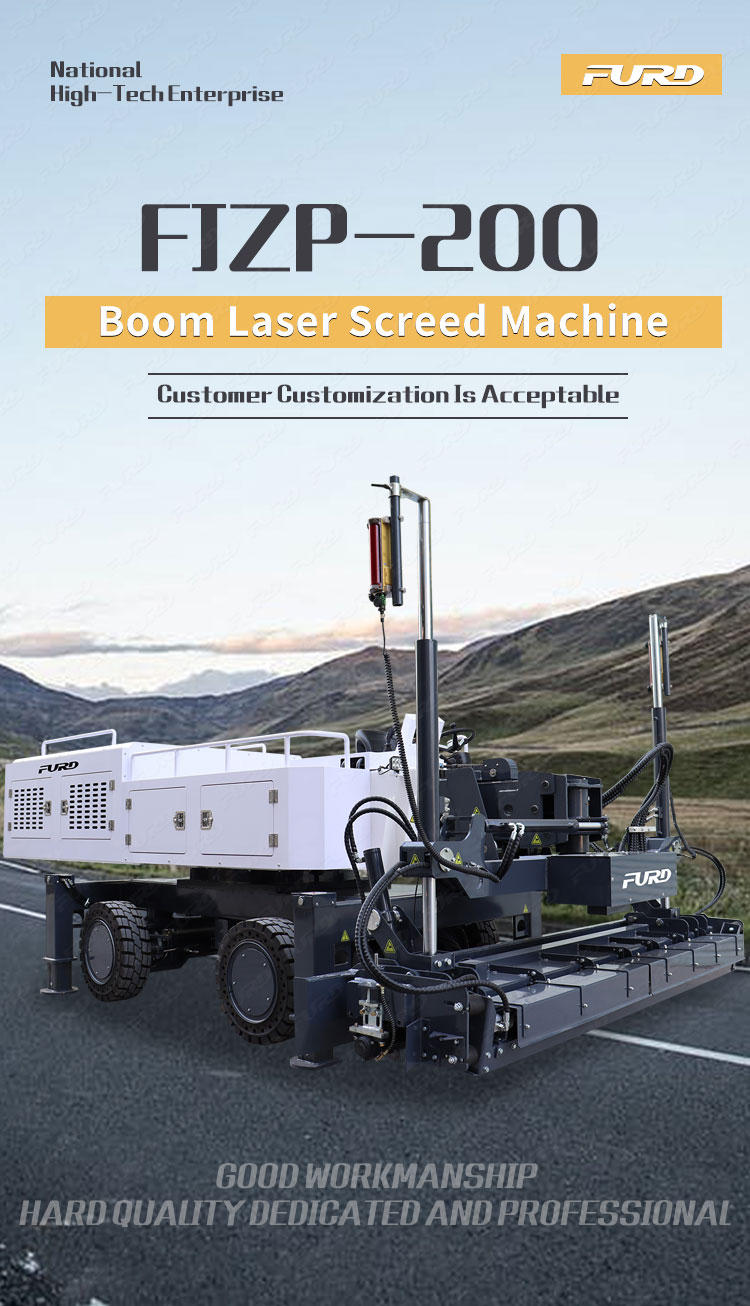

Hydraulically driven laser concrete screed

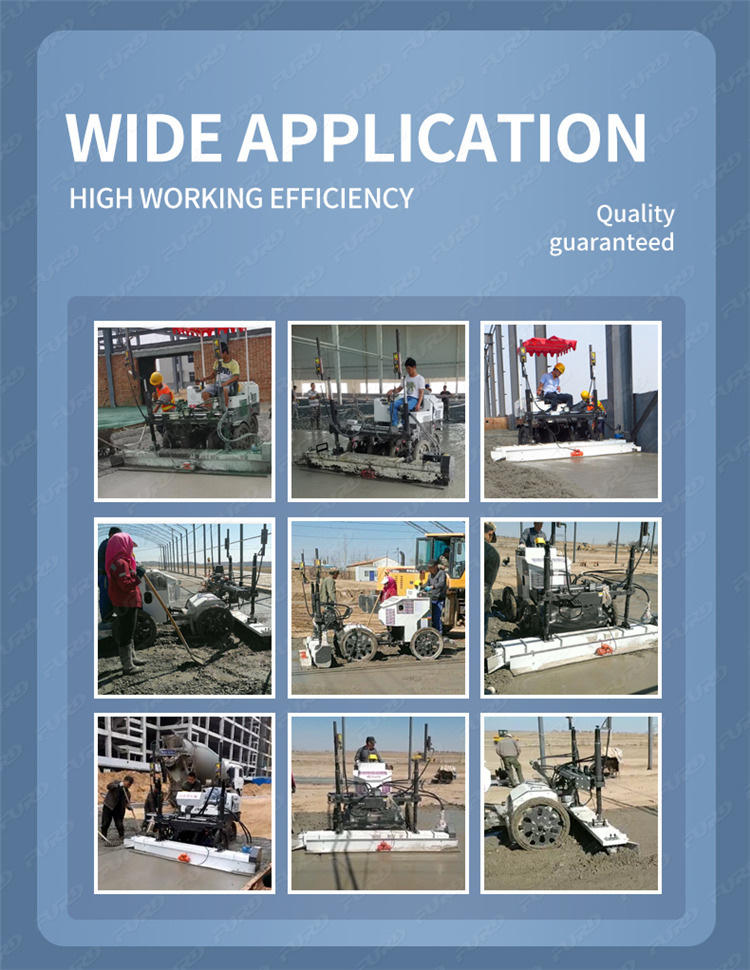

FJZP-200CC boom laser leveling machine is mainly used for concrete leveling in large-area concrete construction, such as squares, factories, airports, playgrounds, etc. Laser leveling can achieve high flatness and levelness requirements for concrete leveling.Concrete Arm Laser Leveling Machine Concrete Mini Arm Laser Leveling Machine
Machine Concrete Boom Laser Leveling Machine Concrete Boom Laser Leveling Machine

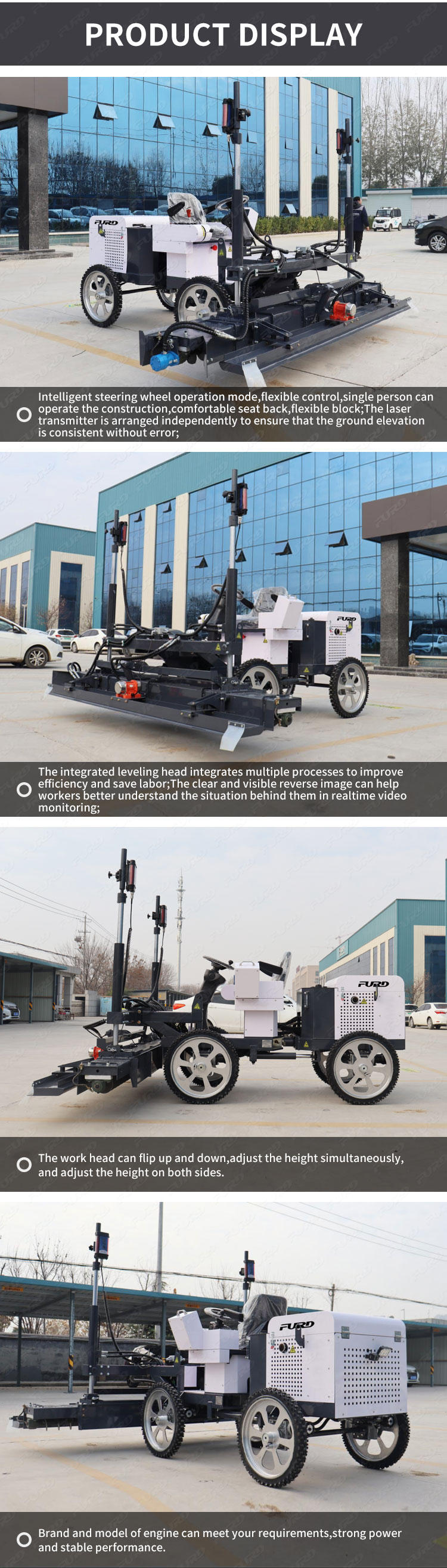

main feature:Concrete Arm Laser Leveling Machine Concrete Arm Laser Leveling Machine1. Adopt high-precision laser device, closed-loop control technology and precision integrated hydraulic system, and microcomputer automatic control.Concrete laser leveler
Concrete Arm Laser Leveling Machine2. The screed assembly is hydraulically controlled. This machine combines a laser system and a computer control system to automatically level and complete the leveling work efficiently.Concrete Arm Laser Leveling Machine3. The laser transmitter for measuring elevation is set independently, so there is no need to worry about cumulative errors. Compared with traditional methods, construction joints will be greatly reduced, and maintenance costs and slab usage will be greatly reduced.Concrete Laser Leveler Concrete Laser Leveler Concrete Arm Laser Leveler
