maximum. Distribution boom: | 32.7m | Mechanical test report: | if |
Core component warranty: | 2 years | control method: | remote control |
Showroom location: | not any | Marketing type: | Hot Products of 2023 |

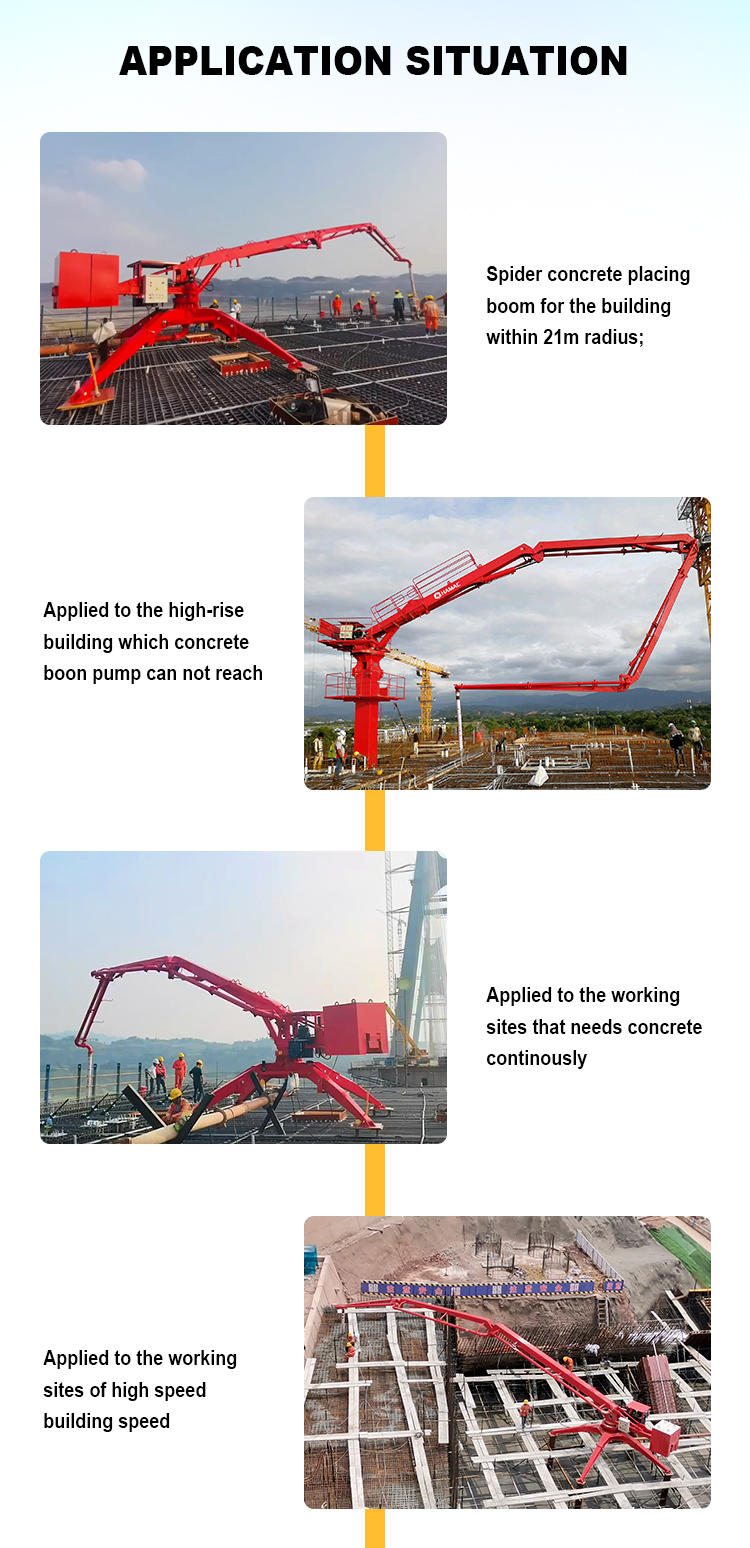

application: | concrete pouring | Health status: | new |
weight: | 24800kg | Place of origin: | Henan, China |
Video outbound inspection: | if | type: | Hydraulic |

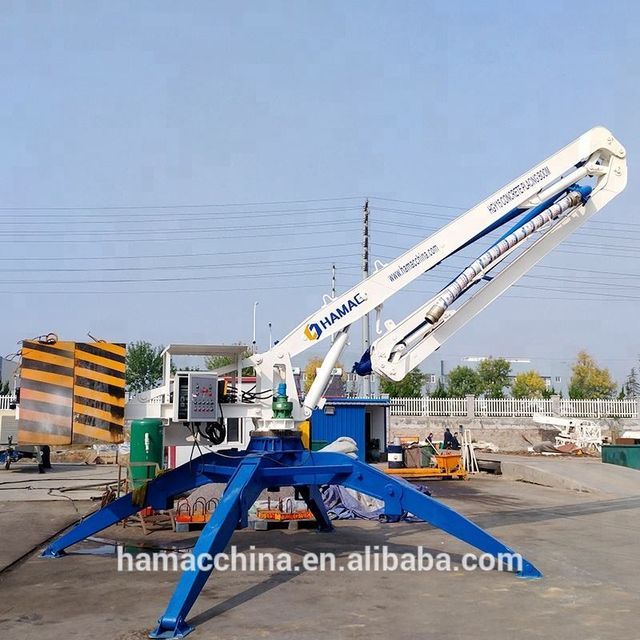

product name: | 32M hydraulic boom concrete pouring | Voltage: | custom made |
Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Supply capacity: | 1,000 units of 32M hydraulic boom concrete pouring come from China every year |
Unique Selling Points: | High digging force | Packaging details: | Naked. Small parts will be packed in wooden boxes. |
port: | Qingdao | Dimensions (length*width*height): | 9600*2500*3500mm |
Certification: | International Organization for Standardization | strength: | 30kW |
System pressure: | 24 MPa | Rotation range: | 0-360° |
After-sales service provided: | Engineers can repair machinery overseas | Warranty: | 12 months |
Applicable industries: | Hotels, clothing stores, building materials stores, machine repair shops, manufacturing plants, restaurants, household, food stores, print shops, construction projects, energy and mining, food and beverage stores, advertising agencies, others | payment terms: | L/C, Western Union, T/T, MoneyGram |
brand: | Hammack |
thing | HGY13 | HGY15 | HGY17 | HGY21 |
maximum. Placement radius (M) | 13 | 15 | number 17 | twenty one |
Arm length (M) | 3.7 | 6 | 6.66 | 6.496 |
Boom elevation angle (°) | -2~84.4 | 0~70 | 0~65 | 0~65 |
Middle arm length(M) | 4.52 | 5 | 5.73 | 4.585 |
4.59 | ||||
Middle arm elevation angle (°) | 0~180 | 0~180 | 0~180 | 0~180 |
0~180 | ||||
Forearm length (M) | 4.78 | 4 | 4.61 | 5.029 |
Forearm elevation angle (°) | 0~180 | 0~180 | 0~180 | 0~180 |
Hose length (meters) | 3 | 3 | 3 | 3 |
Concrete delivery pipe (mm) | Ø125×6 | Ø125×6 | Ø125×6 | Ø125×6 |
Tail turning radius (M) | 2.72 | 2.81 | 3.51 | 3.51 |
Total power (kW) | 4 | 4 | 5.5/7.5 | 11 |
System pressure (MPa) | twenty four | twenty four | twenty four | twenty four |
Speed (rev/min) | 0.3—0.8 | 0.3—0.8 | 0.3—0.8 | 0.3—0.8 |
Rotation range(°) | 0~360 | 0~360 | 0~360 | 0~360 |
Support leg span (M) | 3.15×3.15 | 4×4 | 4.6×4.6 | 4.6×4.6 |
Total height (meters) | 2.9 | 2.6 | 3.2 | 3.2 |
Bare metal weight (kg) | 2700 | 3230 | 5000 | 10000 |
Balance weight (kg) | 2×900 | 2×1100 | 2200 | 2×2500 |
control method | Panel/wireless remote control | Panel/wireless remote control | Panel/wireless remote control | Panel/wireless remote control |
