Spider Concrete Boom 12m/15m/18m Concrete Boom Pump

Product details
strength:30KWcolor:Red, yellow, blue, can be customized
Packaging Details:Concrete placing booms will be packed in seaworthy packing or according to your requirements.Material:channel angle
port:TianjinPipe specification:DN125 133*4.75
After-sales service provided:Video technical support, online supportweight:1000kg, 1100KG
payment terms:L/C, D/A, T/T, Western UnionOrigin:Hebei china
type:Manual, electric, hydraulicDimensions (L*W*H):820*1200*4000mm
industry:construction buildingModel:12m/15m/18m /20m (manual/electric)
Supply capacity:900 pieces per monthturn around:360°
brand:TaichangVoltage:380V/50HZ
Hose Length:2 or 3 metersWarranty:1 year
Certification:ISO9001brand:Taichang
Health status:new
Product Description

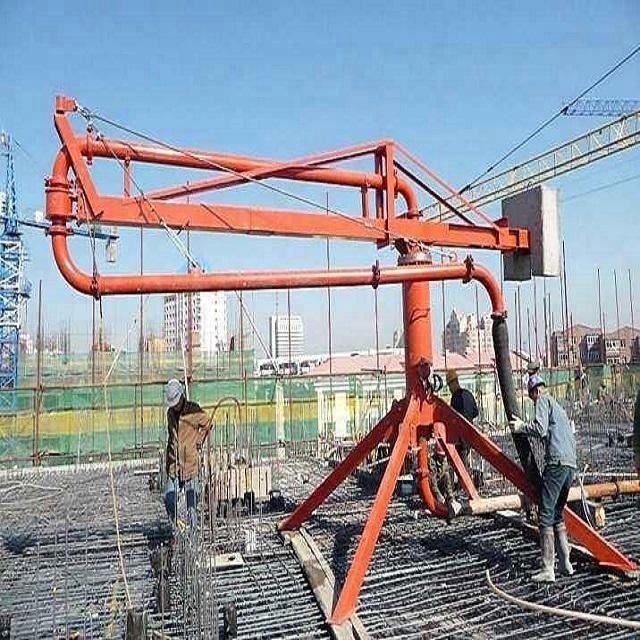

Spider Concrete Boom 12m/15m/18m Concrete Boom Pump

12m 15m 18m concrete placing arm()

Specification

12m manual cloth arm (frame type)

15 meters electric

(frame type)

Radius of gyration (m)

12

15

boom radius

6

8

boom height(m)

3-4

3-4

Delivery pipe diameter (mm)

125

125

Conveying pipe straight pipe wall thickness

4.75 mm

4.75 mm

Elbow wall thickness

6

6

Leg span (m)

3.2*3.2

4*4

rotation method

manual/electric

manual/electric

Machine weight (kg)

1100

1500

Including weight (kg)

600

800

Material

Square steel, channel steel, angle iron

Square steel, channel steel, angle iron

General instructions:

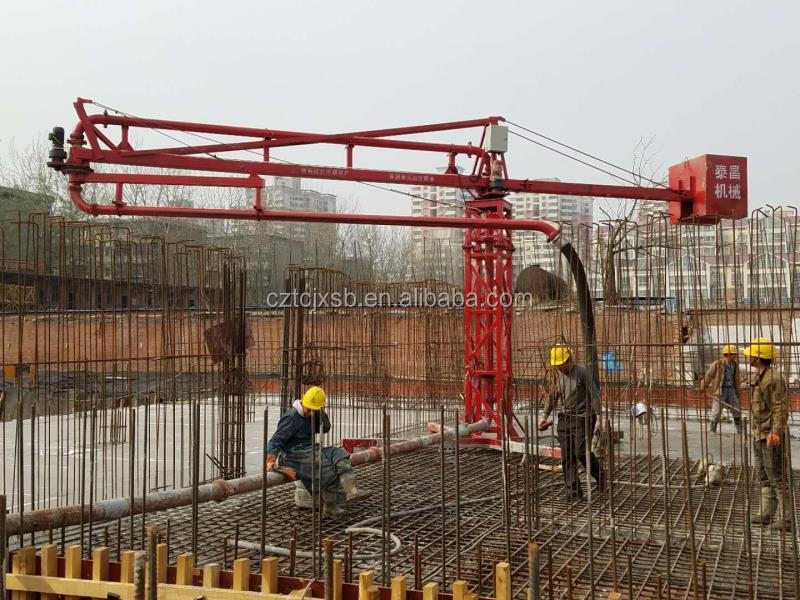

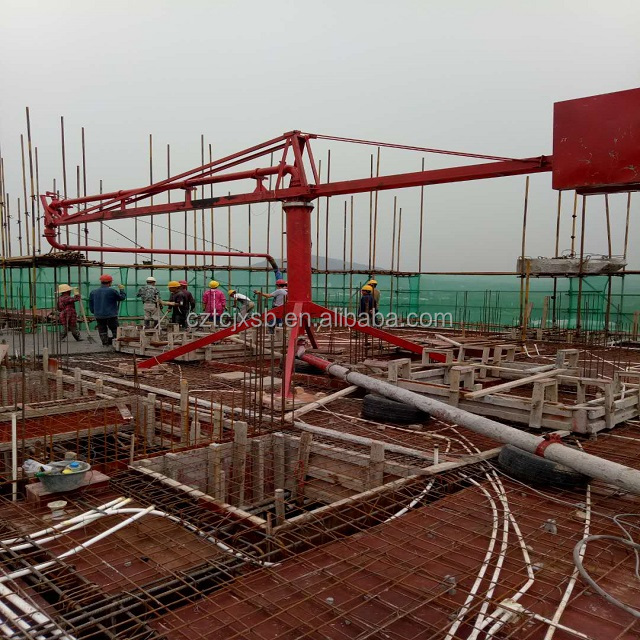

The 12m 15m 18m manual concrete placing machine is a kind of placing machine that cooperates with the concrete pump truck for on-site construction. It is composed of concrete conveying pipes, grounding machine, chassis machinery and slewing mechanism, etc.

Concrete paving is completed through the rotation of the concrete end conveying pipe and the grounding machine within a certain radius. It can be skillfully applied to fields such as industrial and civil buildings, railways, etc.

Features of manual concrete placing machine:
The horizontal folding method of the second articulated arm is adopted, and manual operation is flexible and safe.
It is specially used for the occasion of building walls and columns with protruding steel plates.
Light weight, easy for tower crane to move.

Electric concrete placing boom features:
It adopts a rotating arm type placement structure, with a 360-degree rotation range.
Operated with electric remote control.
Solid structure, reliable strength and rigidity
The operation and maintenance are flexible and convenient.

Key words:

concrete placing boom

15m concrete placing machine for sale

Spider Concrete Boom

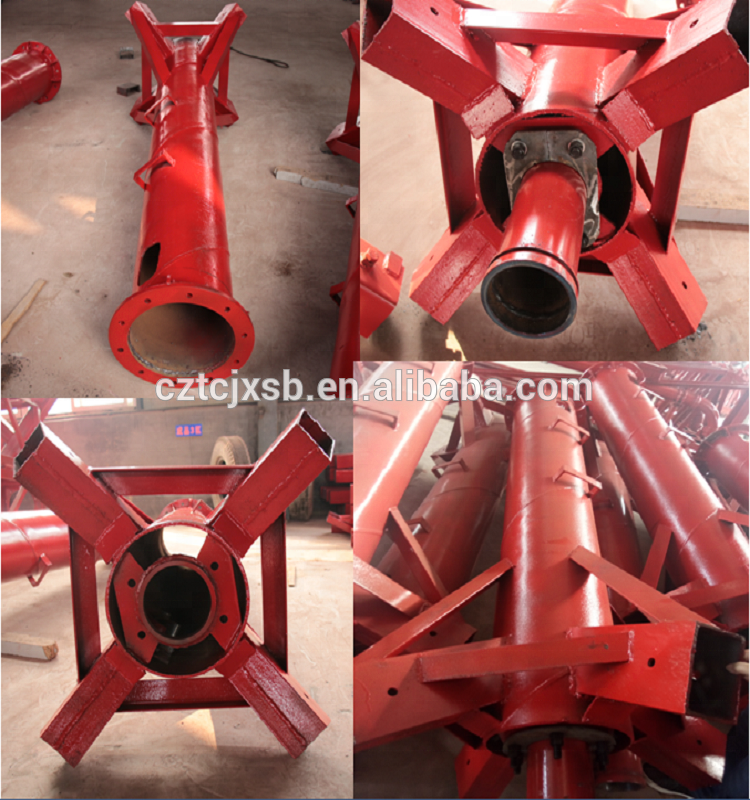

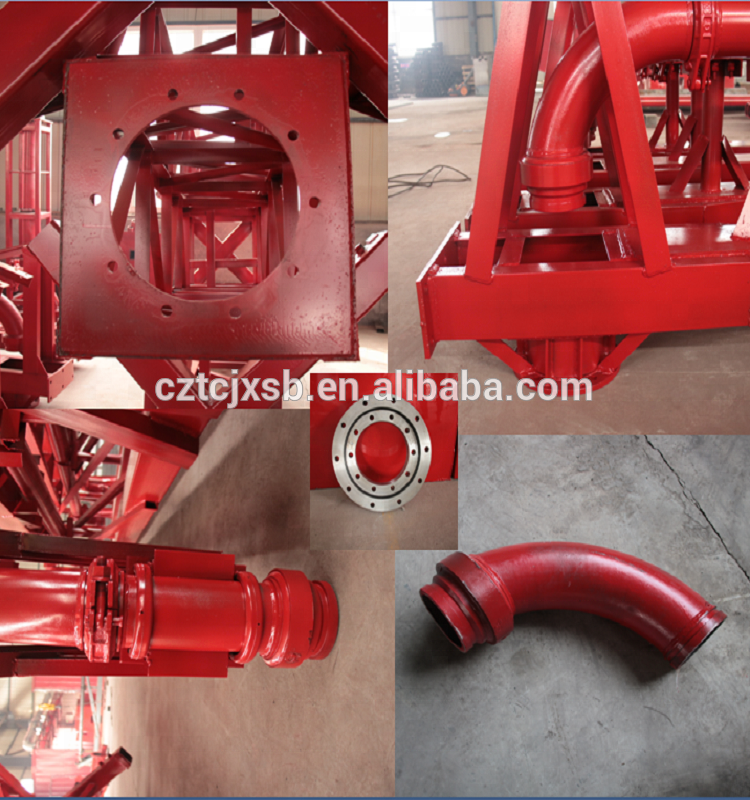

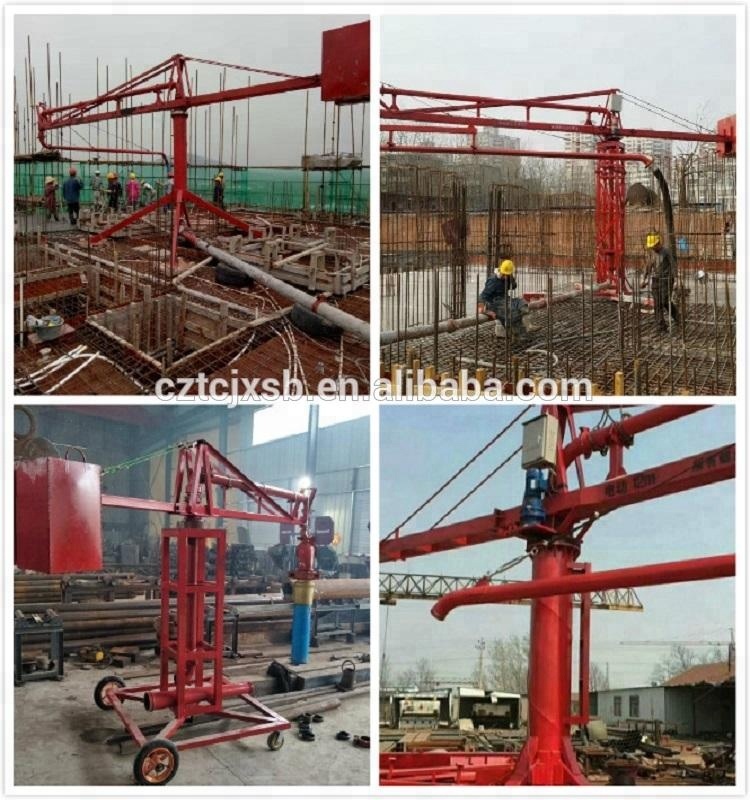

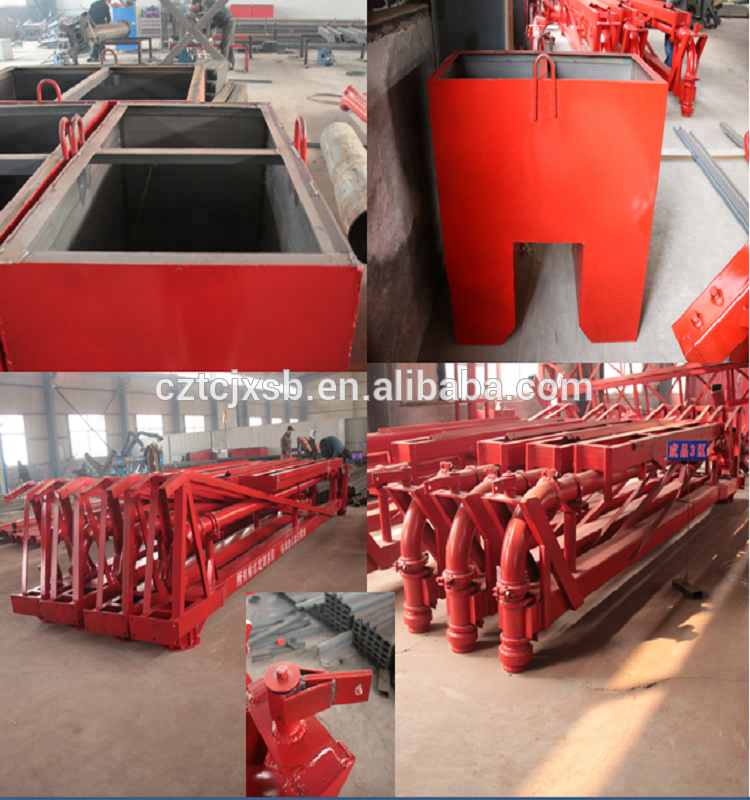

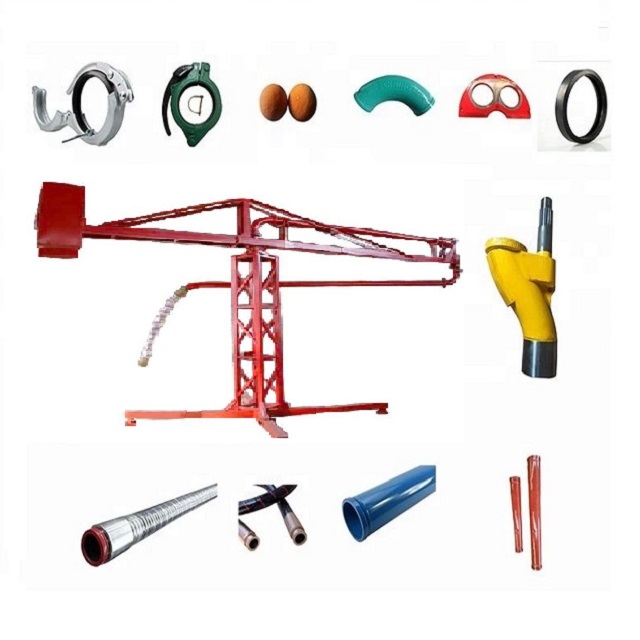

Product Image



feature:

1. It can be placed in a suitable position without fixing.

2. Compact structure and light weight;

3. Excellent mobility;

4. Easy to operate, safe and reliable, economical to purchase;

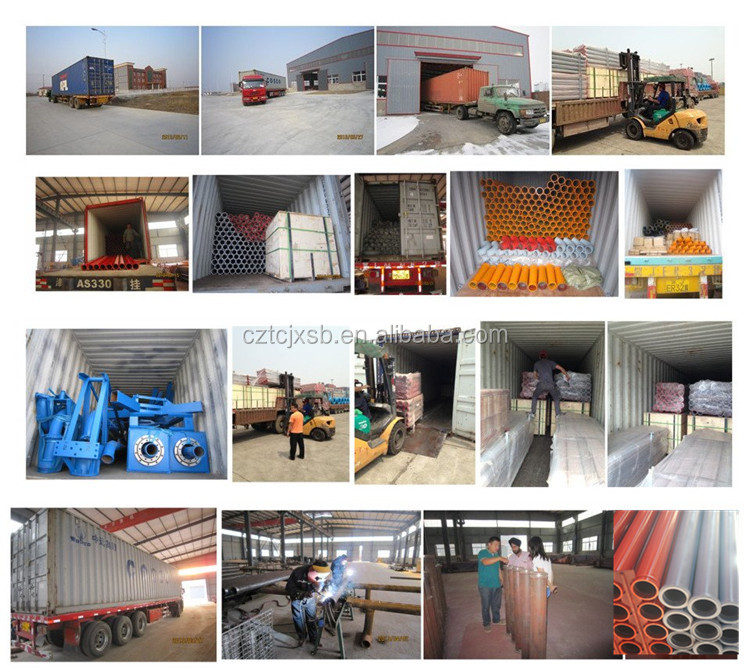

Packaging and Shipping

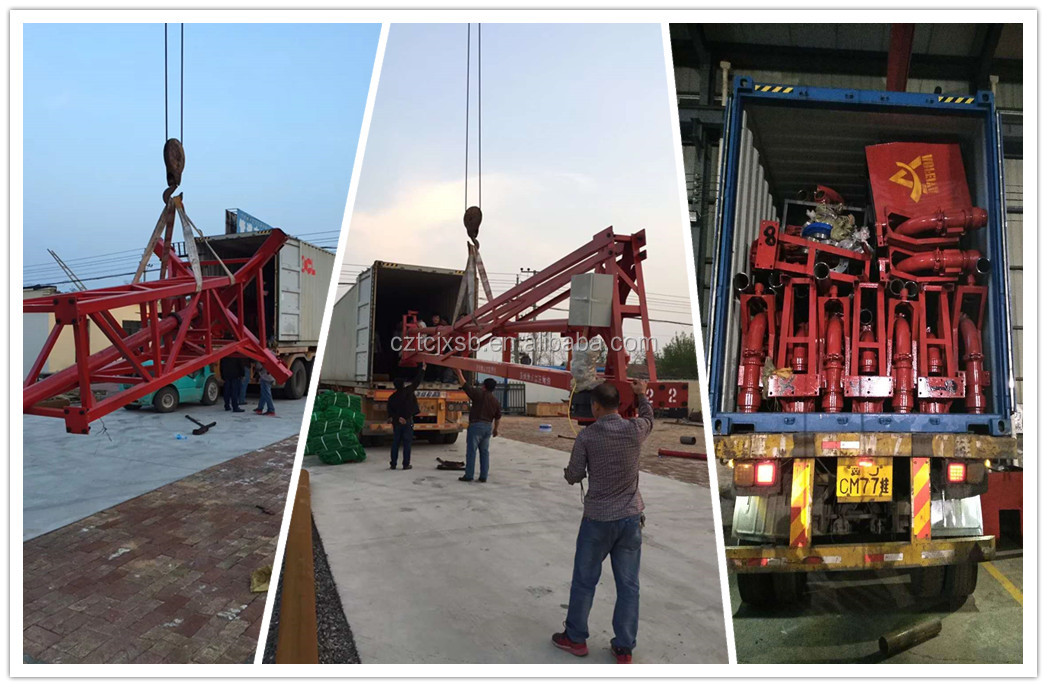

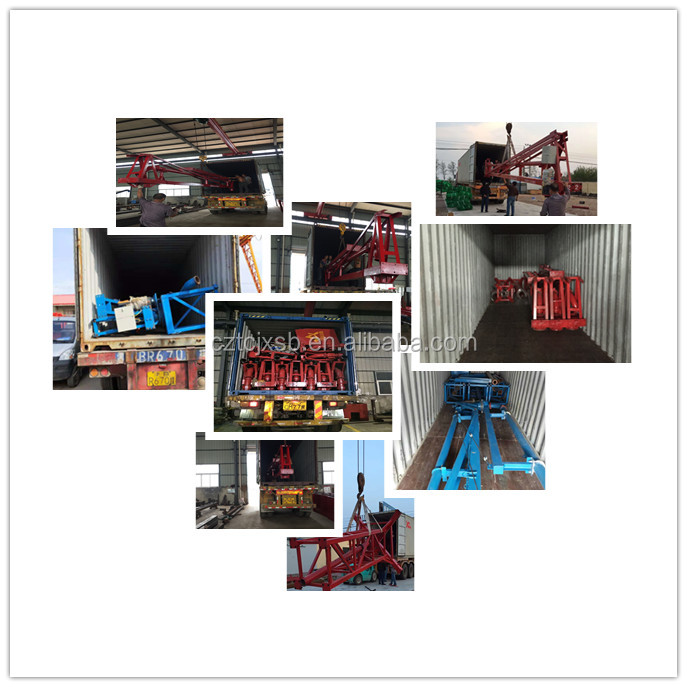

Concrete Boom Transportation:

(1) A 20-foot container can only accommodate 12 manual concrete placing machines due to the limitation of the length of the container, and it can be at least 4 units;

(2) A 40ft container can accommodate at least 8 sets of manual concrete placing machines.

(3) For the electric distribution arm, it needs to be installed in a 40FT container because it is a complete beam arm.

Concrete pump pipe transportation:

(1). Outer packing with plastic bag and cover to protect pipe surface and flange.

(2). Packed in iron frame, 50 pieces per iron frame, suitable for quantity less than 100 pieces.

(3). Bundle. Pack of 10. A 20-foot container can hold 24 bundles, and a 40-foot container can hold 50 bundles.

(4). Most of them. A 20' container can hold 270 pcs, a 40' container can hold 500 pcs.
