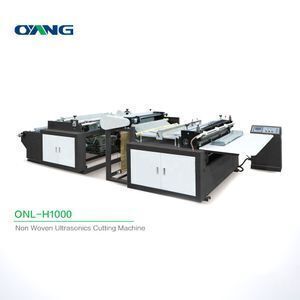

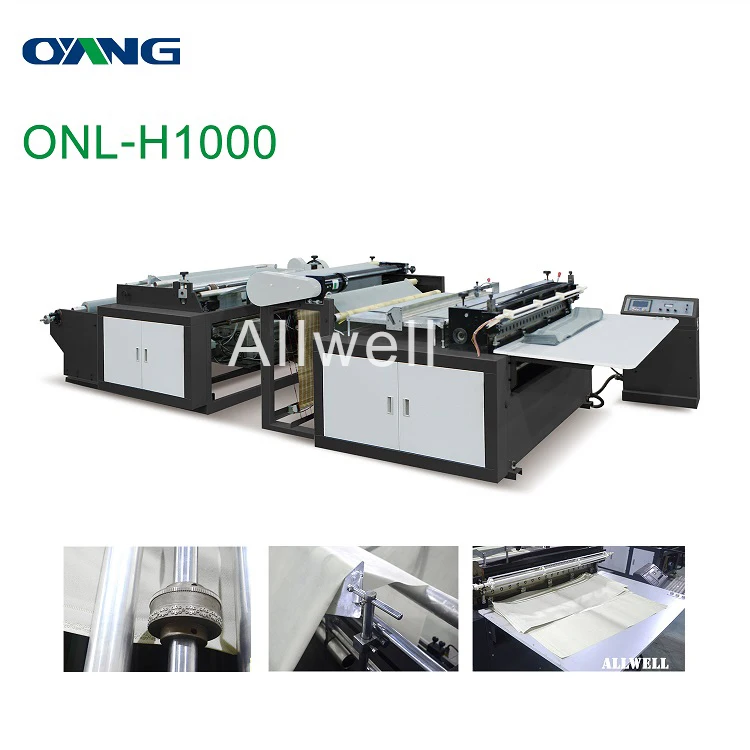

ONL-H1000 High Quality Non Woven Cutting Machine, Wholesale Ultrasonic Fabric Cutting Machine
-
Supplier: Zhejiang Allwell Intelligent Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Sara Yang -
Price: $10000.00 /set -
Min. Order: 1 set
| Warranty: | 1 Year; | Power: | 5Kw/6Kw/7Kw; |
| Automatic Grade: | Automatic; | Port: | Ningbo; |
| Bag width: | 100-750mm/100-950mm/100-1150mm; | Payment Terms: | L/C,D/A,T/T,Western Union; |
| Showroom Location: | None; | CNC or Not: | Yes; |
| Application: | textile; | After Warranty Service: | Video technical support,Online support,Spare parts; |
| Condition: | New; | Packaging Detail: | This machine will be packed by the Pearl cotton and plastic film..; |
| Voltage: | 220V; | Supply Ability: | 30 Set/Sets per Month; |
| Place of Origin: | Zhejiang China; | Weight: | 500kg; |
| Export Markets: | Global; | Features: | Automatic; |
| Machine color: | Blback frame white cover; | Local Service Location: | None; |
| touch screen/PLC: | Taiwan; | Packaging: | Wooden box; |
| Applicable Industries: | Manufacturing Plant; | Bag Thickness(Gsm): | 30-150g; |
| Production speed: | 20-120pcs/min; | Brand Name: | Allwell; |
| Bag Length: | 30-1000mm; | Product name: | Non Woven Ultrasonics Cutting Machine; |
| Certification: | CE/ISO9001; | Dimension(L*W*H): | 5Kw/6Kw/7Kw; |
Model | ONL-H800 | ONL-H1000 | ONL-H1000 |
Production Speed | 20-120pcs/min | 20-120pcs/min | 20-120pcs/min |
Bag Width | 100-750mm | 100-950mm | 100-1150mm |
Bag Length | 30-1000mm | 30-1000mm | 30-1000mm |
Bag Thickness (Gsm) | 30-150g | 30-150g | 30-150g |
Power Supply | 220v | 220v | 220v |
Total Power | 5Kw | 6Kw | 7Kw |
Total Power | 4200*1350*1300mm | 4200*1500*1300mm | 4200*1700*1300mm |
Features | 1.the machine adopts stepping motor control intercept fixed length.With photo-electricity tracking fixed system. | |||
2.feeding system adopts automatic photoelectric correction device.This machine is equipped with ruffled,ultrasonic hot close,slice function,with light,electricity together,simple operation,high precision intercept, machanical stability,low noise advantages,is cutting processing of non-woven ideal equipment. | ||||
3.motor frequency control,automatic counting,alarm parking,tension control etc.Function. | ||||
4.the heavy quality tools to cut,the product in order,and no sharp edges. | ||||
Q1. How long will your engineer reach our factory?
Our After-sales Specialist would contact with you, confirm the final scheduling according to your reasonable request.
Q2. How many days will you finish installing?
We will finish installation and training within 7-10 days.
Q3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets,SIM card, hotel, food, and also their salary 80USD one day per person.
Q4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
Q5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
Q6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
Q7. Does your engineer understand English?
Our engineers understand a little English. All of our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
Q8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our after sales specialist at any time.weour after-sales department with 30 engineers.Our engineers will take a solution video according your description.
Q9. How many workers do we need running those machines?
Except two for bag making machine, flexo printing machine, slitting machine, ultrasonic sewing machine, hydraulic punching machine only need one person for each.
-
