Package Type: | one carton one set 120*400*500mm; | Operating Temperature Rang: | -10+50; |

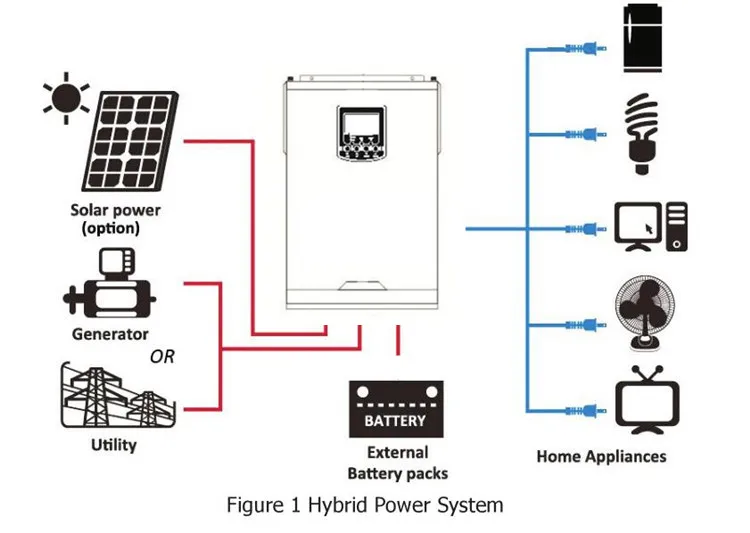

Battery Voltage: | 48V; | Application: | Home Solar System; |
Type: | DC/AC Inverters; | Warranty: | One Year; |
Place of Origin: | china; | Input Voltage: | 230; |
Single gross weight: | 12 KG; | Max PV power: | 4000-5000; |

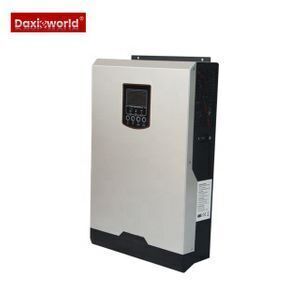

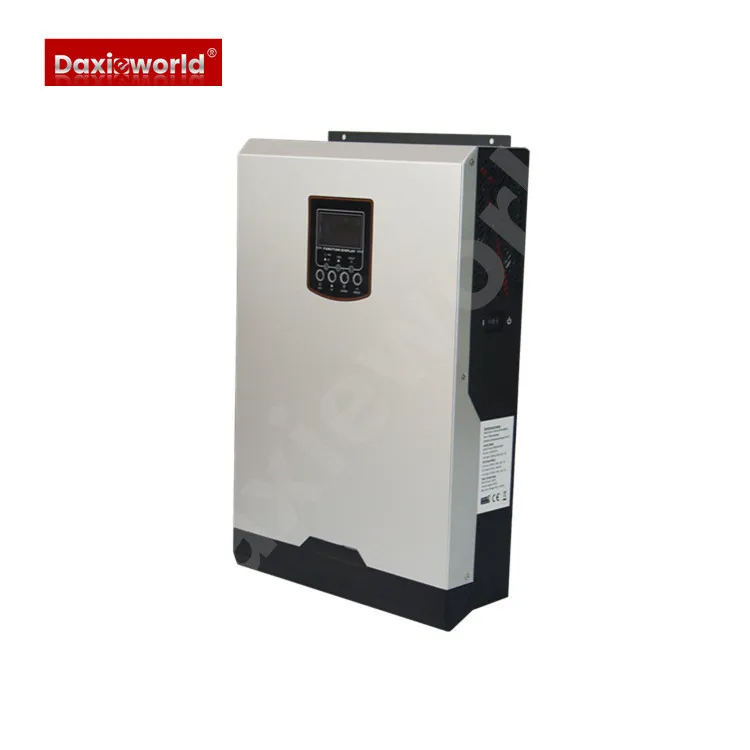

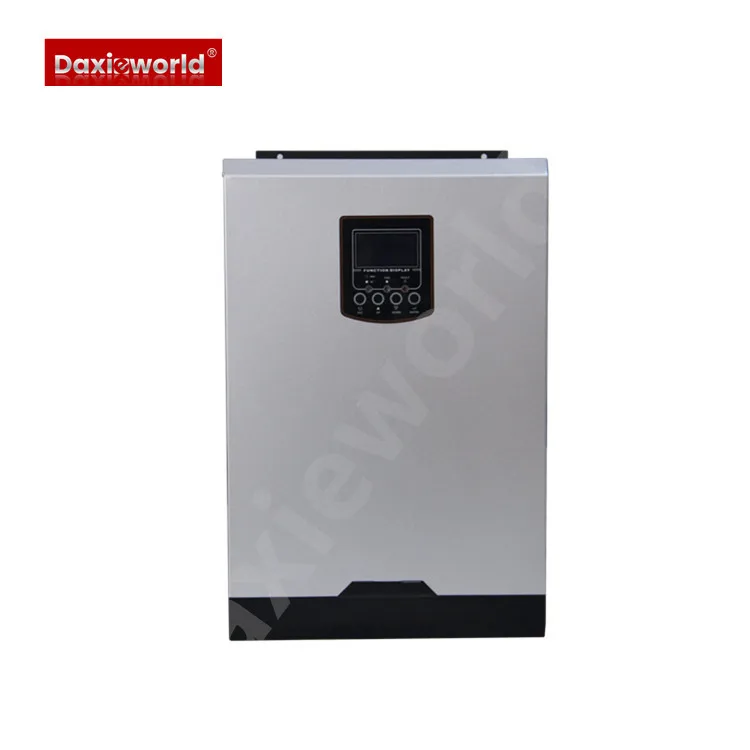

Product name: | Hybrid Inverter; | Single package size: | 60X40X22 cm; |
Weight: | 10; | Display: | LCD; |
Size: | 100*300*400mm; | Inverter type: | MPPT; |
Output Voltage: | 220V 230V 240V; | Selling Units: | Single item; |
Solar charger Charging Current: | 80A; | Model Number: | NM5KW; |
Delivery Detail: | 0 days after payment; | Brand Name: | Daxieworld; |
Rated Power: | 5000W; | Package Preview: | https://sc02.alicdn.com/kf/HTB1HX6BXRCw3KVjSZR0762cUpXaY.png_640x640.png; |
Output Type: | Single; | Output Frequency: | 50HZ/60HZ; |
Technical Date | ||||||||

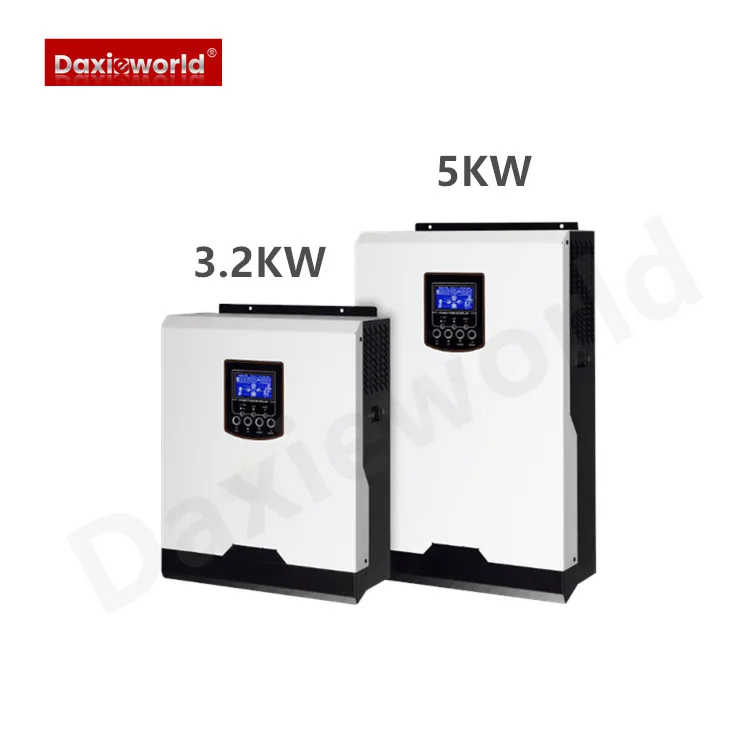

Model | Victor NM II-3200-24 | Victor NM II-5000-48V | ||||||
RATED POWER | 3200VA/3200W | 5000VA/5000W | ||||||
INPUT | ||||||||
Voltage | 230VAC | |||||||
Selectable voltage Range | 170-280VAC (For Personal computers ) | |||||||
90-280VAC(For home appliances ) | ||||||||
Frequency Range | 50Hz /60Hz (Auto sensing ) | |||||||
OUTPUT | ||||||||
AC Voltage Regulation (Batt. Mode ) | 230VAC ± 5% | |||||||
Surge Power | 6400VA | 10000VA | ||||||
Efficiency (Peak) PV to INV. | 97% | |||||||
Efficiency (Peak) Battery to INV. | 94% | |||||||
Transfer Time | 10ms (For personal computers), 20ms (For home appliance ) | |||||||
Waveform | Pure sine wave | |||||||
Solar Charger | ||||||||
Maximum PV Array Power | 4000W | 5000W | ||||||
MPPT Range &Operating Voltage | 120-450VDC | |||||||
Maximum Charging Current | 80A | 80A | ||||||
Maximum Eiffciency | 98% | |||||||
Battery &AC Charger | ||||||||
Battery Voltage | 24VDC | 48VDC | ||||||
Floating Charge Voltage | 27VDC | 54VDC | ||||||
Overcharge Protection | 33VDC | 63VDC | ||||||
Maximum Charge Current | 80A | 60A | ||||||
PHYSICAL | ||||||||
Dimension , D*W*H(mm) | 100*300*440 | |||||||
Net Weight (kgs) | 9 | 10 | ||||||

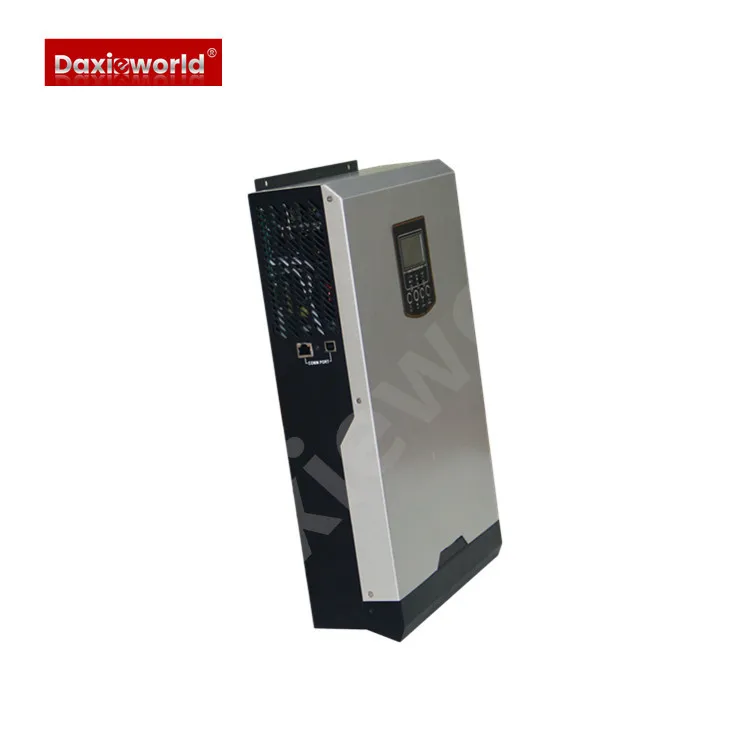

Communication interface | USB /RS232/GPRS/WIFI | |||||||
OPERATING ENVIRONMENT | ||||||||
Humidity | 5% to 95% Relative Humidity (Non-Condensing ) | |||||||
Operating temperature | 0-55 degree | |||||||
Storage Temperature | -15 -60degree |
