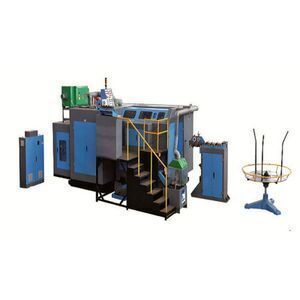

high speed Multi-Station Cold Forging Machine bolt maker to make bolts and nuts

Supplier: Harbin Rainbow Technology Co., Ltd.
Region: Heilongjiang, China
Contact: Mr Wengang Chen
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Supply Ability:	2 Set/Sets per Month;
Finish:	ZINC;	Brand Name:	rainbow;
Advantage:	automatic;	Packaging Detail:	all kind of packages;
Package Preview:	;	Port:	shanghai;
Material:	Stainless Steel,Steel;	Model Number:	RBF;
Product name:	bolt;	Payment Terms:	D/P,T/T;
Standard:	DIN;

Auto Multi-station Cold forging fomer is a specialized machine tool with high efficency and automation among forging machinery. Cold forging fomers are used as an important means for producing different kinds of bolts, screws, rivets and nuts in the field of fastener industry. The formers are also widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation,steamer,machinery, rail traffic, vehicle,motorcycle,bicycle,sewing machine, construction,furniture, light industry and daily necessities, etc.

Description of Equipment

Model	Unit	RBF-63S	RBF-83S	RBF-103S	RBF-103L	RBF-133S	RBF-133L
Forging station	NO.	3	3	3	3	3	3
Forging force	Kgs	35.000	60.000	80.000	80.000	120.000	120.000
Max.cut-off dia.	mm	φ8	φ10	φ12	φ12	φ15	φ15
Max.cut-off length.	mm	80	115	135	185	190	260
Output rate	pcs/min	150-240	120-200	100-160	85-140	80-120	60-100
P.K.O.Stroke	mm	12	18	20	30	30	30
K.O.Stroke	mm	70	92	118	160	160	230
Main ram stroke	mm	110	160	190	262	270	380
Main motor power	Kw	11	15	18.5	22	37	37
Overall dims.of cut off die	mm	φ30×45L	φ50×50L	φ45×59L	φ45×59L	φ63×69L	φ63×69L
Overall dims.of punch die	mm	φ40×90L	φ45×125L	φ53×115L	φ53×115L	φ60×130L	φ60×229L
Overall dims.of main die	mm	φ50×85L	φ60×130L	φ75×135L	φ75×185L	φ86×190L	φ86×305L
Die pitch	mm	60	70	90	94	110	110
Approx.weight	T	6.5	12	15	19.5	26	31
Applicable bolt dia	mm	3-6	5-8	6-10	6-10	8-12.7	8-12.7
Shank length of blank	mm	10-65	15-90	15-110	20-152	20-150	50-220

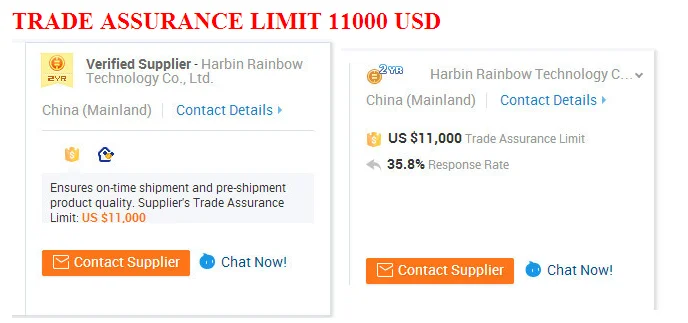

we have trade assurance limit provided by ALIBABA, it means that if there is any problems,the ALIBABA can reback 30% payment for you in advance. It can ensure on-time shipment and pre-shipment product quality.

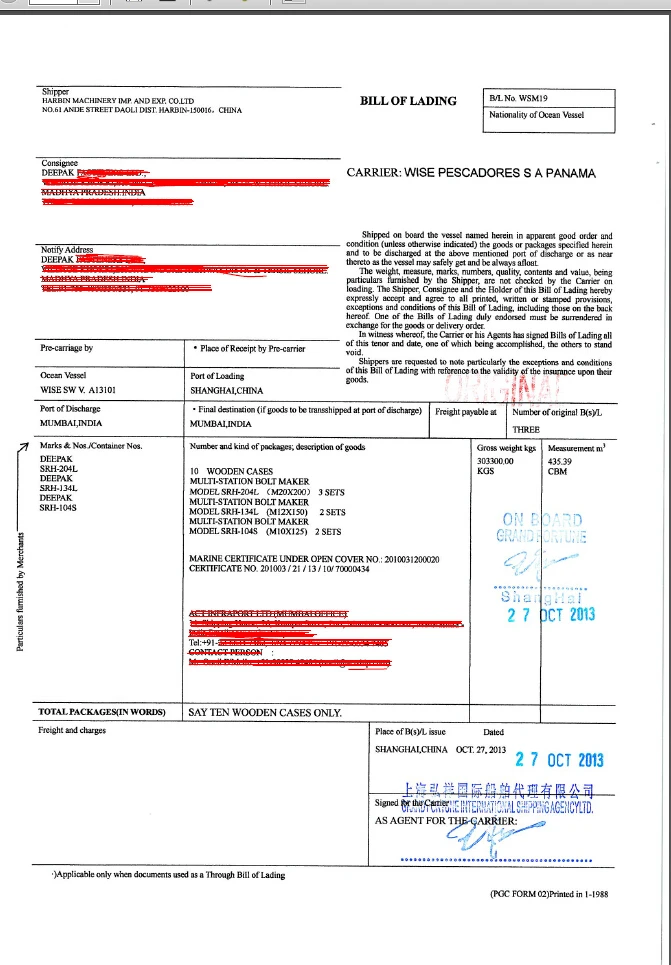

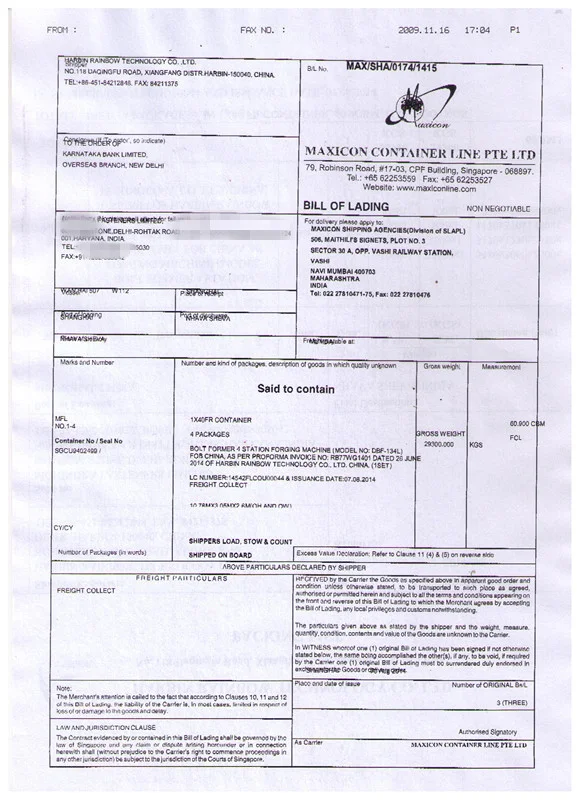

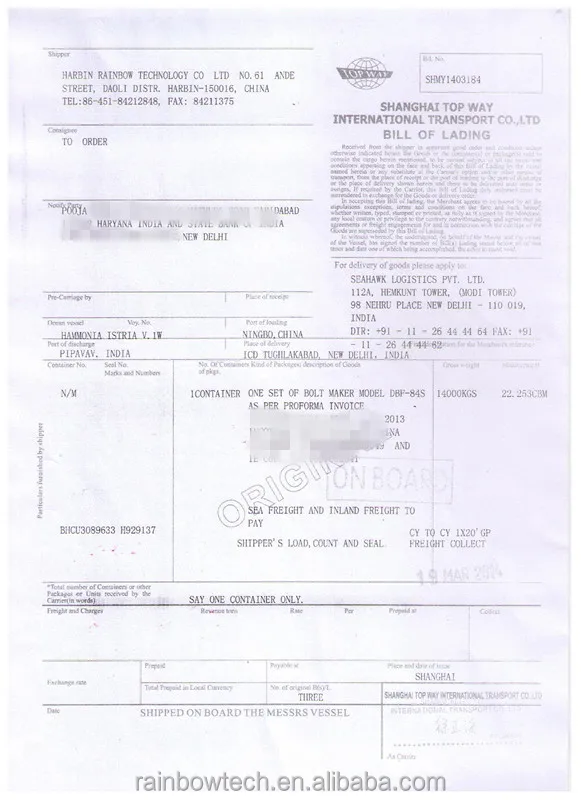

we have engaged in exporting machines to INDIA more than 20 years.

Our exports had topped USD 3,000,000 last year.
