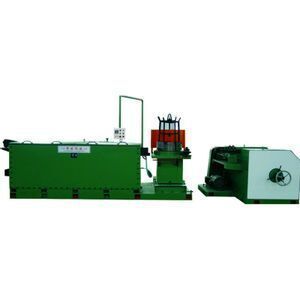

Straight Line Iron Wire Drawing Machine

Supplier: Harbin Rainbow Technology Co., Ltd.
Region: Heilongjiang, China
Contact: Mr Wengang Chen
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Outlet Diameter:	2.5mm-14mm;
Applicable Industries:	Manufacturing Plant;	Brand Name:	Rainbow;
Power:	7.5KW-110KW;	Payment Terms:	L/C,T/T;
Warranty:	1 Year;	Machinery Test Report:	Not Available;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Port:	Shanghai;
Key Selling Points:	wire drawing;	Warranty of core components:	1 Year;
Packaging Detail:	into container.;	Certification:	ISO;
Weight:	1.5~40Ton;	Voltage:	380V;
Package Preview:	;	Dimension(LWH):	700012001500;
Core Components:	Motor;	Inlet Diameter:	0.8mm-5mm;
Place of Origin:	China;	Marketing Type:	Hot Product 2019;
After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Online support,Field installation, commissioning and training,Video technical support;	Local Service Location:	India;
Supply Ability:	100 Set/Sets per Month;	Showroom Location:	India;
Video outgoing-inspection:	Provided;	COLOR:	Blue;

Trade Shows

Product Description

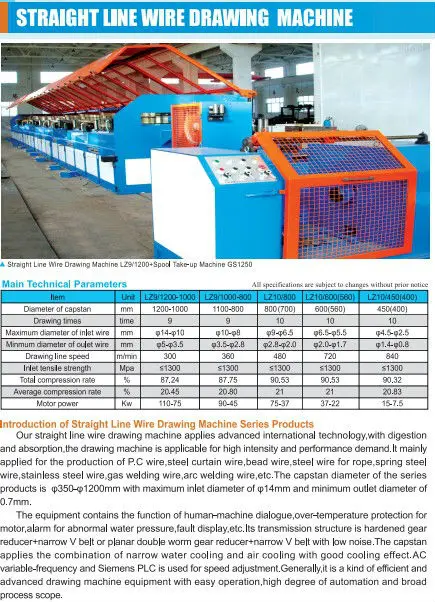

Our straight line wire drawing machine applies advanced international technology,with digestion and absorption,the drawing machine is applicable for high intensity and performance demand.It mainly applied for the production of P.C wire,steel curtain wire,bead wire,steel wire for rope,spring steel wire,stainless steel wire,gas welding wire,arc welding wire,etc.The capstan diameter of the series products is φ350-φ1200mm with maximum inlet diameter of φ14mm and minimum outlet diameter of 0.7mm.
The equipment contains the function of human-machine dialogue,over-temperature protection for motor,alarm for abnormal water pressure,fault display,etc.Its transmission structure is hardened gear reducer+narrow V belt or planar double worm gear reducer+narrow V belt with low noise.The capstan applies the combination of narrow water cooling and air cooling with good cooling effect.AC variable-frequency and Siemens PLC is used for speed adjustment.Generally,it is a kind of efficient and advanced drawing machine equipment with easy operation,high degree of automation and broad process scope.
