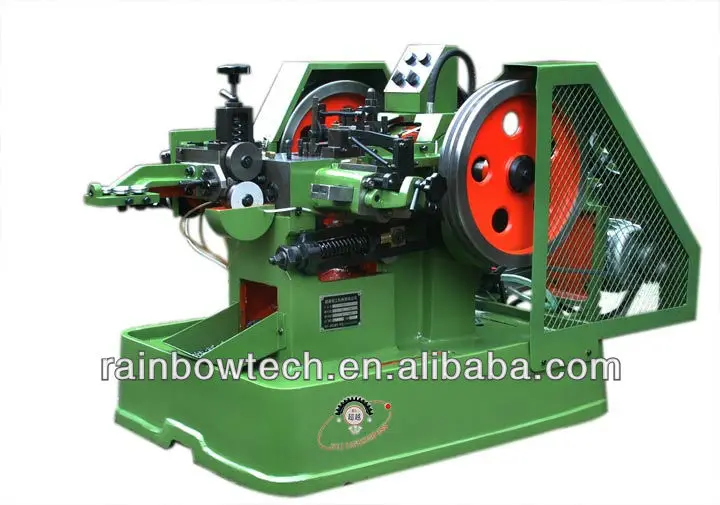

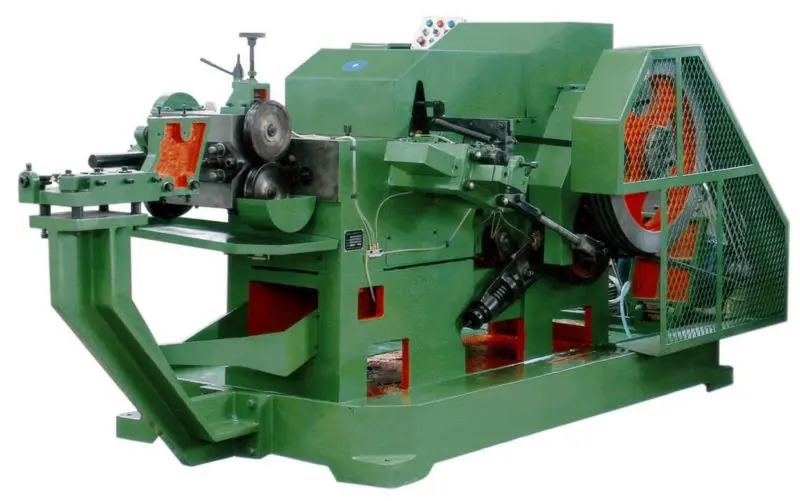

Automatic Screw Making Machine /Heading Machine

Product details
Payment Terms:L/C;Key Selling Points:Easy to operate;
Applicable Industries:Manufacturing Plant;After Warranty Service:Video technical support,Online support;
Machine Type:Cold Forging Machine;Showroom Location:INDIA;
Local Service Location:japan,malaysia,South Korea,BANGLADESH,UNITED KINGDOM,GERMANY,VIET NAM,philippines,indonesia,pakistan,RUSSIA,Thailand;Condition:New;
Warranty:1 YEAR;After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Certification:CE ISO9001:2008;Place of Origin:China;
Brand Name:Rainbow;Packaging Detail:INTO PACKAGE;
Product Description



1 Body frame is made of iron plate welding
2 Spare parts is make from casting
3 Inner parts is made of bearing steel

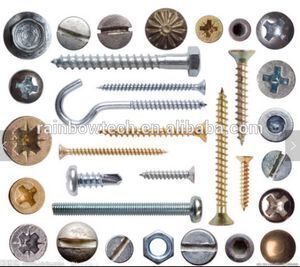

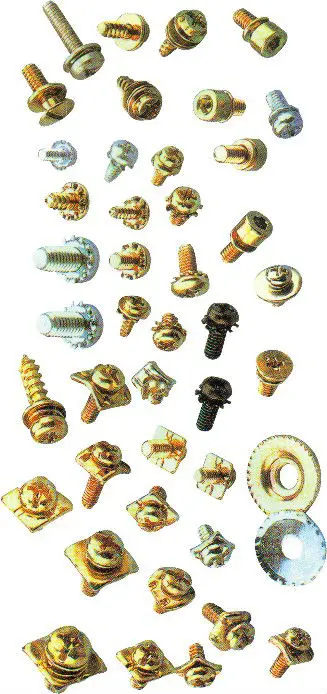

Products:





Model:RHS-5

Specification

Max. Blank Dia..(mm)

3mm

Max. Blank Length (mm)

27mm

Stroke (mm)

38mm

Output Speed (pcs/min)

100-120pcs/min

Die dia.

20mm

Cut-off die dia.

13.5mm

Punch Die 1st

18mm

Punch Die 2nd

18mm

Main motor power

1HP

Oil pump power

1/4HP

Net Weight

500kgs





+

Model:RHS-10

Specification

Max. Blank Dia..(mm)

4mm

Max. Blank Length (mm)

40mm

Stroke (mm)

64mm

Output Speed (pcs/min)

120-180pcs/min

Die dia.

34.5mm

Cut-off die dia.

15mm

Punch Die 1st

24mm

Punch Die 2nd

20mm

Main motor power

2HP

Oil pump power

1/4HP

Net Weight

1100kgs



+

Model:RHS-15

Specification

Max. Blank Dia..(mm)

6mm

Max. Blank Length (mm)

65mm

Stroke (mm)

92mm

Output Speed (pcs/min)

130-160pcs/min

Die dia.

34.5mm

Cut-off die dia.

19mm

Punch Die 1st

31mm

Punch Die 2nd

31mm

Main motor power

3HP

Oil pump power

1/4HP

Net Weight

1600kgs







+

Model:RHS-25:

Specification

Max. Blank Dia.(mm)

8

Max. Blank Length(mm)

120

Die Dia.

54

Punch Die(1st&2nd)

38

Main motor

7HP.

Output Speed (pcs/min)

80-100

Stroke mm

154



Company profile

  Our company comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation,now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.

  We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service,our main products include wire drawing machine,Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.

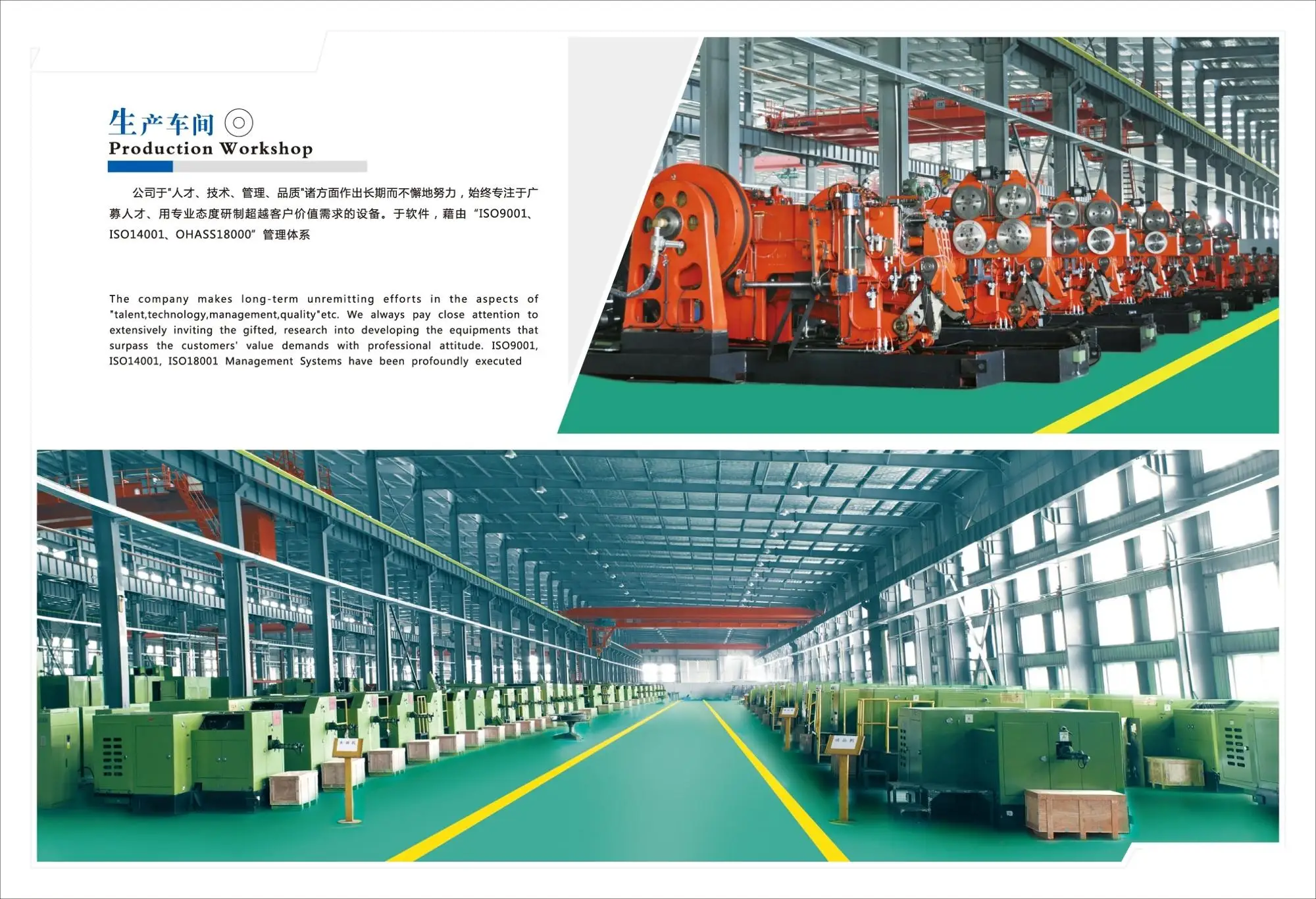

  With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and we invested in some fastener equipment manufacturers and built our own bolt maker,mesh belt furnace and zinc plating line factories.We do these factories' foreign market developing and have received highly praises from a lot of customers.

  We have established reputation in countries such as India, Iran, US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
