Dimension(L*W*H): | 21.45*3.3*4.48; | Type: | Rotary Drilling Rig; |
Warranty: | 12 months; | Usage: | oil well; |
Drilling Depth: | Max.1500m; | Power Type: | Diesel; |
Marketing Type: | Hot Product 2019; | Machinery Test Report: | Provided; |
Voltage: | Customized; | Warranty of core components: | 2 years; |
Supply Ability: | 10 Set/Sets per Year ZJ40/2250CZ Truck-mounted Drilling Rig; | Brand Name: | Goldenman; |
Place of Origin: | Shandong China; | Keyword: | Drilliing Rig; |

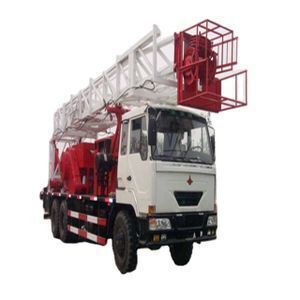

Name: | ZJ40/2250CZ Truck-mounted Drilling Rig; | Certification: | API,GB,RP,SY; |
Packaging Detail: | export packing; | Rotary table: | ZP275; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Drilling Diameter: | 1300mm; |
Key Selling Points: | Easy to Operate; | Video outgoing-inspection: | Provided; |
Weight: | 82000kg; | Feature: | High Drilling Efficiency; |
Power system: | CAT C-16; | Market: | Gloabl; |
Color: | Red; | Core Components: | Mast; |
Port: | Qingdao seaport; | Applicable Industries: | Energy & Mining; |
Local Service Location: | United States,None; | Condition: | New; |
Model: | Workover rig; | Application: | Drilling Wells; |
Payment Terms: | L/C,D/P,D/A,T/T; | Showroom Location: | None; |
This kind of drilling rigs are designed and manufactured in accordance with API Spec Q1,4F,7k,8C and RP500,GB3826.1,GB3836.2,GB7258,SY6584 Standards as well as “3C”compulsory standard.
The whole rig has a compact structure, which requires a small installation space due to kits high integration.
The heavy-duty and self-propelled chassis: 8×6,10×8,12×8,14×8,14×12,16×12 and hydraulic steering system are utilized respectively, which ensures the drilling rig a good passage and cross-country capability.
The reasonable assembly of CATERPILLAR engine and ALLISON transmission box can ensure high driving efficiency and working reliability.
The main brake adopts hydraulic disc brake or band brake and Air brake or hydromatic brake or FDWS brake can be applied as auxiliary brake.
The rotary table transmission box can realize forward-reverse shift, which can be suitable for all kinds of DP rotary operations, and the anti-torque releasing device can be used to make the DP deformation force released safely.
The mast, which is front –open and double-section type with an inclination angle or erective double-section type, can be erected or lowered and telescoped hydraulically.
The drill floor is twin-body telescopic type or with parallelogram structure, which is convenient for easy hoist and transportation. The height of the drill floor can be designed accrording to the client’s requirements.
The perfect configurations of solid control system, well control system, high-pressure manifold system, generator house, engine & mud pump house, doghouse and other auxiliary facilities can meet user’s different requirements.
Safety and inspection measures are strengthened under the guidance of the design concept of “Humanism Above All” to meet the requirements of HSE.
Main parameters of Truck-mounted drilling rigs | |||||
Model | ZJ10/1125CZ | ZJ15/1350CZ | ZJ20/1470CZ | ZJ30/1700CZ | ZJ40/2250CZ |
Drilling depth(4 1/2"drill pipe)m(ft) | 1000(3280) | 1500(4920) | 2000(6560) | 3000(9840) | 4000(13120) |
Workover depth(3 1/2"drill pipe) m(ft) | 3500(11483) | 4000(13123) | 5500(18045) | 6500(21325) | 7500(24606) |
Max. hook load kN(lb) | 1125(253000) | 1350(303696) | 1470(330700) | 1700(381260) | 2250(505800) |
Drill line diameter mm(in.)/lines | φ26(1")/8 | φ26(1")/8 | φ29(1-1/8")/8 | φ29(1-1/8")/8 | φ32(1-1/4")/10 |
Max. hook speed m/s(ft/s) | 1.23(4) | 1.33(4.36) | 1.31(4.3) | 1.36(4.46) | 1.36(4.46) |
Overall dimensions(m) | 17.5×3.1×4.18 (57.4×10.17×13.7) | 19.6×2.9×4.3 (64.3×9.5×13.8) | 20.13×3.2×4.4 (66×10.5×14.44) | 21.25×3.3×4.47 (69.7×10.8×14.67) | 22.45×3.3×4.48 (73.65×10.8×14.7) |
Weight kg(lb) | 42000(92590) | 51000(112430) | 56000(123456) | 76000(167548) | 82000(180776) |
Power system | CAT3406C | CAT3408 | CAT3412 | CAT3406C | CAT C-16 |
Engine power kW(hp)(2100r/min) | 343(460) | 354(480) | 485(650) | 343×2(460×2) | 448×2(600×2) |
Model, transmission | ALLISON-S5600DB | ALLISON-S5600HR | ALLISON-S6610HR | ALLISON-S5600×2 | ALLISON-S6610×2 |
Emergency power(eletrical motor) | Optional | Optional | Optional | — — | — — |
Chassis driving type | 10×8(8×8) | 10×8 | 12×8 | 14×8 | 14×10 |
Min. turning dia. m(ft) | 34(111.55) | 34(111.55) | 36(118.11) | 42(137.8) | 44(144) |
Min. ground clearanec in. mm(in.) | 340(13.39) | 340(13.39) | 340(13.39) | 340(13.39) | 340(13.39) |
Drawworks type | Double drum(Single drum) | Double drum(single drum) | Double drum(single drum) | Double drum(Single drum) | Double drum(single drum) |
Drawworks power hp | 450 | 550 | 650 | 750 | 1000 |
Dia. Length,main drum in.(in.) | φ429×965(φ16.9×38) | φ429×965(φ16.9×38) | φ480×914.5(φ18.9×36) | φ480×914.5(φ18.9×36) | φ635×1254(φ25×49.4) |
Main brake type, main drum | Band type(or hydraulic disc type) Force spray water cooling-forced | Band type(or hydraulic disc type) | Band type(or hydraulic disc type) | Band type(or hydraulic disc type) | hydraulic disc |
Auxiliary brake, main drum | 22"SR hydro brake | 22"SR hydro brake(force spray water cooling-forced) | 22"SR hydro brake(force spray water cooling-forced) | WCB324 disc brake | WCB224 disc New |
Speeds of drawworks | 5 forward 1 reverse | 5 forward 1 reverse | five forward 1 reverse | five forward one reverse | five forward one reverse |
Mast type | JJ119/33.1-W | JJ135/34-W | JJ155/35-W | JJ180/36-W / JJ180/38-W | JJ225/39-W |
Mast height m(ft) | 31.3(102.69) | 34(111.55) | 35(114.83) | 36(118.11) / 38(124.6) | 39(127.92) |
Height,Monkey boardm(ft) | 19.7/20.7(55.77/64.6) | 20/21.5(65.62/70.54) | 20/21.5(65.62/70.54) | 20.4(66.9) | 20.4(66.9) |
Max. wind load km/h(kn) | 110(60) | 110(60) | 110(59.35) | 110(60) | 110(60) |
Control/lighting/power system | 24V/220V/380V(China) | 24V/220V/380V(China) | 24V/220V/380V(China) | 24V/220V/380V(China) | 24V/220V/380V(China) |
Reted pressure, hydraulic/air system Mpa(psi) | 14/0.833-0.93(2002/119.12-133) | 14/0.833-0.93(2002/119.12-133) | 14/0.833-0.93(2002/119.12-133) | 14/0.833-0.93(2002/119.12-133) | 14/0.833-0.93(2002/119.12-133) |
Substructure | ZT1470/3.7-S telescoping substructure | ZT1470/4.5-S telescoping substructure | ZT1690/4.5-Z foldable substructure | ZT2250/5-Z foldable substructure | ZT3000/6.7-Z foldable substructure |
Rotary table | ZP175(ZP105) | ZP175 | ZP175 | ZP205 | ZP275 |
Travelling block | YG150 | YG150 | YG150 | YG170 | YG225 |
Swivel | SL120 | SL135(SL160) | SL160 | SL225 | SL225 |
