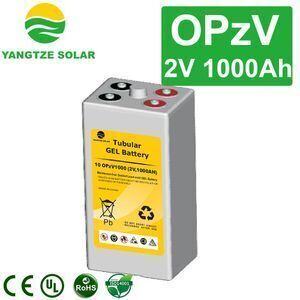

20 years design life battery 2v 1000ah opzv

Product details
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;Model Number:OPzV1000;
Battery type:opzv battery;OEM Order:Acceptable;
Brand Name:Yangtze;Voltage:2V;
Port:Shanghai or Ningbo;Terminal:Cooper;
Supply Ability:2000 Unit/Units per Week;Weight:72kg;
Certificate:CE / UL / ISO9001 / ISO14001 / Rohs;Electrolyte:Sulfuric Acid Thixotropic;
Packaging Detail:carton box , wooden box and wooden pallet , 1unit per carton box;Warranty:3years,10YEARS;
Application:Signal system , emergency lighting system ,tools,Home Appliances,Consumer Electronics,BOATS,Golf Carts,SUBMARINES,electric vehicles,Electric Power Systems,Solar Energy Storage Systems,Uninterruptible Power Supplies;Maintenance Type:Free;
Place of Origin:Jiangsu China;Sealed Type:Sealed;
Product Description

20 years design life battery 2v 1000ah opzv



Key Features :
♦Tubular positive plate and pasted negative plate design
20 years design floating charge service life
5000times cycle at 25% Deepth of Discharge
Wide suitability of ambient temperature range :-25℃~60℃
Low self discharge
High recharge efficiency and good deep discharge performance



Applications :
Solar and wind energy storage system
EPS and UPS battery backup
Signal system , emergency lighting system , security system
Telecommunication Equipment
Power plant and transmission system
Electric and Railway Utility



1. Functional Parameter  5. Environment Temperature
Nominal Voltage  2V Discharge Temperature  -40~60℃
Nominal Capacity (10 hour rate) 1000Ah Charge Temperature  -15~50℃
Number of Cells  2cells Storage Temperature  -15~40℃
2. Rated Capacity at 25℃ (77° F) 6. Inner Resistance & Max . Discharge Current
10 hour rate (0.1C, 1.80V/cell) 1000Ah Fully Charged battery at 25℃ (77° F) 0.37mΩ
3 hour rate (0.25C, 1.75V/cell) 771Ah Max. Discharge Current  2500A (5s)
1 hour rate (0.55C, 1.60V/cell) 571Ah Short Circuit Current  5400A
3. Capacity affected by Temperature (10 hour rate) 7. Self-discharge  at 25℃ (77° F)
40℃   (104° F) 102% Capacity after 3 month storage  94%
25℃   (77° F) 100% Capacity after 6 month storage 88%
0℃    (32° F) 90% Capacity after 9 month storage 82%
-15℃   (5° F) 70% Capacity after 12 month storage 76%
4. Dimension and Weight  8. Constant voltage charging at 25℃ (77° F)
Length  233mm Cyclic use 2.35~2.4V
Width 210mm Maximum charging current  200A
Height  681mm Temperature compensation  -5mV/℃
Total Height  681mm Float use  2.25~2.29V
Reference Weight  72kg Temperature compensation  -3.3mV/℃



















Certifications





Packaging & Shipping



Company Information





♦ Battery factory Founded in 1996 , 2 million batteries annual production capacity

♦ Products including valve regulated lead acid battery , Gel battery , deep cycle battery  , OPzV and OPzS battery

♦ Products are exported to more than 150 countries
♦ Products are certified by CE , UL ,Rohs

♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah
