Place of Origin: | Jiangsu China; | Electrolyte: | Sulfuric Acid Thixotropic; |
Plates: | Tubular positive; | Port: | Shanghai or Ningbo; |
Certificate: | CE / ISO9001 / ISO14001 / Rohs; | Brand Name: | Yangtze; |
Size: | 233x210x701mm; | Usage: | Signal system , emergency lighting system ,tools; |
Model Number: | OPzS 1000; | Battery type: | opzs flooded battery; |
Warranty: | 10YEARS; | Sealed Type: | Open; |
Weight: | 57kg; | Voltage: | 2v; |
Maintenance Type: | maintenance; | Supply Ability: | 2000 Unit/Units per Week; |
Packaging Detail: | carton box , wooden box and wooden pallet , 1unit per carton box; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; |
Certification: | ce; | Application: | Signal system , emergency lighting system ,tools,Home Appliances,BOATS,SUBMARINES,Electric Wheelchairs,Electric Power Systems,Solar Energy Storage Systems,Uninterruptible Power Supplies; |

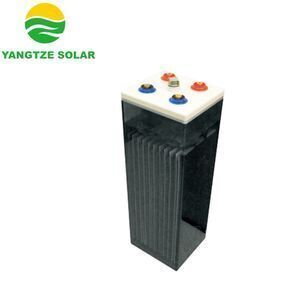

20 years life opzs battery 2v 1000ah
Key Features :
♦Die-casting Tubular Positive framework
♦Non-Spillable construction design
♦Transparent containers , convenient to observe
♦20 years design floating charge service life
♦5000times cycle at 25% Deepth of Discharge
♦Wide suitability of ambient temperature range :-25℃~60℃
♦Special filter installation for acid fog proof
♦High recharge efficiency and good deep discharge performance
Applications :
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power plant and transmission system
♦Electric and Railway Utility
1. Functional Parameter | 5. Environment Temperature | ||
Nominal Voltage | 2V | Discharge Temperature | -15~50℃ |
Nominal Capacity (10 hour rate) | 1000Ah | Charge Temperature | -0~50℃ |
Number of Cells | 2cells | Storage Temperature | -15~40℃ |
2. Rated Capacity at 25℃ (77° F) | 6. Inner Resistance & Max . Discharge Current | ||
10 hour rate (0.1C, 1.80V/cell) | 1000Ah | Fully Charged battery at 25℃ (77° F) | 0.28mΩ |
3 hour rate (0.25C, 1.75V/cell) | 771Ah | Max. Discharge Current | 1800A (5s) |
1 hour rate (0.55C, 1.60V/cell) | 571Ah | ||
3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 25℃ (77° F) | ||
40℃ (104° F) | 102% | Capacity after 3 month storage | 92% |
25℃ (77° F) | 100% | Capacity after 6 month storage | 84% |
0℃ (32° F) | 90% | Capacity after 9 month storage | 74% |
-15℃ (5° F) | 70% | Capacity after 12 month storage | 65% |
4. Dimension and Weight | 8. Constant voltage charging at 25℃ (77° F) | ||
Length | 233mm | Cyclic use | 2.3~2.4V |
Width | 210mm | Maximum charging current | 250A |
Height | 646mm | Temperature compensation | -3mV/℃ |
Total Height | 701mm | Float use | 2.23~2.25V |
Reference Weight | 57kg | Temperature compensation | -3.3mV/℃ |
♦ Battery factory Founded in 1996 , 2 million batteries annual production capacity
♦ Products including valve regulated lead acid battery , Gel battery , deep cycle battery , OPzV and OPzS battery
♦ Products are exported to more than 150 countries
♦ Products are certified by CE , MSDS ,RoHS
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah
