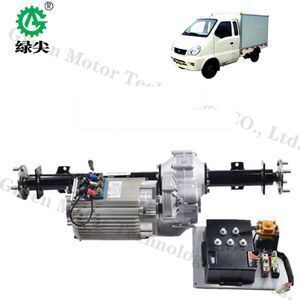

2KW 3kw 5kw 48v 60v electric motor for cars golf car shuttle bus truck tricycle tuktuk etc

Supplier: Foshan Shunde Green Motor Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Esta ZHONG
Price: $100.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

AC Voltage:	48-72;	Efficiency:	IE 2;
Warranty:	12 months;	Payment Terms:	T/T,Western Union;
Frequency:	102;	Port:	SHUNDE;
Brand Name:	GA;	Protect Feature:	IP55;
Phase:	Three-phase;	Place of Origin:	Guangdong China;
Certification:	ce;	Model Number:	GA3KW;
Packaging Detail:	standard export package;	Motor Type:	AC Motor;
Supply Ability:	1000 Unit/Units per Month;	Type:	Asynchronous Motor;

Leader of the one stop driving system solution provider appreciates your interest. Definitely, we will endorse your trust and will deliver the best performed product and service for our esteemed customer.

We develop and sell driving kit including motor, controller, and axle for our customers for 40 plus countries and regions all over the world. Meanwhile, we are pleased as well to provide the optional parts, such as charger, dashboard, DC-DC converter, steering system, suspension,chassis, tires, and battery pack per request on your behalf.

Typical Electric Vehicle Performance

GEV301

Maximum Speed	50km/h	Vehicle size(LWH)	240010801725mm
Endurance mileage	100km	Seats	3
Unloading weight	450kg	Wheelbase	1910mm
Full loading weight	750kg	Front wheel tread	0mm
Maximum slope	20%	Rear wheel tread	1000mm
Noise	<50dB	Tires	145/70R12, 3pcs
Battery	12V120ah*5	Driving system	60V 3kw

GEV302

Maximum Speed	33km/h	Vehicle size(LWH)	300014001480 mm
Endurance mileage	150km	Seats	4
Unloading weight	650kg	Wheelbase	2175mm
Full loading weight	1050kg	Front wheel tread	1210mm
Maximum slope	20%	Rear wheel tread	1200mm
Noise	<50dB	Tires	175/60R13, 4pcs
Battery	12V100ah*5	Driving system	60V 3kw

Driving System

Item	Specification		Picture
Motor	Rated power	3kw
	Battery voltage	60v
	Rated frequency	102Hz
	Rated speed	3000RPM
	Max. speed	7000RPM
	Ambient temperature	-20℃~40℃
	Protection grade	IP55
	Insulation grade	H
	Max.torque	60 N.m
	Duty	S2-60min
	Installation size	Tailor made to customer's size
	Size	Φ205 * 315mm
	Net weight	18kg
	Packing	Wooden box
	HS code	85015200
Controller assembly Including controller key switch stall switch accelerator wire harness	Rated voltage	60V DC
	Working voltage range	65%~135% of rated
	Rated output current	80A
	Maximum output current	250A
	Digital input	8
	Analog input	2
	Protection grade	IP65
	Ambient temperature	-40 ~ 50℃
	Control mode	Vector control
	Communication mode	CAN
	Size(LWH)	23016575mm
	Net weight	3kg
	Packing	Carton
	HS code	85371090
Rear axle	Ratio	10:1
	Speed capacity	8000RPM
	Torque capacity	80N.m
	Noise	≤65dB
	Length	Tailor made to customer's size
	Installation size
	Leaf spring distance
	Brake style
	Hub size
	Est. net weight	35kg
	Packing	Wooden box
	HS code	87085079

Norms and Practice

To improve efficiency and maintain both parties' mutual benefit, you are kindly to read the following norms and practice, which is the integrated part of the agreement we are going to reach.
1	Delivery time for standard parts is within 20 days.
2	Warranty of driving system is one year. Any damage of the parts by violating the instructions does not belong to the warranty coverage.
3	Payment for MOQ (≤5 sets)is 100% lump-sum before production, payment beyond MOQ is 30% for prepaid, and balance paid before sihpment.
4	The actual parts and accessories might be not the same due to the shape of the vehicle, purchased items, country norms, and applicability.
5	Not to be reprinted, translated or otherwise reproduced in whole or in part without written permission from Foshan Shunde Green Motor Technology Co., Ltd. All rights reserved.
6	Should you ever require assistance or any complaints, all you need to do is to contact our president & global chief service officer (GCSO),reach his mobile phone at +86 13702349858.
7	For more details of our company, please visit http://www.greenmotortech.com. Green Motor Technology Co. wish you a safe and pleasant driving trip.

Board of Director’s Message

First thank you for your interest of our products and service. The Green Motor Technology Co.(GA) is an innovative technology company that specializes in developing and manufacturing driving systems for electric vehicles (EV). With two decades plus years of expertise and leadership in the dynamic driving system, GA’s AC driving system serves our customers for more than 35 countries and beyond, particularly, some customers won championship in their national competiton by adopting our driving system, and we have earned more and more repeated business partners by providing consistent products and shared value with customers.Sincerely I wish you have a pleasant experience with us and please feel free to let us know your concerns.

Rewards, Certificates, and customer reference

Customer from Sri Lanka won the first prize over national EV race by adopting GA’s driving system.

Glimpse of business partnership from US, Germany, Britain, France, Belgium, Spain, Turkey, Slovakia, Brazil, Australia, Korea, India, Thailand, Sri Lanka, and Mozambique. .
