Motor max torque: | 28N.m; | Protect Feature: | Totally Enclosed; |
Brake: | hydraulic/mechanics; | Rear axle length: | Tailor made to customer's size; |
Type: | GEAR MOTOR; | Port: | Shunde Foshan; |
Efficiency: | Ie 3; | Rated output current: | 60A; |
Certification: | ce; | Motor max. speed: | 7000RPM; |
Packaging Detail: | Standard seaworthy packing; | Battery voltage: | 48/60v DC; |
Payment Terms: | T/T; | Supply Ability: | 6000 Set/Sets per Month; |
Brand Name: | GA; | Rated speed: | 2800rpm/3400rpm/4500rpm; |
Usage: | BOAT,Car,Electric Bicycle,FAN,Home Appliance; | Construction: | Permanent Magnet; |
Speed(RPM): | 7000RPM; | Communication mode: | CAN; |
Commutation: | Brushless; | Ratio: | 16.9 /12.3/16.2 /17.8/10.6 /8/9/6.5; |
Power: | 3kw; | Model Number: | 3kwGA; |
Warranty: | 12 MONTH; | Torque: | 28N.m; |
Place of Origin: | Guangdong China; | Continuous Current(A): | 60A; |
Leader of the one stop driving system solution provider appreciates your interest. Definitely, we will endorse your trust and will deliver the best performed product and service for our esteemed customer.
We develop and sell driving kit including motor, controller, and axle for our customers for 40 plus countries and regions all over the world. Meanwhile, we are pleased as well to provide the optional parts, such as charger, dashboard, DC-DC converter, steering system, suspension,chassis, tires, and battery pack per request on your behalf.
Typical Electric Vehicle Performance
GEV201
Maximum Speed | 25km/h | Vehicle size(L*W*H) | 3800*1330*1800 mm | ||||||||
Endurance mileage | 80km | Seats | 2 | ||||||||
Unloading weight | 650kg | Wheelbase | 2120mm | ||||||||
Full loading weight | 950kg | Front wheel tread | 1160mm | ||||||||
Maximum slope | 10% | Rear wheel tread | 1200mm | ||||||||
Noise | <50dB | Tires | 145/70R12, 4pcs | ||||||||
Battery | 12V140ah*4 | Driving system | 48V 2kw |
GEV202
Maximum Speed | 35km/h | Vehicle size(L*W*H) | 2770*1380*1480 mm | ||||||||
Endurance mileage | 80km | Seats | 3 | ||||||||
Unloading weight | 480kg | Wheelbase | 1880mm | ||||||||
Full loading weight | 700kg | Front wheel tread | 0mm | ||||||||
Maximum slope | 20% | Rear wheel tread | 1140mm | ||||||||
Noise | <50dB | Tires | 145/70R12, 3pcs | ||||||||
Battery | 12V100ah*5 | Driving system | 48V 2kw |

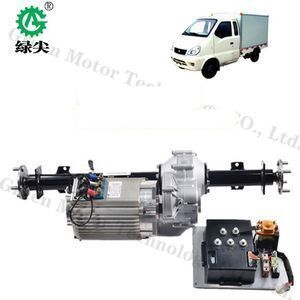

Driving System
Item | Specification | Picture | |||||||||
Motor | Rated power | 2kw | |||||||||
Battery voltage | 48v | ||||||||||
Rated frequency | 140Hz | ||||||||||
Rated speed | 4100RPM | ||||||||||
Max. speed | 7000RPM | ||||||||||
Ambient temperature | -20℃~40℃ | ||||||||||
Protection grade | IP55 | ||||||||||
Insulation grade | H | ||||||||||
Max.torque | 28 N.m | ||||||||||
Duty | S2-60min | ||||||||||
Installation size | Tailor made to customer's size |
||||||||||
Size | Φ145 * 237mm | ||||||||||
Net weight | 15kg | ||||||||||
Packing | Wooden box | ||||||||||
HS code | 85015200 | ||||||||||
Controller assembly Including controller key switch stall switch accelerator wire harness |
Rated voltage | 48V DC | |||||||||
Working voltage range | 65%~135% of rated | ||||||||||
Rated output current | 60A | ||||||||||
Maximum output current | 200A | ||||||||||
Digital input | 8 | ||||||||||
Analog input | 2 | ||||||||||
Protection grade | IP65 | ||||||||||
Ambient temperature | -40 ~ 50℃ | ||||||||||
Control mode | Vector control | ||||||||||
Communication mode | CAN | ||||||||||
Size(L*W*H) | 230*165*75mm | ||||||||||
Net weight | 3kg | ||||||||||
Packing | Carton | ||||||||||
HS code | 85371090 | ||||||||||
Rear axle | Ratio | 10:1 | |||||||||
Speed capacity | 8000RPM | ||||||||||
Torque capacity | 80N.m | ||||||||||
Noise | ≤65dB | ||||||||||
Length | Tailor made to customer's size |
||||||||||
Installation size | |||||||||||
Leaf spring distance | |||||||||||
Brake style | |||||||||||
Hub size | |||||||||||
Est. net weight | 35kg | ||||||||||
Packing | Wooden box | ||||||||||
HS code | 87085079 |
Norms and Practice
To improve efficiency and maintain both parties' mutual benefit, you are kindly to read the following norms and practice, which is the integrated part of the agreement we are going to reach. | |||||||||||
1 | Delivery time for standard parts is within 20 days. | ||||||||||
2 | Warranty of driving system is one year. Any damage of the parts by violating the instructions does not belong to the warranty coverage. | ||||||||||
3 | Payment for MOQ (≤5 sets)is 100% lump-sum before production, payment beyond MOQ is 30% for prepaid, and balance paid before sihpment. | ||||||||||
4 | The actual parts and accessories might be not the same due to the shape of the vehicle, purchased items, country norms, and applicability. | ||||||||||
5 | Not to be reprinted, translated or otherwise reproduced in whole or in part without written permission from Foshan Shunde Green Motor Technology Co., Ltd. All rights reserved. | ||||||||||
6 | Should you ever require assistance or any complaints, all you need to do is to contact our president & global chief service officer (GCSO),reach his mobile phone at +86 13702349858. | ||||||||||
7 | For more details of our company, please visit http://www.greenmotortech.com. Green Motor Technology Co. wish you a safe and pleasant driving trip. |
Board of Director’s Message
First thank you for your interest of our products and service. The Green Motor Technology Co.(GA) is an innovative technology company that specializes in developing and manufacturing driving systems for electric vehicles (EV). With two decades plus years of expertise and leadership in the dynamic driving system, GA’s AC driving system serves our customers for more than 35 countries and beyond, particularly, some customers won championship in their national competiton by adopting our driving system, and we have earned more and more repeated business partners by providing consistent products and shared value with customers.Sincerely I wish you have a pleasant experience with us and please feel free to let us know your concerns.
Rewards, Certificates, and customer reference
Customer from Sri Lanka won the first prize over national EV race by adopting GA’s driving system.
Glimpse of business partnership from US, Germany, Britain, France, Belgium, Spain, Turkey, Slovakia, Brazil, Australia, Korea, India, Thailand, Sri Lanka, and Mozambique. .
