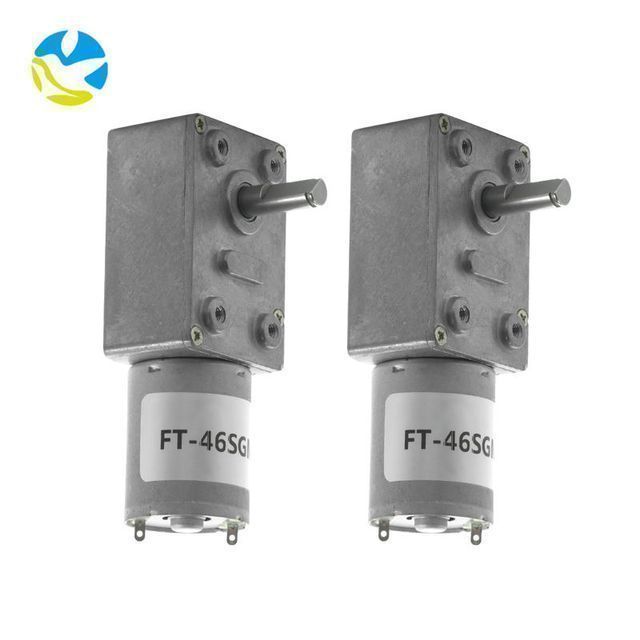

Factory Wholesale 6v 12v 24v High Torque DC Gear Motor 12 Volt 46x32mm Gear Motor

Supplier: Dongguan Futeng Motor Co., Ltd.
Region: Guangdong, China
Contact: Mr FT LIMS
Price: $50.24 / 1 - 499 pieces
$23.51 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

DC gear motors are widely used:	Robots, electronic locks, public bike locks, relays	Warranty:	3 months - 1 year
Continuous current (A):	About 110mA-550mA	Single package size:	17X15X10 cm
put up:	Permanent magnets	current:	45/90/21/43 (mA)
speed:	1rpm-600rpm	place of origin; place of origin:	Guangdong, China
Gearbox size:	46*32mm	brand:	FT motor
Geared motor model:	FT-46SGM370	Commuting:	brush
Packaging Details:	Standard packaging; can be customized according to customer requirements	Sales unit:	single product
usage:	Fans, home appliances, beauty equipment, SMART HOME	Rated voltage:	6v/12v/24v
output:	0.88/2.96/1.12/2.2(w)	type:	gear motor
efficiency:	65%-73%	Rotating speed:	5000/12000/6000/9000 (rotation)
Torque:	20/28/21/27(g.cm),18 g.cm	Gross weight per piece:	0.150kg
Speed (RPM):	1rpm-600rpm	Protective function:	Explosion-proof
Voltage:	1-24V	model:	FT-46SGM370

FT motor

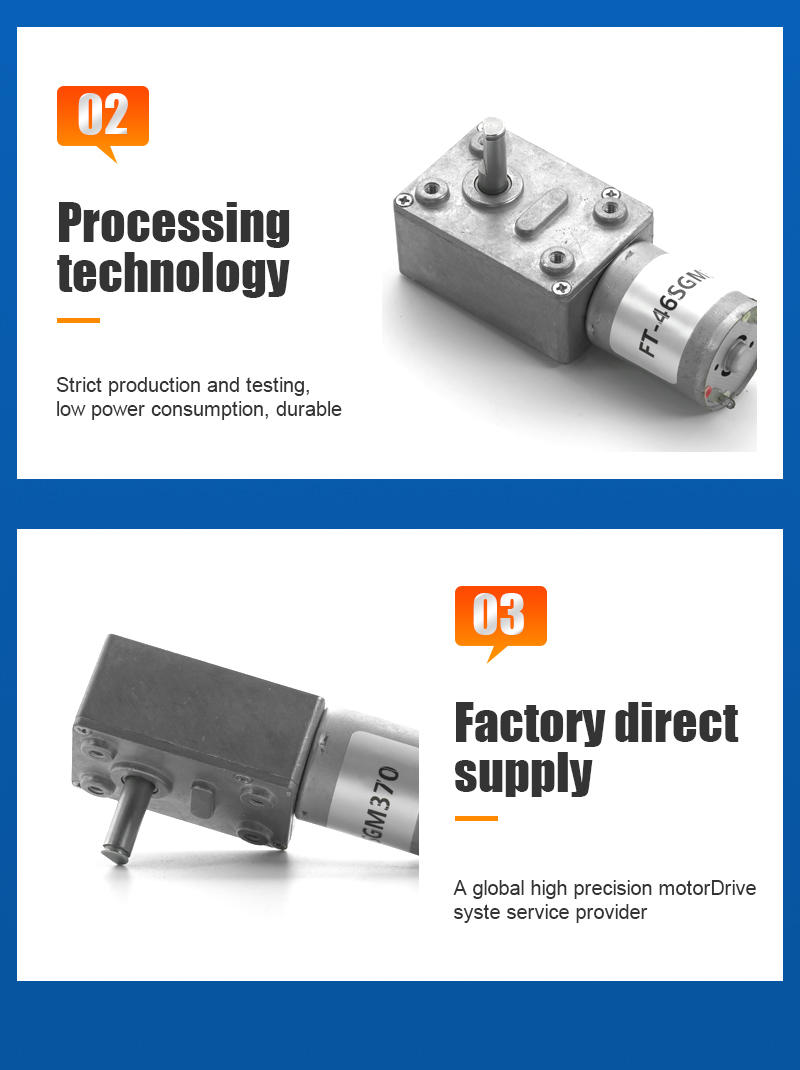

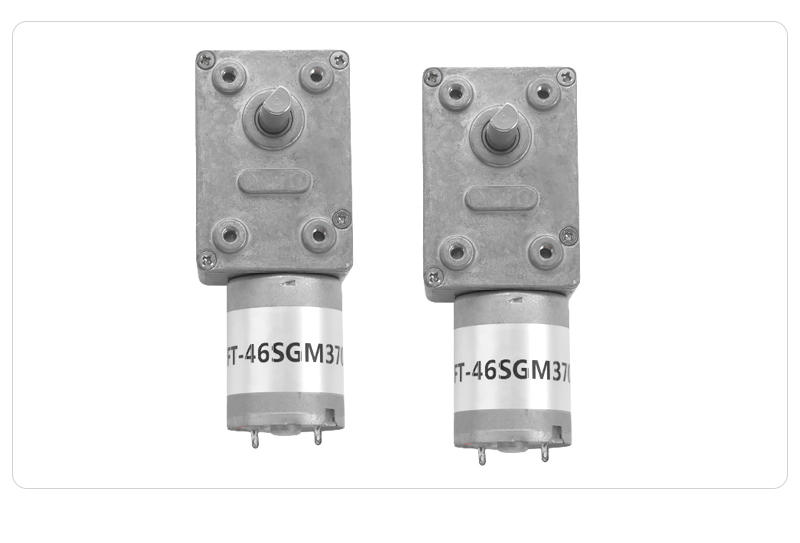

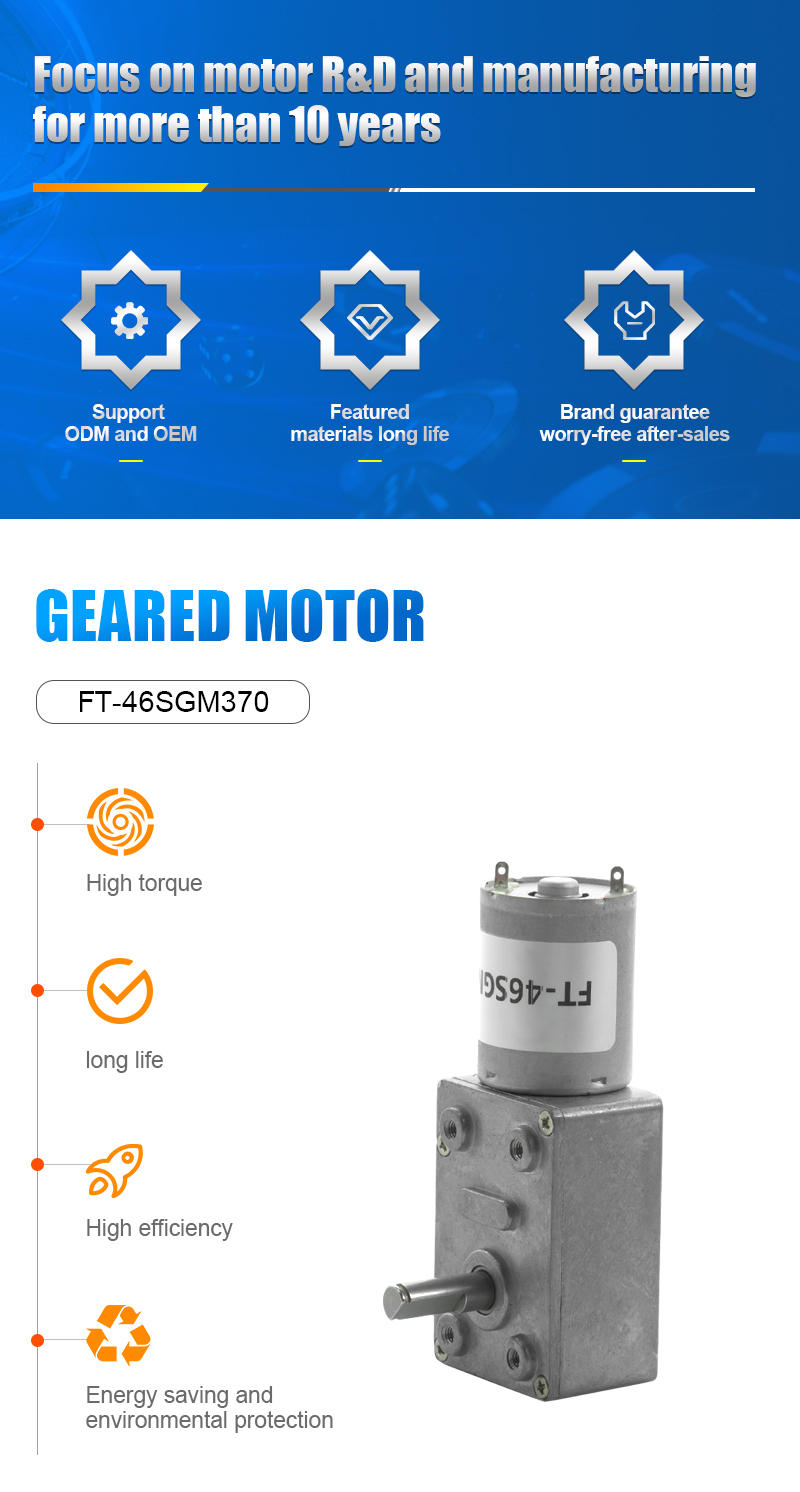

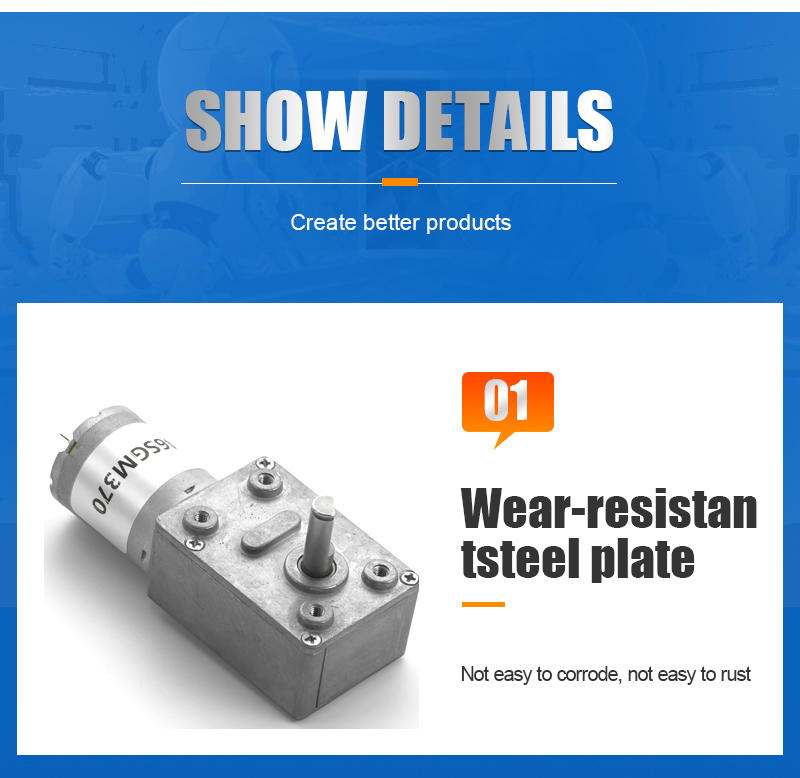

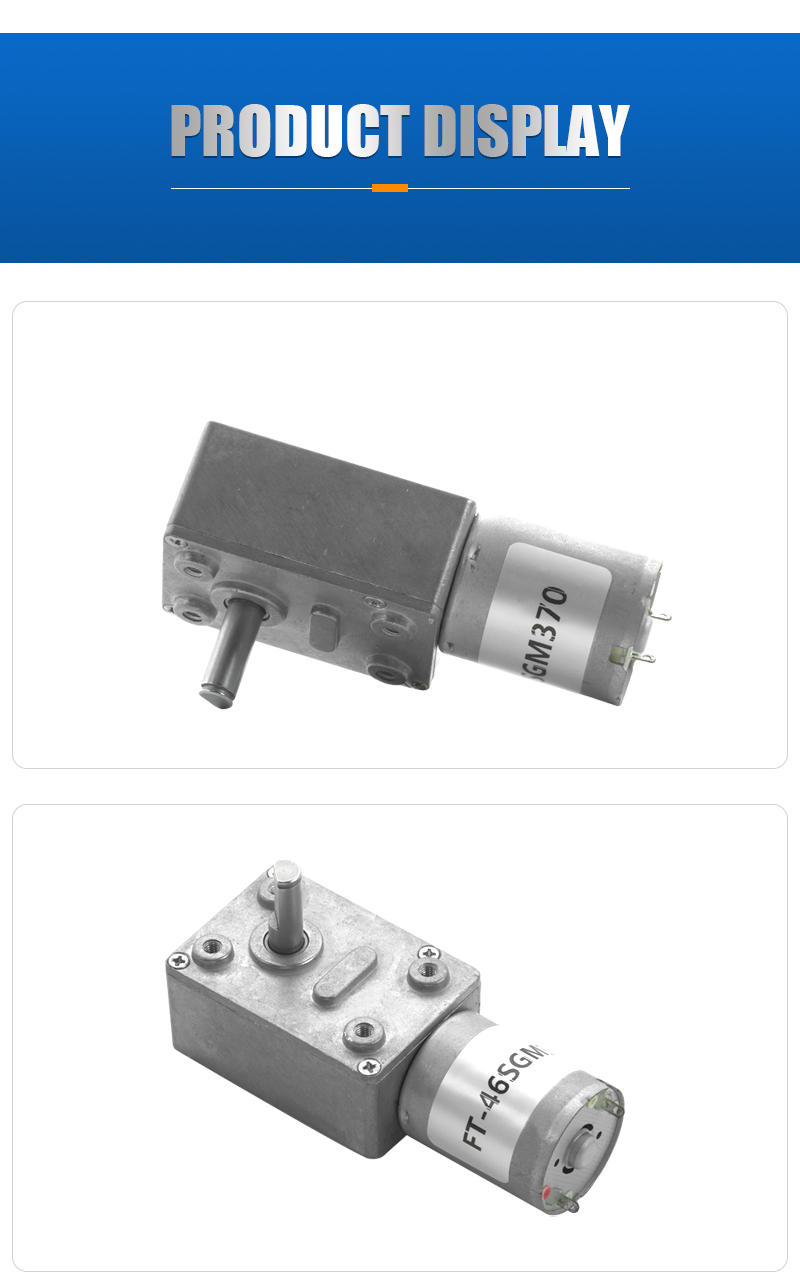

Geared motor model: FT-46SGM370 Reducer diameter: 46×32mm Voltage: 1-24V Speed: 1rpm-600rpm DC geared motors are widely used in: robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D Printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automation facilities, etc.

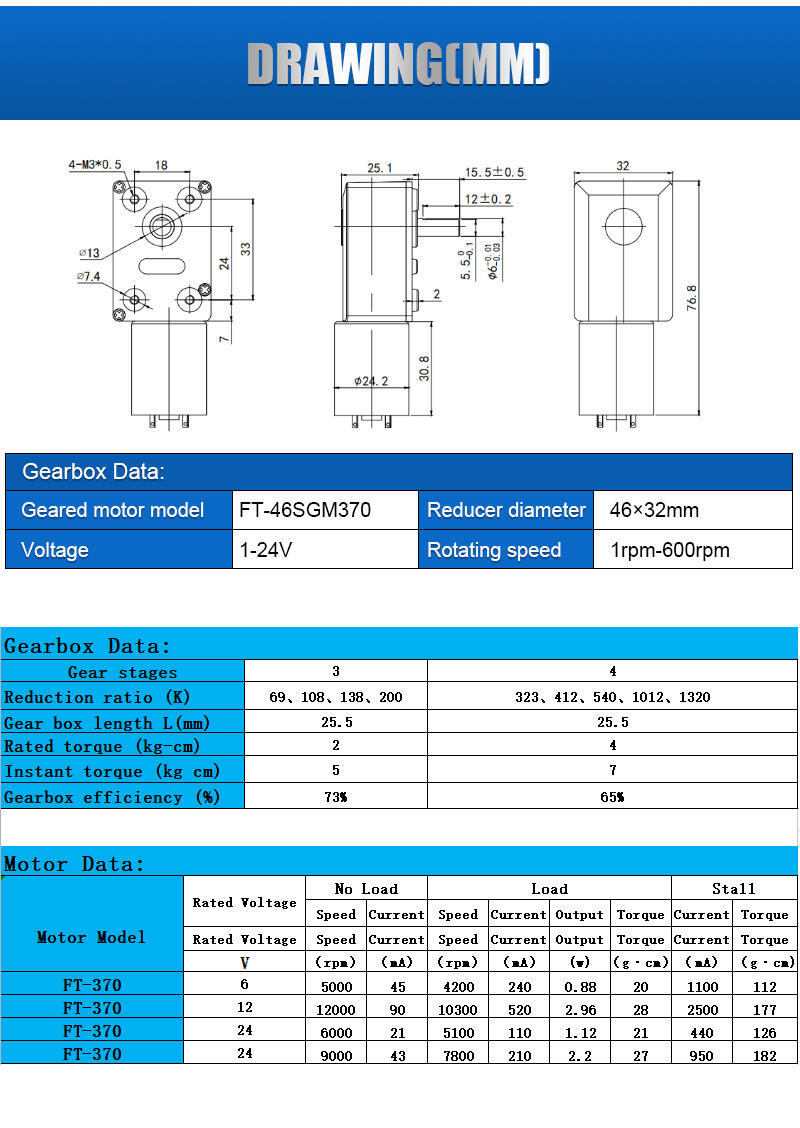

Gearbox data:
gear stage	3	4
Reduction ratio (K)	69, 108, 138, 200	323, 412, 540, 1012, 1320
Gearbox length L(mm)	25.5	25.5
Rated torque (kg·cm)	2	4
Instantaneous torque (kg·cm)	5	7
Transmission efficiency (%)	73%	65%

Motor data
motor model		no load			load						booth
	motor model	Rated voltage	speed	current	speed	current	output	torque	current	torque
		five	(change)	(Well)	(change)	(Well)	(w)	(g cm)	(Well)	(g cm)
FT-370	6	5000	45	4200	240	0.88	20	1100	112
FT-370	12	12000	90	10300	520	2.96	28	2500	177
FT-370	twenty four	6000	twenty one	5100	110	1.12	twenty one	440	126
FT-370	twenty four	9000	43	7800	210	2.2	27	950	182
