Warranty: | 3 months - 1 year | Protective function: | Not waterproof |

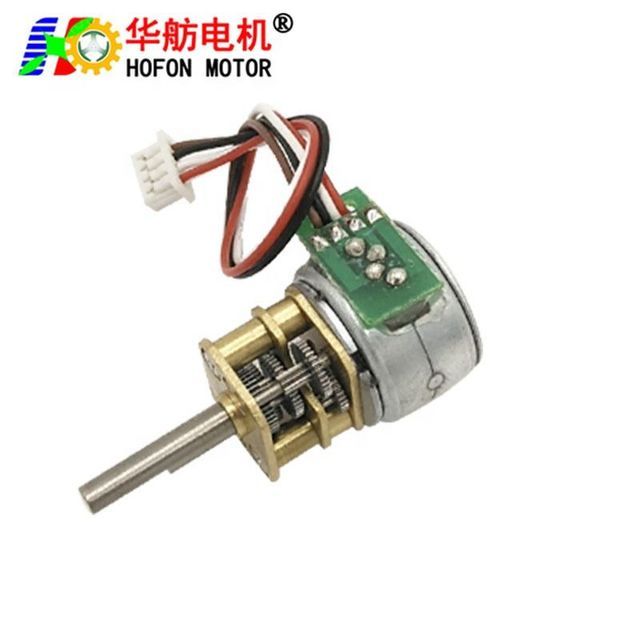

product name: | GM12-15BYW stepping gear motor | Certification: | RoHS Directive |
Commutation: | brushless | Brush Type: | brushless stepper |
put up: | Permanent magnets | brand: | Hefeng Motor |
Key words: | 15mm gear motor | Moment: | 10-1500g.cm |
Speed (rev/min): | 10-4000RPM or customized | Motor Diameter: | 15mm |
type: | gear motor | Packaging Details: | Carton Styrofoam inner packaging, shockproof and dropproof |
Output shaft length: | 13.8mm or customized | Package preview: | |
weight: | 15 grams | Gear Material: | All cutting metal gears |
model: | GM12-15BYW | payment terms: | L/C, Western Union, T/T, MoneyGram |
efficiency: | 60%-80% | Supply capacity: | 5,000,000 pieces per month |
Origin: | Shenzhen, China | Motor type: | DC stepping gear motor |
usage: | Automobiles, fans, home appliances, beauty instruments, smart homes, medical devices | Output shaft diameter: | 3.0mm , D-Cut 2.5mm |
port: | Shenzhen | Continuous current (A): | About 50mA |
typical application:
- Electronic door locks/monitors/printers/robots/optical equipment/precision instruments
- Banking equipment/safe deposit box/paper feeder/smart gas meter/tissue dispenser
- Automobile accessories/advertising equipment/analytical instruments/electronic game consoles

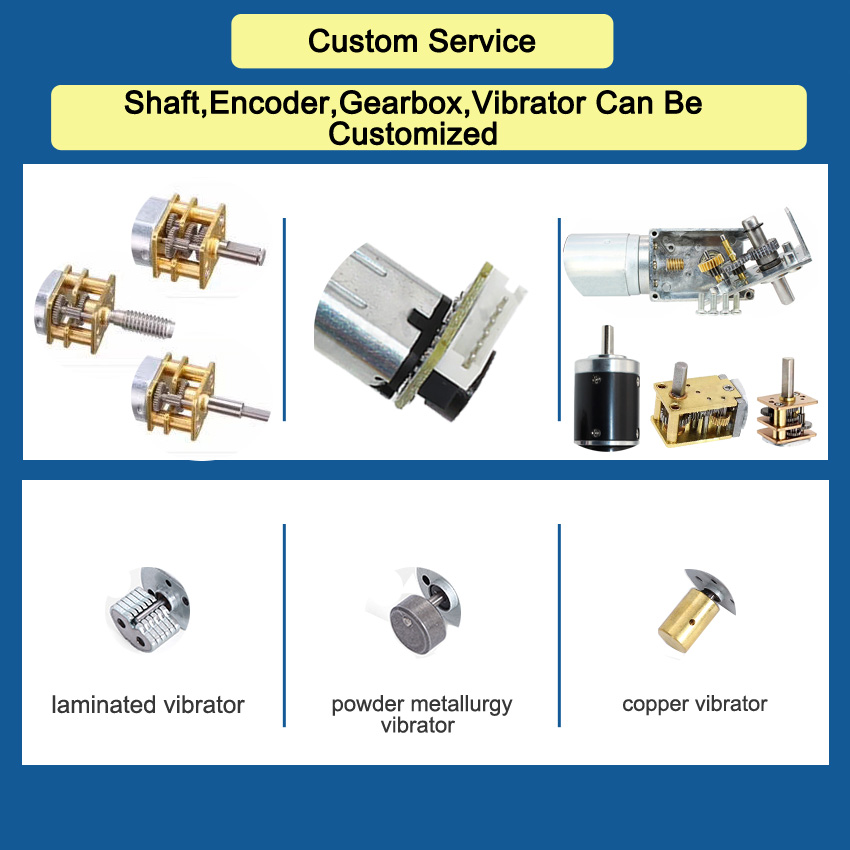

Customized service:
Performance parameters such as voltage, speed, and torque can be customized according to requirements.
Shaft length, D-CUT shaft, threaded shaft, encoder, gearbox, etc. can all be customized.
Representative achievements:
Model | Voltage | step angle |
quantity stage |
current | resist | Keep torque |
pawl torque |
Maximum start frequency |
maximum rotation frequency |
||||
V | ° | A | ohm | g cm | g cm | Polyphenylene sulfide | Polyphenylene sulfide | ||||||
GM12-15BYW03-10 | 5.0 | 1.800 | 2.0 | 0.167 | 30.0 | 90.0 | 60.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-30 | 5.0 | 0.600 | 2.0 | 0.167 | 30.0 | 270.0 | 180.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-50 | 5.0 | 0.360 | 2.0 | 0.167 | 30.0 | 450.0 | 300.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-63 | 5.0 | 0.286 | 2.0 | 0.167 | 30.0 | 560.0 | 370.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-100 | 5.0 | 0.180 | 2.0 | 0.167 | 30.0 | 900.0 | 600.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-150 | 5.0 | 0.120 | 2.0 | 0.167 | 30.0 | 1350.0 | 900.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-210 | 5.0 | 0.086 | 2.0 | 0.167 | 30.0 | 1500MAX | 1260.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-250 | 5.0 | 0.072 | 2.0 | 0.167 | 30.0 | 1500MAX | 1350.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-298 | 5.0 | 0.060 | 2.0 | 0.167 | 30.0 | 1500MAX | 1500MAX | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-380 | 5.0 | 0.047 | 2.0 | 0.167 | 30.0 | 1500MAX | 1500MAX | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-1000 | 5.0 | 0.018 | 2.0 | 0.167 | 30.0 | 1500MAX | 1500MAX | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-10 | 12.0 | 1.800 | 2.0 | 0.400 | 30.0 | 90.0 | 60.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-30 | 12.0 | 0.600 | 2.0 | 0.400 | 30.0 | 270.0 | 180.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-50 | 12.0 | 0.360 | 2.0 | 0.400 | 30.0 | 450.0 | 300.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-63 | 12.0 | 0.286 | 2.0 | 0.400 | 30.0 | 560.0 | 370.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-100 | 12.0 | 0.180 | 2.0 | 0.400 | 30.0 | 900.0 | 600.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-150 | 12.0 | 0.120 | 2.0 | 0.400 | 30.0 | 1350.0 | 900.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-210 | 12.0 | 0.086 | 2.0 | 0.400 | 30.0 | 1500MAX | 1260.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-250 | 12.0 | 0.072 | 2.0 | 0.400 | 30.0 | 1500MAX | 1350.0 | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-298 | 12.0 | 0.060 | 2.0 | 0.400 | 30.0 | 1500MAX | 1500MAX | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-380 | 12.0 | 0.047 | 2.0 | 0.400 | 30.0 | 1500MAX | 1500MAX | 900 minutes | 1200 minutes | ||||
GM12-15BYW03-1000 | 12.0 | 0.018 | 2.0 | 0.400 | 30.0 | 1500MAX | 1500MAX | 900 minutes | 1200 minutes | ||||
GM12-15BYW01-10 | 5.0 | 1.800 | 2.0 | 0.357 | 14.0 | 200.0 | 70.0 | 1100 minutes | 1500 minutes | ||||
GM12-15BYW01-30 | 5.0 | 0.600 | 2.0 | 0.357 | 14.0 | 600.0 | 210.0 | 1100 minutes | 1500 minutes | ||||
GM12-15BYW01-50 | 5.0 | 0.360 | 2.0 | 0.357 | 14.0 | 1000.0 | 350.0 | 1100 minutes | 1500 minutes | ||||
GM12-15BYW01-63 | 5.0 | 0.286 | 2.0 | 0.357 | 14.0 | 1260.0 | 441.0 | 1100 minutes | 1500 minutes | ||||
GM12-15BYW01-100 | 5.0 | 0.180 | 2.0 | 0.357 | 14.0 | 1500MAX | 700.0 | 1100 minutes | 1500 minutes | ||||
GM12-15BYW01-150 | 5.0 | 0.120 | 2.0 | 0.357 | 14.0 | 1500MAX | 1050.0 | 1100 minutes | 1500 minutes | ||||
GM12-15BYW01-210 | 5.0 | 0.086 | 2.0 | 0.357 | 14.0 | 1500MAX | 1470.0 | 1100 minutes | 1500 minutes | ||||
GM12-15BYW01-250 | 5.0 | 0.072 | 2.0 | 0.357 | 14.0 | 1500MAX | 1500MAX | 1100 minutes | 1500 minutes | ||||
GM12-15BYW01-298 | 5.0 | 0.060 | 2.0 | 0.357 | 14.0 | 1500MAX | 1500MAX | 1100 minutes | 1500 minutes | ||||
GM12-15BYW01-380 | 5.0 | 0.047 | 2.0 | 0.357 | 14.0 | 1500MAX | 1500MAX | 1100 minutes | 1500 minutes | ||||
GM12-15BYW01-1000 | 5.0 | 0.018 | 2.0 | 0.357 | 14.0 | 1500MAX | 1500MAX | 1100 minutes | 1500 minutes |
Reduction ratio | 1:10 | 1:30 | 1:50 | 1:63 | 1:100 | 1:150 | 1:210 | 1:250 | 1:298 | 1:380 | 1:1000 |
