Fuel to electric drive system conversion kit for VW BUG VW BEETLE

Click here to contact
Product details
type:Induction motorpayment terms:Western Union, wire transfer

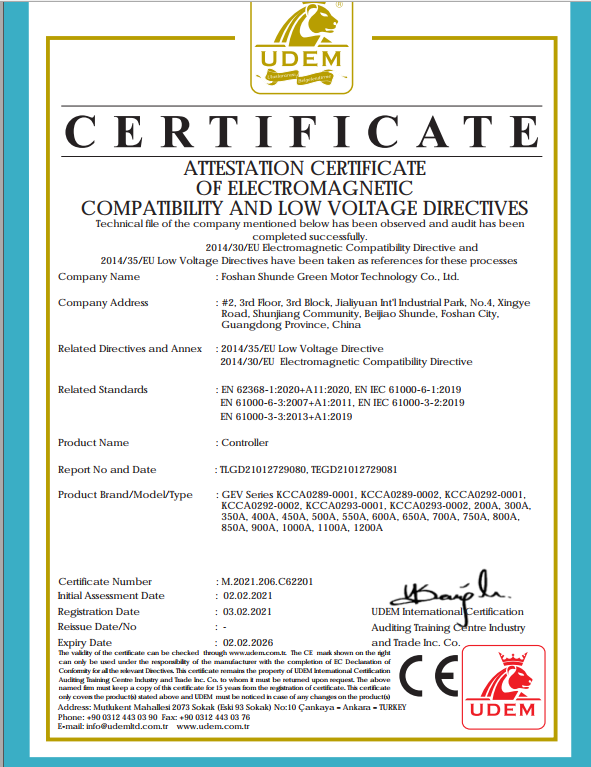

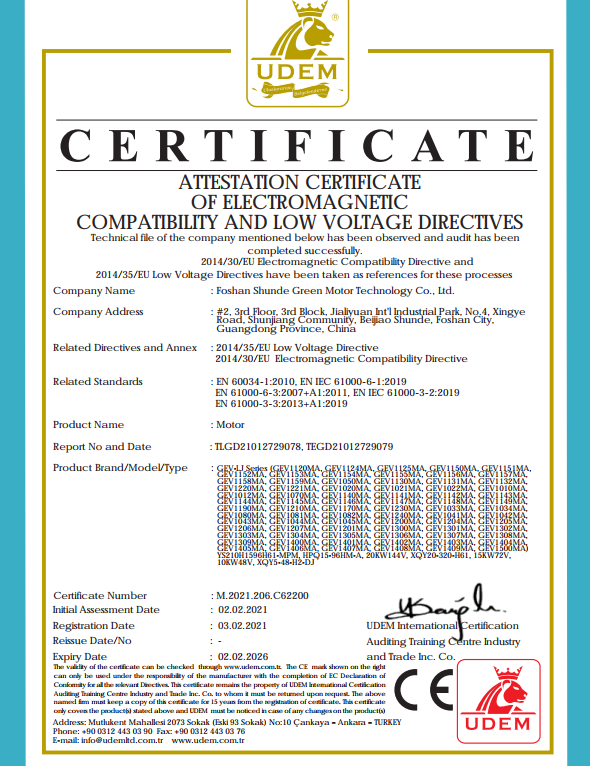

Certification:CCC, CE, RoHSPeak RPM:6000
AC voltage:96V 108V 144VPackaging Details:wooden box
frequency:50/60Hzbrand:GMT
Supply capacity:2000 sets per monthVoltage:96V 108V 144V
strength:15kWWarranty:1 year
model:electric carRated torque:48
place of origin; place of origin:Chinaport:Guangzhou/Shenzhen
Drive mode:rear axle drivemaximum. speed:90 km/h
cooling method:AirProtection class:IP55
efficiency:90%Rated speed:3000
stage:three phaseMax torque:120
Protective function:Drip-proof

Why Choose Green Motor Technology

26+ years of manufacturing and supply experience
600+ customers in 120+ countries
200+ customer site visits
12+ years of electric vehicle modification
Alibaba member for more than 8 years
China's leading electric vehicle total solution provider

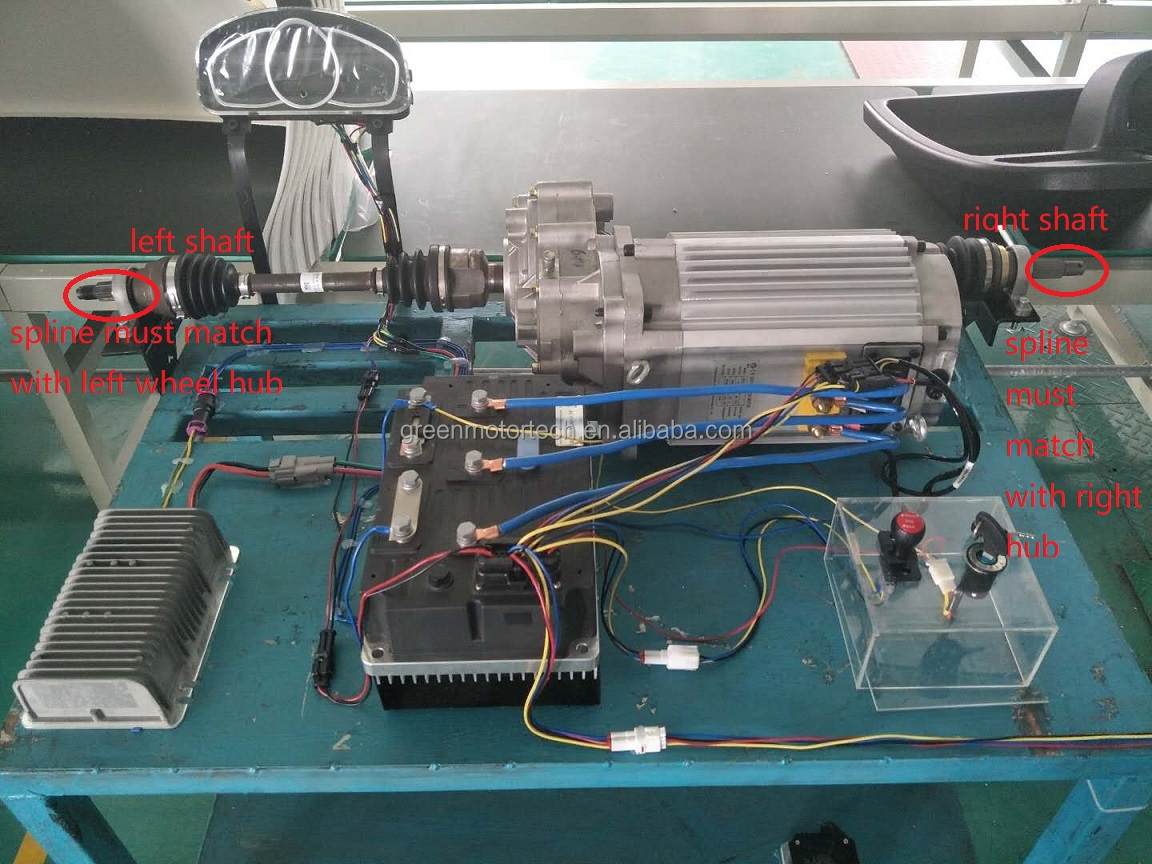

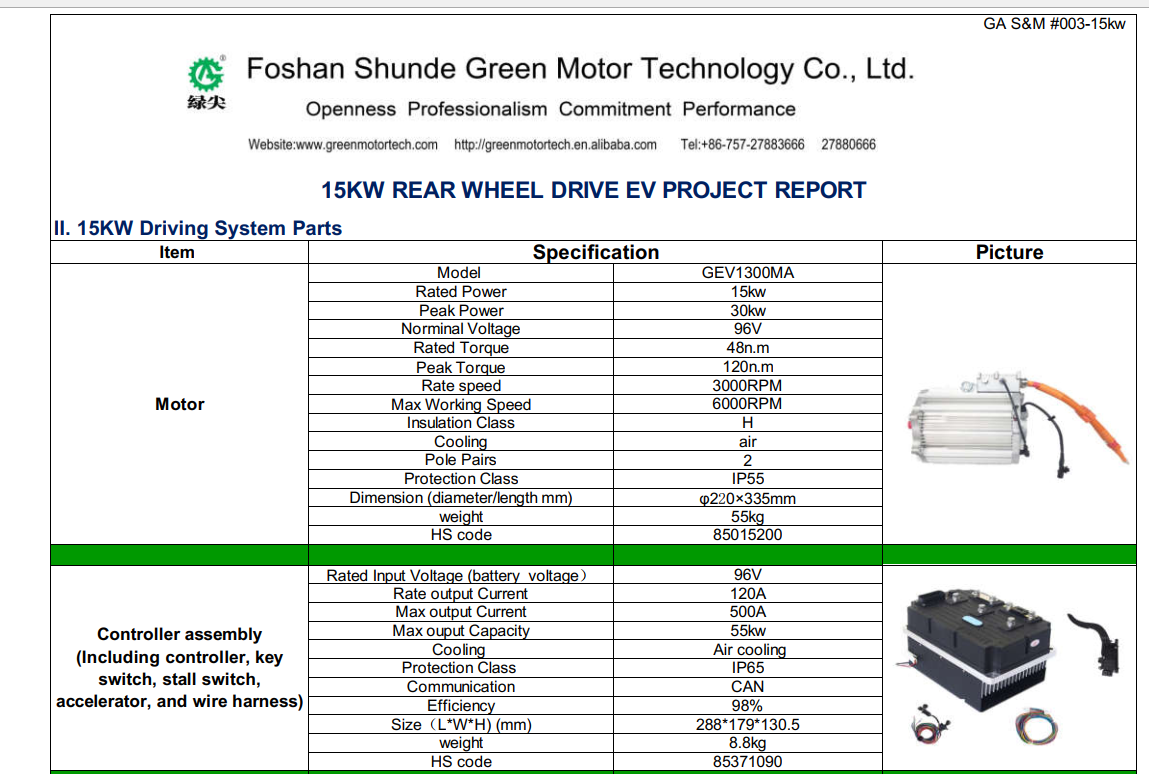

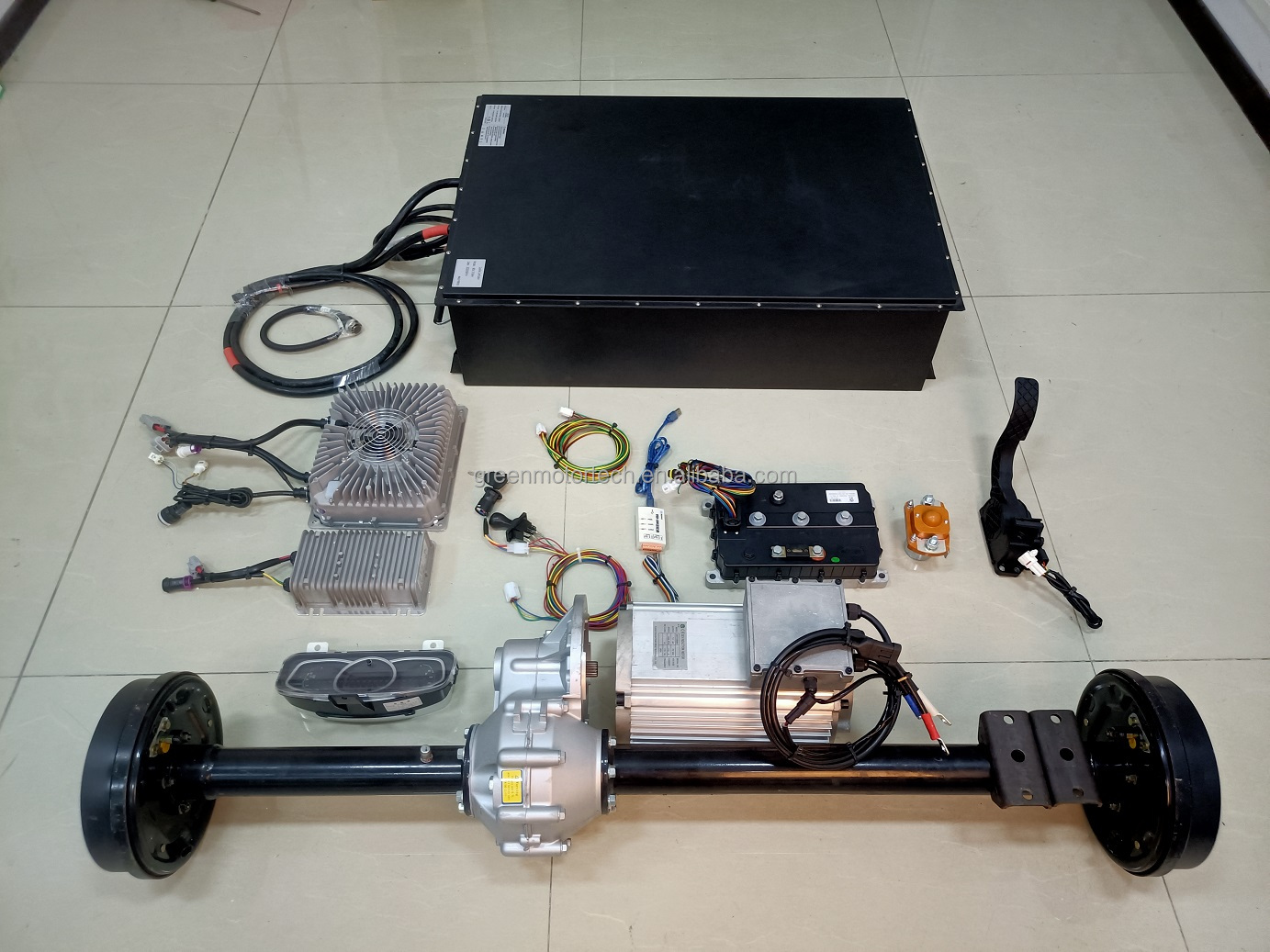

2. 15KW drive system parts
thing Specification picture
motor Model GEV1300MA

rated power 15kW
peak power 30kW
standard 96V
Rated torque 48 nautical miles
peak torque 120nm
rate speed 3000 rpm
maximum working speed 6000 rpm
Insulation level H
cool down Air
pole pair 2
Protection class IP55
Dimensions (diameter/length mm) φ220×335mm
weight 55kg
HS code 85015200

Controller assembly
(including controller, key switch, stall switch, throttle, wiring harness)		 Rated input voltage (battery voltage) 96V

Rated output current 120A
Maximum output current 500A
Maximum output capacity 55kW
cool down air cooling
Protection class IP65
communicate were able
efficiency 98%
Dimensions (L*W*H) (mm) 288*179*130.5
weight 8.8kg
HS code 85371090

rear axle ratio /8:1/10:1/12:1

loading capacity 3 tons
Package wooden box
HS code 87085079

2. Optional parts
thing Specification picture
DC converter Input voltage (V) 96V

Output voltage (V) 12V
rated power 500W/600W
Protection class IP65
HS code 85044099

Lead acid battery charger Input voltage (V) 220/110

Battery voltage (V) 108V
Charging current (A) 25A
HS code 85044099

steering assembly include steering wheel

Lighting control
Horn switch
handbrake
HS code 87089490

Battery Voltage (V) 12V

Battery capacity (Ah) 150Ah
Dimensions (mm) 300*180*180
Weight (kg) 40
HS code 85072000

tire size 185/60R14

195/65R15
205/55R16
215/45R17
HS code 40112000





more products:



AC controller series from 36V to 144V

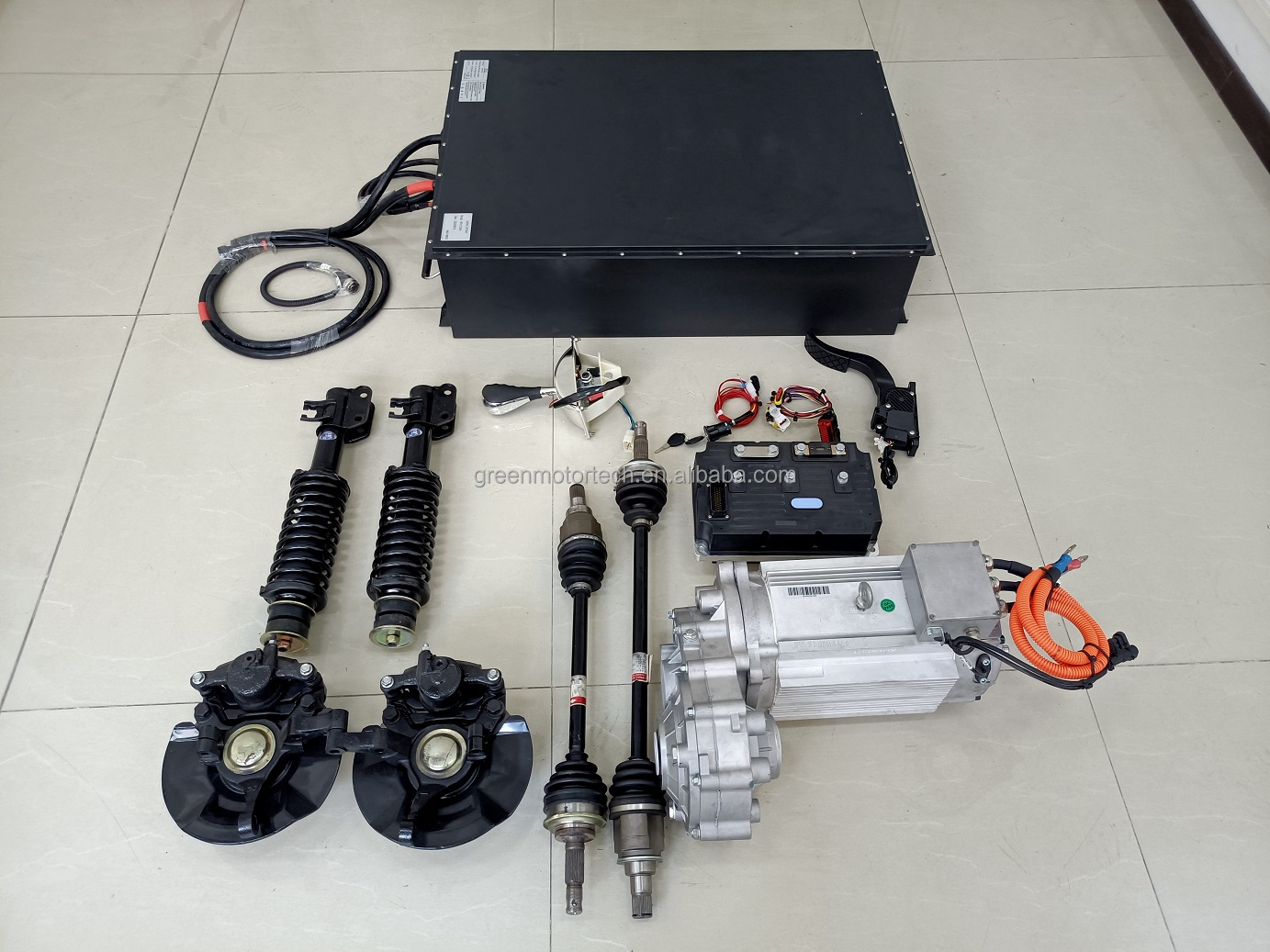

drvie kit for converting a petrol car to an electric car

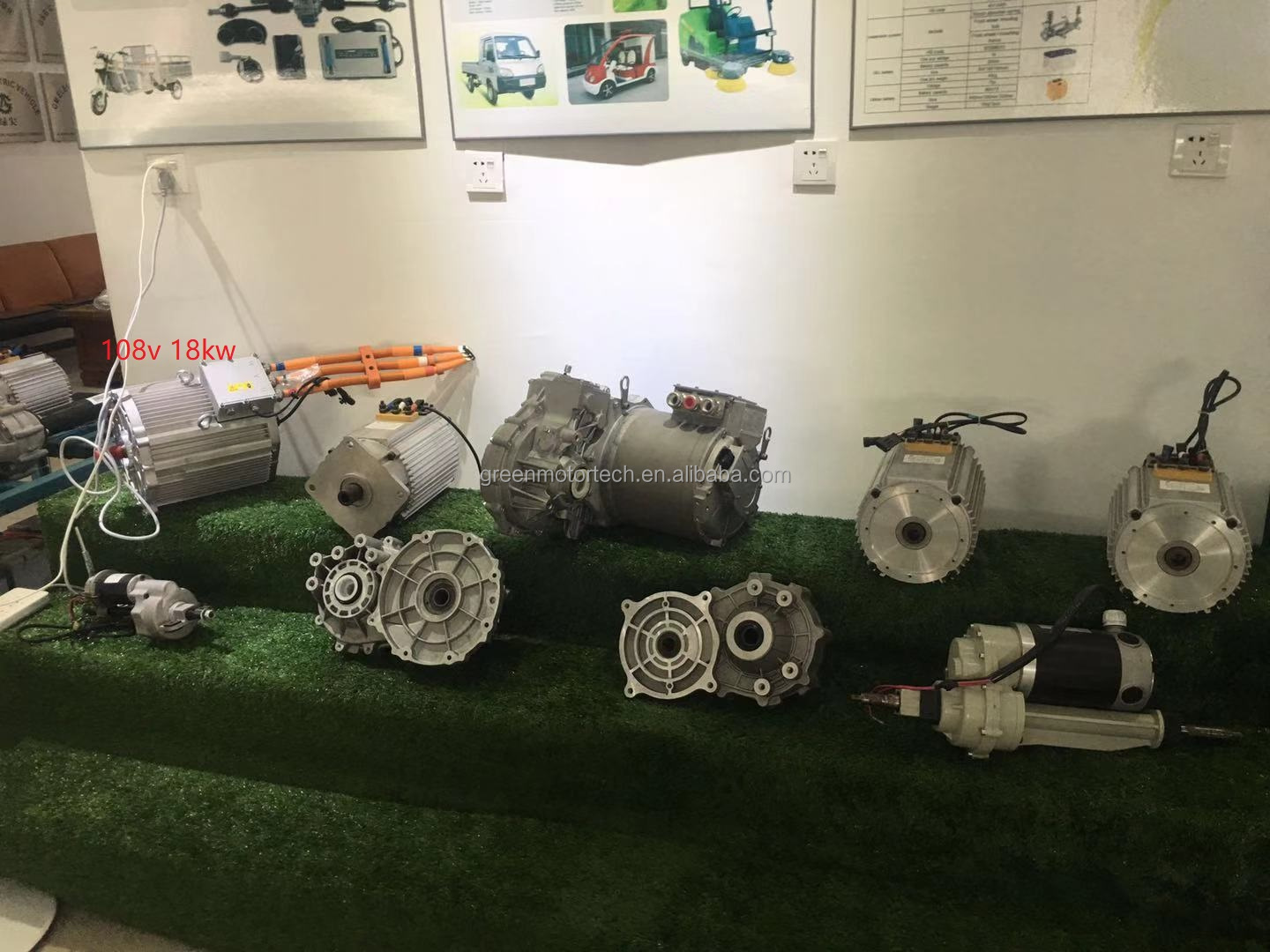

AC motor system from 2KW to 20KW
