ROHS Aluminum Base Plate PCB LED

Supplier: Shenzhen POE Precision Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Alina Chen
Price: $0.51 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	PCB: Vacuum Packing with Carton Box PCBA: ESD Packing with Carton Box;	Port:	Shenzhen;
PCB Standard:	IPC-A-610 D;	Model Number:	POE-0547;
Layers:	1-22;	Base Material:	Aluminum;
Board Thickness:	1.5mm;	Min. Line Width:	4mil;
Package Preview:	;	Min. Line Spacing:	4mil;
Hole tolerance:	PTH: +/-3mil NPTH: +/-2mil;	Board thickness tolerance:	+/-10%;
Place of Origin:	Guangdong China;	Brand Name:	POE;
Supply Ability:	40000 Square Meter/Square Meters per Month Aluminum Base Plate PCB LED;	Color:	Green,Blue,Black,Red,Yellow,white;
Finised copper thickness:	1-6OZ;	Min. Hole Size:	0.3mm;
Surface Finishing:	HASL Lead Free;	Min distance pad-pad:	8mil;
Min distance trace-pad:	8mil;	Payment Terms:	L/C,Western Union,T/T,MoneyGram,Paypal;
Finished board thickness:	0.2-7.0mm;	Copper Thickness:	1oz;

POE has the capability to manufacture pcb ranging from basic single sided boards up to 28 layer multilayers ,and provide one stop turnkey services, including pcb layout, manufacture, assembly, components source and function testing. The superior service we offer our customers is the key to our success and our mission has remained the same since we started business in 1996: to provide high quality, technically advanced products within the customer’s timescales. This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements – from front end engineering through to in time deliveries.

Our Services

POE is specialized in high quality PCB & PCB Assembly production.We strive to provide the best contract manufacturing services.

PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,Rogers,CEM-1 )
FPC,PCB Copy Service.
PCB Assembly Service. (SMT, BGA, DIP)
IC program with HEX file.
PCBA Housing assembly serivce.
PCBA Final Functional Testing.
PCBA Copy Service.
Electronic Components Purchasing & BOM List Purchasing Services.
PCB SMT Stencil. (Laser cut & Etching)
Cable assembly

Why us ?

Professional engineer team

To help you to check design and do engineering before production

Rich expierences in pcb production industry

To provide high quality and competitive price pcb.

After-sales service

Every problem you have will get our professional advice and solution.

Constant follow up

To make us have the fast reaction of your requirement.

Inspected by the Inspection Institution

ISO,UL,ROHS cerfiticated

Company Information

POE Production Capability

Item	Capability
1.Base Material	FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
2.Layers	1-28
3.Finised inner/outer copper thickness	1-6OZ
4.Finished board thickness	0.2-7.0mm
7.Min hole size	Mechanical hole: 0.15mm Laser hole: 0.1mm
9.Controlled Impedance	+/-5%
13.Plugging vias capability	0.2-0.8mm
15.Outline profile	Rout/ V-cut/ Bridge/ Stamp hole
16.Surface treatment	HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…

Our equipments
1.Drilling workshop	4 drilling bits of drilling machine: 4 sets 2 drilling bits of drilling machine: 2 sets
2. photo plotting workshop	Israel “ORBOTECH” Photo Plotters
3.AOI	AOI machine
4.IPQC	“OXFORD” CMI 700 Copper Thickness Tester
5.Impedance test	USA “Tektronix” DSA 8200 Impedance Tester
6.Outline workshop	CNC routing machine: 7 sets angle-cutting machine V-cut machine
7.Testing Workshop	Surpass X-600: 2sets WTD FT-2808: 5sets WTD HV300: 1set
8.X-ray	X-ray machine

POE has invested in the best equipment, environment and staff training. We have a production capability for standard and HDI , Rigid, RF and high frequency PCBs, together with throught hole and min 0201 chips, 0.2mm pitch BGA balls SMD soldering, in small batch, mid volume and high volume quantities.

Production Time

PCB

Layer	Quick Turn/Usual Time	Mass production
2L	24hours/ 4-5days	8-10days
4L	48hours/ 6-7days	10-12days
6L	72hours/ 7-8days	12-14days
8L	72hours/ 8-10days	16-18days
10L	96hours/ 12-14days	18-20days
...	...	...

PCB Assembly

Quantity	Usual Time
<20pcs	2days
20-100pcs	3days
100-1000pcs	6days
>1000pcs	Depend on BOM

Application Fields

We produce PCBs for our customers working in frequency ranges from LED products to communication equipments and in industries as diverse as Medical devices through to automotive, and aerospace etc.

Product Showcase

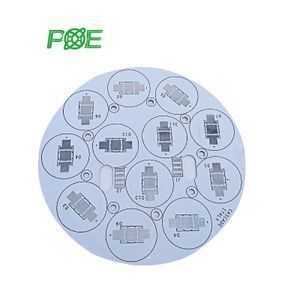

ROHS Aluminum Base Plate PCB LED

FAQ

Q1.What is needed for quotation?

PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)

Q2. What file formats do you accept for production?

Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

Q3. Are my files safe?

Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.

Please send us your inquiry in below

Thanks for your support to POE
