Double Acting Three / Four / Five Stages Telescopic Hydraulic Cylinder

Product details
Certificate:ISO9001:2008 / CE;Power:Hydraulic;
Working medium:Filtered Compressed Air;Keyword:Telescopic Hydraulic Cylinder;
Useage:Enhineering Machinery;Body Material:Steel;
Core Components:rod piston;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Structure:Piston Cylinder;Package Preview:;
Warranty of core components:1 Year;Marketing Type:New Product 2020;
Packing:Plywood Case, Iron/Steel Frame;Showroom Location:None;
Machinery Test Report:Provided;Material:20#/45# Steel;
Seals:Parker,NOK, BUSAK SHAMBAN, OPTIONAL;After Warranty Service:Online support;
Brand Name:Nolanse or OEM or ODM;Local Service Location:None;
Quality:Guarantee System;Mounting type:Head Square Flange Or Earing Mount;
Video outgoing-inspection:Provided;Operating Temperature:-20~80 Degrees Celsius;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Farms,Construction works ,Energy & Mining;Place of Origin:Shandong China;
Condition:New;Port:Qingdao, Tianjin, China main Port;
Supply Ability:5000 Piece/Pieces per Month;Standard or Nonstandard:Nonstandard;
Packaging Detail:IRON/WOODEN CASE AND CONTAINER;Warranty:1 Year;

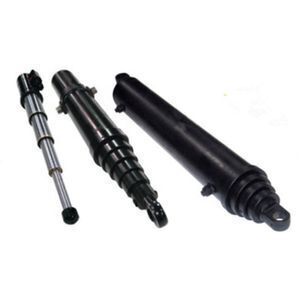

Double Acting Three / Four / Five Stages Telescopic Hydraulic Cylinder



Product Description



Double Acting Three / Four / Five Stages Telescopic Hydraulic Cylinder

Designed For

Double-acting/ Single acting

Cylinder bore

40,50,63,80,100,125,150mm

Stage

Single stage cylinder

Max inner tube

170mm,180mm,195mm,200mm,210mm,etc

Mounting distance

325mm/345mm/425mm or as cutstomers’requirements

Working Pressure

7Mpa, 16Mpa, 25Mpa, Optional

Stroke

14mm-10000mm

Tipping Weight

20-68Ton

Seal Type

Parker,NOK, BUSAK SHAMBAN or as customer's requirement

Piston Rod

Chrome or nickel plated,ground & polished piston rod

Tube

High tensile cold drawn tube, precision honed for extended seal life



Usages and features:

1. Pressure: This standard cylinder had two kinds of pressure levels for E and G.

 E- class applied to pressure more  than 6.3Mpa~16Mpa of the hydraulic cylinder (E-cylinder).

 G-class applied to pressure more than>16Mpa~25Mpa of the hydraulic cylinders (G-cylinder).

2. Seal:

 E- cylinder use Y type polyurethane seals ring, which has simple structure and good abrasion resistance and Y type rubber sealing ring, which is used widely; G-cylinder uses V type obturating ring assembly which has high temperature and reliable seal.

3. Dustproof: These hydraulic cylinders use polyurethane or nitrile rubber non-frame-type dust ring.

4. Applicable medium: hydraulic oil, mechanical oil, emulsion. It is not appled to phosphate esters.

5. Applicable temperature: -30-100.

6. Mainly used for engineering equipment, vehicle, agricultural machinery.

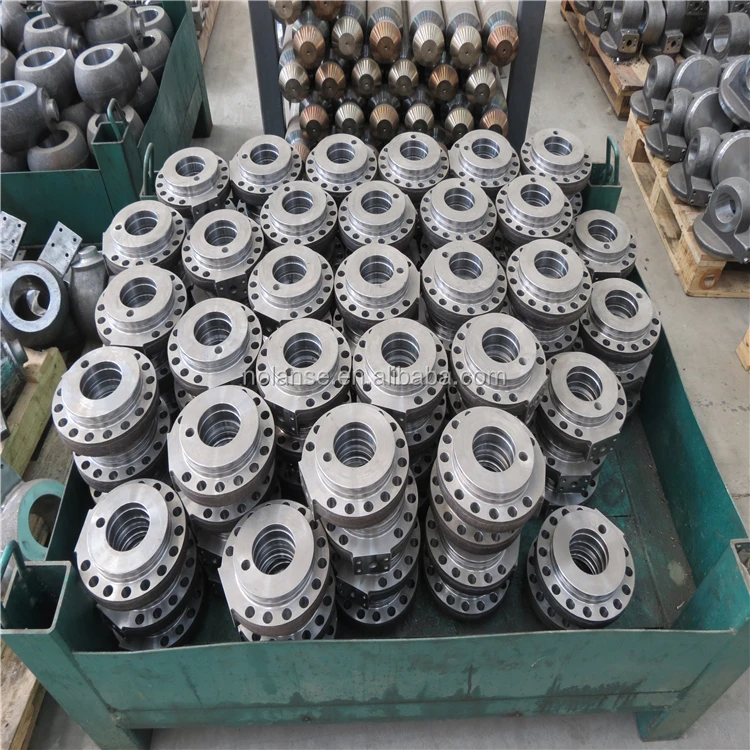

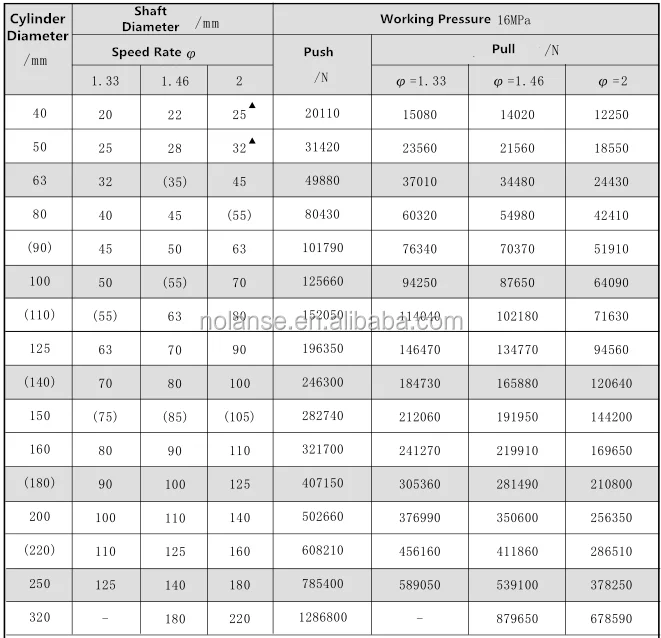

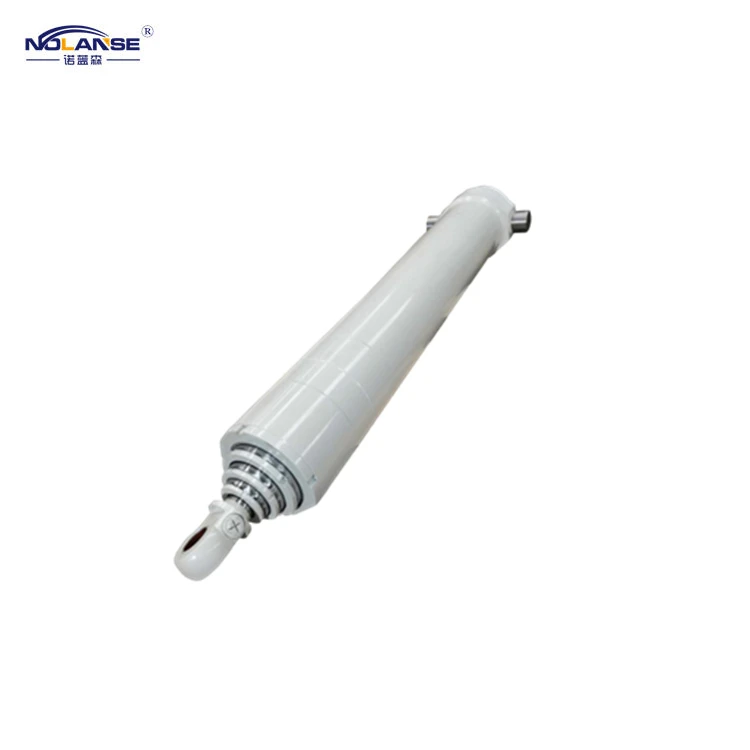

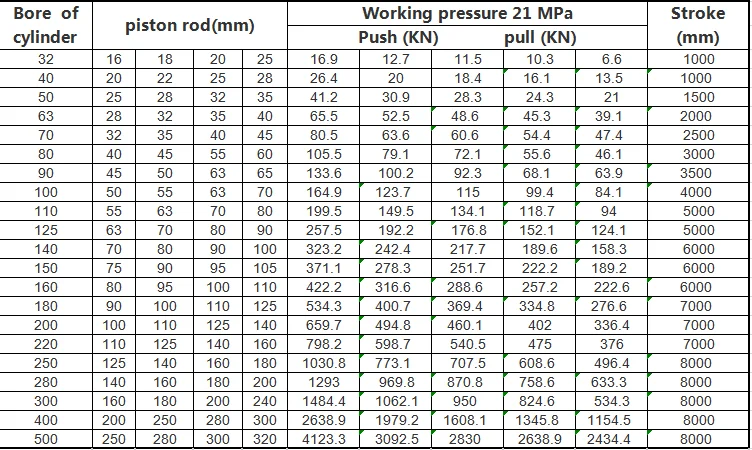

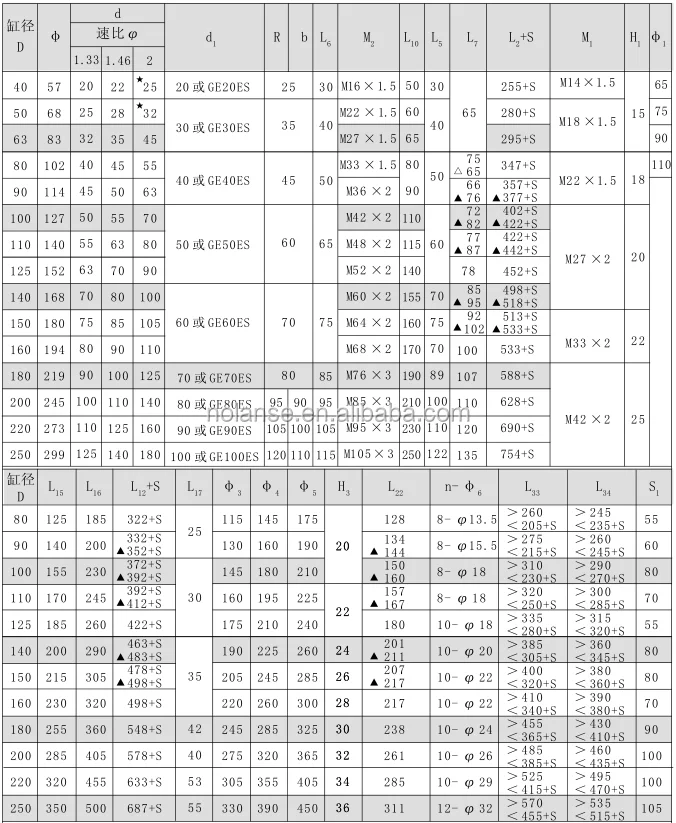

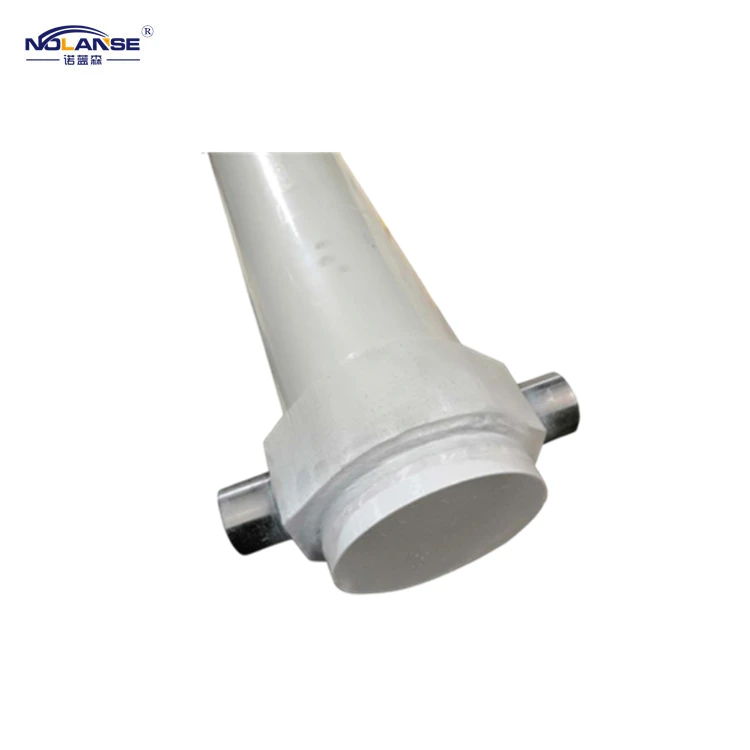

Detailed Images









Packaging & Shipping



Iron-frame or carton box. Strict packaging to adapt to the long time of maritime transport, ensure that the product is very perfect presented to customers or according to the customer's packaging requirements.

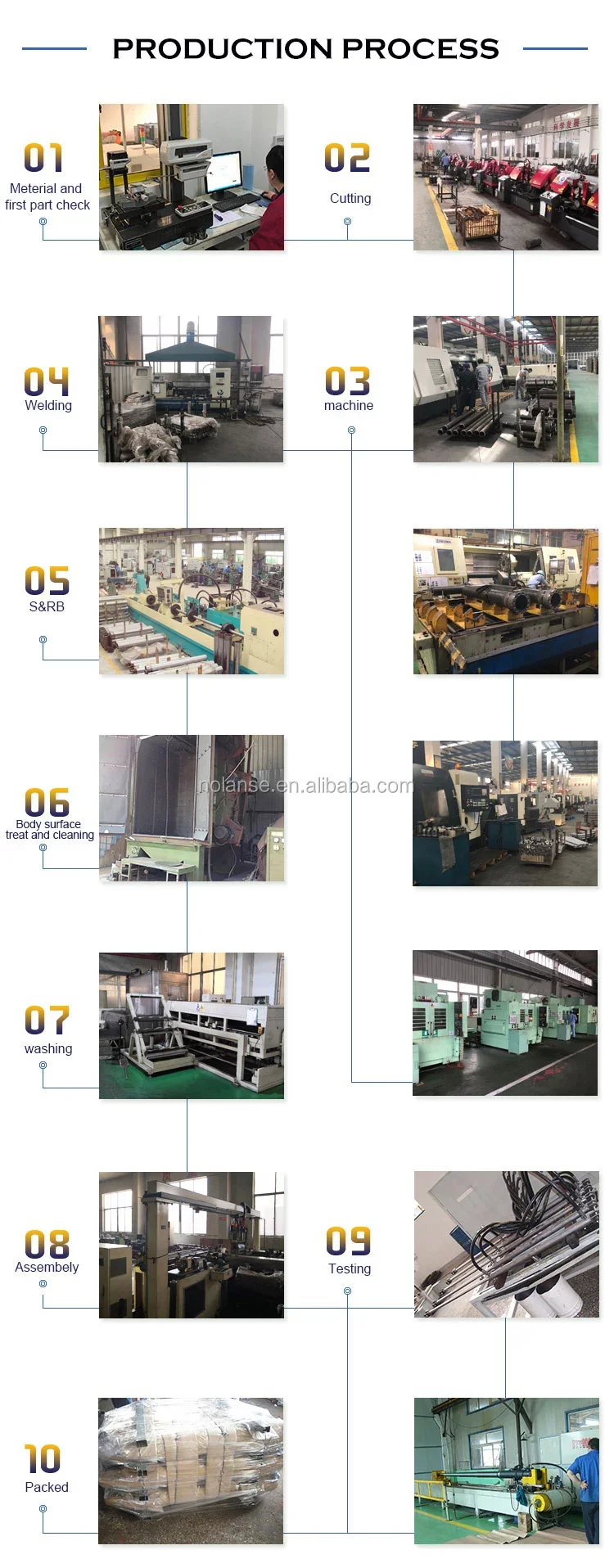

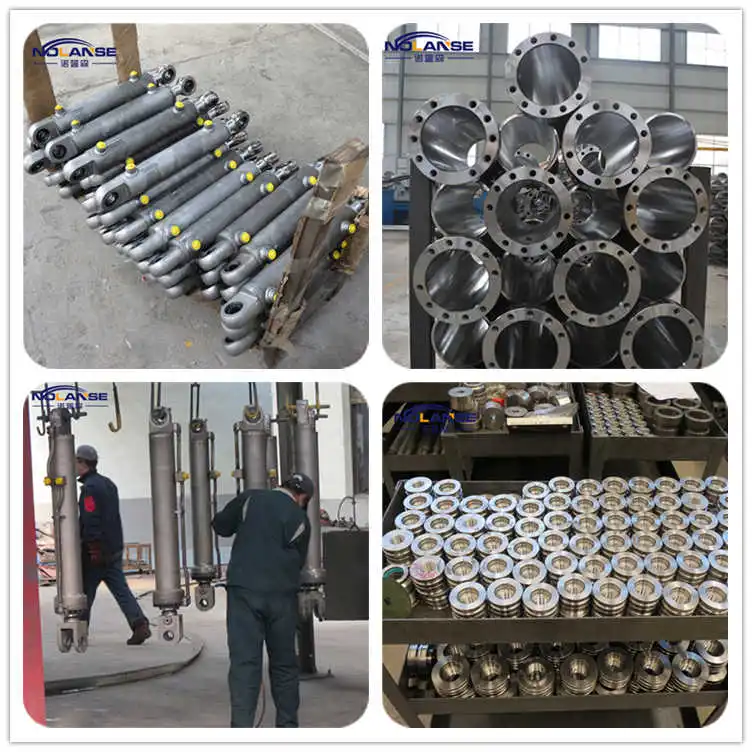

Production Process



Company Information





Our Services



1. Professional Engineers

 "Give Us Size, Give You products". Engineers here with 35+ years rich experience.
 2. Sale & Service Team

 24 Hours Online, Best service here for you anytime. Any question, please free contact us.

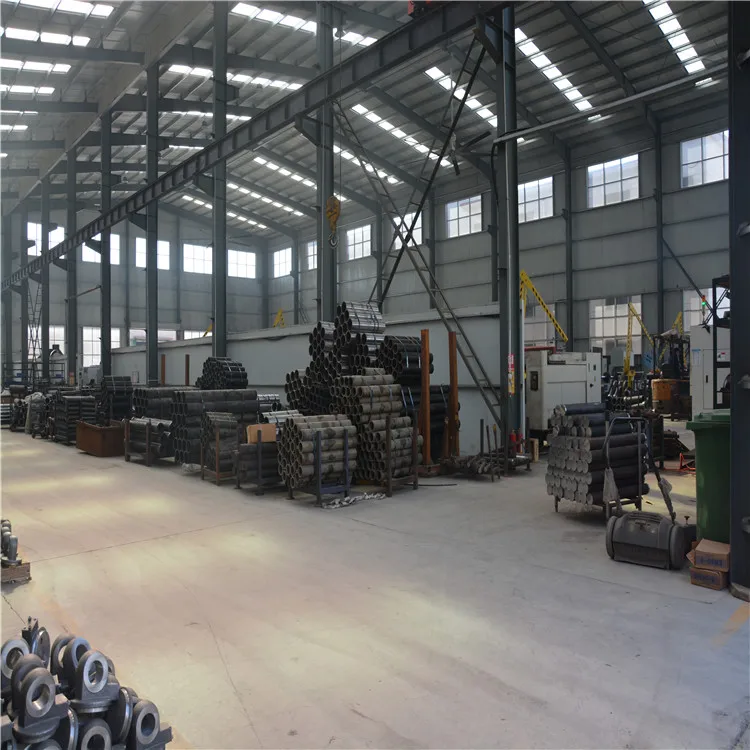

 3. Factory & Warehouse

 Focus On Quality Assurance. Keep The Enough Stock.
 4. Shipping

 Most of our products have in stock, we can ship out your order in the shortest time.
 5. About the Quality

We can offer the material report and test report. If the product was broken in 1 year quality guarantee period, we can ship new one to you.



FAQ



Q1:Can you provide a sample before a big order?
A:Yes, we can .
Q2:Are you able to make Non-standard or customized air cylinders?
A:Yes, we can, we have our own factory, we can satisfy the customers' demands
Q3:How long is the warranty?
A:We offer 12 months warranty time.
Q4:Can I have my brand on the products?
A:Of course you can.
Q5:What is your delivery time?
A:3-5days if we have stock, 15-25days if we have no stock.
Q6:How about your quality?
A:Most of the excavator/loader/Engineering vehicle companys is our customer in China, we also have confidence to supply good products to our foreign customers.
