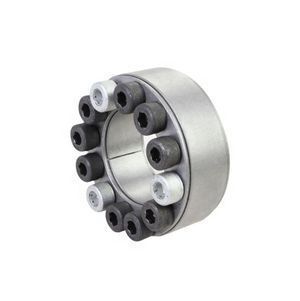

Hot Sale RLK200 Self-centering Locking Device Locking Assembly Locking Hub Shaft Power Lock Z2 model

Supplier: Changzhou Tianniu Transmission Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Doreen Ma
Price: $3.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product name:	RLK200 Locking Assembly;	Packaging Detail:	Small size packed in carton , big size packed in wooden box;
Place of Origin:	Jiangsu China;	Brand:	TIANNIU;
OEM:	Accept;	Application:	Industry machinery;
Single gross weight:	1.5 KG;	Single package size:	19X18X15 cm;
Weight (Kg):	0.2-19.2;	Selling Units:	Single item;
Bore size(mm):	19-280;	Brand Name:	TIANNIU;
Outer race size(mm):	47-355;	Thickness (mm):	26-84;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;	Torque (kNm):	0.298-157.339;
Package Preview:	;	Series:	RLK200/Z2;

Product Description

Description of Locking Device Assembly Z2 Power Transmission Component Cone Clamping Elements

It can replace single keywey and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub ,inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft .

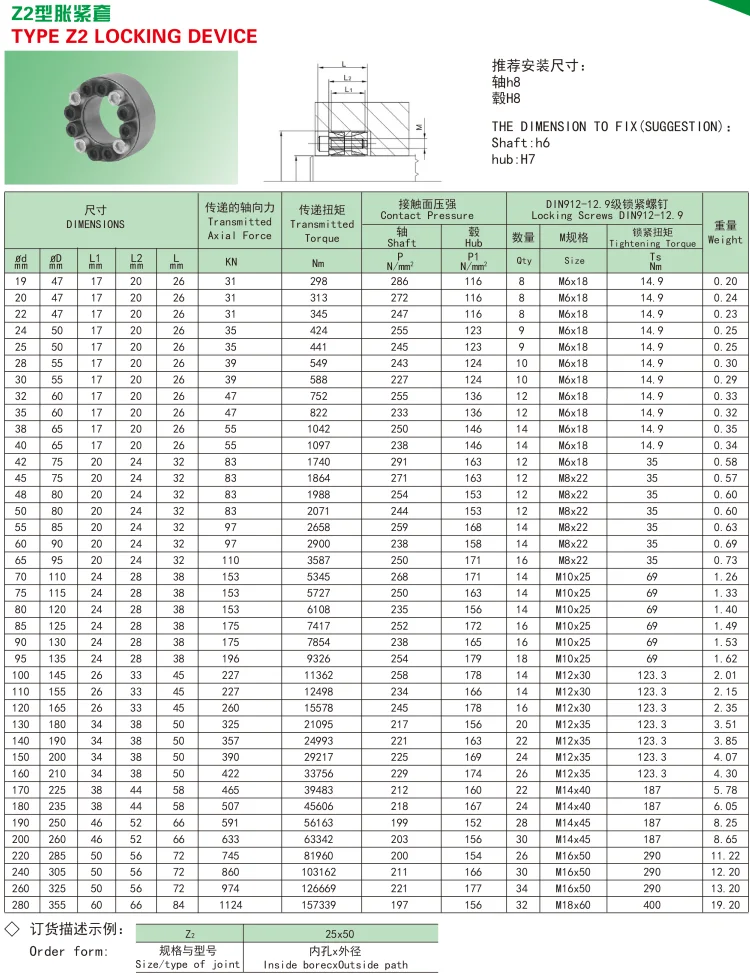

Data sheet of Locking Device Assembly Z2 Power Transmission Component Cone Clamping Elements

Model		Z2 Cone Clamping Elements
Pressure on Shaft (N/mm²)		120
Pressure on Hub (N/mm²)		92-108
Rated Load (kN.m)	Force	31-1124
	Torque	0.298-257.399
Inner Race Size (mm)		19-280
Outer Race Size (mm)		47-355
Thickness (mm)		26-84
Weight (Kg)		0.2-19.2
