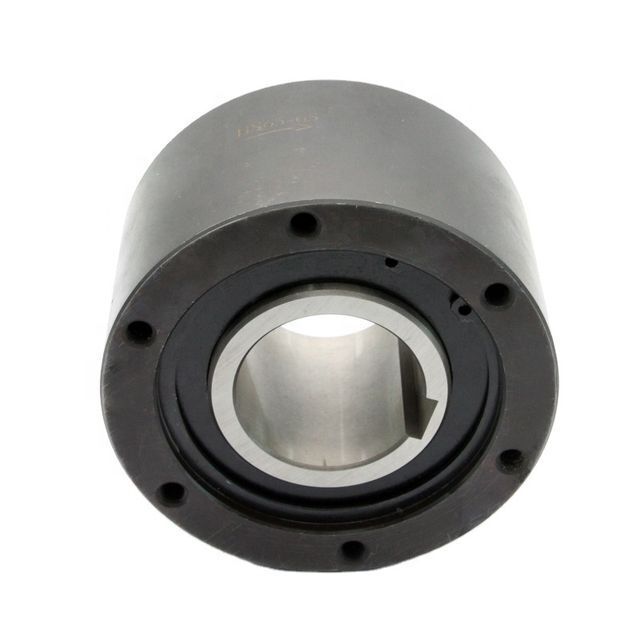

BS50 Sprag Type Bearing One Way Bearing Backstop Cam Clutch

Supplier: Changzhou Tianniu Transmission Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Doreen Ma
Price: $200.00 / 1 - 9 pieces
$150.00 / 10 - 49 pieces
$100.00 / 50 - 499 pieces
$60.00 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

Torque Capacity(Nm):	784;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;
Port Name:	Shanghai / Ningbo;	Single package size:	19X18X10 cm;
Packaging Detail:	Carton Box / Wooden Box;	Weight(KG):	4;
Brand Name:	TN;	Thickness(mm):	67;
Bore Tolearance:	H7;	Package Preview:	;
Selling Units:	Single item;	Model Number:	BS50;
Package:	Carton Box / Wooden Box;	Inner Race Max Overrunning Speed:	300 r/min;
Product name:	One Way Bearing Backstop Cam Clutch;	Precision Rating:	P0 P1;
Material:	GCr15;	Type:	Sprag clutch;
Place of Origin:	Jiangsu, China;	Single gross weight:	4.500 KG;
Seals Type:	SEALED;

Product description

The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor head shaft is to be prevented (backstopping).The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery.

Medel No.	BS50
Size(IDODL)	5012567mm
Bore Tolearance	H7
PCD(mm)	110
Torque Capcity(N.m)	784
Weight(KG)	4
Delivery time	10-15 Days
Torque Arm is also Available

Notes:
1. The tolerance of Stock Finished Bore is H7.

2. Items hilighted in bold type are stock items, the others are built to order.

3. BS Cam Clutch can be bored according to your specification. Specify the bore diameter with

tolerance and keyway dimensions. Please be sure to specify.

Mounting Example

Model	Torque Capacity (N·m)	Max. Overrunning (r/min) Inner Race	Drag Torque (N·m)	A	B	C	PCD D	E	S	H-M Size× Pitch × No.of Tapped Holes	Grease Filler Hole (Size)	Q’ty Grease (kg)
Model	Torque Capacity (N·m)	Max. Overrunning (r/min) Inner Race	Drag Torque (N·m)	A	B	C	PCD D	E	S	H-M Size× Pitch × No.of Tapped Holes	Grease Filler Hole (Size)	Q’ty Grease (kg)
BS30	294	350	0.58	64	90	64	80	45	13	M 6 ×P1.0×4	-	-
BS50	784	300	0.98	67	125	67	110	70	16	M 8 ×P1.25×4	-	-
BS65	1570	340	3.92	90	160	85	140	90	20	M10 ×P1.5×6	-	-
BS75	2450	300	5.88	90	170	85	150	100	20	M10 ×P1.5×6	-	-
BS85	5880	300	7.84	115	210	110	185	115	30	M12 ×P1.75×6	-	-
BS95	7840	250	9.8	115	230	110	200	130	30	M14 ×P2.0× 6	-	-
BS110	10800	250	14.7	115	270	110	220	150	30	M16 ×P2.0× 6	-	-
BS135	15700	200	19.6	135	320	130	280	180	30	M16 ×P2.0× 8	-	-

Model	Torque Capacity (N·m)	Max. Overrunning (r/min) Inner Race	Drag Torque (N·m)	A	B	C	PCD D	E	S	H-M Size× Pitch × No.of Tapped Holes	Bore Diameter Range (mm)	W. Min	W. Max
Model	Torque Capacity (N·m)	Max. Overrunning (r/min) Inner Race	Drag Torque (N·m)	A	B	C	PCD D	E	S	H-M Size× Pitch × No.of Tapped Holes	Bore Diameter Range (mm)	W. Min	W. Max
BS160	24,500	100	33.1	130	360	130	315	220	40	M20 × P2.5 ×10	100 to 160	98.1	85.6
BS200	37,200	100	44.1	150	430	145	380	265	40	M22 × P2.5 × 8	100 to 200	167	140
BS220	49,000	80	73.5	235	500	230	420	290	40	M20 × P2.5 ×16	150 to 220	301	264
BS250	88,200	50	93.1	295	600	290	530	330	50	M24 × P3.0 ×16	175 to 250	580	523
BS270	123,000	50	98	295	650	290	575	370	50	M24 × P3.0 ×16	200 to 270	620	562
BS300	176,000	50	108	295	780	290	690	470	60	M30 × P3.5 ×16	230 to 300	952	885
BS335	265,000	50	137	305	850	320	750	495	70	M36 × P4.0 ×16	250 to 335	1,140	1,040
BS350	314,000	50	157	320	930	360	815	535	70	M36 × P4 ×16	250 to 350	1,600	1,470
BS425	510,000	50	216	440	1,030	450	940	635	70	M36 ×P4.0 ×18	325 to 425	2,450	2,240
BS450	686,000	50	245	450	1,090	480	990	645	80	M42 × P4.5 ×18	350 to 450	2,820	2,580
