port: | Shanghai, Ningbo | Marketing Type: | normal product |
Warranty: | 1.5 years | Health status: | new |
Showroom location: | not any | Package preview: | |
Supply capacity: | 10000 pieces per month | pay: | L/C Western Union T/T MoneyGram PayPal |
Rated voltage: | DC 24 V | Rated transmission torque: | 20-2500N.m |
product name: | Electromagnetic tooth clutch | Mechanical test report: | Not available |
payment terms: | L/C, Western Union, T/T, MoneyGram, PayPal | Material: | steel |
Weight (kg): | 20 | Core components: | engine |
Package: | carton or wooden box | MOQ: | 2 |
Packaging Details: | carton or wooden box | large: | 33-115mm |
Video shipment inspection: | if | Core component warranty: | 1 year |
place of origin; place of origin: | Jiangsu, China | brand: | Beetle |
Outer diameter: | 75-250mm | ID: | 25-85mm |
Applicable industries: | Mechanical Repair Shop, Construction Work | | |

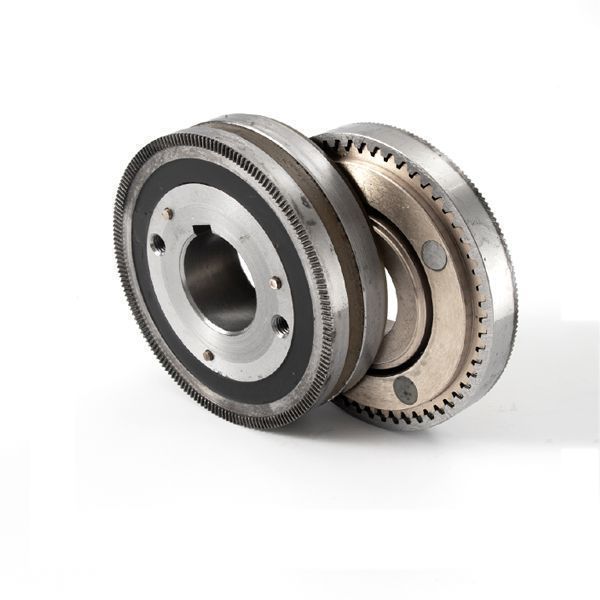

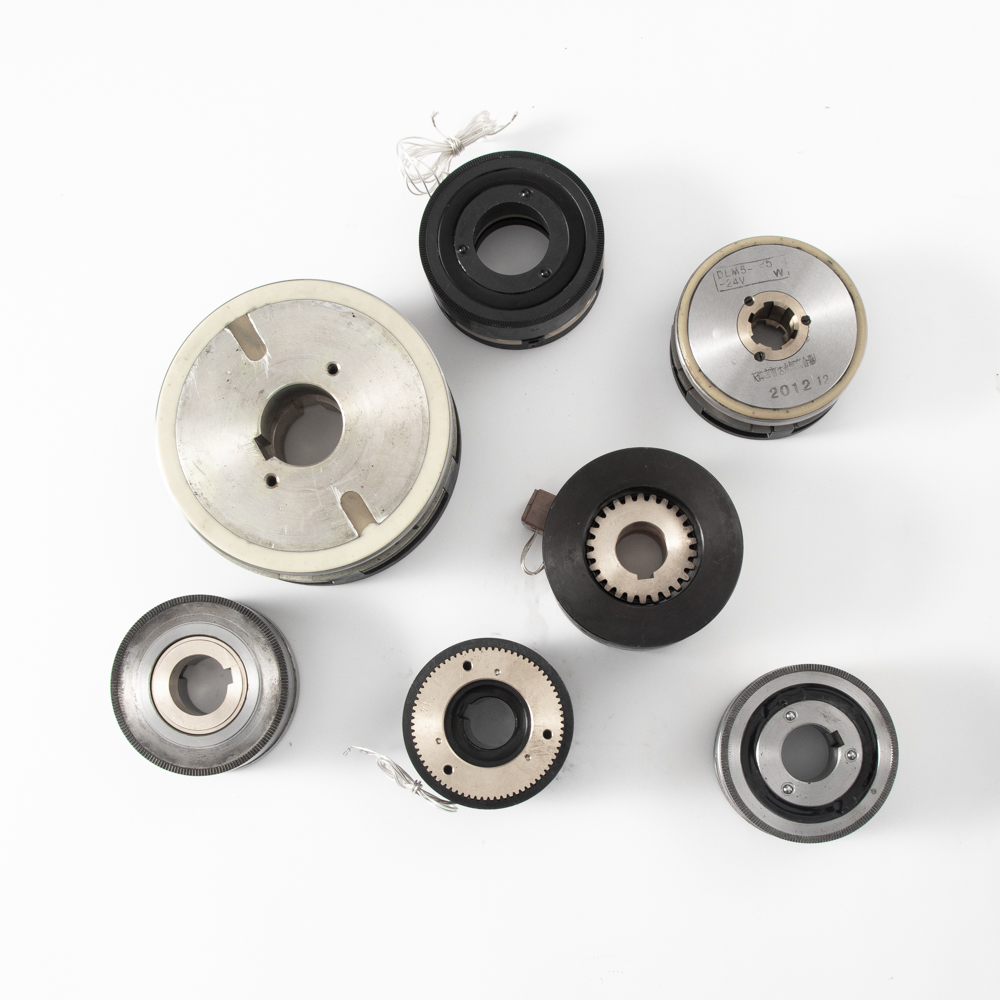

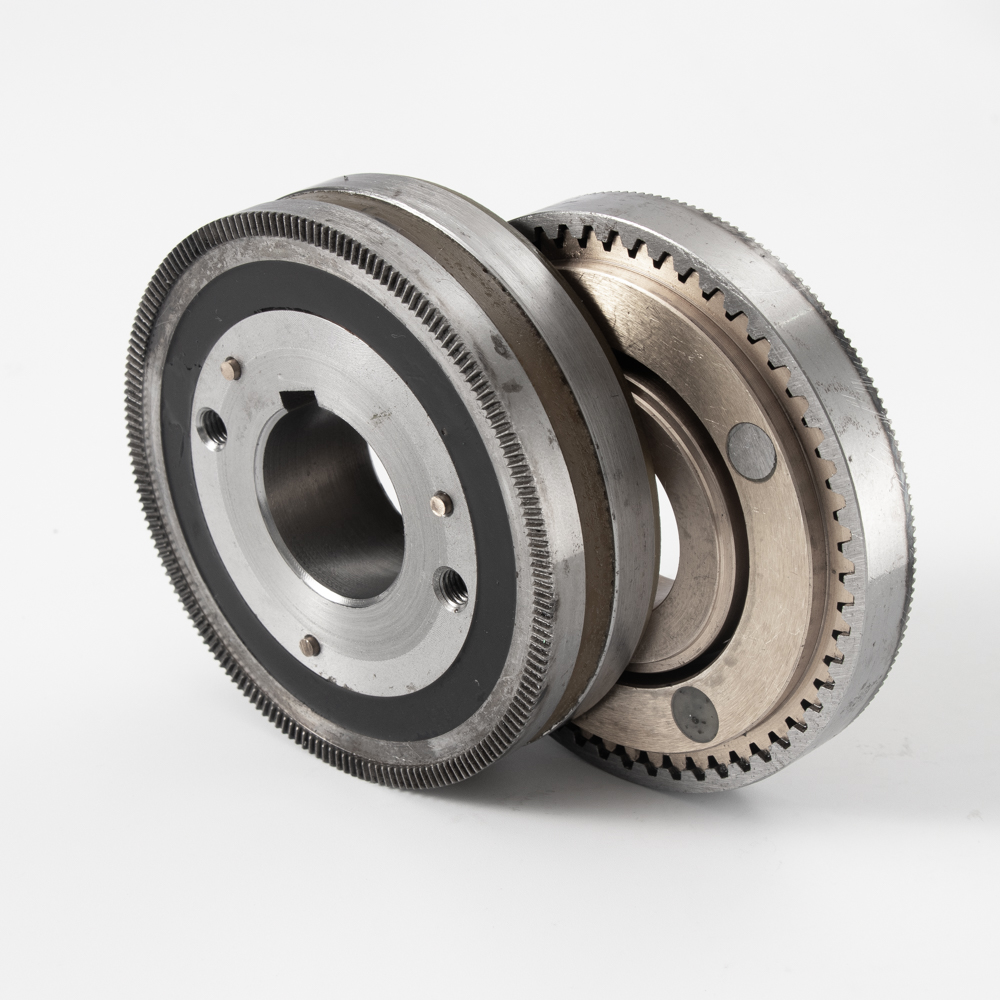

product display
The main purpose
When the relative rotational speed of the transmission and driven parts is low or zero, the clutch makes them combine, so as to achieve the purpose of starting and stopping, reversing, positioning and so on. Clutches are mainly used in mechanical transmission systems, and are widely used in metal processing machinery, metallurgy, steel rolling machinery, packaging machinery, medical machinery, food processing machinery, textile printing and dyeing machinery, papermaking machinery, precision machine tools, etc.

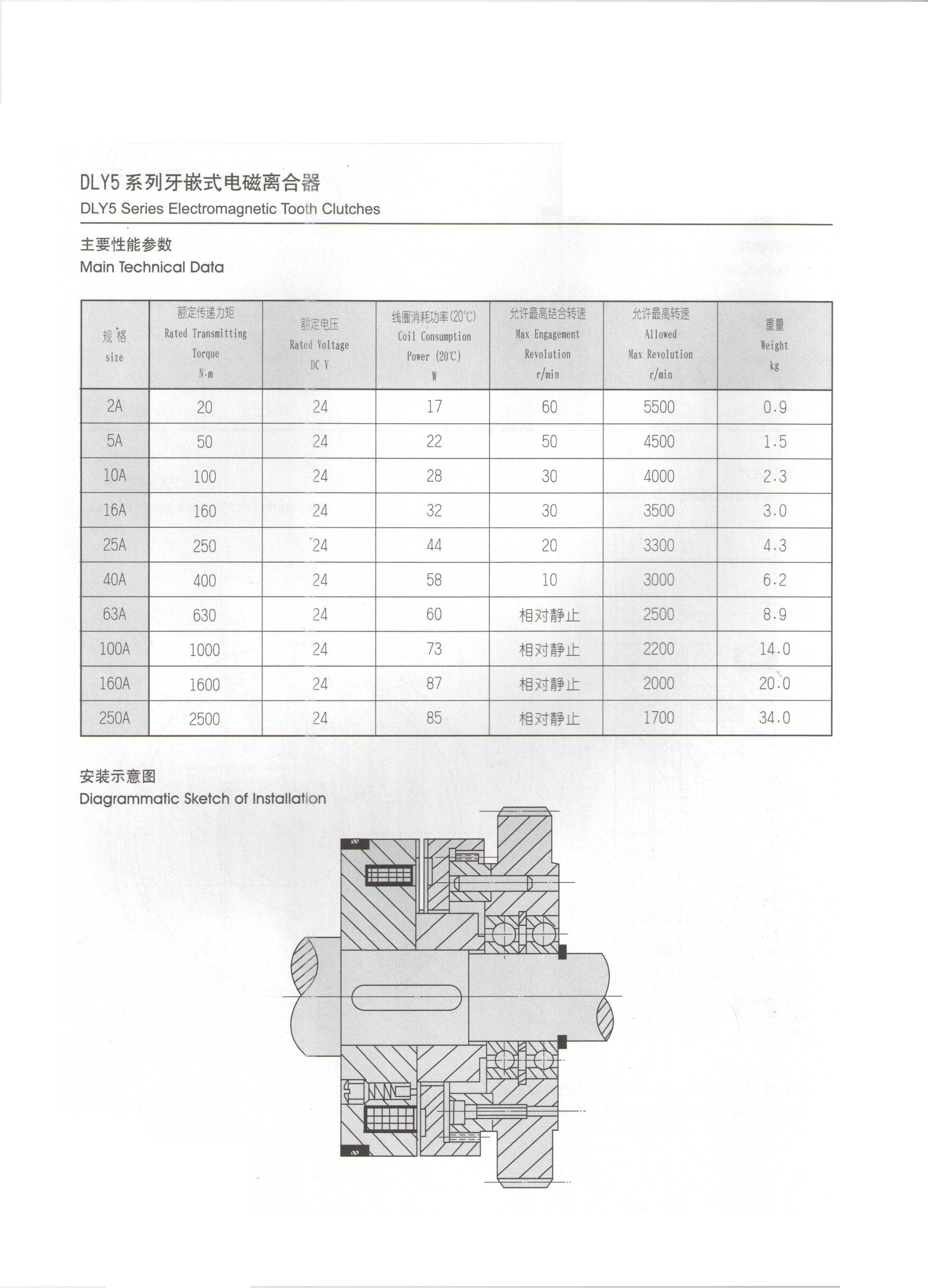

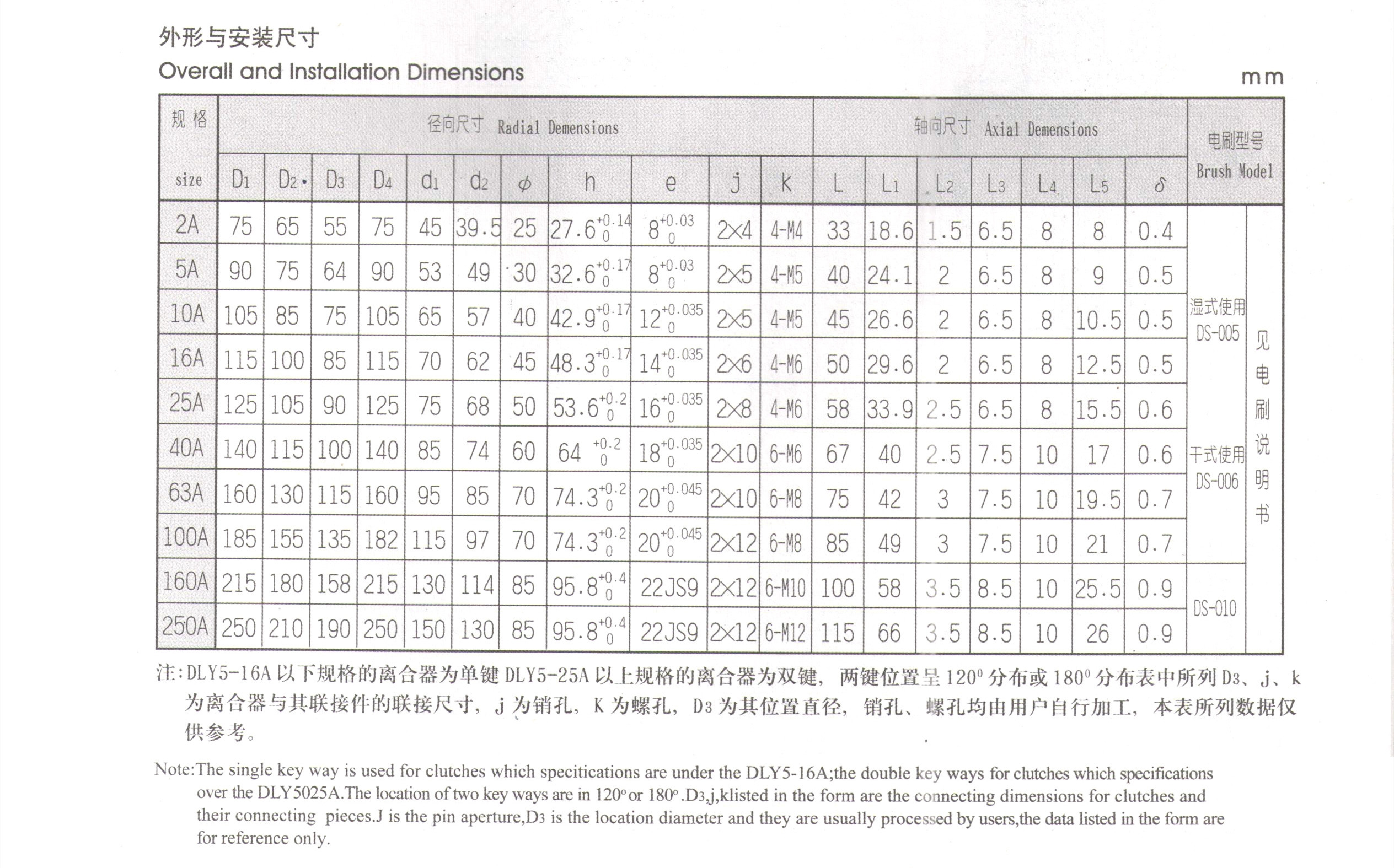

Components and parameters

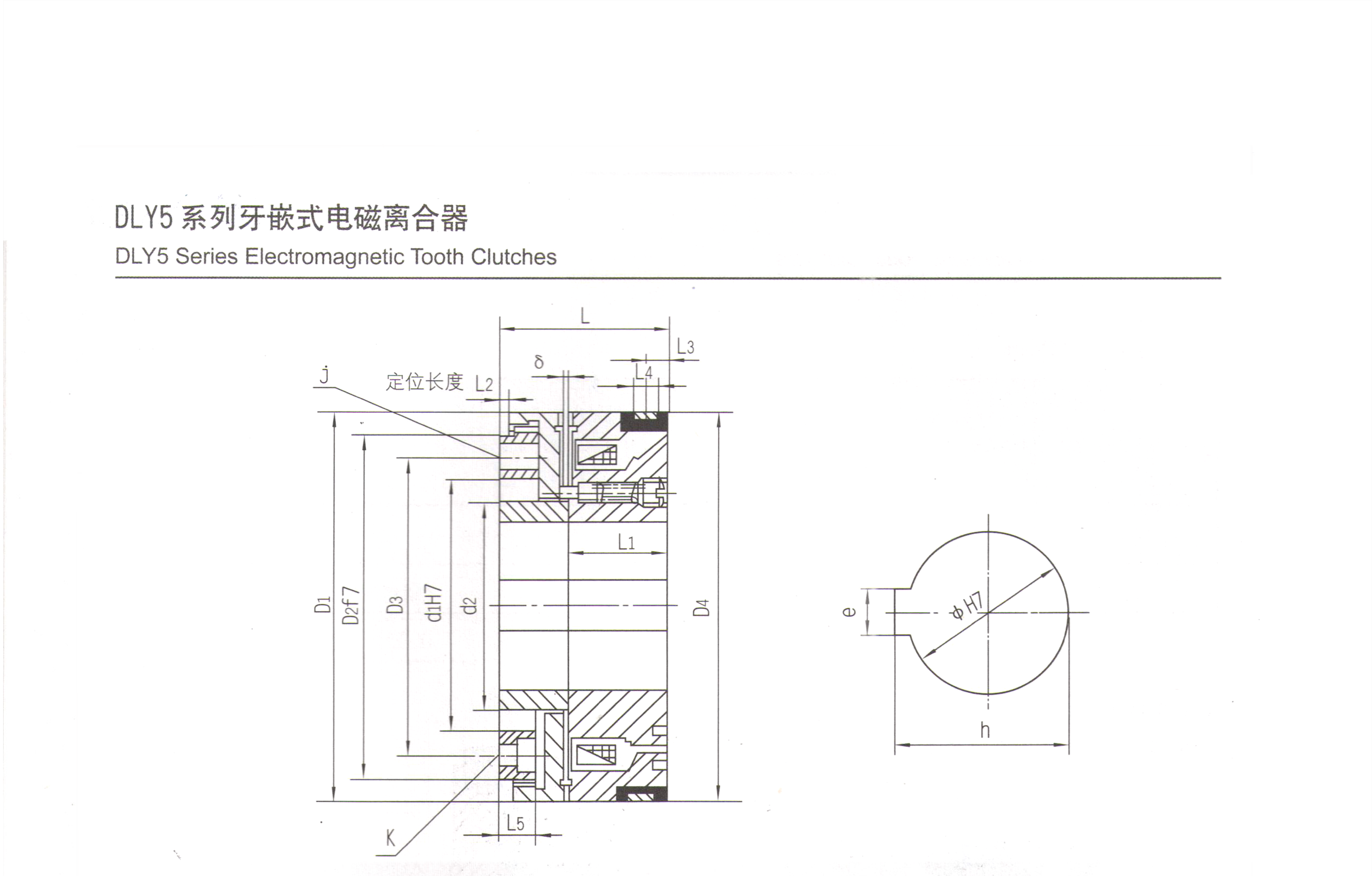

Install
1. The clutch can be installed horizontally or horizontally. If no shaft is installed, the coaxiality between the driving shaft and the driven shaft should not exceed 0.05mm, and the working gap value σ must be guaranteed.2. The teeth at both ends should be cleaned before installing the clutch. 3. The driving and driven parts of the clutch must be axially fixed, and axial movement is not allowed.
Technical data
product name | Spring Electromagnetic Brake |
Model | DLY5 |
the inside diameter of | 25-85mm |
outer diameter | 75-250mm |
length | 33-115mm |
Rated voltage | DC 24V |
Rated transmission torque | 20-2500N.m |
pack | carton or as your request |
payment terms | TT. L/C, D/A, D/P, Western Union, Paypal |
application | Textile machines, fans, ventilators, printing presses |
The clutch can work reliably under the following conditions
1. The altitude of the clucth installation site does not exceed 2000nm.2. The ambient temperature is between -5°C and +40°C.3. There is no gas and conductive dust around the medium that is not dangerous to burst and will not corrode metals and damage insulators.
4. The voltage fluctuation of the clutch coil cannot exceed -5~-15 of the rated voltage.
5. The clutch can operate under lubricated and non-lubricated conditions.

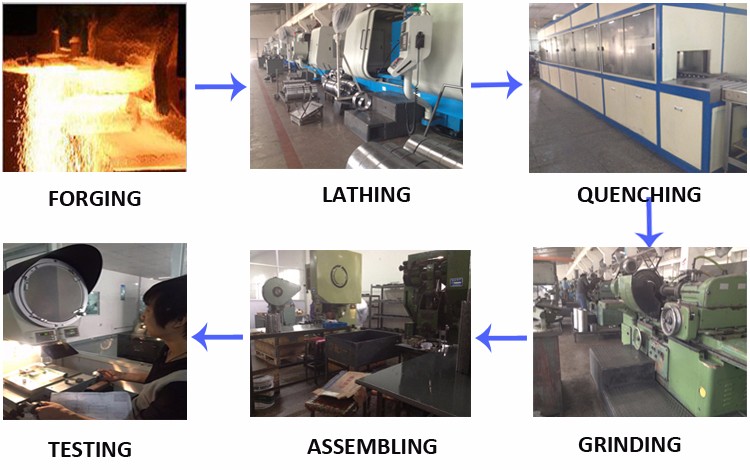

Production Process
Packaging and Shipping
