Low Price Hot Sale in Russia High Frequency 15KW Portable Induction Heating Machine

Supplier: Dongguan Jinbenlai Electromechanical Device Co., Ltd.
Region: Guangdong, China
Contact: Ms Gina Fan
Price: $686.00 /set
Min. Order: 1 set

Click here to contact

Product details

Frequency:	30-100KHZ;	Brand Name:	JINLAI;
Name:	15KW Induction Heater Furnace;	Key Selling Points:	Easy to Operate;
Cool System:	Water Pump or Water Chiller;	Single package size:	56X24X75 cm;
Machine Language:	Russian;	Selling Units:	Single item;
Max Heating Temperature:	2500℃;	Core Components:	PLC;
Application:	Heat, Braze, Melt, Harden etc.;	After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Packaging Detail:	Low Price Hot Sale in Russia High Frequency 15KW Portable Induction Heating Machine: plywood case;	Place of Origin:	Guangdong China;
Machinery Test Report:	Provided;	Video outgoing-inspection:	Provided;
H.S code:	8514400090;	Machine Type:	Induction Heating Machine;
Warranty:	1 Year;	Local Service Location:	India,Russia;
Single gross weight:	35.0 KG;	Marketing Type:	Ordinary Product;
Package:	Plywood case;	Warranty of core components:	1 Year;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Showroom Location:	India;
Applicable Industries:	Manufacturing Plant,electromechanical;	Working theory:	Induction Heating;

Low Price Hot Sale in Russia High Frequency 15KW Portable Induction Heating Machine

Heating Temperature: 2500℃

Can be used to welding, melting, forging, hardening etc.

This machine has special requirement for cooling water, please pay attention to this.

Product Description

Model	JL-15
Input power desire	Single phase 220V 50HZ
Oscillate power max	15KW
Max input current	37A
Oscillate frequency	30-100KHZ
Cooling water desire	>0.2MPa 2-6L/Min
Duty cycle	80% 40°C
Dimensions(LWH)	500380520mm
Net weight	32kg
Cable length	2-6(Meters)

1. For more detail informations, please contact us.

2. We also have the type of 110 V, if you need, we can customized to you.

3. This machine can't be used with a plug, it need a wire to connect the machine to power line directly (the cross-sectional area of power line must be larger than 6 square milimeters.)

4. We also sell the indutrial water chiller for this JL-15 induction heater, if you need, please send inquiry to us.

Item	Name of machine or parts	Specification	Amount
1	JL-15 Induction Heater	-	1 pc
2	Foot pedal	3 core	1 pc
3	Induction Coils	-	2 sets
4	Instruction Manual	-	1 pc
5	Product catalog	-	2 sets

We can also make customized heating coil, the shape and diameter is determined by the workpiece you will process. If you make customized heating coil, please tell us the detail workpiece information.

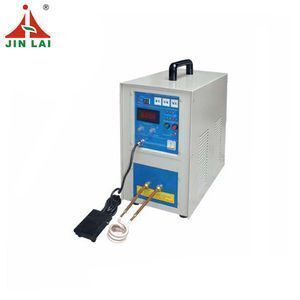

Machine Photo

All Machine Language will be customized to Russian.

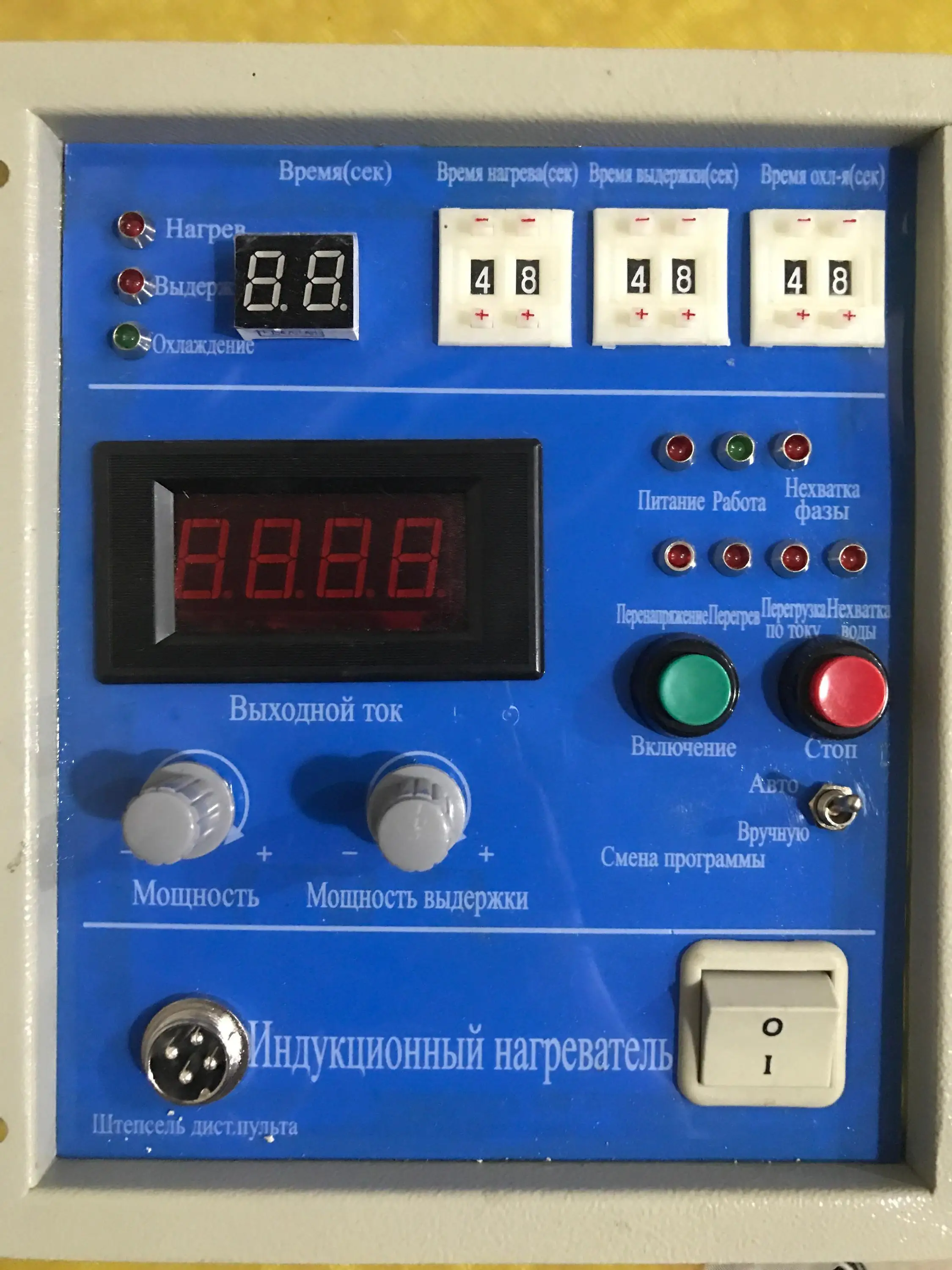

Machine Front Panel

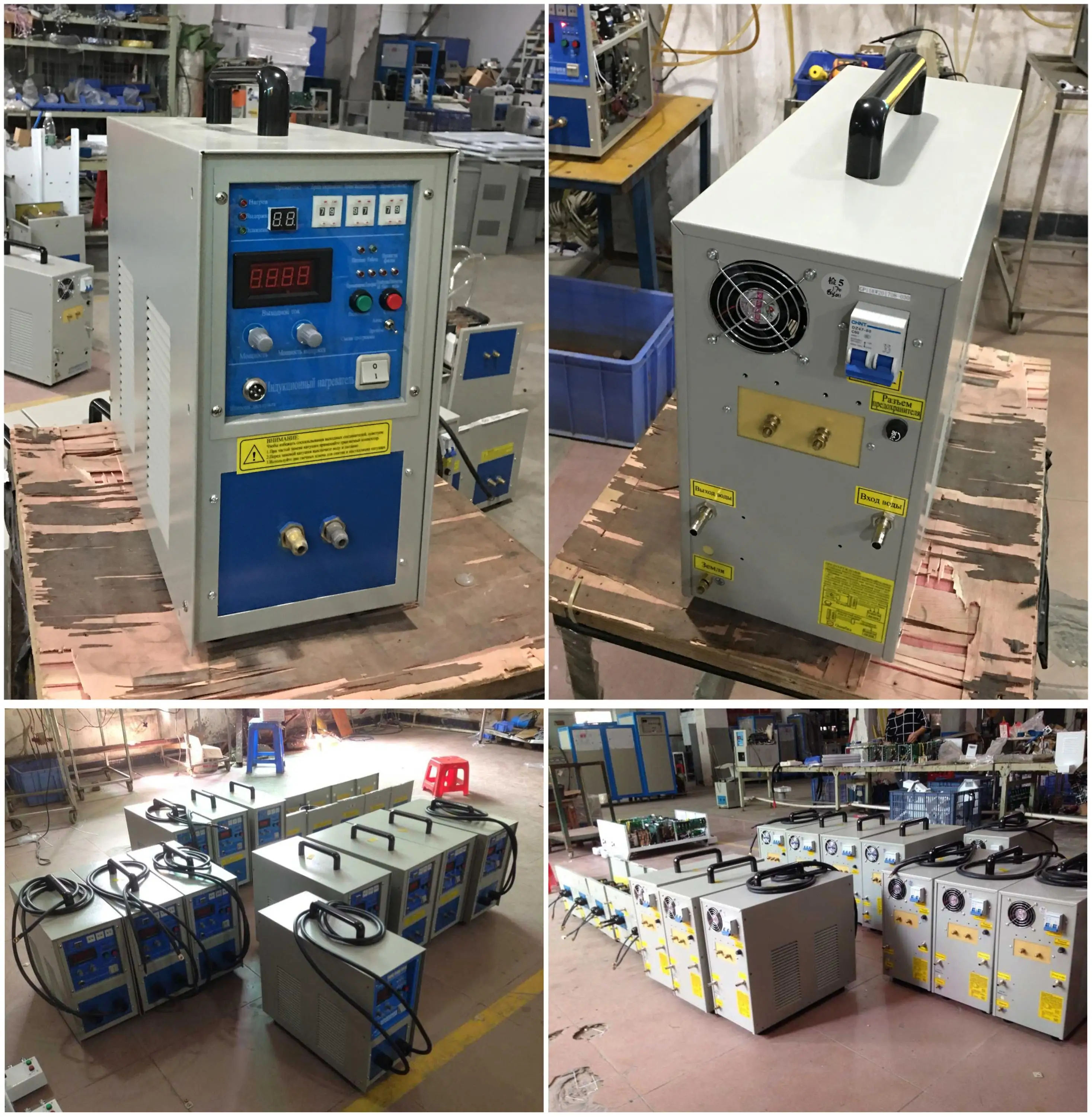

Machine Details

1. Brazing, Welding, Soldering
Brazing is a fusion and solidification process which refers to the use of magnetic field induction heating to make the temperature of metal materials junction reach the melting point of welding, or the temperature of metal materials to reach between nonmetallic material.
(1). Any industry of add welding material connection.
(2). Do not add welding material connection.

2. Melting
Mainly used for melting and heat preservation of Cast iron, Alloy steel, Stainless steel, Gold, Silver, Other magnetic materials, as well as Copper, Brass, Bronze, Aluminum, Zinc, and Other non-magnetic materials.

3.Forging Molding
M.F. forging furnace is used for the heating of bars and rods, the material can be steel, stainless steel, copper, brass ,aluminium and so on. The heating can be the whole rod, end of the rod or middle part of the rod.
Application Examples:Fasteners, Hardware tools, Automobile and motorcycle accessories, Rigging, Pipe fittings, Twist drill, Atlas, Table, Mould parts, Standard parts, Handicrafts, Machinery parts, Brass lock, Lock, Rivets, Other hardware and metal accessories.
