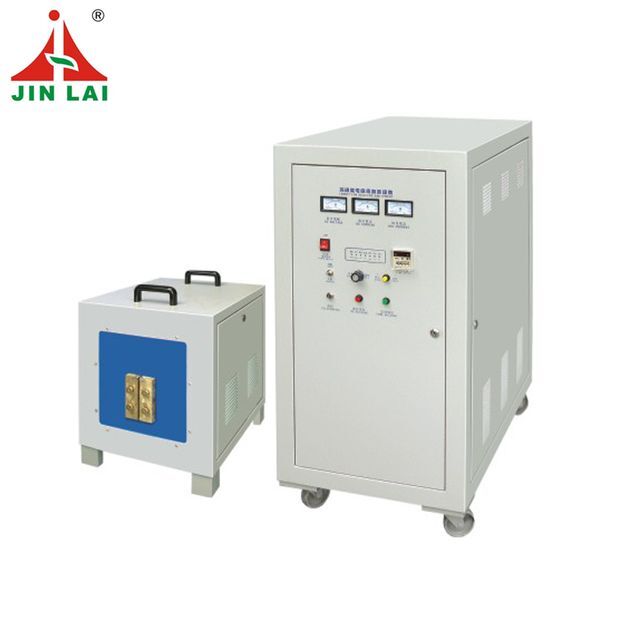

Low Price Portable High Frequency Induction Heating Machine For Metal Forging
-
Supplier: Dongguan Jinbenlai Electromechanical Device Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Gina Fan -
Price: $2350.00 / 1 - 4 sets
$2300.00 / >=5 sets -
Min. Order: 1 set
Product details
| Include: | Generators, Transformers, Cables, Induction Coils | Single package size: | 90X70X90 cm |
| application: | Heating, hot forging, melting, heat treatment, etc. | strength: | 60KW |
| Name: | Induction heating machine for metal forging | Mechanical test report: | if |
| Marketing Type: | normal product | Health status: | new |
| Voltage: | 380V | Dimensions (L*W*H): | 550*790*1050mm/560*430*540mm |
| brand: | Jin Lai | frequency: | 10-30kHz |
| Core Components Warranty: | 1 year | Packaging Details: | Metal Forged Plywood Box Induction Heating Machine |
| Applicable industries: | Building Materials Store, Mechanical Repair Shop, Manufacturing Plant, Construction Engineering, Energy & Mining, Electrical | Core components: | Programmable controller, motor |
| Weight (kg): | 115 | After-sales service provided: | no after sales service |
| Gross weight per piece: | 68.000 kg | working principle: | electromagnetic induction heating |
| Type of machine: | Induction heating machine | Video external inspection: | if |
| Sales unit: | single product | Cooling water requirements: | >0.3MPa 2-6L/Min |
| Showroom location: | Pakistan, India, Russia, Thailand | Warranty: | 1 year, 1 year |
| Key words: | Induction heating machine | place of origin; place of origin: | Guangdong, China |
| Colors and Languages: | Printing according to customer requirements | Packaging Preview: | |
| Main selling point: | easy to operate |
Low Price Portable High Frequency Induction Heating Machine for Metal Forging
Heating temperature: 2500℃
Our machines can be used for forging, brazing, melting, hardening, annealing and more.
This machine has special requirements for cooling water, please pay attention.
Product Description
- Using IGBT parallel inverter circuit, the load adaptability is strong.
- Comprehensive full-load design, 24-hour continuous operation.
- The digital phase lock automatically realizes the following frequency.
- Modular design. Easy to install, easy to use, no need to debug.
- The perfect protection function ensures the reliability and easy maintenance of the equipment.
- Resonant frequency conversion technology improves the efficiency of the whole machine by more than 95%.
- Economical and environmentally friendly, it can replace gas/coal/electron tube induction heaters.
Ultra Audio Series (10-30KHZ)
| Model | JLC-30 | JLC-50 | JLC-60 | JLC-80 | JLC-120 |
| Input Power Requirements | Three-phase 380V 50/60HZ | ||||
| Maximum oscillation power | 30KW | 50KW | 60KW | 80KW | 120KW |
| Maximum input current | 48A | 63A | 90A | 135A | 195A |
| DC | 60A | 80A | 120A | 150A | 250A |
| Oscillation frequency | 10-30KHZ | 10-30KHZ | 10-30KHZ | 10-30KHZ | 10-30KHZ |
| timing | 1M-99.99M 1S-99.99S 0.01S-99.99S |
1M-99.99M 1S-99.99S 0.01S-99.99S |
1M-99.99M 1S-99.99S 0.01S-99.99S |
1M-99.99M 1S-99.99S 0.01S-99.99S |
1M-99.99M 1S-99.99S 0.01S-99.99S |
| cooling water desire | 0.2Mpa | 0.3Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa |
| duty cycle | 100% 40°C | ||||
| net weight | 60kg/30kg | 65kg/45kg | 70kg/45kg | 80kg/55kg | 110kg/90kg |
| cable length | 2-6 (m) | 2-6 (m) | 2-6 (m) | 2-6 (m) | 2-6 (m) |

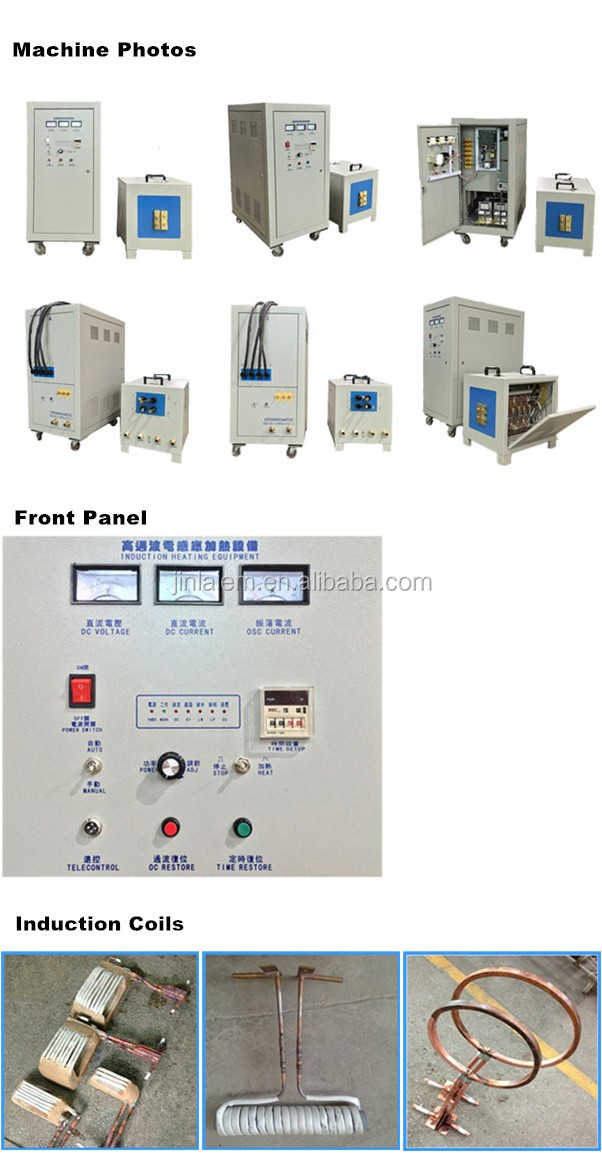

product photo
The induction heating machine has multiple protection functions such as overvoltage, overcurrent, overtemperature, and water cutoff, which is safe and reliable.
Lower power consumption, IGBT technology saves 15-30% energy, 100% full load, 24 hours of continuous work.

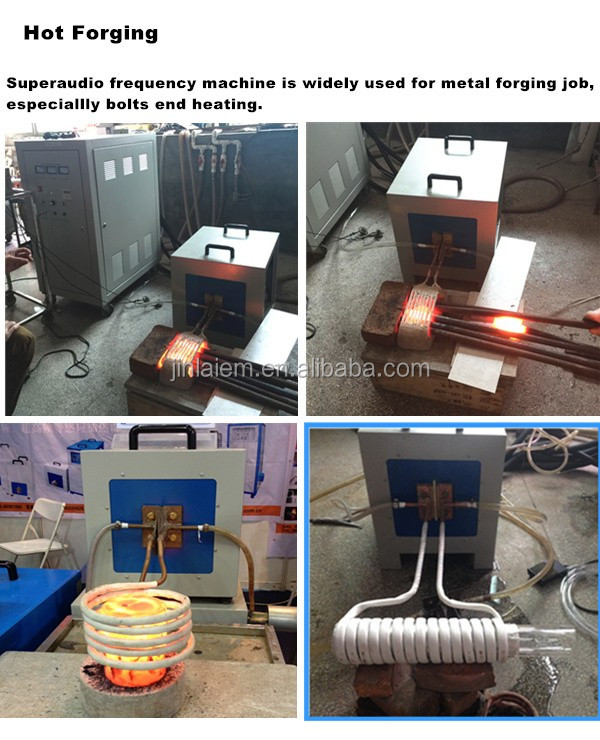

work photo
Packaging and Shipping
| thing | machine or part name | Specification | quantity |
| 1 | JaylenC-60kilowatt generator | - | 1 |
| 2 | JaylenC-60kilowatttransformer | - | 1 |
| 3 | footpedal | 3 cores | 1 |
| 4 | Induction coil | - | 2 sets |
| 5 | connecting cables | - | 1put |
| 6 | user's manual | - | 1 |
| 7 | product list | - | 2 sets |
