ZB-D paper cup making machine paper cup forming machine with CE

Product details
Selling Units:Single item;Single package size:25X14X17 cm;
Packaging Detail:WOODEN CASE;Certification:CE Certificate;
Key Selling Points:Low Noise Level;sucker:organ sucker;
After-sales Service Provided:Online support,Video technical support,No after-sales service,Free spare parts,Engineers available to service machinery overseas;Usage:Paper Forming Machine;
Single gross weight:2000.0 KG;Warranty:1 Year;
Product name:ZB-D paper cup forming machine;Voltage:380V/220V;
Place of Origin:Zhejiang China;Brand Name:Dakiou;
Dimension(L*W*H):2500*1400 *1700mm;Automatic Grade:Automatic;
Applicable Industries:paper product machinery;Condition:New;
Weight:1500kg;

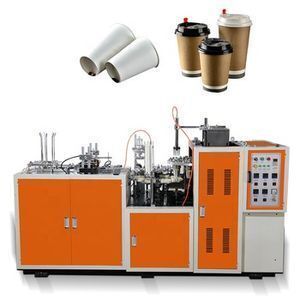

ZB-D Automatic Single-PE Coated Paper Cup Forming Machine



ZB-D paper cup machine is improved based on the normal chain driving type. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment for producing drinking cups,market cups, coffee cups, advertising cups , etc. It is widely used for hot drink and beverage.





Paper Cup's General Size :

A:Top Diameter B:Bottom Diameter C:Total Height D:Stacking Increment E:Rim Thickness

Technical Specification

Type:

ZB-D

 Cup size:

3-12oz(different size mold exchanged)

Suitable paper material:

150-380g/m2 (single or double PE-coated paper)

Capacity:

35-40pcs/min

 Power source::

220V,380V 50HZ(please inform us your power in advanced)

Total power:

4KW

Weight:

1500KG

Package size:

2500 x 1400 x 1700 mm

Working Air Source:

Air pressure 0.4Mpa;Air out-put:0.6m3/min



Advantage and improvement:

1.Use gear driving system instead of chain,more stable running and speed up.



2.We use 125 type gear box,which is longer life and more accurate.Normally,100 type gear box is used.



3.100 type speed reducer is used instead 80 type.



4.New design knurling wheel is used to guarantee the even pressure and better bottom sealing.



5.Cup folding parts is controlled by three separate cams,and each folding clip can be adjusted by itself.



6.We use manipulator to transfer the cup body instead of falling itself by pipe,It is more stable and accurate under the fast running.



7.Change the Ø25 normal steel shaft to Ø30 imported steel shaft to be sttrengthened,longer life and more stable.

8.Organ type sucker is used for cup fan sucked to gaurantee powerful sucking and more successful.The life is much more longer than normal sucker.
