High Quality Rubber Dispersion Kneader Mixer 35 L / 55L / 75L /110L /150L

Supplier: Qingdao Toplit Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Walley Wang
Price: $19999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power (kW):	45 kW;	Compressed Air Pressure(MPa):	0.02 MPa;
Tilting Angle(°):	140;	Year:	fresh;
Port:	Qingdao;	Certification:	ISO;
Dimension(LWH):	350032002800mm;	Key Selling Points:	Competitive Price;
Mixing Capacity(L):	75 L;	After-sales Service Provided:	Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support,Engineers available to service machinery overseas;
Power(W):	1.5KW - 75 KW;	Condition:	new,New;
Supply Ability:	5 Unit/Units per Month;	Place of Origin:	Shandong China;
Whatsapp & Wechat:	0086 13963993705;	Weight (KG):	10500 KG;
Showroom Location:	Argentina,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,Ukraine,Uzbekistan,Malaysia,Egypt,Italy,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Thailand;	Weight:	1t-22t;
Brand Name:	TOPLIT;	Model Number:	35-55-75-90-110-150L;
Applicable Industries:	Manufacturing Plant;	Packaging Detail:	suitable for the long-term transportation.;
Warranty:	1 Year;	Type:	Rubber Kneader;
Voltage:	380V or others;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Payment Terms:	L/C,D/P,T/T,Western Union;	Local Service Location:	Chile,UAE,Colombia,Sri Lanka,Romania,Ukraine,Italy,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Thailand;

China Best Quality Dispersion Kneader

Whatsapp & wechat: 0086 13963993705

1.Applications:

Rubber kneader can be applied in the separate or mixing refining of raw glue, mix glue, rubber, plastic and other raw materials.

At present, we can supply 10L, 20L, 35L, 55L, 75L, 110L, 150L. Warmly welcome to contact us for more information.

2.Main Specifications:

Type		X(S)N-10X32	X(S)N-20X34	X(S)N-35X30	X(S)N-55X30	X(S)N-75X30	X(S)N-110X30
Pinching total cubage	L	25	45	75	125	175	250
Dense smelting total cubage	L	10	20	35	55	75	110
Main motor power	KW	22	22	55	75	110	185
Overturn motor power	KW	1.1	1.5	2.2	2.2	3.0	7.5
Overturn angle	⁰	140	140	140	140	140	140
Rotate speed of rotor oxis(front/back))	r/min	32/25	34/28	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressing air	Mpa	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Pressure of cooling water	Mpa	0.2~0.4	.0.2~0.4	.0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Pressure of heating vapor	Mpa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Overall size (L x W x H)	mm	2640x1650x2350	3100x1300x2450	3200x1900x2945	3300x1900x2900	3760x2143x3135	4075x2712x3580
Weight	kg	3300	4500	6500	7800	10230	14970

3 Main Feature:
1. With completely sealed condition, materials are mixed or plasticized under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.
3. Surface where is contracted with the machine are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
4. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam-heating effect and fit in with the needs of plastics and rubber processing technology.
5. Feeding from back door on the frame(or separate top door) is convenient ofr continuous process operation in production line. The mixing chamber is able to turn forward by 140 around th front rotors to discharge and is easy for changing pigments and cleaning the chamber.
6. Programmable logic controller (PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is provided with serial interface of net.

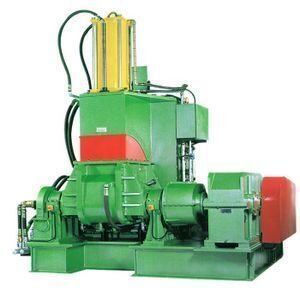

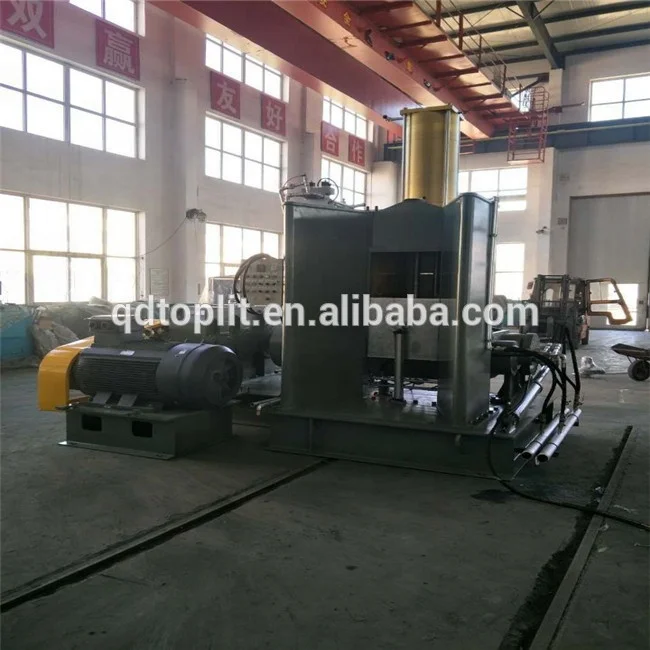

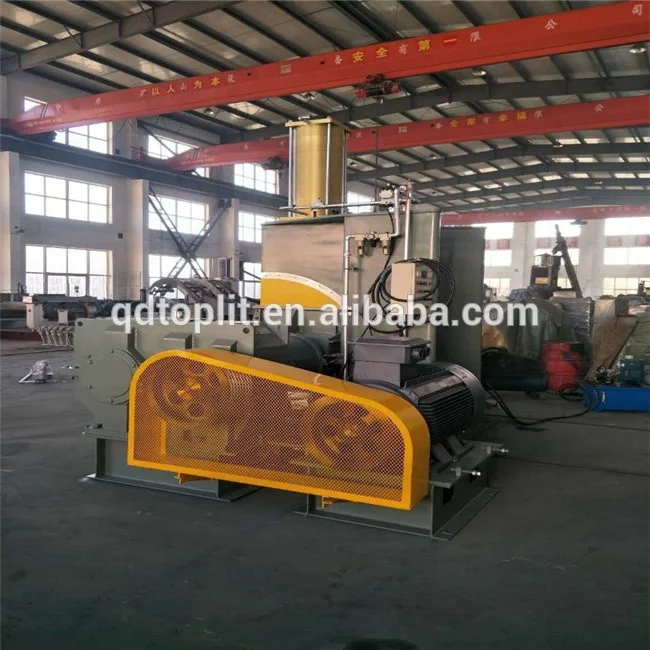

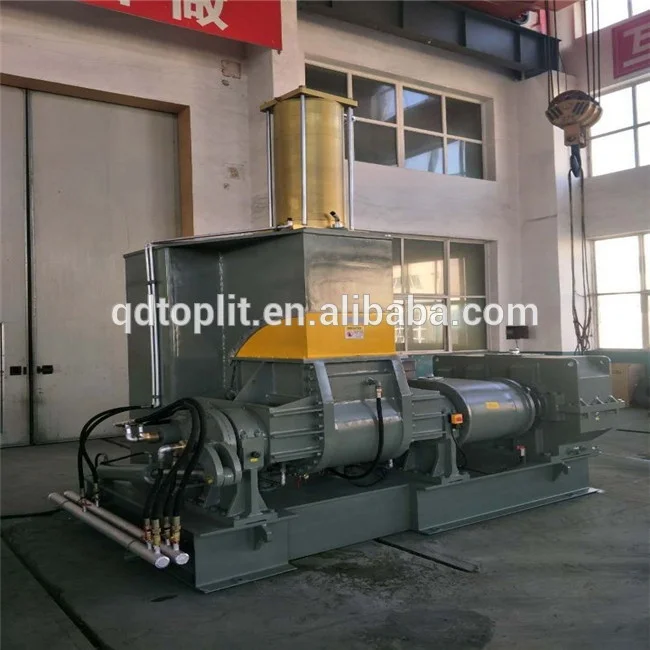

4. Reference Pictures:
