stainless Steel Wire Braiding Machine for metal hose

Supplier: Wuxi Longterm Machinery Technologies Co., Ltd.
Region: Jiangsu, China
Contact: Ms Kelly Huang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Decker no.:	single or double;	Braiding diameter:	stainless Steel Wire Braiding Machine for metal hose;
Nodular cast iron decker:	braiding machine for sale;	Packaging Detail:	STANDARD SEA WORTHY PACKING FOR stainless Steel Wire Braiding Machine for metal hose;
Pulling Speed:	29-72m/h;	carrier No.:	48 flexible hose braiding machine;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	1000 Set/Sets per Month Apply to stainless Steel Wire Braiding Machine for metal hose;
Max.120M/H:	braiding machine pulling speed;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Braiding Pitch:	66-166mm flexible hose braiding machine;	Brand Name:	HLT;
Braiding angle:	54°44";	Motor power:	5.5kw;
Port:	FOB CHINA MAIN PORT;	braiding machine:	from 16 to 128 carriers;

Product Description

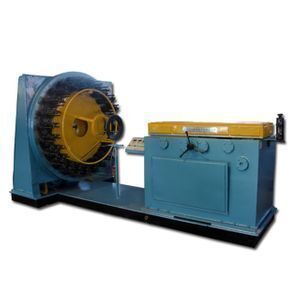

stainless Steel Wire Braiding Machine for metal hose
Flexible Hose Braiding Machine
The wire braiding machines we can make as follows:
braiding machine Wire diameter: 0.3mm to 0.8mm
No.of spindles:16 to 128 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire

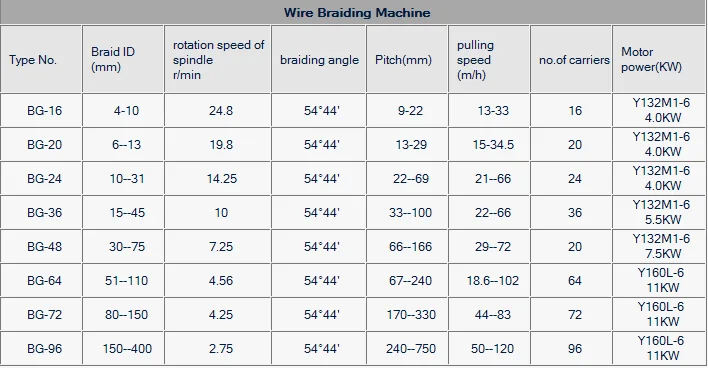

High quality Stainless Steel Flexible Hose Braiding Machine for Sale Technical data

Flexible Hose Braiding Machine

Flexible Hose Braiding Machine showing as below
GBG-96 carrier single decker wire braiding machine
Braiding diameter:150-400mm
Rotation speed:2.75r/min
Braiding angle:54°44′
Pitch distance:240-750mm
Pulling speed:50-120M/H
No.of carrier:96
Motor:11KW

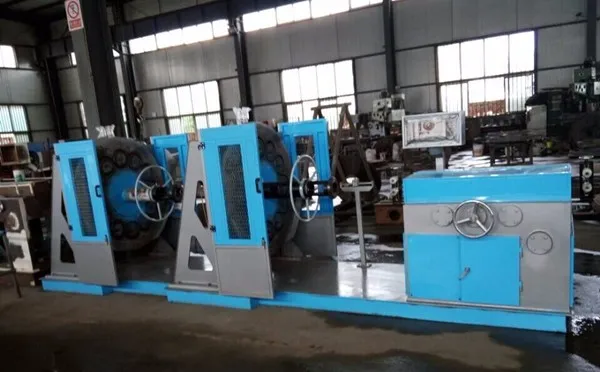

Double decker wire braiding machine

Braiding ID/OD of the hose: 30-75mm
Rotation speed of the carrier: 29-72m/h.
Braiding angle:54°44″
Pitch distance:66-166mm
Pulling speed:22-66m/h
No.of carriers:48pcs
Motor power:Y132 M-6 7.5KW

GBG-24 Single decker wire braiding machine
Braiding diameter:10-31mm
Rotation speed:14.25r/min
Braiding angle:54°44′
Pitch distance:22-69mm
Pulling speed:21-66M/H
No.of carrier:24
Motor:4KW

Flexible Hose Braiding Machine

Detailed Images

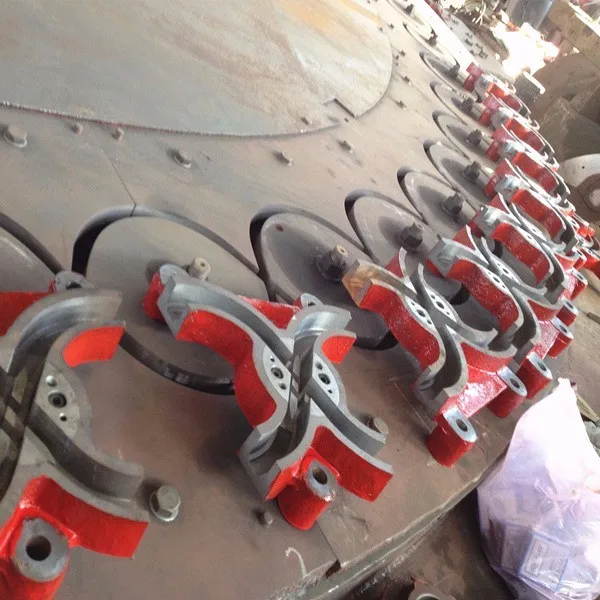

Decker of wire braiding machine

Decker of wire braiding machine
Name: Decker
Brand: HLT
Original: China
Domestic famous engines, strong driving force, low electrical consumption, high economic benefits

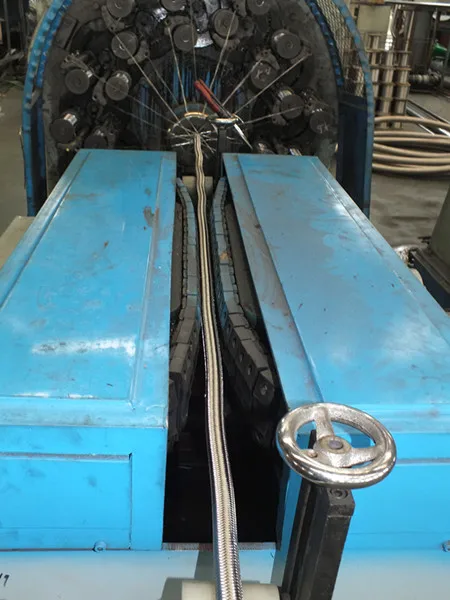

Caterpillar of braiding machine

Name: Caterpillar
Brand: HLT
Original: China
Domestic famous engines, strong driving force, low electrica consumption, high economic benefits

Flexible Hose Braiding Machine

Frame of wire braiding machine

Name: Frame
Brand: HLT
Original: China
Domestic famous engines, strong driving force, low electrical consumption, high economic benefits

Flexible Hose Braiding Machine

Related Machinery

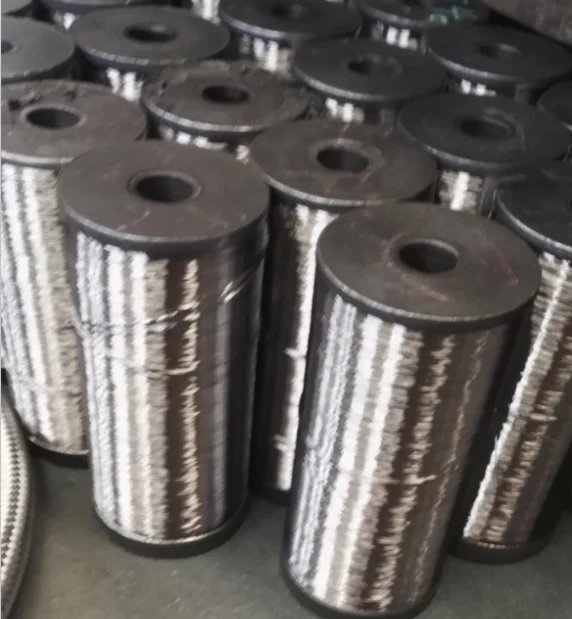

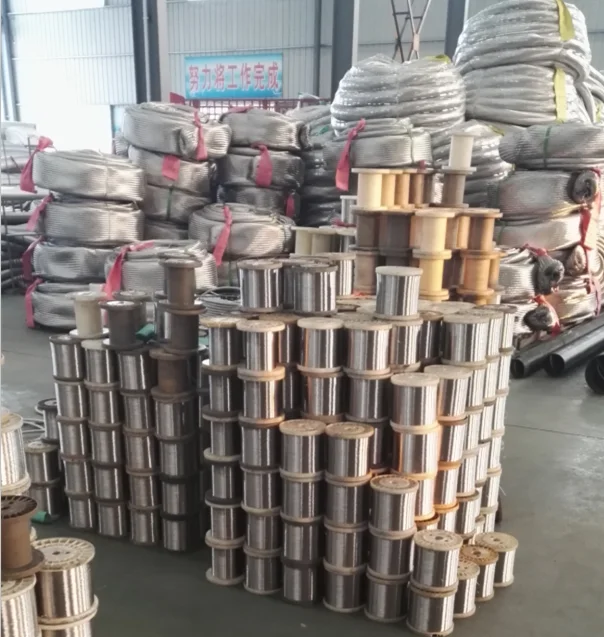

bobbin with wire

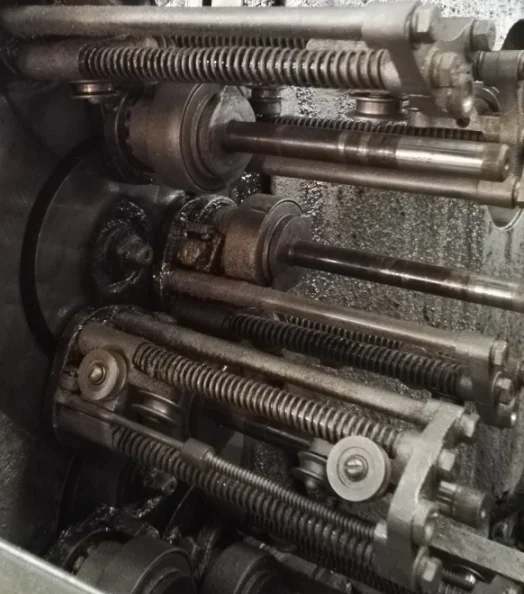

Spindle

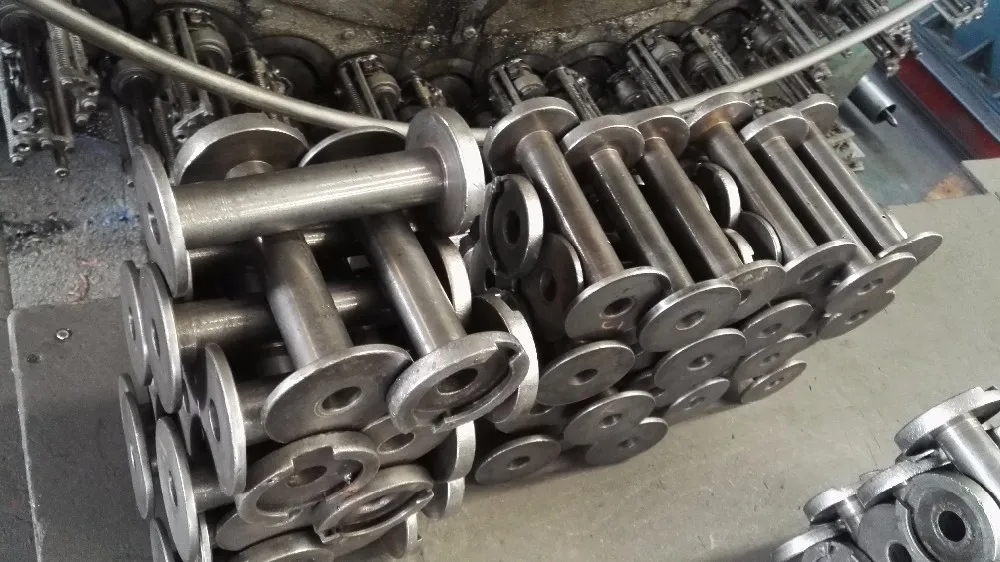

Bobbin

Our Service

Our engineers are providing service in Russia

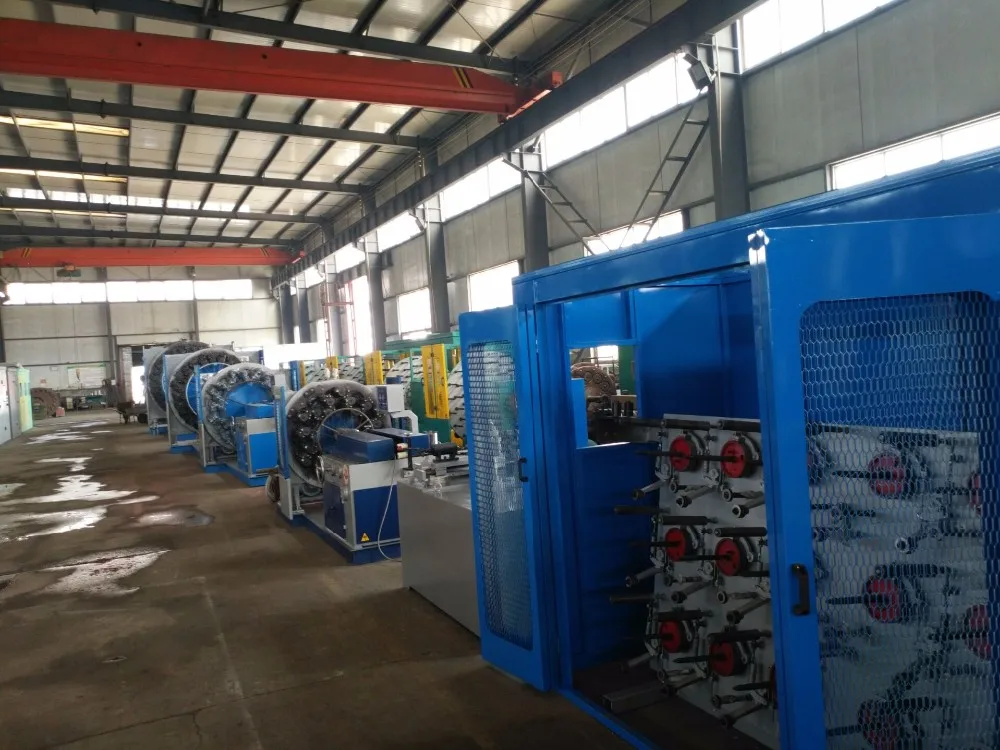

Braiding machines finish installation by engineer

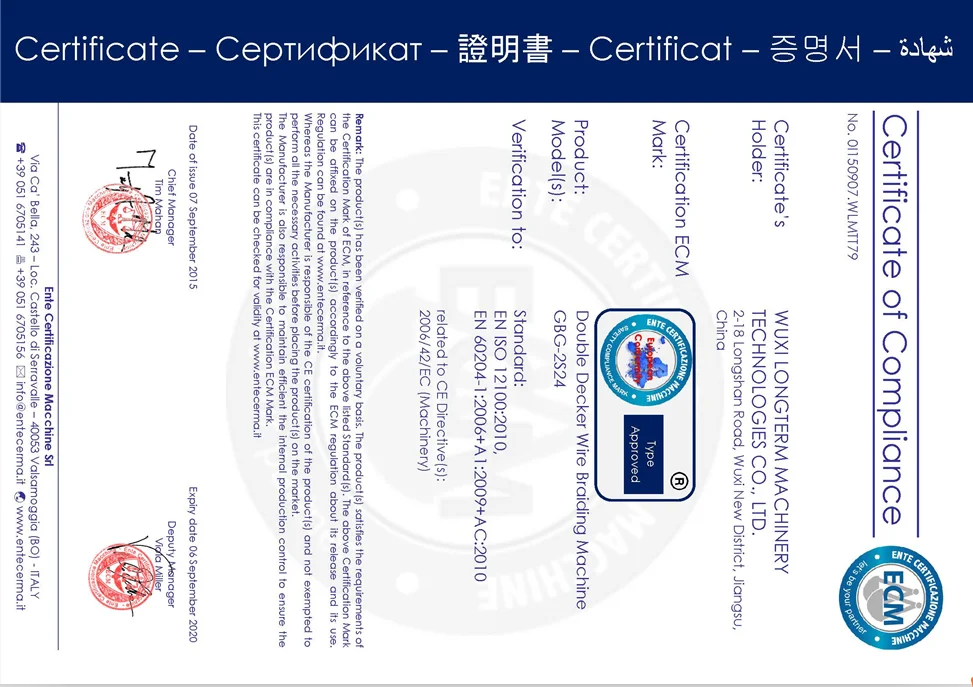

Certifications

Packing & Delivery

Delievery by truck.
We have professional domestic inland transportation team.

Packaging
Size	2000mm1500mm1500mm
Weight	3-4 ton
Packing details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request

FAQ

1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30 years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?

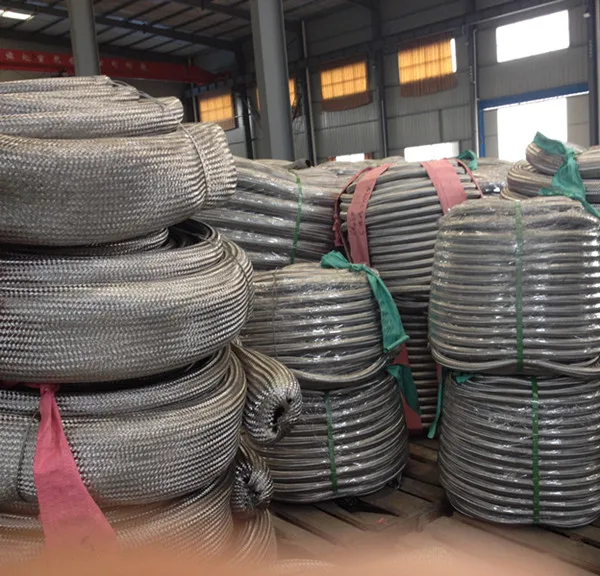

Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
