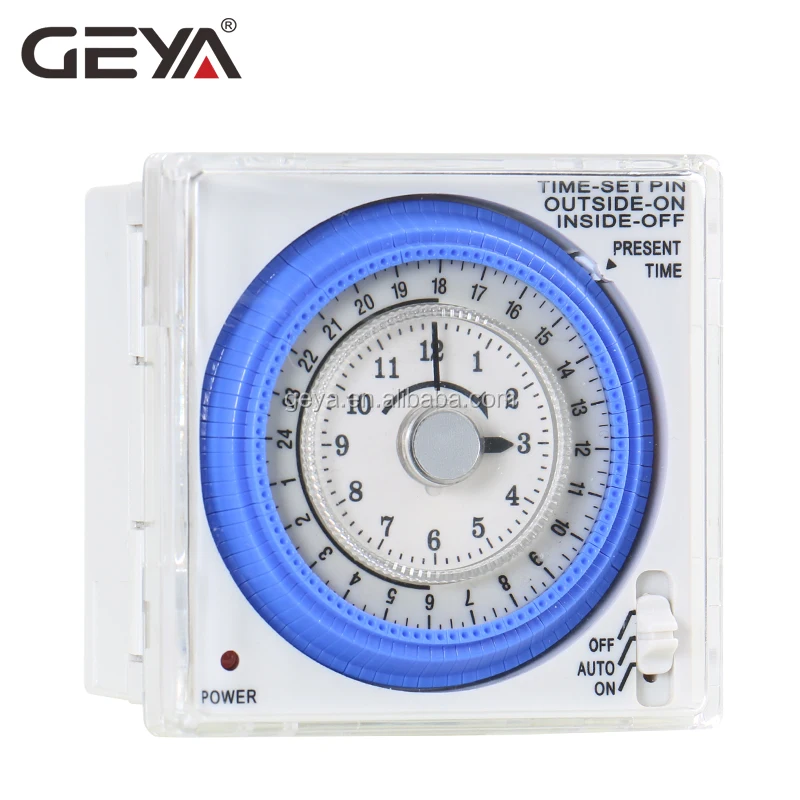

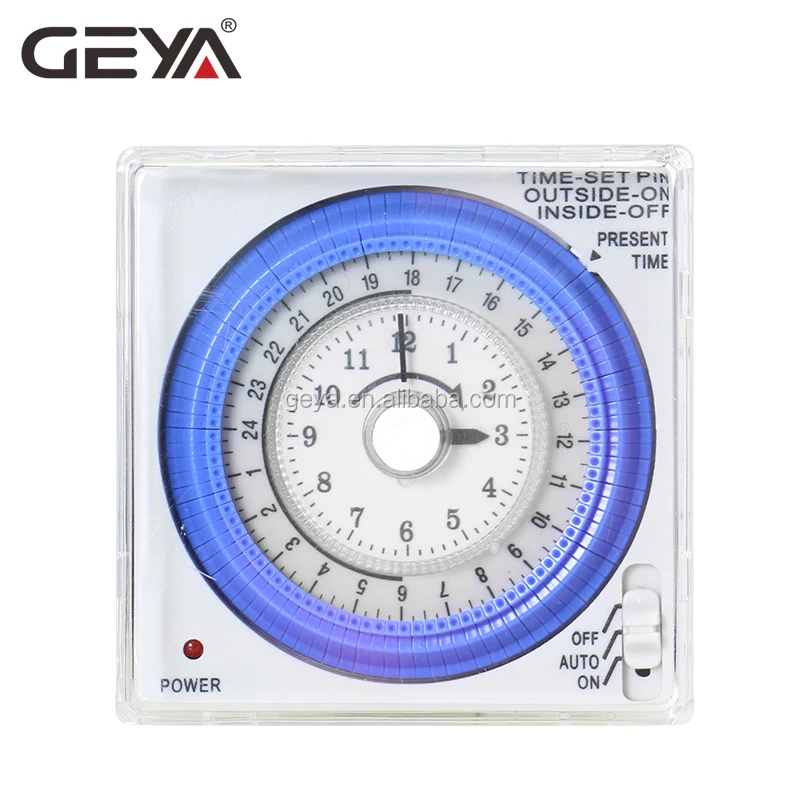

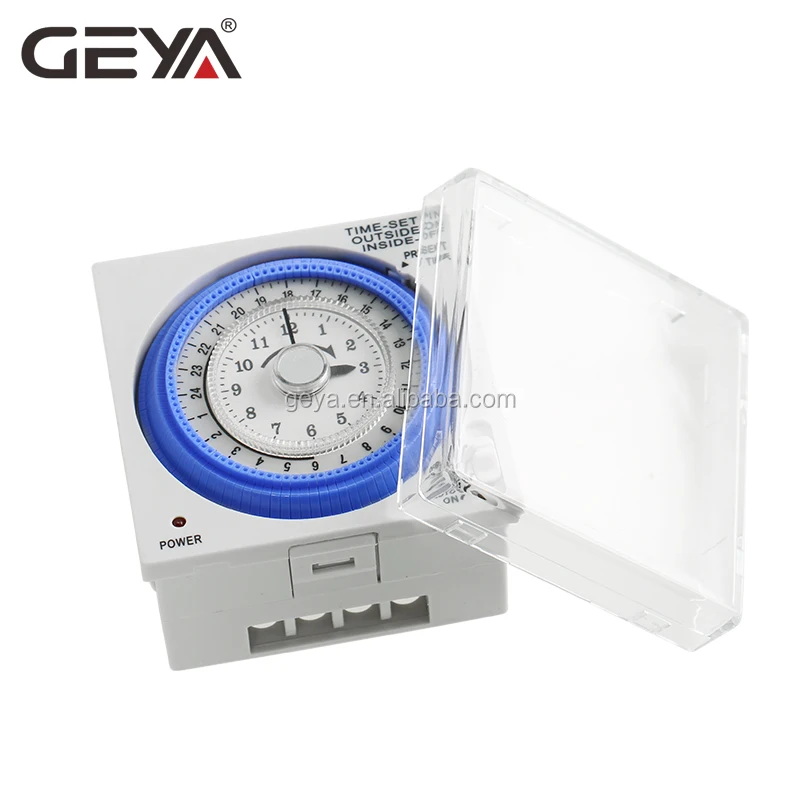

GEYA TB37 Mechanical Din Switch Timer 110V OR 220V 15 Minute Adjustable Timer Manual or Automatic Control

General

TB37 Mechanical Time Switch is suit for water heater, Water dispensers, Street lamp, Staircase lamp, Advertising lamp boxes, Breed aquatics, Irrigate, Office power auto control, in anywhere need time control in home or industrial, etc.

*With battery

*96 switching segments

*Quartz controlled

*Shortest switching time:15 minutes

Specifications

1. Operating voltage: 110VAC,220VAC

2. Voltage tolerance: 90-121VAC, 200-264VAC

3. Frequency: 50/60Hz, common use

4. Time precision: synchronous with power frequency

5. Time range: 24 hours

6. Power consumption:1.5W

7. Circuit: 1 circuit

8. Circuit configuration: separate circuit, voltage is not applied to the load circuit

9. Contact configuration:Single pole single through

10. Manual ON/OFF: with ON/AUTO/OFF switch

11. Resistance: 15A

12. Incandescent lamp: 10A

13. Induction(COSφ=0.7): 12A

14. Motor(COSφ=0.7):110VAC 750W  220VAC 1500W

15. Setting method: Setting tip all built-in

16. Minimum setting unit: 15 minutes

17. Minimum setting interval: 15 minutes interval

18. Operation: Standard 96 operations

19. Ambient temperature: -10°~+50°C

20. Ambient humidity: Max. 85%RH

Q1. What advantages do you have?

A1. GEYA are the direct Manufacturer in Wenzhou China from 2007, we have professional

developing, marketing & production team to offer you the most competitive price and best service.

Q2. What’s your main product?

A2. We have two product project, low voltage electrical and automation control items.

Q3. Could you print our own logo?

A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.

Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.

Q5. How long is the deliver time?

A5.  It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.

Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.

Q7. Any certification of your company or product?

A7.We have ISO 9001, CE, CB, SEMKO, SAA, TUV, CCC.
