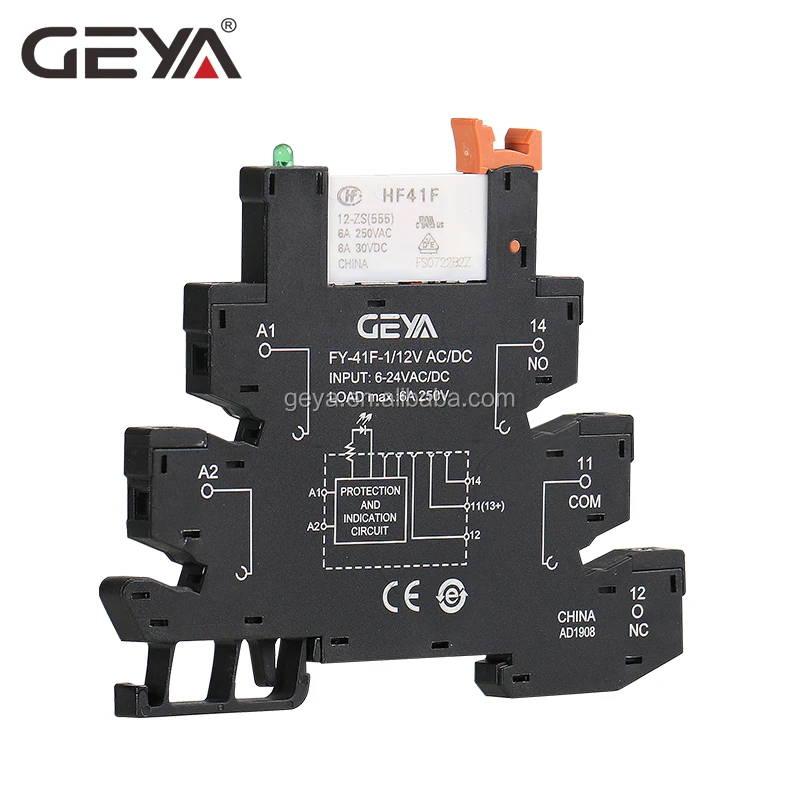

GEYA FY-41F-1 Slim Relay Module PLC 6.22mm Thickness 12VDC or 24VDC PLC Relay

Supplier: Zhejiang Geya Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Cassie Zhang
Price: $3.10 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Protect Feature:	Sealed;	MOQ:	1PCS;
Packaging Detail:	PLC Relay is standard seaworthy package, 20pcs in a middle box, 20boxes per carton. Base quotation is blank package. OEM design is acceptable.;	Certifications:	CE CB;
Size:	Miniature;	Product Name:	PLC Relay Module;
Contact Load:	Low Power;	Rated Load Current:	6A 250VAC;
Place of Origin:	Zhejiang China;	Brand Name:	GEYA OEM ODM;
Model Number:	FY-41F-1 Black Color;	Thickness:	6.2mm;
Theory:	Electromagnetic Relay;	Single gross weight:	0.1 KG;
Single package size:	12X10X5 cm;	Warranty/guarantee:	18months;
Max voltage:	130% rated value;	Usage:	PROTECTIVE;
Selling Units:	Single item;	Output contact:	1C/O Contact;
Rated voltage:	12VACDC or 24VACDC;	Package Preview:	;

GEYA FY-41F-1 Slim Relay Module PLC 6.22mm Thickness 12V or 24V PLC Relay

Banner

Product Description

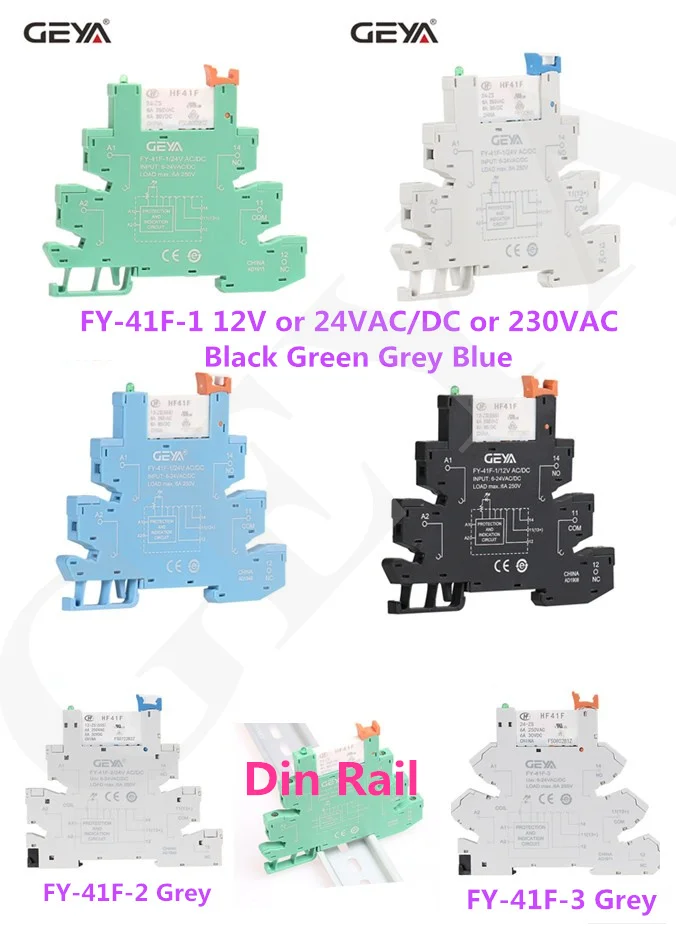

Tips: This link is for FY-41F-1 Black Color 12VACDC OR 24VACDC Purchase, If you need other color or 230v voltage, pls click here!

General

Relay Modules are designed for current amplification and isolation protection of output loads.Applicable to PLC, microprocessor systems and time relays etc,amplifying the control current of outputs,to protect key control systems not being destroyed

Features:

1. 6A Rated Operation Current

2. 1 C/O Contact

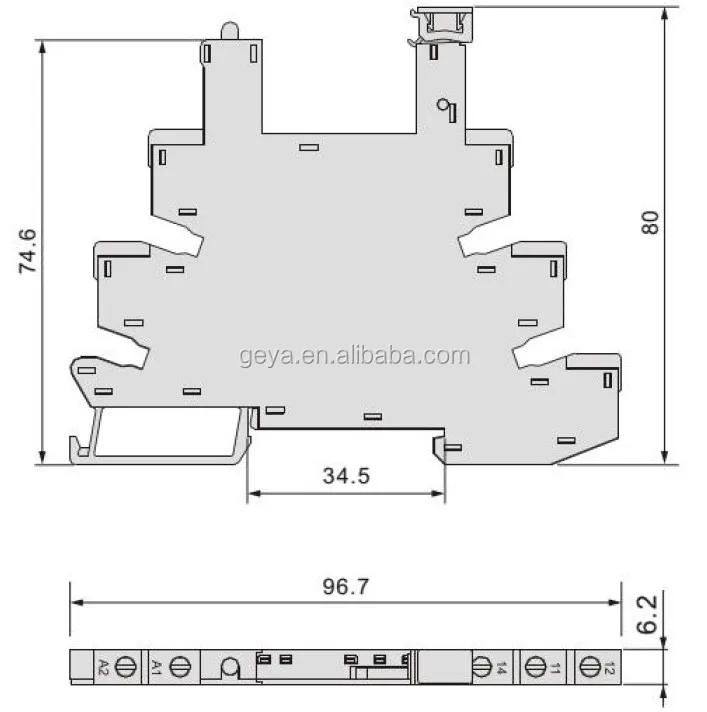

3. Compact size only 6.2mm thickness

4. LED Indicator when relay is energizes

5. Protection Circuit

Technical Data

Rated Current	6A
Rated Voltage	250VAC
Dielectric Strength	4000V/S Coil&Contact 2500V/S Between Contacts
Screw Torque	0.5Nm
Suitable cable	20-16AWG
Operation Temperature	-40℃~+70℃
