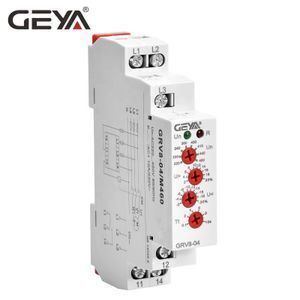

GEYA GRV8-04 AC Voltage Controller Phase Sequence and Failure Protection Relay 10A

Product details
Weight/pcs:0.1KG/PCS;Model Number:GRV8-04 Voltage Relay;
Product name:3 Phase Voltage Relay;Packaging Detail:Voltage relay is standard seaworthy package,1pcs individual box, 10pcs in a middle box, 20boxes per carton. Base quotation is blank package. OEM design is acceptable.;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL;Supply Ability:50000 Piece/Pieces per Month Voltage relay manufacturer;
Place of Origin:Zhejiang China;Warranty/guarantee:18months;
Time Range:0.1s-10s (10%);Brand Name:GEYA OEM ODM;
Voltage Range:220-230-240-380-400-415-440-460V;Certifications:CE CB;
Protect Feature:Sealed;Supply Terminals:1 SPDT;
Contact Load:Low Power;MOQ:1PCS;
Port:Wenzhou, Ningbo, Shanghai port;Frequency:50/60HZ;
Usage:PROTECTIVE;Theory:Voltage Relay;
Function:Phase Sequence Phase Failure Over & Under Voltage Delay Time;Size:Miniature;

GEYA GRV8-04 AC Voltage Controller Phase Sequence and Failure Protection Relay 10A

Banner

Product Description



General



Applications
    -Control for connection of moving equipment(site equipment,agricultural
    equipent,refrigerated trucks).
    -Control for protection of persons and equipment against the consequences
    of reverse running.
    -Normal/emergency power supply switching.
    -Protection against the risk of a driving load(phase failure).
Function Features
    -Controls its own supply voltage(True RMS measurement).
    -Set 8-level rated operating voltage through knob.
    - Measuring frequency range:45Hz-65Hz.
    - Voltage measurement accuracy<1%.
    - Relay status is indicated by LED.
    - 1-MODULE,DIN rail mounting.



Technical Data

Electrical features

Product Name3 Phase or 3Phase +N Monitoring Voltage Relay
FunctionOvervoltage, Undervoltage, Asymmetry, Delay Time, Phase Sequence, Phase Failure
Rated Control Supply Voltage3P=M460 (P-P)  3P+N=M265(P-N)
Monitoring TerminalsL1-L2-L3  OR L1-L2-L3-N
Supply Terminals L1-L2 OR L1-N
Output1SPDT
Current Rating10A/AC1
Voltage Range45/65HZ
Time DelayAdjustable 0.1s-10s (10%)
Reset Time1000ms
StandardEN 60255-1,IEC60947-5-1
Protection DegreeIP40 for Front Panel, IP20 for Terminals
Weight/pcs0.1KG/PCS
Certifications CE CB
Warranty/guarantee18months
MOQ1PCS

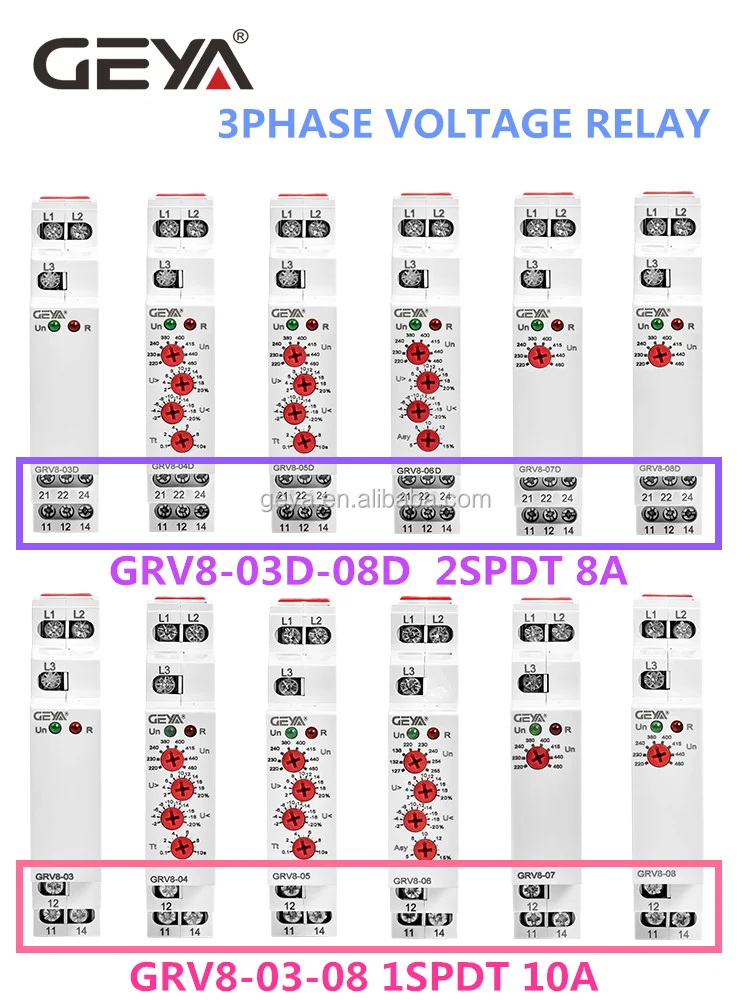

HOW TO CHOOSE THE MODEL



Product CodeOver VoltageUnder VoltageAsymmetryDelay TimePhase SequencePhase Failure
GRV8-03
GRV8-042%~20%-20%~2% 0.1s~10s
GRV8-052%~20%-20%~2%8%0.1s~10s
GRV8-062%~20%-20%~2%5%~15%2s
GRV8-07  8%2s
GRV8-0815%-15%8%2s


Note          Means The Function is Available
