Model Number: | ZPC-620(B75); | CPU: | Intel core i3 i5 i7 optional; |
Key Words: | 4U Firewall server; | Port: | ShenZhen; |
Display port: | 1*VGA, 1*DVI-D; | Products Status: | Stock; |
Packaging Detail: | Each in a neutral box; | Operating System: | Win 7/8/10 , linux OS; |
Supply Ability: | 100000 Piece/Pieces per Month 4U Firewall server; | Chipset: | Intel B75; |
material of case: | Advanced flowerless galvanized sheet structure; | Processor Type: | Intel Core i3 i5 i7 optional; |
Certification: | FCC,ce,RoHS; | Processor Main Frequency: | 3.4Ghz; |
Brand Name: | Iwill; | Memory: | 4*DDR3 DIMM RAM Slot, Max 32G; |
Place of Origin: | Guangdong China; | Type: | Rack; |
Storage: | Support 6*2.5''SSD/HDD or 3*3.5''SSD/HDD; | Payment Terms: | Western Union,T/T,Paypal; |
USB: | 2*USB3.0, 4*USB2.0; | LAN: | 2*1000M Lan; |
Click here, contact us to get the latest price list and more info
Specification |
|||
Model |
ZPC-620(B75) |
||
Case Color |
White(color can be customized) |
||
Material |

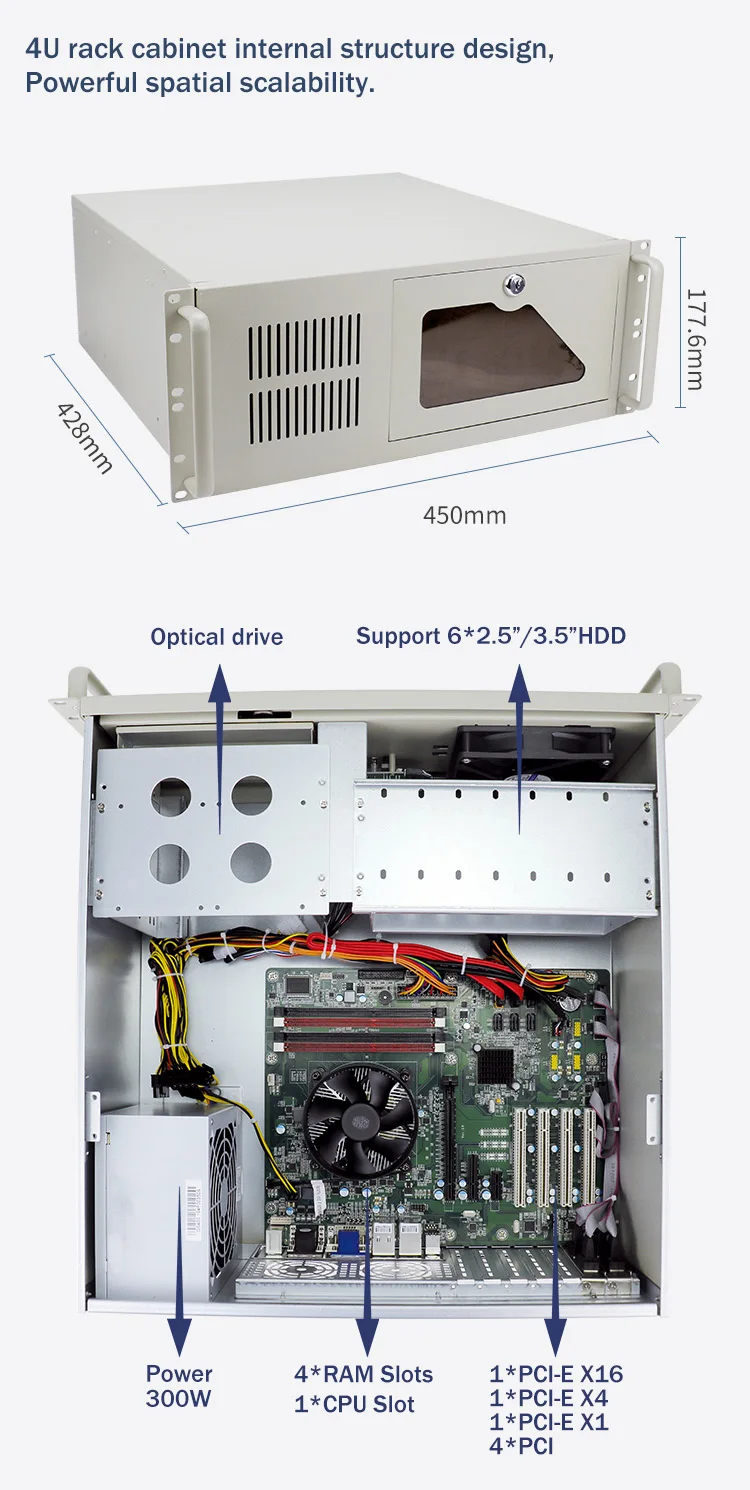

Advanced flowerless galvanized sheet 19'' 4U Server Case |
||
CPU |
Intel Core i3 3210 dual core 3.2Ghz Intel Core i5 3450 quad core 3.1GHz Intel Core i7 3770 quad core 3.4Ghz |
||

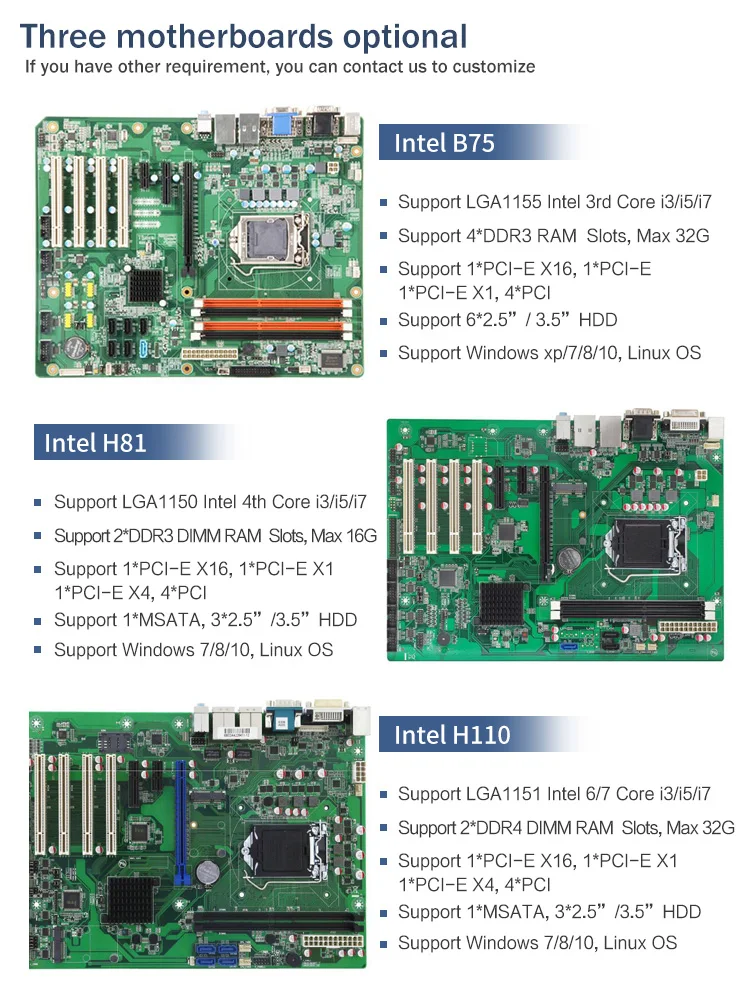

Chipset |
Adopt Intel B75 chipset |
||
BIOS |
AMI UEFI BIOS |
||
RAM |
Support 4*DDR3 DIMM ram slot, support max 32G |
||
Storage |
Support 6*2.5'' SSD/HDD or 3*3.5'' SSD/HDD |
||
Display Chip |
Integrated Intel HD Graphics Card 2500/4000 |
||
Display Interface |
1*VGA, 1*DVI-D |
||

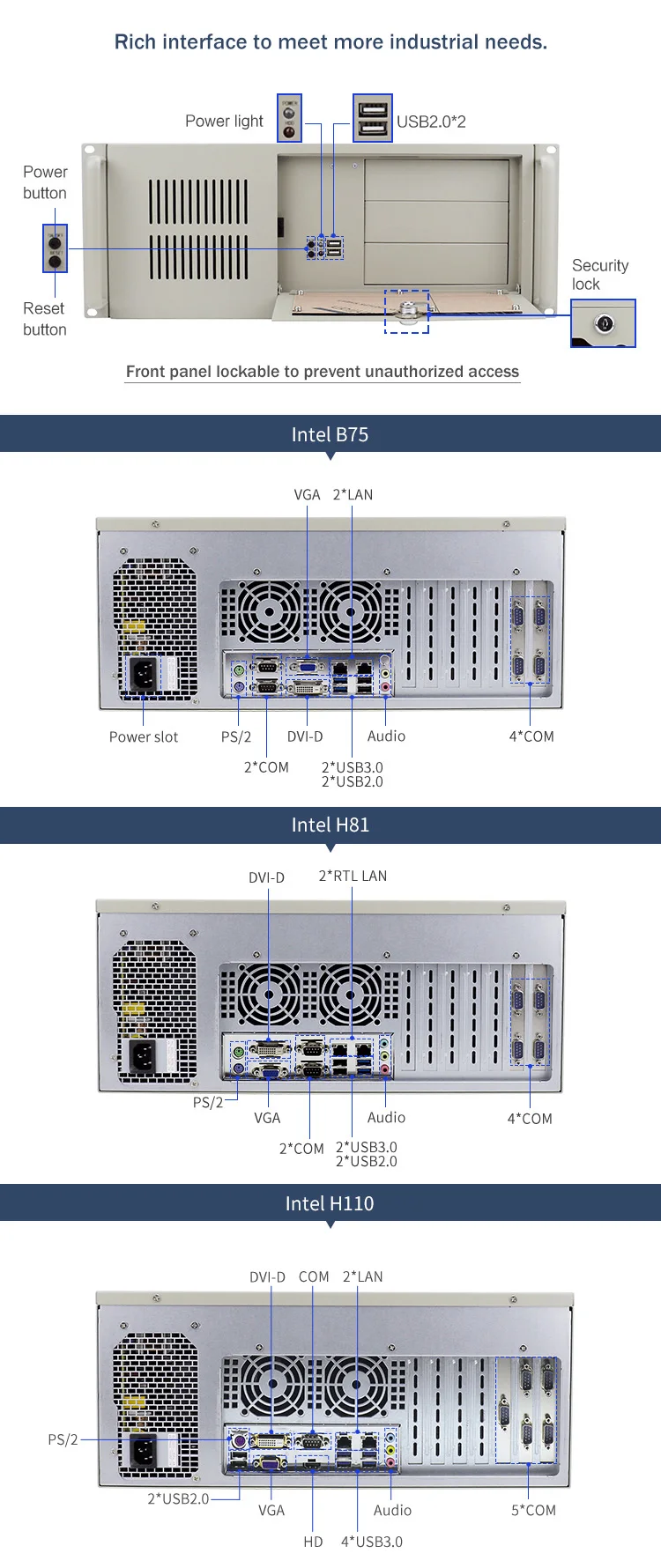

I/O |
2*USB3.0, 4*USB2.0 |
||
1*VGA, 1*DVI-D |
|||
2*1000M Lan |
|||
6*COM (COM2 support RS232/422/485 COM) |
|||
2*PS/2 |
|||
2*Audio |
|||
1*Power Switch |
|||
1*Reset Button |
|||
Network Card |
1*Intel 82583V 1000M lan, 1*Intel 82579V 1000M Lan |
||
Expansion |
Support 1*PCIE X16 Slot |
||
Support 1*PCIE X1 Slot |
|||
Support 1*PCIE X4 Slot |
|||
Support 4*PCI Slot |
|||
Optional interface: CPIO, LPT, 6*USB2.0 (standard version without this port) |
|||
Watch Dog Timer |
Support |
||

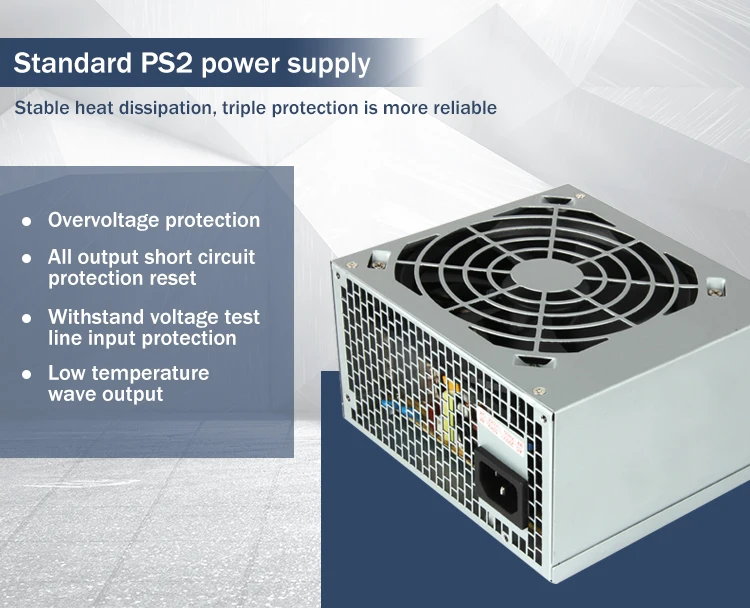

Power Supply |
AC 180V~264V (50~60Hz), 300W rated power |
||
Operating System |
Windows XP/7/8/10, Linux OS |
||
Working Temperature |
-10°C - 60°C |
||
Working Humidity |
5% - 95% relative humidity, Non-condensing |
||
Size |
428*450*177.6 mm (L*W*H); |
||
Net Weight |
13kg; |
||
Latest Price List |
Click here, contact us to get the latest price list and more info |
||
Application |
Applied in Network server, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance Parking Pay Station, Channel System, Medical electronic etc . |
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box.
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-basedenterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover mini PC, HTPC, embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.
IWILL TECHNOLOGY(HONGKONG) LIMITED. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
IWILL TECHNOLOGY(HONGKONG) LIMITED. has established cooperation with lots of enterprises, rely on its strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
Question: Can you put my brand name (logo) on these products?
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
