Selling Units: | Single item; | Audio: | Support audio and mic input; |
CPU: | Intel Celeron J3160 Quad Core 1.6Ghz; | Storage: | Support MSATA; |
Packaging Detail: | Each in a box and ten or sixteen box for a neutral carton; | Model Number: | NUC-C3L4; |
Function: | Support AES-NI; | Place of Origin: | Guangdong China; |
Type: | Wired & Wireless; | Single gross weight: | 2.0 KG; |
Simultaneous Sessions: | 3900000; | Throughput: | 900M; |
VPN Support: | Yes; | Display Port: | 2*HD Port; |
Single package size: | 23X18X15 cm; | Products Status: | Stock; |
RAM Slot: | 1* DDR3L 1600Mhz RAM slot, max 8G; | LAN: | 4*Intel i210AT LAN; |
USB Port: | 2*USB3.0; | Brand Name: | Iwill; |
OS: | Support Win7/Win8/Win10 or Linux, pfsense; | Key Words: | mini pc server; |
Certification: | FCC,ce,CSA; |
Notice: This link's price is barebone system price, doesn't include ram and hard disk, if you need the ram and hard disk, please contact us, we will give you the best price
if you are interested with our product, please feel free to contact with me on (skype: iwilljennifer)

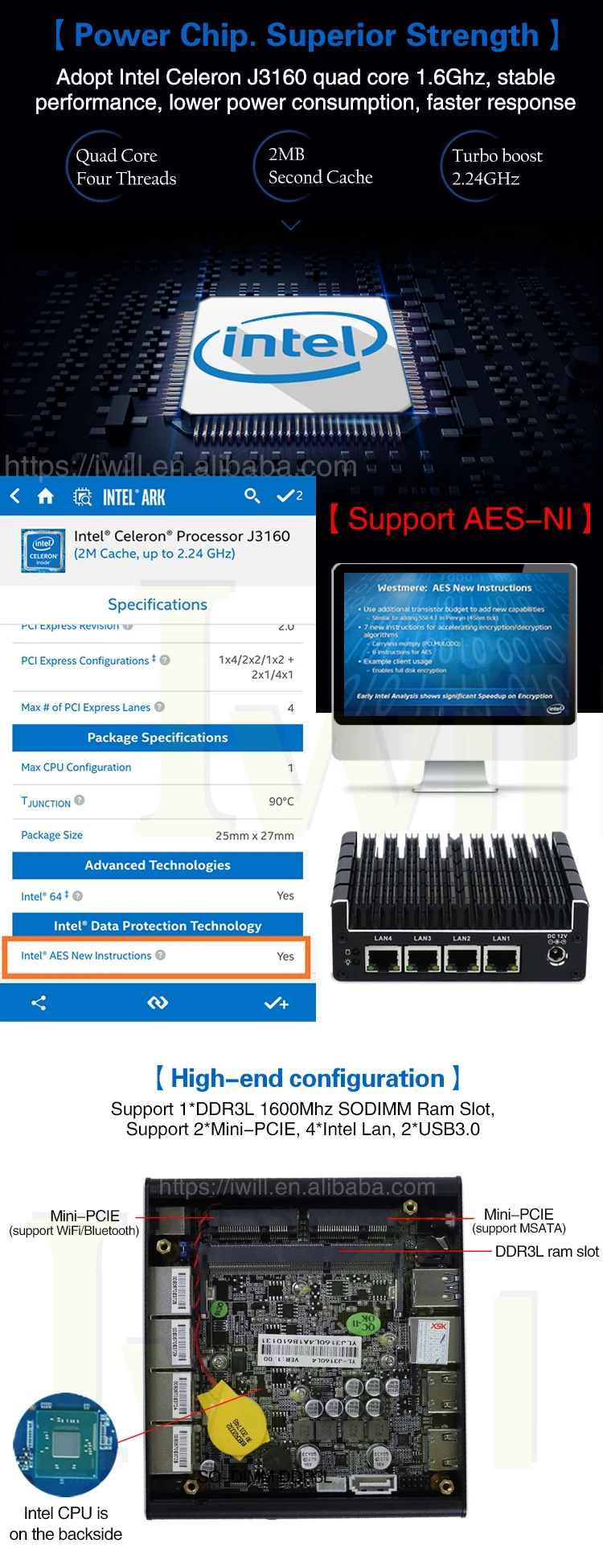

1) Intel Celeron J3160 Quad Core 1.6Ghz, Turbo boost 2.48Ghz.
2) Support 1*DDR3L 1600Mhz SODIMM Ram Slot, Max 8G.
3) I/O Port: 2*HD+2*USB3.0+1*RJ45 COM(support console)+1*Audio+4*LAN+Power switch
4) Nuc Dimension: 115*107.5*39 mm
5) Support 4*Intel i210AT 1000M lan card, support RTL and PXE diskless boot
6) 12V/4A AC/DC power adapter
7) Support 1*Mini-PCIE(support MSATA), 1*Mini-PCIE(support WiFi/BT optional)

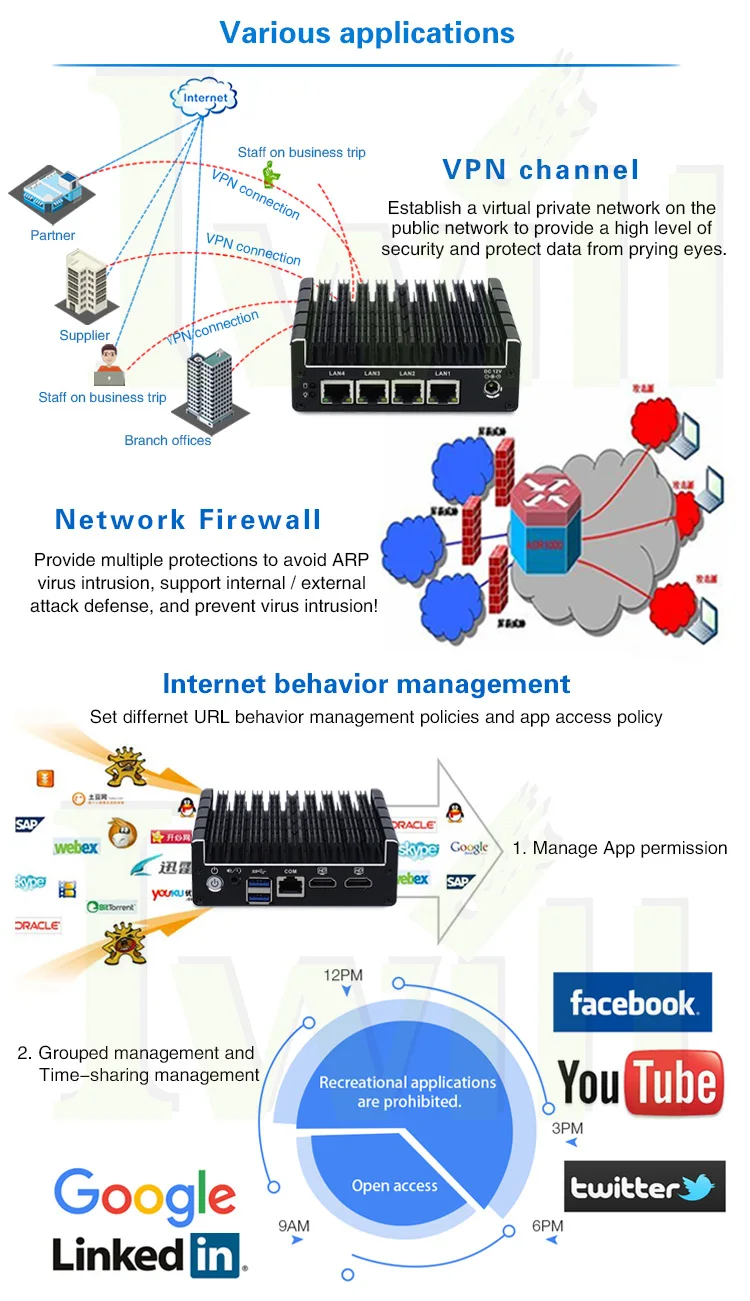

8) Applied in Router, VPN, Firewall, Network server etc.

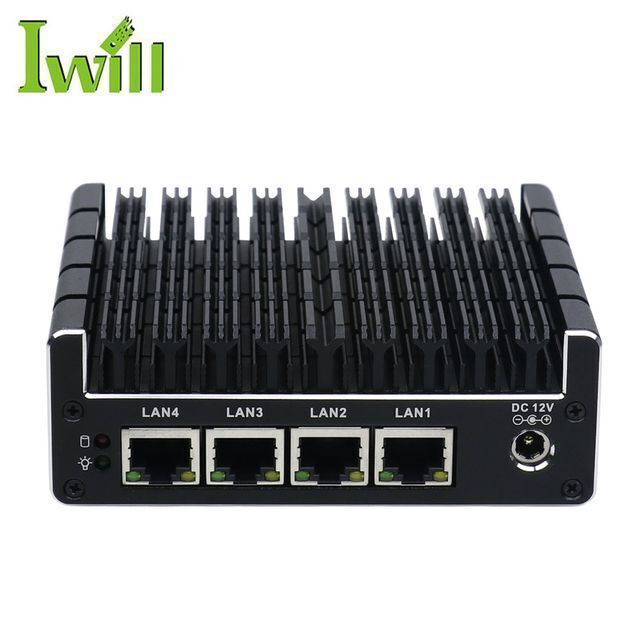

IWILL J3160 NUC-C3 4 intel LAN pfsense firewall barebone mini pc network server |
|||
Model |
NUC-C3L4 |
||
Case Color |
Black(color can be customized) |
||
Material |
High-quality pure aluminum mini itx case |
||
CPU |
Intel Celeron J3160 Quad Core 1.6Ghz |
||
Chipset |
Intel Integrated Chipset |
||
Mainboard |
100*100mm NUC mainboard |
||
RAM |
1*DDR3L 1600Mhz So-DIMM RAM Slot, Max 8G |
||
Storage |
Support 1*MSATA(support 16G/32G/64G/128G/256G SSD) |
||
Audio |
Integrated Intel High Definition Audio Controller, support audio and mic |
||
Display Interface |
2*HD |
||
Display |
Integrated Intel HD Graphic 320 |
||
I/O |
2*USB3.0 |
||
2*HD |
|||
1*RJ45 COM(support console) |
|||
4* RJ45 LAN |
|||
1*Power Switch |
|||
1*Audio |
|||
1*DC-IN 12V |
|||
Network Card |
4*Intel i210AT 1000M lan, support wake on lan |
||
Expansion |
1*Mini-PCIE(support SMATA), 1*Mini-PCIE(support WiFi/BT optional) |
||
Watch Dog Timer |
Support |
||
Power Supply |
DC 12V-IN power supply and AC power adapter |
||
Operating System |
Windows 7/8/10, Linux, Pfsense |
||
BIOS |
AMI 64Mbit Flash ROM |
||
Working Temperature |
-10°C - 50°C |
||
Working Humidity |
0% - 95% relative humidity, Non-condensing |
||
Size |
115*107.5*39 mm (W*D*H) |
||
Net Weight |
0.5kg |
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box, ten neutral box for one carton.
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-basedenterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover mini PC, HTPC, embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.
IWILL TECHNOLOGY(HONGKONG) LIMITED.controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
IWILL TECHNOLOGY(HONGKONG) LIMITED.has established cooperation with lots of enterprises, rely on its strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
Question: Can you put my brand name (logo) on these products?
Answer: Yes, We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Question: How much do I need to pay for your OEM service?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: How did I trust your company?
Answer: We have 12 years export from Alibaba, and our factory have more than 16 years' R&D Manufaturing experiences.
Question: After I get the products, If the products are broken , what kind of After-sales service you support?
Answer: First, please contact us and tell us problems, we can give good solutions to you, Second, you can return the goods, and we repair. We want to make a long time business with you, not one time.
